10/100/1000M LAN Ports - 1
Accessories included - EAP650-Outdoor Passive PoE Adapter Power cord Assembly kits Installation Guide
Antenna - Built-in
Antenna - Antenna direction type - Omni-directional
Antenna - Antenna type - Internal
Antenna gain - 5 dBi
ARTIKEL1 - AX3000 OUTDOOR WI-FI 6 AP
ARTIKEL2 - DUAL-BAND
Brand - TP-Link
BrandPartCode - EAP650-OUTDOOR
Breite - 0.24
Category - Wireless Access Points
Category 1 - Netzwerk
Category 2 - Accesspoints
Category Code - WAP
Certificates - CE, FCC, RoHS
Color - White
Data transmission speed - 3000 Mbps
Description - AX3000 Indoor/Outdoor WiFi 6 Access Point - Superior WiFi 6 Speeds: Delivers dual band speeds of up to 3 Gbps powered by the latest WiFi 6 technology. - Higher Network Efficiency: Enjoy faster speeds on more devices with less lag with OFDMA and MU-MIMO. - 160 MHz Bandwidth Channel: Double the data at peak transmission times on a single stream with HE160. - Long-Range Coverage: Dedicated high-power amplifier and professional antennas with an IP67 weatherproof enclosure. - Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment. - Stay Smooth with Seamless Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.3 - PoE Powered: : Supports both 802.3at PoE+ and Passive PoE (adapter included) power supply for flexible installation. - Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or the Omada app.
Description - EAP650-Outdoor Wireless Outdoor Access Point, AX3000 standard Outstanding WiFi speed 6: Simultaneous dual-band support offers speeds of up to 3Gbps. High connection performance: Guarantee higher network performance and lower latency thanks to OFDMA and MU-MIMO 160 MHz channel width: Double the amount of peak data transmission on a single stream with HE160. Long range: Dedicated high-power amplifier and professional antennas inside an IP67-rated sealed housing. Omada Mesh: The ability for access points to interconnect wirelessly to maintain long network coverage and freedom of location. Seamless roaming: Video transmissions and ongoing voice calls are not interrupted when users change locations. PoE power support: : Selecting a location for the device and installing it are easy thanks to support for PoE+ (802.3at standard) and Passive PoE power (adapter included). Centralised management in the cloud: Integration with Omada SDN allows the entire network to be managed locally and remotely via a Web interface or the Omada app. AX3000 WiFi 6 2402 Mbps in the 5 GHz band + 574 Mbps in the 2.4 GHz band. 160 MHz channel Double the amount of peak data transmission on a single stream with the HE160. High security WiFi 6 WAP3 encryption, Portal login (SMS, Facebook Wi-Fi, Voucher) and 802.1x authentication. Long range Smart, professional antennas and dedicated high-power amplifier. Omada Mesh technology Convenient and flexible wireless network distribution. PoE power supply Supports 802.3at PoE+ and Passive PoE power (adapter included). Smooth Roaming Uninterrupted streaming while moving between access points. IP67 rated Resistant to lightning, dust ingress, shock, vibration and moisture. Centralised management in the Cloud Manage your network locally and remotely via the Cloud. Long range High-powered professional antennas and amplifiers enable Wi-Fi 6 technology to provide large and strong wireless coverage in a wide variety of outdoor environments. Full Wi-Fi 6 potential with smart antennas TP-Link's Intelligent Antennas technology enables you to reduce interference, increase range and achieve higher performance. The EAP650-Outdoor is equipped with vertically polarised antennas and horizontally polarised antennas, and intelligent algorithms automatically select the optimal antennas to ensure peak Wi-Fi performance in indoor applications. Easy installation with Omada Mesh and PoE power supply Fewer cables Thanks to Mesh technology, EAP access points enable fewer wires by wirelessly extending the Wi-Fi signal, thereby facilitating access to hard-to-wire locations. PoE+ power supply from the switch Connecting to a PoE+ 802.3at switch via a single cable ensures data exchange and power supply. Passive PoE power supply The passive PoE adapter provides data exchange and power over a single cable. It is the ideal solution for home use. Smooth switching with Fast Roaming Provides users with uninterrupted streaming when they move around by switching their devices automatically to access points with optimal signal. IP67 weatherproof enclosure designed for outdoor use The EAP650-Outdoor is resistant to dust ingress, shock, shock, moisture and can withstand operation in extreme conditions. Seamless integration with the Omada SDN platform The Omada Software Defined Networking (SDN) platform integrates network devices such as Access Points, switches and routers to provide 100% centralised cloud-based management and a highly scalable network managed from a single interface. Easy management with the Omada app Only a few minutes are required to configure the device using the free Omada app. All you need to do is follow the on-screen commands. Omada allows you to change settings, monitor network status and manage clients, all from your smartphone or tablet.
Design - Certification - CE, FCC, RoHS
Design - International Protection (IP) code - IP67
Design - LED indicators - Yes
Design - Placement - Pole, Wall
Design - Product colour - White
Design - Reset button - Yes
dimension depth - 70 mm
dimension height - 325 mm
Dimensions - 280,4 x 106,5 x 56,8 mm
Dimensions - 280.4×106.5×56.8 mm
dimension weight - 1395 g
dimension width - 240 mm
ean - 4897098683552
EAN - 4897098683552
EANCode - 4897098683552
Environment requirements - Allowable operating temperature: -30-70C (-22-158F) Storage temperature: 40-70C (-40-158F) Permissible air humidity: 10-90%, non-condensing Permissible storage humidity: 5-90%, non-condensing
Features - 2.4 GHz - Yes
Features - 5 GHz - Yes
Features - 6 GHz - No
Features - Airtime Fairness (ATF) - Yes
Features - Automatic channel scanning - Yes
Features - Automatic channel selection - Yes
Features - Band steering - Yes
Features - BeamForming - Yes
Features - Cabling technology - 10/100/1000Base-T(X)
Features - Ethernet LAN data rates - 10,100,1000 Mbit/s
Features - Fit AP mode features - Mesh networking
Features - Maximum data transfer rate - 3000 Mbit/s
Features - Maximum data transfer rate (2.4 GHz) - 574 Mbit/s
Features - Maximum data transfer rate (5 GHz) - 2402 Mbit/s
Features - MIMO - Yes
Features - MIMO type - Multi User MIMO
Features - Networking standards - IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3at
Features - Number of users - 250 user(s)
Features - Quality of Service (QoS) support - Yes
Features - Rate limiting - Yes
Features - VLAN support - Yes
Full Description Line - Omada|EAP650-Outdoor|Type Wireless Access Point|Data transmission speed 3000 Mbps|IEEE 802.11a/b/g|IEEE 802.11n|IEEE 802.11ac|IEEE 802.11ax|1x10/100/1000M|Wireless Frequency Range 2.4 GHz, 5 GHz|Included Accessories • Passive PoE Adapter• Power Cord• Mounting Kits• Installation Guide|Power supply requirements 802.3at PoE / 48V Passive PoE (PoE Adapter Included)|Dimensions 280.4×106.5×56.8 mm
Gewicht - 1.39
Gross Weight Kg - 1,6
GRUPPE1 - Network
GRUPPE2 - Wireless Lan Ap
GTIN - 0840030703553
GTIN - 840030703553
GTIN - 4897098682098
GTIN - 4897098683552
guarantee - 60
guarantee_type - normal
HERSTELLER - TP-LINK
Hoehe - 0.07
HSTNUMMER - EAP650-OUTDOOR

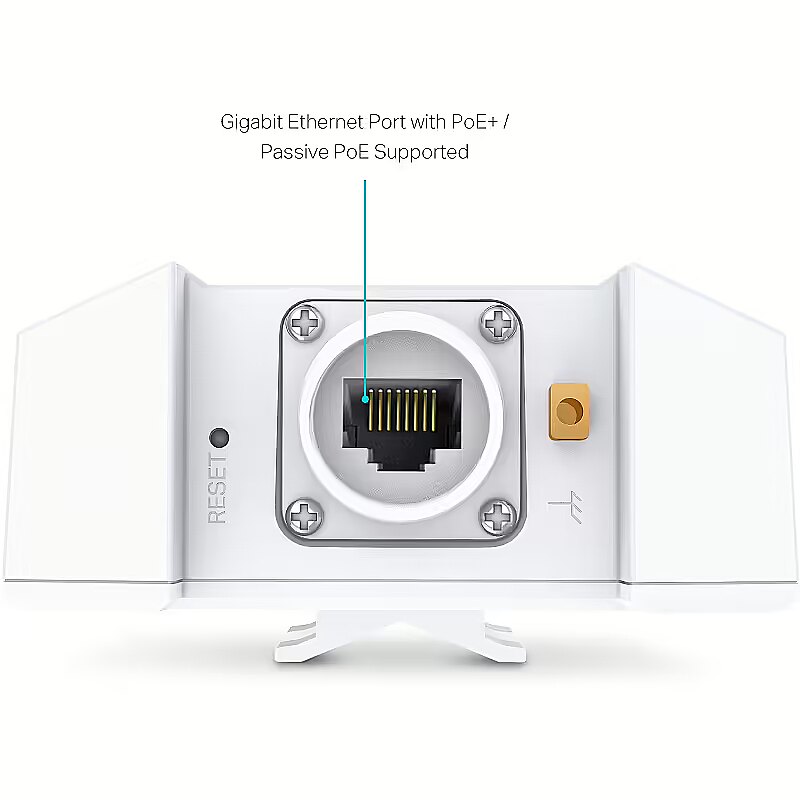

I/O ports - 1 x 10/100/1000 Mbit/s PoE
IEEE 802.11a/b/g Network standard - Yes
IEEE 802.11ac Network standard - Yes
IEEE 802.11ax Network standard - Yes
IEEE 802.11n Network standard - Yes
Included Accessories - • Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide
Laenge - 0.32
LongDesc - Fast and SmoothOutdoor WiFiAX3000 Indoor/Outdoor WiFi 6 Access Point- AX3000 WiFi 6 Speed2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz- 160 MHz ChannelDouble the data at peak transmission times on a single stream with HE160- High-Security WiFi 6WAP3 encryption, Captive Portal (SMS, Facebook Wi-Fi, Voucher), and 802.1x authentication- Long-Range CoverageProfessional Smart Antenna technology and dedicated high-power amplifier- Omada Mesh TechnologyFlexible wireless deployment without additional cabling- Easy and Flexible InstallationSupports both 802.3at PoE+ and Passive PoE (adapter included) for flexible installation- Seamless RoamingUninterrupted streaming when moving between APs- IP67 Waterproof & DustproofResistant to lightning, dust ingress, shock, vibration, and moisture- Centralized Cloud ManagementOmada SDN integration manages the whole network locally or from the cloudIdeal for Small, Medium, and Large Business Outdoor WiFi CoverageOutdoor WiFi for Business ScenariosPower up Your Business with New-Era Business WiFi 6WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.Lightning-Fast AX3000 WiFi 6 SpeedsNew-era business Wi-Fi 6 with speeds up to 2976 Mbps brings more than twice the speed of Wi-Fi 5.*1 Every application feels more fluid with drastically improved Wi-Fi speeds.Long-Range CoverageProfessional antennas equipped with high-power amplifiers utilize WiFi 6 technology to provide strong and expansive wireless coverage to various outdoor environments.Experience the Peak ofWiFi 6 with Smart AntennasTP-Link Smart Antenna technology brings lower interference, longer coverage, and higher performance. EAP650-Outdoor is equipped with horizontally polarized antennas and vertically polarized antennas, while its intelligent algorithms automatically select the optimal antennas to ensure the peak WiFi experience ideal for outdoor applications.Flexible Deployment with Omada Mesh and PoE SupportLess Wiring with MeshWith Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.Powered with PoE+ SwitchPowered and connected by an 802.3at PoE+ switch using one single cable for convenient deployment.Powered with Passive PoEPowered and connected by the provided passive PoE adapter using one single cable, ideal for home WiFi deployment.Always Stay Smooth with Seamless RoamingEnsures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.IP67 Weatherproof Enclosure for Outdoor EnvironmentsEAP650-Outdoor is totally resistant to dust ingress, shock, vibration, and moisture, withstanding the most extreme environments.Versatile Mounting SolutionsOur mounting kits provide flexible installation, whether inside or outside.Seamless Integration into the Omada SDN PlatformThe Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.Easy Management with the OmadaFollow the configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a phone or tablet.
LongProductName - 2.4GHz (574Mbps), 5GHz (2402Mbps), 1× Gigabit Ethernet (RJ-45), Wi-Fi 6 802.11ax/ac/n/g/b/a, 280.4 x 106.5 x 56.8 mm
LongSummaryDescription - TP-Link Omada AX3000 Indoor/Outdoor WiFi 6 Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 3000 Mbit/s. Security algorithms: WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
Management, monitoring, configuration - Omada app Email notifications Access control by MAC addresses SNMP: v1, v2c system log SSH Web-based management L3 management Multi-site management VLAN management Unattended ZTP setup (Requires use of Cloud-based Omada Controller) central management: Omada Cloud based controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada software controller Cloud access: Omada Cloud based controller Omada OC300 hardware controller Omada OC200 hardware controller Omada software controller
Manufacturer - TP-Link
Manufacturer Code - EAP650-OUTDOOR
Manufacturer Name - TP-LINK
Model name - EAP650-Outdoor
MPN - EAP650-OUTDOOR
name - Access Point EAP650-Outdoor AX3000
Name - TP-LINK Omada EAP650-Outdoor AX3000 Wifi6
Network architecture - FastEthernet
Network Device Type - Wireless Access Point
Number of antennas - 4
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -30 - 70 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Weatherproof housing: IP67 Mounting: Wall/pole mounting
Packaging content - Mounting kit - Yes
Packaging content - Number of products included - 1 pc(s)
Packaging content - Quick start guide - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - Power over Ethernet (PoE) - Yes
Power supply - 802.3at PoE 48V Passive PoE (PoE adapter included) Power Consumption: 12.5W (802.3at PoE or Passive PoE)
Power supply requirements - 802.3at PoE / 48V Passive PoE (PoE Adapter Included)
producer - TP-LINK
ProductName - AX3000 Indoor/Outdoor WiFi 6 Access Point
Security - Welcome page authentication Access control MAC address filtering Wireless client isolation SSID to VLAN mapping Detection of unauthorized APs 802.1X support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise encryption
Security - MAC address filtering - Yes
Security - Security algorithms - WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise
Security - Service Set Identifier (SSID) features - Multiple SSIDs, SSID broadcast on/off
Series - Omada
Shipping Box Depth Shipping/Package Box Dimensions - 32 cm
Shipping Box Height Shipping/Package Box Dimensions - 6.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.43 kg
Shipping Box Width Shipping/Package Box Dimensions - 24 cm
Short description - TP-LINK WLAN AX3000 Access Point Dualband EAP650-Outdoor WiFi 6 Access Point
ShortSummaryDescription - TP-Link Omada AX3000 Indoor/Outdoor WiFi 6 Access Point, 2.4 GHz, 5 GHz, 3000 Mbit/s, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise, 10,100,1000 Mbit/s
Software -
Special functions - 1024-QAM 4 times longer OFDM symbol OFDMA Multi-SSID (up to 16 SSIDs, 8 for each band) On/Off wireless transmission Automatic channel selection Transmission power control (based on dBm) QoS (WMM) MU-MIMO Seamless roaming3 Omada Mesh3 Band steering Bandwidth load balancing Airtime Fairness Beamforming Speed limiting Reboot schedule Wireless scheduler Wireless statistics based on SSID/AP/client
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11ax
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
Stck_Kart - 10
Stck_Pal - 0
Storno - Y
System Requirements - System requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Title - TP-Link Omada AX3000 Indoor/Outdoor WiFi 6 Access Point
Unit Box Height - 0.065
Unit Box Length - 0.32
Unit Box Width - 0.24
Unit Brutto Volume - 0.004992 cubm
Unit Gross Weight - 1.43 kg
Unit Net Weight - 0.8 kg
URL - https://www.tp-link.com/uk/business-networking/outdoor-ap/eap650-outdoor/
Vendor Homepage - www.tp-link.com/us/business-networking/omada-sdn-access-point/eap650-outdoor/
vendpn - EAP650-Outdoor
Warranty - 60 months
WarrantyInfo -
Weight - 1.42
Weight & dimensions - Depth - 106.5 mm
Weight & dimensions - Height - 56.8 mm
Weight & dimensions - Width - 280.4 mm
Wireless Frequency Range - 2.4 GHz, 5 GHz
