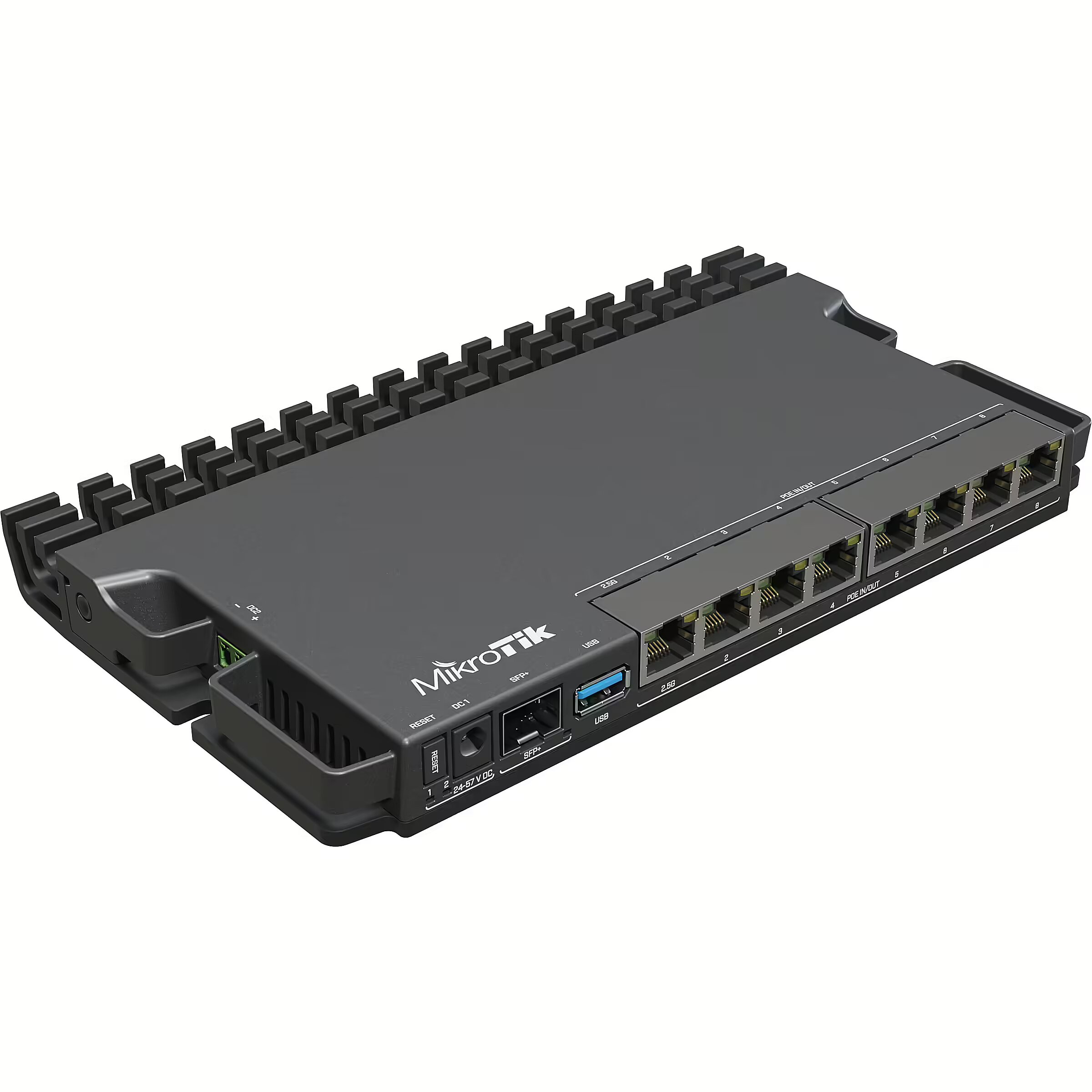

MikroTik RB5009UPr+S+IN

2.5GbE Ports - 1
10Base-T / 100Base-TX / 1000Base-T Ports - 7
Accessories included -
brand - MikroTik
category - MikroTik > Ethernet rūteri > RouterBoard
Category 1 - Netzwerk
Category 2 - Router
Category Code - ROU
Certificates - CE, EAC, ROHS
Code - RB5009UPr+S+IN
Color - Black
Description - MIKROTIK RB5009UPR+S+IN This version of the RB5009 has all the bells and whistles of the previous model: Gigabit Ethernet, 2.5 Gigabit Ethernet, and a 10 Gigabit SFP+ cage for fiber connectivity. It has the speed, the power, and the durability. But this time, we have added PoE-in & PoE-out on all eight Ethernet ports. Combined with the 2-pin connector and the DC jack, you’re getting 10 separate ways of powering. Dual redundant power supplies would usually take your uninterrupted uptime to the next level. RB5009UPr+S+IN takes it one step above that! All power options support a wide voltage range of 24 – 57 V. However, you can not mix the voltages. If you’re using PoE-out to power other devices, the board will choose the source with the highest voltage (DC jack or the 2-pin connector) to power those. Each PoE-out port can supply up to 25W of power. All the ports combined are limited to 130W, which should be enough for most setups. You can specify maximum available power from your power sources manually, if necessary. When it comes to PoE-out features, the new RB5009 can trade blows with our legendary PoE switches: CRS354 & CRS328. In the smallest possible form-factor and for the best price on the market! Protect your uptime, protect your tranquility! So what exactly happens if there is a problem with one of your power sources? Here’s a quick example: you have 24V on the DC jack, 48V on the 2-pin connector, and 57V on the PoE-in. The board itself gets powered by the highest voltage input – the PoE-in. If there’s a problem, RB5009 will fall back to the second highest voltage - the 2-pin connector. And if that fails – there’s the 24V option on the DC jack. What about the PoE-out devices? Once again – the highest voltage wins. PoE-out devices will draw power from the 48V source on the 2-pin connector. If that fails – the 24V on the DC jack come into play. The board will always reserve 20 watts to power itself. If there is not enough power for all the PoE-out ports, it will start disabling the ones with the lowest priority. You can set the port priority manually. This tiny form-factor shines anywhere: from confined research facilities and offices to huge corporate server rooms. And don’t forget that you can mount FOUR of these routers in a single 1U rackmount space With the new RB5009, we want to empower all the small and medium ISPs that are always on the lookout for the most cost-effective and robust solutions. It is a perfect addition to our previous GPEN devices – a line of products designed to replace the expensive GPON solutions.
Description - This version of the RB5009 model has all the possible additions of the previous model: Gigabit Ethernet, 2.5 Gigabit Ethernet and a 10 Gigabit SFP+ cage for fiber connectivity. It has speed, power and durability. This time we have also added PoE-in and PoE-out functions on all eight Ethernet ports. All power options support a wide voltage range from 24 to 57 V. Each PoE-out port can deliver up to 25 W of power. The total power of all ports is limited to 130W, which should be enough for most configurations. If necessary, you can manually determine the maximum available power from the power sources. When it comes to PoE-out features, the new RB5009 model can compete with our legendary PoE switches: CRS354 and CRS328. In the smallest possible format and at the best price on the market!
Design > Form factor - Rack Mountable
dimension depth - 140 mm
dimension height - 240 mm
Dimensions - 220 x 125 x 22 mm
dimension weight - 1100 g
dimension width - 80 mm
EAN - 4752224007155
ean - 4752224007155
Environment requirements -
Features > Mesh Support - No
Features > Mobile Broadband - No mobile broadband
Features > MU-MiMO - No
Full Description Line - Network Device Type Router|7x10Base-T / 100Base-TX / 1000Base-T|1x2.5GbE|1xSFP+|1xUSB 3.0|Memory (RAM) 1GB|Operating temperature range -40°C — 60°C
guarantee - 12
guarantee_type - normal
height - 0.1 m
I/O ports - 1 x 10/100/1000/2500 RJ-45 port PoE
I/O ports - 1 x SFP+
I/O ports - 1 x USB 3.0 Type A
I/O ports - 7 x 10/100/1000 Mbit/s PoE
length - 0.24 m
Link - https://mikrotik.com/product/rb5009upr_s_in
Management, monitoring, configuration -
Management features > Switch type - Router Switch
Manufacturer - MikroTik
Memory (RAM) - 1GB
Model - RB5009UPr+S+IN
mpn - RB5009UPr+S+IN
MPN - RB5009UPR+S+IN
Name - Mikrotik RB5009UPr+S+IN
Name - RouterBOARD | RB5009UPr+S+IN | No Wi-Fi | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 7 | Mesh Support No | MU-MiMO No | No mobile broadband
name - Wired router RB5009UPr+S+IN
Network architecture - GigabitEthernet
Network Device Type - Router
Networking > PoE in - 802.3af/at
Operating temperature range - -40°C — 60°C
Operational conditions > Operating temperature (T-T) - -40°C to 60°C °C
Other features - Operating system: RouterOS v7 RAM size: 1 GB MTBF: Approximately 200,000 hours at 25°C
Other features > Ethernet LAN (RJ-45) ports - 7
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 310.00 mm
Package features > Gross height (mm) - 48.00 mm
Package features > Gross width (mm) - 130.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 893 pc(s)
Package features > Paper/Pasteboard - 315.00 g
Package features > Plastic (No PET) - 35.00 g
Package features > Tare weight (kg) - 0.35 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PDF - https://www.blobs.lt/products/1/9/2/0/7/3/c516e9f579080f8826ef1b3f9468ffc6/original.pdf
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
Ports & interfaces > Predominant port type - 10/100/1000 Mbps (RJ-45)
Ports & interfaces > SFP+ ports quantity - 1
Power > Power consumption (max) - 150 W
Power > Voltage - 24-57 V
Power supply - Number of DC inputs: 3 (DC socket, PoE-IN, 2-pin connector) DC jack input voltage: 24-57V Maximum power consumption: 150 W
producer - MikroTik
Producer product family - RouterBOARD
Producer product name - RB5009UPr+S+IN
Security -
SFP+ Ports - 1
Shipping Box Depth Shipping/Package Box Dimensions - 23 cm
Shipping Box Height Shipping/Package Box Dimensions - 8 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.257 kg
Shipping Box Width Shipping/Package Box Dimensions - 14 cm
Software -
Software > Operating system installed - RouterOS
Special functions -
Standards - 802.3af
Standards - 802.3at
System Requirements -
Technical details > Gross weight - 0.80 kg
Technical details > Net weight - 0.45 kg
Technical details > Producer - MikroTik
Technical details > Software type - RouterOS
title - MikroTik RB5009UPr+S+IN
Type - xDSL
Unit Box Height - 0.08
Unit Box Length - 0.23
Unit Box Width - 0.14
Unit Brutto Volume - 0.002576 cubm
Unit Gross Weight - 1.26 kg
Unit Net Weight - 0.8 kg
USB 3.0 Ports - 1
Vendor Homepage - mikrotik.com/product/rb5009upr_s_in
vendpn - RB5009UPr+S+IN
Warranty - 12
Warranty - 12 month(s)
Warranty - 12 months
weight - 1.3 kg
Weight - 1.28
width - 0.15 m
Wireless LAN features > Wi-Fi band - No Wi-Fi
