Accessories included - PCI-Express Gigabit Ethernet card with standard bracket Low profile herring Installation manual Packed in a cardboard box
Box Weight Brutto (kg) - 0.1 kg
Category - Datortehnika :: Datoru komponentes :: Tīkla kartes (PCI/USB)
category - Peripherals|Networking & WLAN|Network Adapters
Chipset type - Realtek RTL8111E/F
Code - PCEE-GRF
code - PCEE-GRF
Data Bit Rate - 1 Gbps
Data Link Protocol Supports - Gigabit Ethernet/Fast Ethernet/Ethernet
Desc - Tips: LAN Adapteris, Pieslēgšanas veids: PCI Express, WiFi protokoli: Nav, Ātrums: 10/100/1000 Mbps, Šifrēšanas tipi: Nav, Garantija: 2 gadi

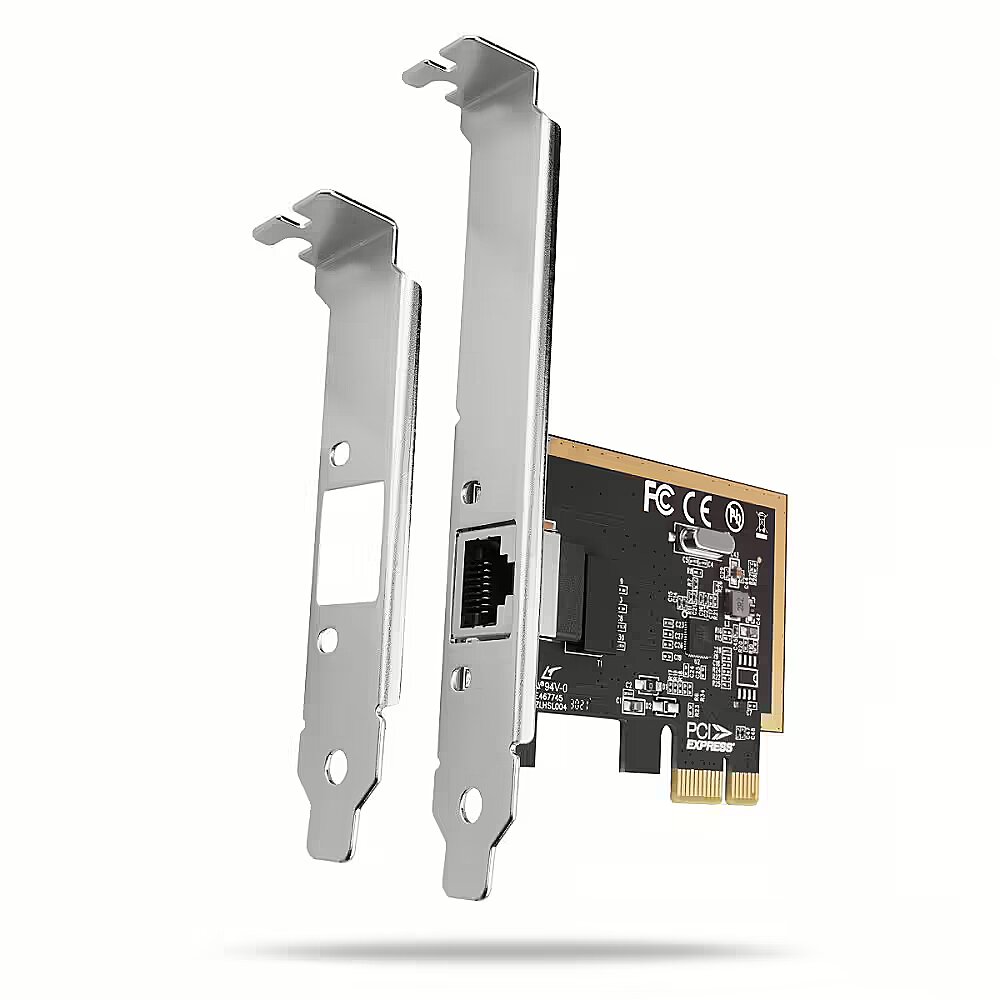

Description - AXAGON PCEE-GRF PCI-Express network card adds high speed Gigabit Ethernet connection to your desktop computer. It enables a transmission speed of 10/100/1000 Mbit/s. The network card is equipped with proven Realtek 8111 chipset. It ensures seamless compatibility with most operating systems. Gigabit network card connects the computer to the Internet or a computer network, adds the missing RJ-45 connector, add another network card or replaces the original defunct network connection. In addition to an adapter with a standard size bracket, the package also includes a low profile bracket which allows the mounting into low profile cases. Input:
PCI-Express 1.1 interface, PCI-Express 1.0a / 2.0 / 2.1 / 3.0 compatible.
Number of lines 1-Lane (x1), compatible with x1 / x4 / x8 / x16 PCIe slots.
A bandwidth of 1-Lane PCI-Express 1.1 bus 2.5 Gb/s. Output:
Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection.
Supported transmission rates for the Ethernet interface 10/100/1000 Mb/s.
Supported IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T specifications. Other features:
Full Plug and Play support.
10/100/1000 Mbit/s auto-detection.
Supports Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) to reduce processor load.
Supports Segmentation Task-offload (Large send v1 a Large send v2).
Supports full-duplex transmission s IEEE 802.3x flow control.
Supports IEEE 802.1P Layer 2 priority encoding.
Supports IEEE 802.1Q VLAN tagging.
Supports IEEE 802.3az-2010 (EEE) Energy Efficient Ethernet - reduce power consumption at standby.
Supports Auto MDI/MDIX - crossover detection and auto-correction eliminate the need for crossover cables.
Supports hardware ECC (Error Correction Code), CRC (Cyclic Redundancy Check) function.
Supports Pair Swap/Polarity/Skew Correction.
Two LEDs for indicating network activity and connection.
The Realtek RTL8111E/F chipset is used. Wake-on-LAN support in various modes:
Supports sleep mode and remote wake up via AMD Magic packet, Microsoft Wakeup Frame, Microsoft Wake Packet Detection and also Link Change wake-up.
Supports ECMA-393 proxZzzy standard for sleeping hosts to manage the network connection of sleeping guests using proxy servers. Advanced Power Management features:
The network card supports advanced power management to reduce losses during standby. It also supports advanced power saving when the Ethernet cable has been disconnected.
Supports Advanced Configuration Power management Interface (ACPI).
Supports Power Management offload (ARP & NS).
Supports PCI MSI (Message Signaled Interrupt) and MSI-X. Supported operating systems:
MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32- and 64-bit versions of OS Windows), MS DOS, MacOS X 10.4.x and higher, Linux kernel 2.4.x / 2.6.x / 3.x / 4.x, FreeBSD 7.x / 8.0 / 9.0, SCO Unix 5.0.6 / 5.0.7, SCO OpenServer 6, UnixWare 7.1.x, Novell server OS 5.x / 6.x, Novell client for DOS (ODI driver). Package contains:
PCI-Express Gigabit Ethernet card with a standard bracket,
low profile bracket,
multilanguage quick guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
packed in a cardboard box.
dimension depth - 30 mm
dimension height - 145 mm
Dimensions -
dimension weight - 60 g
dimension width - 110 mm
EAN - 8595247906120
ean - 8595247906120
External Color - Silver
guarantee - 24
guarantee_type - normal
I/O ports - 1 x 10/100/1000 Mbit/s
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/240426140010722160.jpg
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_94266_1.jpeg
Included Accessories - Low Profile BracketUser Guide
Interface - Ethernet
Interface - PCIe
LAN - 1 (RJ-45)
LAN Chipset - Realtek RTL8111E
LargeDescHTML - AXAGON PCEE-GRF PCI-Express network card adds high speed Gigabit Ethernet connection to your desktop computer. It enables a transmission speed of 10/100/1000 Mbit/s.The network card is equipped with proven Realtek 8111 chipset. It ensures seamless compatibility with most operating systems.Gigabit network card connects the computer to the Internet or a computer network, adds the missing RJ-45 connector, add another network card or replaces the original defunct network connection. In addition to an adapter with a standard size bracket, the package also includes a low profile bracket which allows the mounting into low profile cases.Input:
• PCI-Express 1.1 interface, PCI-Express 1.0a / 2.0 / 2.1 / 3.0 compatible.
• Number of lines 1-Lane (x1), compatible with x1 / x4 / x8 / x16 PCIe slots.
• A bandwidth of 1-Lane PCI-Express 1.1 bus 2.5 Gb/s.Output:
• Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection.
• Supported transmission rates for the Ethernet interface 10/100/1000 Mb/s.
• Supported IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T specifications.Other features:
• Full Plug and Play support.
• 10/100/1000 Mbit/s auto-detection.
• Supports Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) to reduce processor load.
• Supports Segmentation Task-offload (Large send v1 a Large send v2).
• Supports full-duplex transmission s IEEE 802.3x flow control.
• Supports IEEE 802.1P Layer 2 priority encoding.
• Supports IEEE 802.1Q VLAN tagging.
• Supports IEEE 802.3az-2010 (EEE) Energy Efficient Ethernet - reduce power consumption at standby.
• Supports Auto MDI/MDIX - crossover detection and auto-correction eliminate the need for crossover cables.
• Supports hardware ECC (Error Correction Code), CRC (Cyclic Redundancy Check) function.
• Supports Pair Swap/Polarity/Skew Correction.
• Two LEDs for indicating network activity and connection.
• The Realtek RTL8111E/F chipset is used.Wake-on-LAN support in various modes:
• Supports sleep mode and remote wake up via AMD Magic packet, Microsoft Wakeup Frame, Microsoft Wake Packet Detection and also Link Change wake-up.
• Supports ECMA-393 proxZzzy® standard for sleeping hosts to manage the network connection of sleeping guests using proxy servers.Advanced Power Management features:
The network card supports advanced power management to reduce losses during standby. It also supports advanced power saving when the Ethernet cable has been disconnected.
• Supports Advanced Configuration Power management Interface (ACPI).
• Supports Power Management offload (ARP & NS).
• Supports PCI MSI (Message Signaled Interrupt) and MSI-X.Supported operating systems:
MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32- and 64-bit versions of OS Windows), MS DOS, MacOS X 10.4.x and higher, Linux kernel 2.4.x / 2.6.x / 3.x / 4.x, FreeBSD 7.x / 8.0 / 9.0, SCO Unix 5.0.6 / 5.0.7, SCO OpenServer 6, UnixWare 7.1.x, Novell server OS 5.x / 6.x, Novell client for DOS (ODI driver).Package contains:
• PCI-Express Gigabit Ethernet card with a standard bracket,
• low profile bracket,
• multilanguage quick guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
• packed in a cardboard box.
Local Area Network Architecture - 10Base-T/100Base-TX/1000Base-T
name - AXAGON PCEE-GRF PCI-Express Gigabit Ethernet Realtek 8111F + LP
Name - Axagon PCEE-GRF PCIe Gigabit Ethernet
name - PCI-Express PCEE-GRF Gigabit Ethernet Realtek 8111F + LP
Network/Transport Protocol - IPv4 TCP/IP UDP IPv6
Networking Compliant Standards - IEEE 802.1p(QoS), IEEE 802.1Q(VLAN), IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
Networking Features - MDI/MDI-X switch
Networking Form Factor - Plug-in-card
Networking Type - Network Adapter
Number of Ports - 1
Other features - Input: PCI-Express 1.1 interface, compatible with PCI-Express 1.0a/2.0. / 2.1 / 3.0. Number of lanes 1-Lane (x1), compatible with x1 / x4 / x8 / x16 PCIe slots. 1-Lane PCI-Express 1.1 2.5Gb/s bus throughput. Output: Gigabit Ethernet interface with RJ-45 connector for connection via UTP or STP cable. Supported Ethernet interface baud rates 10/100/1000 Mb/s. Supported specification IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T.
Package Type - Retail
Packs in Box - 1
Pack Weight Brutto (kg) - 0.05 kg
Pack Weight Netto (kg) - 0.1 kg
Pieces in pack - 1
producer - AXAGON
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=220412094239038645&THEME=asbis&LANG=lv
ProductCategory - Tīkla produkti
ProductCode - PCEE-GRF
ProductDescription - AXAGON PCEE-GRF PCI-Express network card adds high speed Gigabit Ethernet connection to your desktop computer. It enables a transmission speed of 10/100/1000 Mbit/s.
ProductType - Network Interface Card
Requires Expansion Slot Standard - PCI Express x1
Retail Packaging Net Weight Carton - 0.1 kg
Retail Packaging Net Weight Plastic - 0.1 kg
Security -
Standards - 802.3
Standards - 802.3ab
Standards - 802.3u
Status Indicator - Activity Status
Supported operating systems - FreeBSD
Supported operating systems - Linux
Supported operating systems - Mac OS
Supported operating systems - Unix
Supported operating systems - Windows 7
Supported operating systems - Windows 8
Supported operating systems - Windows 8.1
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Supported operating systems - Windows Server 2003
Supported operating systems - Windows Server 2008
Supported operating systems - Windows Server 2012
Supported operating systems - Windows Server 2016
Supported operating systems - Windows Vista
Supported operating systems - Windows XP
System Requirements -
Type - LAN
Vendor - AXAGON
vendpn - PCEE-GRF
Warranty Products Returnable - Yes
Warranty Term (month) - 24 mēneši
Warranty validation Criteria - Serial Number
