MikroTik netPower 16P

Name: MikroTik netPower 16P
Brand: MikroTik
SKU: 564017
Price: 242.62 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 564017 Product code: CRS318-16P-2S+OUT

In stock 15 units

Warranty: 2 years (Warranty for business entities 1 year)

Compare

Delivery options

Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
Delivery to Omniva parcel locker 1.99 €: on Wednesday, 27.11.2024
Courier delivery 3.99 €: on Wednesday, 27.11.2024

Main product parameters All parameters

Speed index: 1000
Type of device: Ethernet Bridge
Wi-Fi standard: N/A

Basic information

Speed index : 1000

Type of device Ethernet Bridge

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : N/A

Functionality

3G/4G support Nav

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode N/A

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 100/1000

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.

Ports and equipment

LAN ports : 12

More detailed specification

Additional information in manufacturers website MikroTik netPower 16P

10/100/1000/2500 Mbps ports - None
10/100/1000M LAN Ports - 16
Accessories included -
Application - Medium and large companies
brand - MikroTik
category - MikroTik > Komutatori > Cloud Router Switch PoE
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category Code - SWI
Console port - No

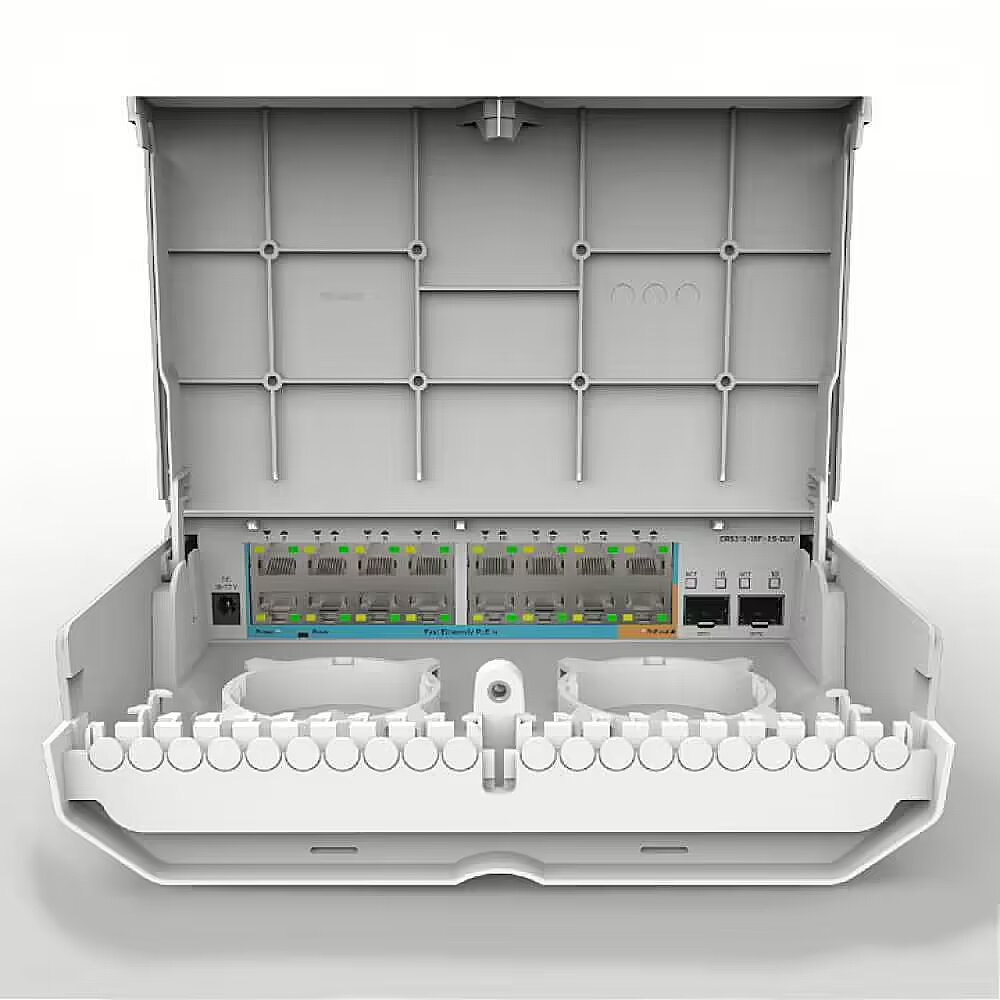

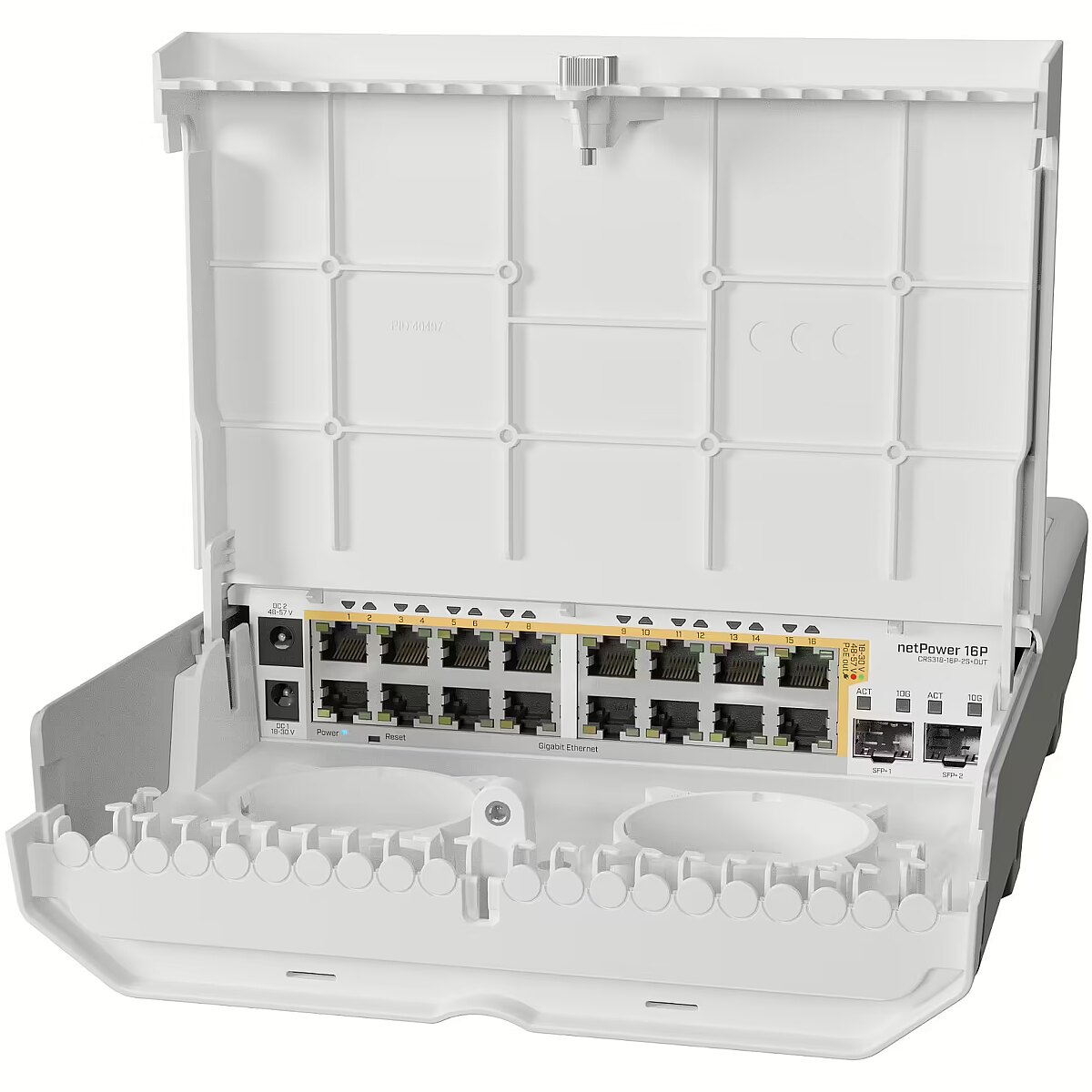

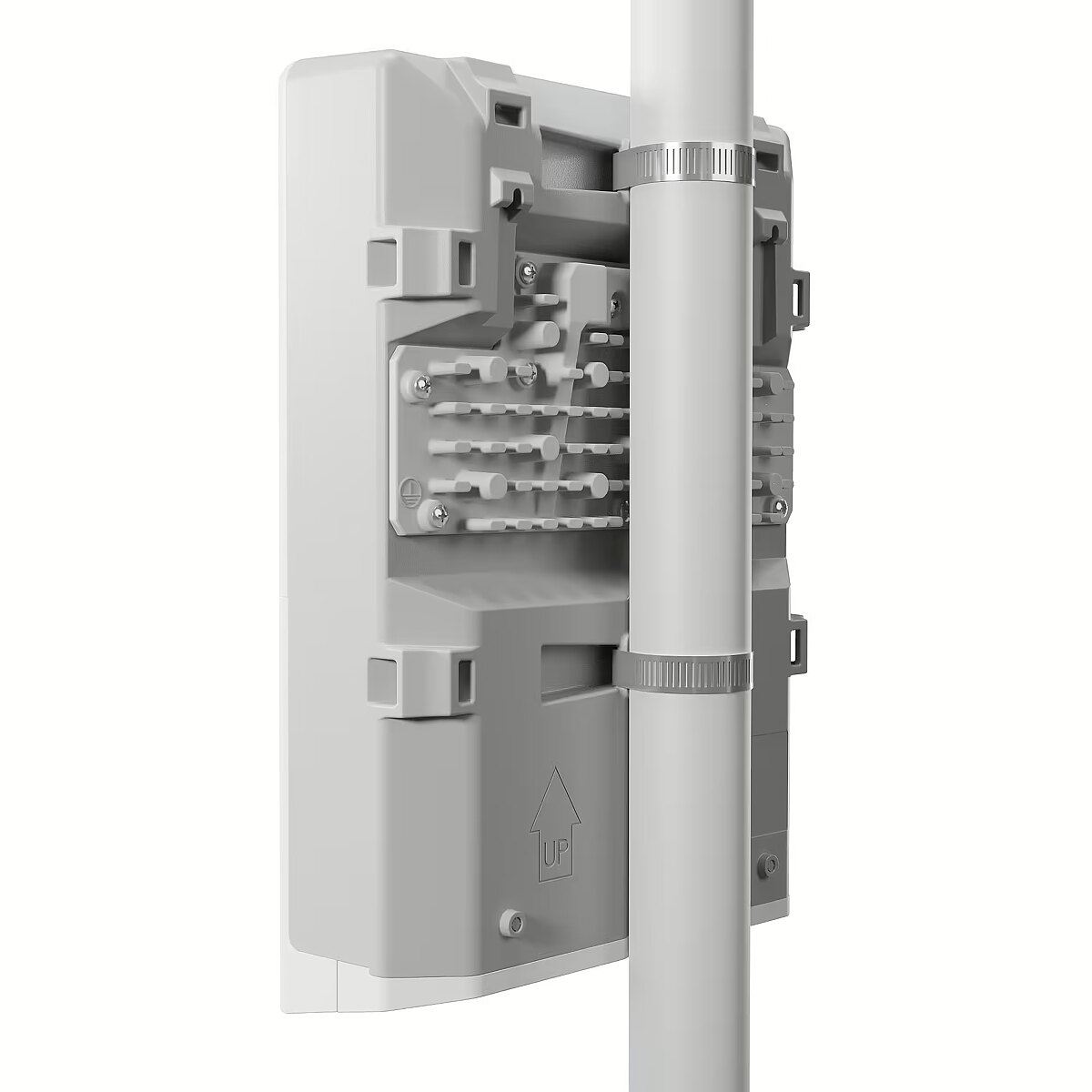

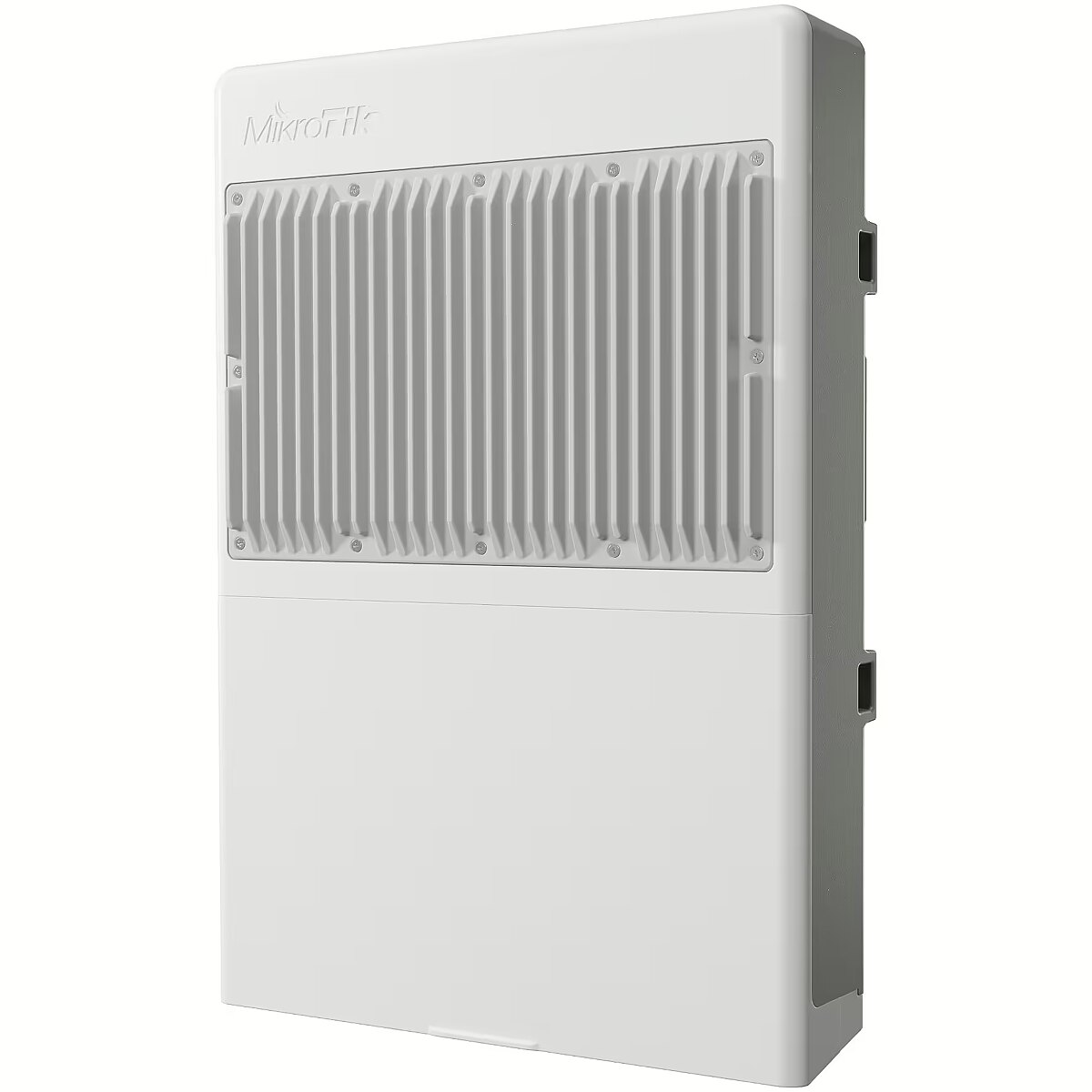

Description - MIKROTIK netPower 16P An outdoor 18 port switch with 16 Gigabit PoE-out ports and 2 SFP+. Power all your access points anywhere! Powering a bunch of access points or IP cameras and a few uplinks on a tower has never been easier. netPower 16P has 16 Gigabit Ethernet ports with PoE-out and two SFP+ ports for 10G fiber uplinks. Its sturdy and compact outdoor enclosure allows the switch to be mounted in all kinds of environments – from damp attics and shafts to towers, masts and poles with hose clamps. netPower 16P has a non-blocking throughput of 36 Gbps, switching capacity of 72 Gbps and forwarding rate of 53.6 Mpps. Device itself does not have an onboard voltage converter. You need 24V PSU to have 24V PoE out and/or 48V PSU to have 48V PoE out (IEEE 802.3 at/af). * Power supply is NOT included with the product. You are welcome to use your preferred power option, like battery pack etc. Compatible also with MikroTik power supplies 24HPOW, MTP250-53V47-OD, MTP250-26V94-OD, 48POW and 48V2A96W
Description - Zasilanie kilku punktów dostępowych lub kamer IP i kilku łączy nadrzędnych na wieży nigdy nie było łatwiejsze. NetPower 16P ma 16 portów Gigabit Ethernet z wyjściem PoE i dwa porty SFP+ dla uplinków światłowodowych 10G.
Jego solidna i kompaktowa obudowa zewnętrzna umożliwia montaż przełącznika w każdym środowisku od wilgotnych strychów i szybów po wieże, maszty i słupy. NetPower 16P ma nieblokującą przepustowość 36 Gb/s, zdolność przełączania 72 Gb/s i szybkość przekazywania 53,6 Mp/s.
Samo urządzenie nie posiada wbudowanego konwertera napięcia. Potrzebujesz zasilacza 24 V, aby mieć wyjście PoE 24 V i/lub zasilacza 48 V, aby mieć wyjście PoE 48 V (IEEE 802.3 at/af). Zasilacz nie jest dołączony do produktu. Możesz używać preferowanej opcji zasilania, takiej jak akumulator itp. Kompatybilny również z zasilaczami MikroTik 24HPOW, 48POW i 48V2A96W.
dimension depth - 90 mm
dimension height - 400 mm
Dimensions - 303 x 212 x 78 mm
dimension weight - 2500 g
dimension width - 250 mm
ean - 4752224002174
EAN - 4752224002174
Full Description Line - 16x10/100/1000M|IEEE 802.3af|IEEE 802.3at|Dimensions 303 x 212 x 78 mm|Unit Net Weight 2 kg
guarantee - 12
guarantee_type - normal
height - 0.12 m
IEEE 802.3af Network standard - Yes
IEEE 802.3at Network standard - Yes
L2 features -
L3 features -
length - 0.4 m
Management, monitoring, configuration -
Manufacturer - MikroTik
Mean time between failures (MTBF) - 200000 h
mpn - CRS318-16P-2S+OUT
MPN - CRS318-16P-2S+OUT
Name - 16P+2 Mikrotik CRS318-16P-2S+OUT SFP+ POE
name - MikroTik Switch 16xGbE 2xSFP+ CRS318-16P-2S+OU
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 16
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - 2
Number of SFP ports - None
Other features - Architektura: 32-bitowe ARM Procesor: 98DX226S Liczba rdzeni procesora: 1 Częstotliwość nominalna procesora: 800 MHz Licencja RouterOS: 5 System operacyjny: RouterOS/SwitchOS Rozmiar pamięci RAM: 256 MB Rozmiar pamięci: 16 MB Typ pamięci: Flash Testowana temperatura otoczenia: -40°C do 70°C
Other functions -
Power consumption - 316 W
Power supply - Liczba wejść DC: 2 (gniazdo DC) Wejście DC jack (napięcie): 18-30V / 48-57V Maksymalny pobór mocy: 316 W Maksymalny pobór mocy bez załączników: 16 W
producer - Mikrotik
QoS -
Security -
Shipping Box Depth Shipping/Package Box Dimensions - 40 cm
Shipping Box Height Shipping/Package Box Dimensions - 24.7 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.778 kg
Shipping Box Width Shipping/Package Box Dimensions - 9.7 cm
Supported protocols and standards -
Switch class - Managed
title - MikroTik netPower 16P
Unit Box Height - 0.247
Unit Box Length - 0.4
Unit Box Width - 0.097
Unit Brutto Volume - 0.009584 cubm
Unit Gross Weight - 2.78 kg
Unit Net Weight - 2 kg
Vendor Homepage - www.mikrotik.com
vendpn - CRS318-16P-2S+OUT
VLAN -
Warranty - 12 months
Weight - 2.8
weight - 3 kg
width - 0.25 m
