Accessories included - TRB140 4.5W power supply LTE antenna (magnet mounting, SMA male, 3m cable) Micro-USB cable (0.8 m) Assembly key LAN cable Quick start guide RMS leaflet
Aero2 support - No
Antenna - Detachable external
Antenna > Antenna type - 1 x SMA for LTE
Antenna gain - 2 dBi
Card reader - None
Category - Root/Electronics/Networks and communication/Routers
Category 1 - Netzwerk
Category 2 - Router
Certificates - CE/RED EAC RoHS WEEE
Code - TRB140003000
Color - Aluminium
Data transmission - GPRS
Data transmission - LTE
Data transmission - UMTS
Description - TELTONIKA IOT GATEWAY TRB140 ETH

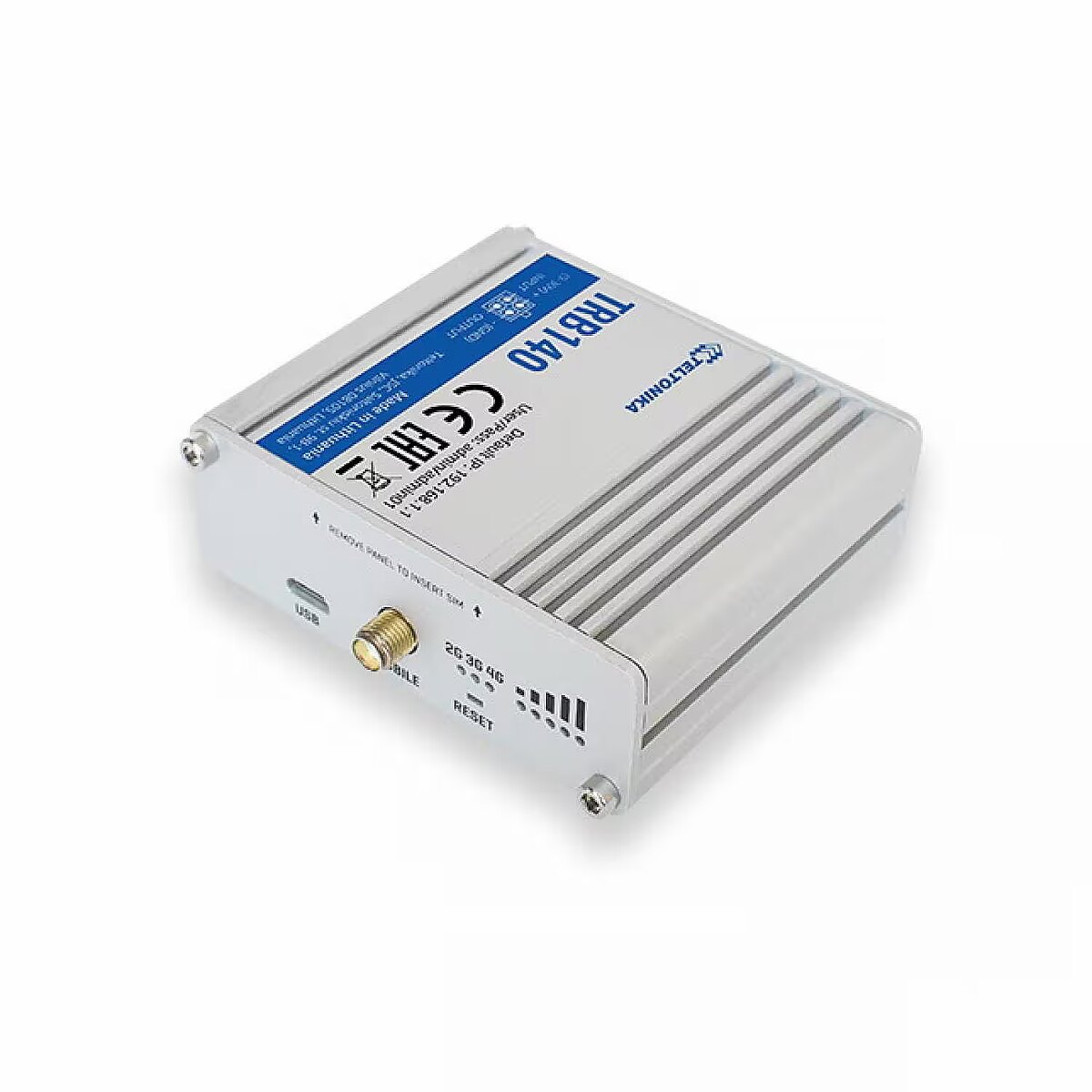

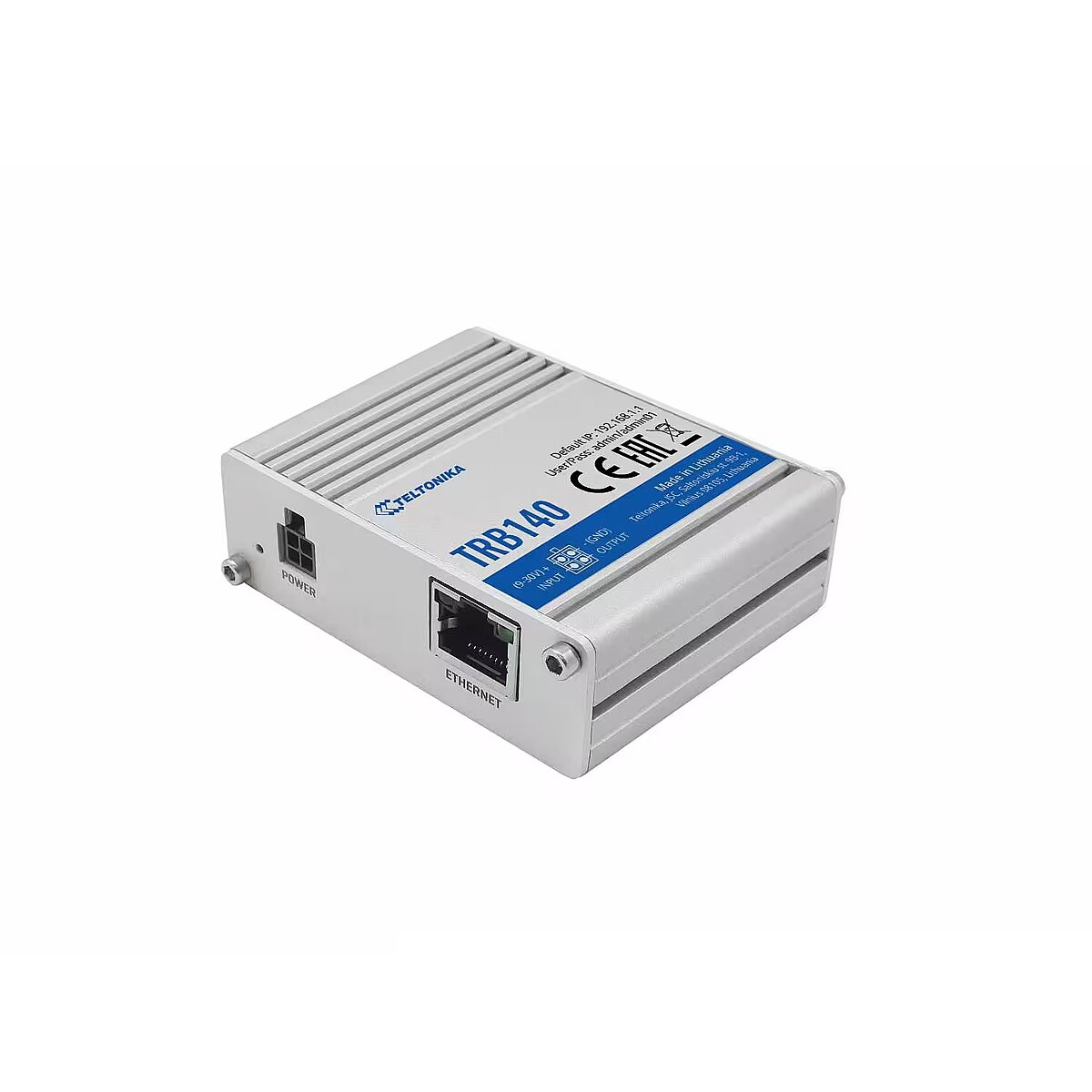

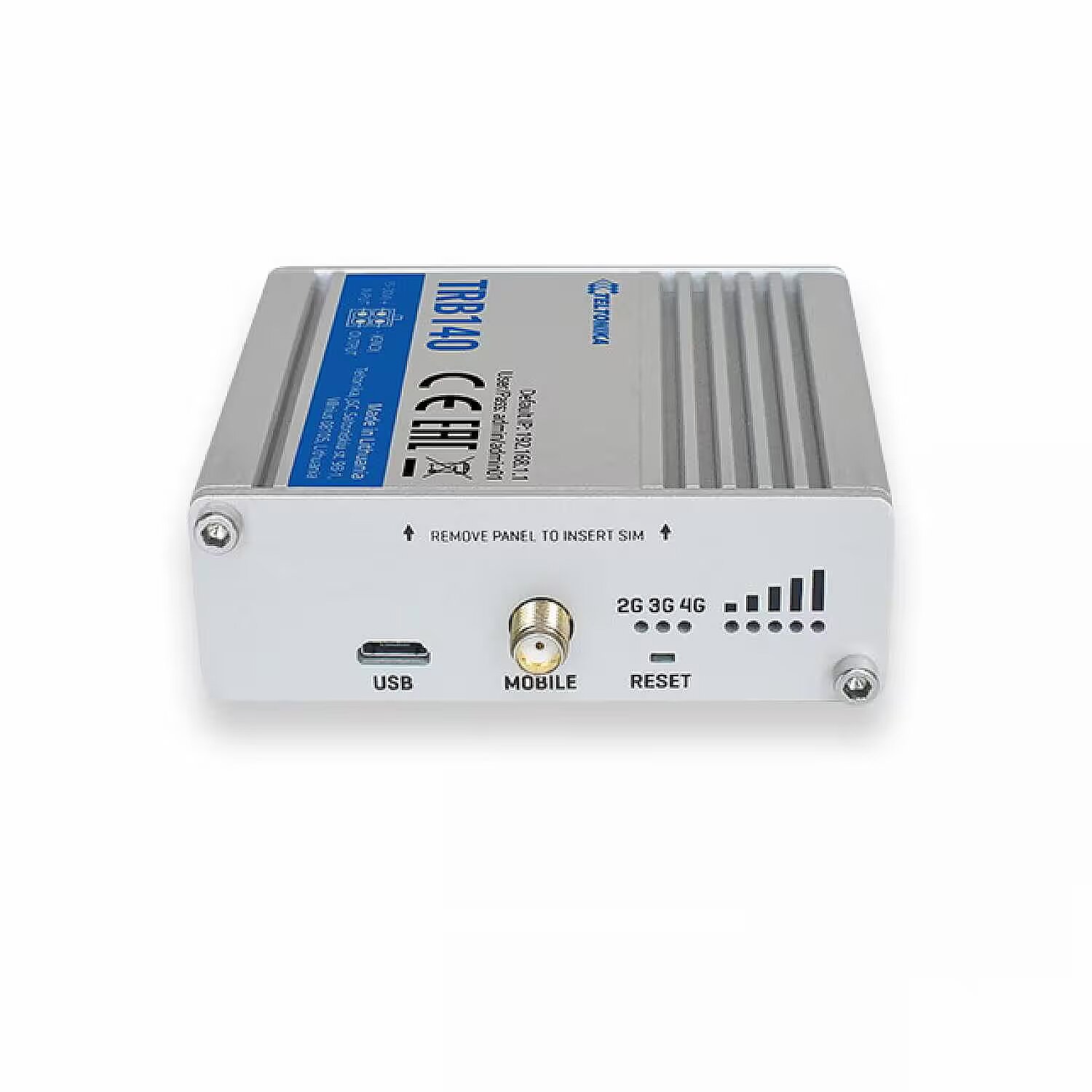

Description - TRB140 gateway The TRB140 is an ultra-small, lightweight, energy-efficient LTE Cat 4 industrial network interface with a Gigabit Ethernet port, digital I/O connectors and a micro-USB interface. Thanks to its compact design, this product is perfect for projects and solutions where you only need to connect one device to a reliable Internet connection. The TRB140 is specifically designed for use in the industrial sector and has a wide range of software security features such as SMS control, firewall, open VPN, IPsec, Remote Management System (RMS) and FOTA support.
Design > Housing material - Aluminum
dimension depth - 70 mm
dimension height - 175 mm
Dimensions - 75 x 25 x 65 mm
dimension weight - 428 g
dimension width - 150 mm
EAN - 4779027312408
ean - 4779027312408
Eans - 4779027312408
Environment requirements - Operating temperature range: -40 °C to 75 °C Humidity during operation: 10 - 90% without condensation
Features > Mesh Support - No
Features > Mobile Broadband - 2G/3G/4G
Features > MU-MiMO - No
GSM network - 900 MHz
GSM network - 1900 MHz
guarantee - 24
guarantee_type - normal
Height - 150.000000
I/O ports - 1 x 10/100/1000 Mbit/s PoE
I/O ports - 1 x micro USB
I/O ports - 1 x SIM card slot
Length - 70.000000
Link - https://teltonika-networks.com/lt/product/trb140/
LTE network - 700 MHz
LTE network - 800 MHz
LTE network - 900 MHz
LTE network - 1800 MHz
LTE network - 2100 MHz
LTE network - 2300 MHz
LTE network - 2500 MHz
LTE network - 2600 MHz
Management, monitoring, configuration - Mobile functions: Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits Monitoring and management: WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection Cloud solutions: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx SMS functions: SMS status, SMS configuration, Send/Read SMS via HTTP POST/GET, EMAIL to SMS, SMS to Email, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP Services: DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Traffic Logging
Manufacturer - TELTONIKA
Manufacturer - Teltonika
ManufacturerPartNumber - TRB140003000
Memory > Internal memory - 128 MB (50 MB available for userspace) GB
Model - TRB140
MPN - TRB140003000
name - Gateway TRB140 (Cat 4), 3G, 2G, PoE, USB
Name - Teltonika TRB140
Name - Teltonika TRB140 Industrial LTE Ethernet Gateway
Name - Teltonika TRB140 LTE Router: No WiFi, 4G, SIM, Enthernet port, Micro USB | LTE Router | TRB140 | No Wi-Fi | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 1 | Mesh Support No | MU-MiMO No | 2G/3G/4G | Antenna type 1 x SMA for LTE | 1 x Virtual network interface via micro USB | 24 month(s)
Networking > PoE in - Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
Number of antennas - One connector
Operational conditions > Operating relative humidity (H-H) - 10 % to 90 % non-condensing %
Operational conditions > Operating temperature (T-T) - -40 °C to 75 °C °C
Other features - Network support: 4G/LTE (Cat 4), 3G, 2G CPU: Qualcomm, ARM Cortex A7, 1.2 GHz Memory: 512 MB Flash (70 MB free), 128 MB RAM (50 MB free) Status LED: 3 x network type, 5 x signal strength, 2 x LAN, 1 x power Housing: Aluminum with the option of mounting on a DIN rail Degree of protection: IP30 Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP, Telnet
Other features > Dimensions (WxDxH) - 74,5x64,4xx25 mm
Other features > Ethernet LAN (RJ-45) ports - 1
Other features > Input voltage - 9 – 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33 VDC 10us max V
Other features > Supported protocols - HTTP(S), MQTT, Azure MQTT, Kinesis
Other features > USB ports quantity - 1 x Virtual network interface via micro USB
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 175 mm
Package features > Gross depth master carton - 375 mm
Package features > Gross height (mm) - 150 mm
Package features > Gross height master carton - 170 mm
Package features > Gross weight - 0.43 kg
Package features > Gross width (mm) - 70.00 mm
Package features > Gross width master carton - 370 mm
Package features > Net weight master carton - 4.3 kg
Package features > Packing quantity - 10 pc(s)
Package features > Palette Qty - 730 pc(s)
Package features > Paper/Pasteboard - 123 g
Package features > Tare weight (kg) - 0.123 kg
Package features > Tare weight master carton - 0.401 kg
Package features > Volume (m3) - 0.0018375 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
PeriodofWarranty - 2 Y
Ports & interfaces > SFP+ ports quantity - 0
Power supply - 4pin connector, 9-30 VDC
Processor > Processor model - ARM Cortex-A7 1.2 GHz CPU
producer - TELTONIKA
Producer - Teltonika
ProducerCode - TRB140
Producer product family - LTE Router
Producer product name - TRB140
Protocols > Supported network protocols - TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL)
Security - DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention) Firewall: Port forward, Traffic rules, Custom rules, Pre-configured firewall rules, DMZ, NAT, NAT-T, NAT helpers, Unlimited firewall configuration via CLI VPN: OpenVPN, IPsec, GRE, PPTP, L2TP
Security > Firewall security - Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T
ShortDescription - Teltonika TRB140 Bramka 4G LTE Cat4, 1x SIM, 1x LAN Gigabit, VPN
SIM card - Mini
Software - RutOS
Special functions -
System Requirements -
Technical details > Net weight - 0.307 kg
Technical details > Producer - Teltonika
Technical details > Software type - RutOS (OpenWrt based Linux OS)
Technical details > Warranty - 24 month(s)
Type - GSM 3G/4G
UMTS network - 900 MHz
UMTS network - 2100 MHz
vendpn - TRB140 003000
Warranty - 24
Weight - 0.43
Weight - 0.400000
Weight - 134 g
Width - 175.000000
Wireless LAN features > Wi-Fi band - No Wi-Fi
