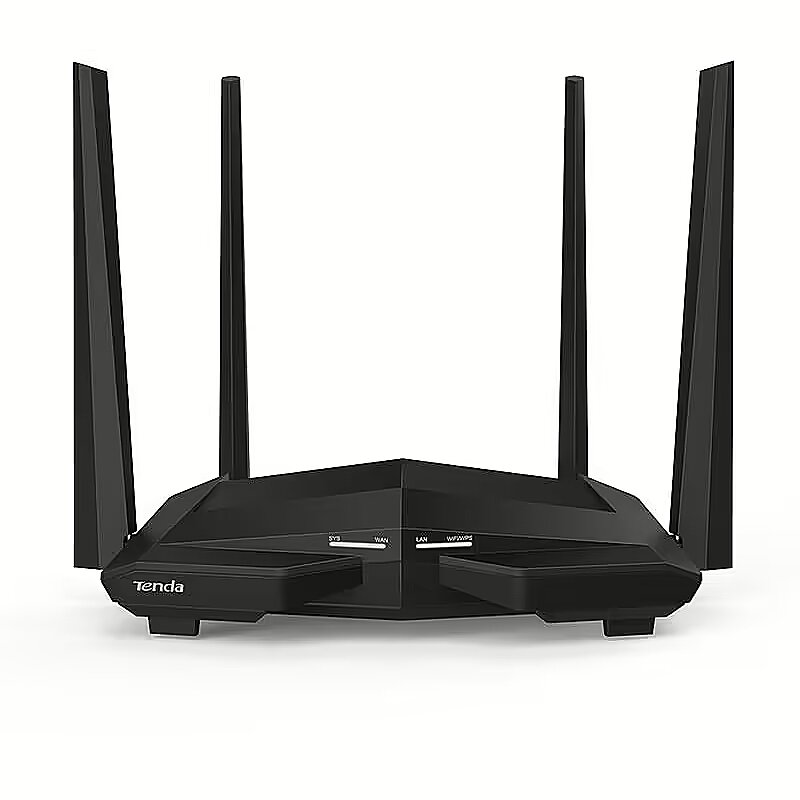

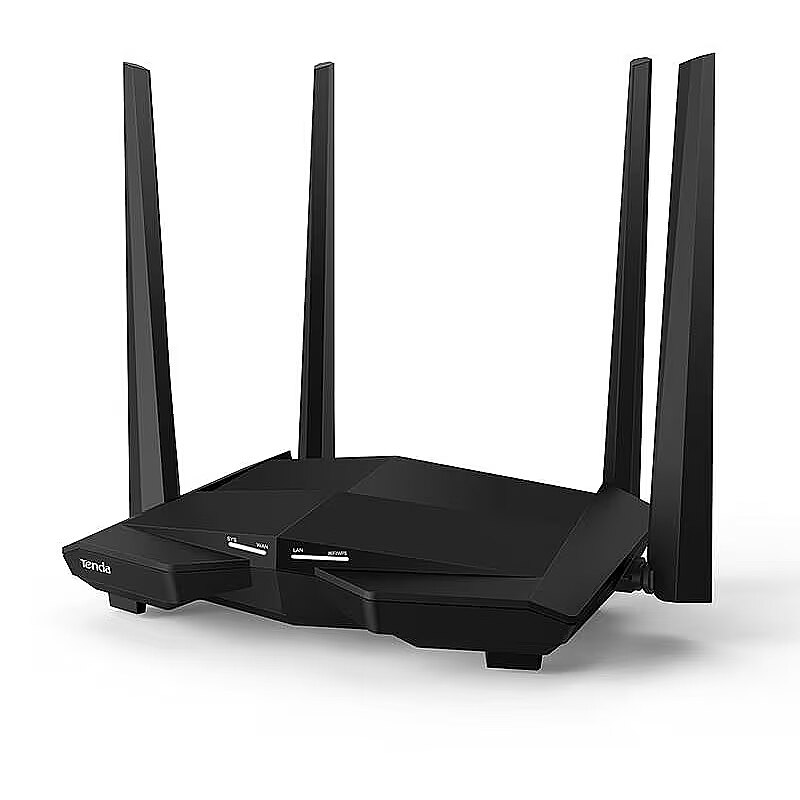

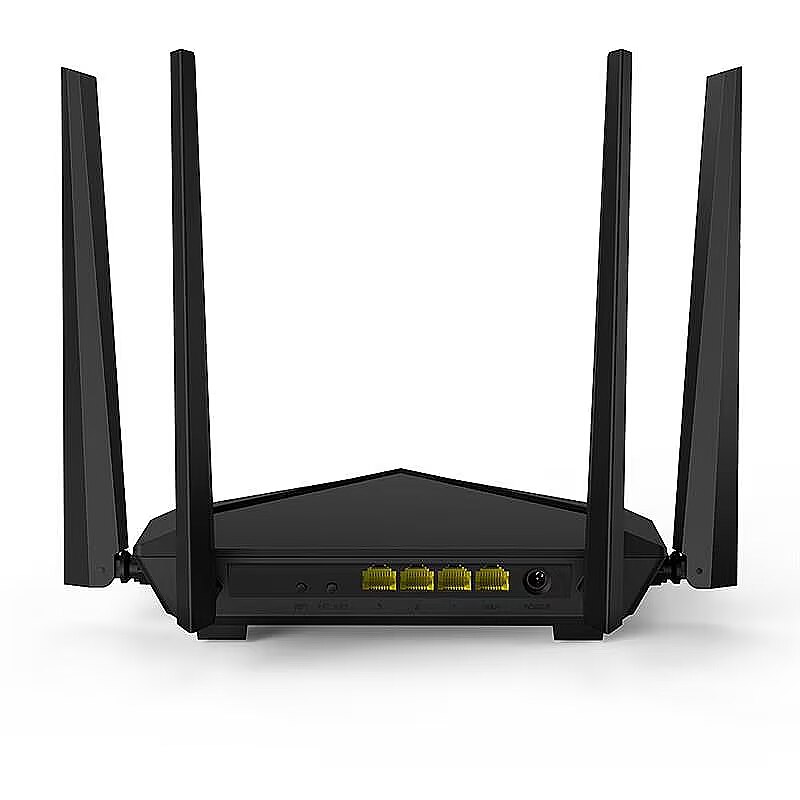

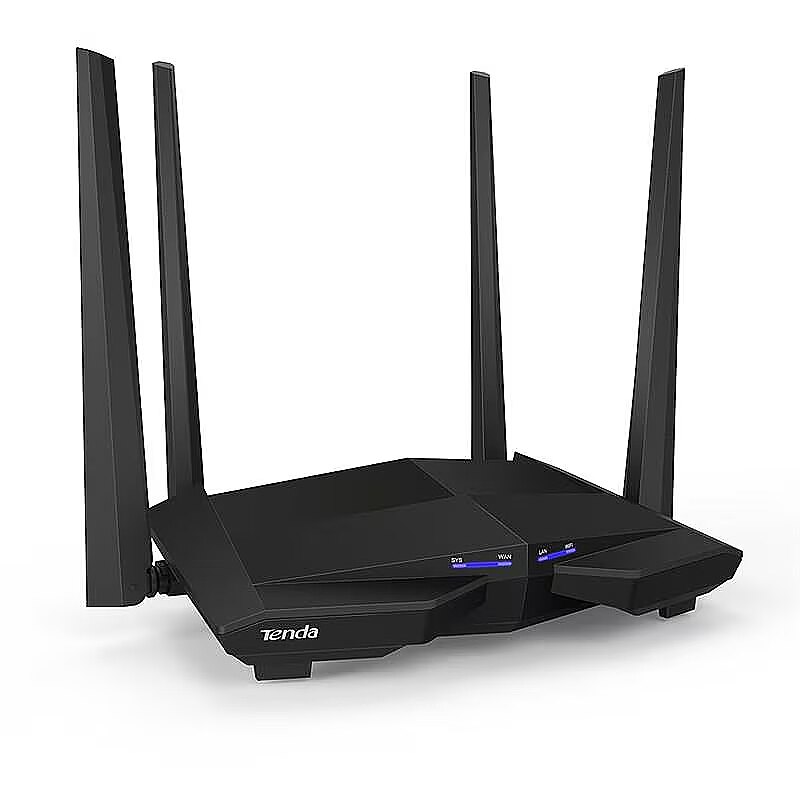

Tenda AC10

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 170942 Product code: AC10
Can be ordered 2 units Availability: 14 days after order approval
Warranty: 3 years
28.72 €
Delivery options
  • Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
  • Delivery to Omniva parcel locker 1.99 €: 11.12.2024
  • Courier delivery 3.99 €: 11.12.2024
Main product parameters All parameters
  • Speed index: 1200
  • Type of device: Router
  • Wi-Fi standard: Wi-Fi 5 (802.11ac)
Basic information
Speed index : 1200
Type of device Router

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 5 (802.11ac)
Functionality
3G/4G support Nav

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Dual-Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 100/1000

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment
LAN ports : 4
Wireless card
  • Alternatives
  • Alternatives
More detailed specification
Additional information in manufacturers website Tenda AC10
Antenna - Antenna design - External
Antenna - Antenna gain level (max) - 5 dBi
Antenna - Antennas quantity - 4
Antenna - Transmit power - 23 dBmW
Category - Root/Electronics/Networks and communication/Routers
Category - Tīkla produkti, Gudrā māja :: Maršrutētāji / Rūteri
Code - AC10
Desc - Portu ātrums: 10/100/1000 Mb/s, Tips: LAN/Wifi, WiFi protokoli: IEEE 802.11a/b/g/n/ac, WiFi ātrums: 1167 Mb/s, WiFi frekvenču josla: 2.4 GHz / 5 GHz (Divu joslu), LAN portu skaits: 3, Ugunsmūris | Firewall: Ir, Garantija: 2 gadi
Design - Indication light - Yes
Design - LED indicators - LAN, System, WAN, WLAN, WPS
Design - On/off switch - Yes
Design - Product colour - Black
Design - Product type - Tabletop router
dimensionalWeight - 1464
EAN - 5902701410131
Eans - 6932849427547
Features - Certification - CE, FCC, RoHS, BSMI, NCC, EAC, IC
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_77792_1.jpg
LargeDescHTML -
Logistics data - Harmonized System (HS) code - 85176990
Management features - Reset button - Yes
Management features - WPS push button - Yes
Mobile network - 3G - No
Mobile network - 4G - No
Name - Tenda AC10
Network - Cabling technology - 10/100/1000Base-T(X)
Network - Dynamic DNS (DDNS) - Yes
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100 Mbit/s
Network - Ethernet LAN data rates - 1000
Network - Ethernet LAN interface type - Gigabit Ethernet
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.11a
Network - Networking standards - IEEE 802.11ac
Network - Networking standards - IEEE 802.11b
Network - Networking standards - IEEE 802.11g
Network - Networking standards - IEEE 802.11n
Network - Port forwarding - Yes
Network - Static route - Yes
Network - VPN support - PPTP Client, PPTP Server, L2TP Client
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Packaging content - AC adapter included - Yes
Packaging content - Cables included - LAN (RJ-45)
Packaging content - Quick installation guide - Yes
Packaging data - Number of products included - 1 pc(s)
Packaging data - Package depth - 390 mm
Packaging data - Package height - 70 mm
Packaging data - Package type - Box
Packaging data - Package weight - 810 g
Packaging data - Package width - 198 mm
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 3
Ports & interfaces - Memory card slot(s) - No
Ports & interfaces - USB port - No
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Output current - 2 A
Power - Output voltage - 12 V
Power - Power source type - DC
Producer - Tenda
producerCode - AC10
ProducerCode - AC10
productName - Tenda AC10 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black
productSize - Normal
Protocols - DHCP client - Yes
Protocols - DHCP server - Yes
Protocols - Universal Plug and Play (UPnP) - Yes
Security - DMZ support - Yes
Security - Filtering - Yes
Security - Firewall - Yes
Security - MAC address filtering - Yes
Security - Security algorithms - WPA
Security - Security algorithms - WPA-PSK
Security - Security algorithms - WPA2
Security - Security algorithms - WPA2-PSK
Security - Security algorithms - WPS
Security - System event log - Yes
ShortDescription - Inteligentny, dwupasmowy, bezprzewodowy router AC1200
sizeX - 305
sizeY - 300
sizeZ - 80
System requirements - Linux operating systems supported - Yes
System requirements - Mac compatibility - Yes
System requirements - Mac operating systems supported - Yes
System requirements - Windows operating systems supported - Windows 7
System requirements - Windows operating systems supported - Windows 8
System requirements - Windows operating systems supported - Windows 8.1
System requirements - Windows operating systems supported - Windows 10
System requirements - Windows operating systems supported - Windows Vista
System requirements - Windows operating systems supported - Windows XP
WAN connection - 3G/4G USB modem compatibility - No
WAN connection - DSL WAN - No
WAN connection - Ethernet WAN - Yes
WAN connection - SIM card slot - No
WAN connection - WAN connection type - RJ-45
warrantyLength - 36
warrantyType - G
weight - 755
Weight & dimensions - Depth - 390 mm
Weight & dimensions - Height - 70 mm
Weight & dimensions - Weight - 350 g
Weight & dimensions - Width - 198 mm
Wireless LAN features - Top Wi-Fi standard - Wi-Fi 5 (802.11ac)
Wireless LAN features - Wi-Fi band - Dual-band (2.4 GHz / 5 GHz)
Wireless LAN features - Wi-Fi standards - 802.11a
Wireless LAN features - Wi-Fi standards - 802.11b
Wireless LAN features - Wi-Fi standards - 802.11g
Wireless LAN features - Wi-Fi standards - Wi-Fi 4 (802.11n)
Wireless LAN features - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Wireless LAN features - WLAN data transfer rate (first band) - 300 Mbit/s
Wireless LAN features - WLAN data transfer rate (max) - 867 Mbit/s
Wireless LAN features - WLAN data transfer rate (second band) - 867 Mbit/s
