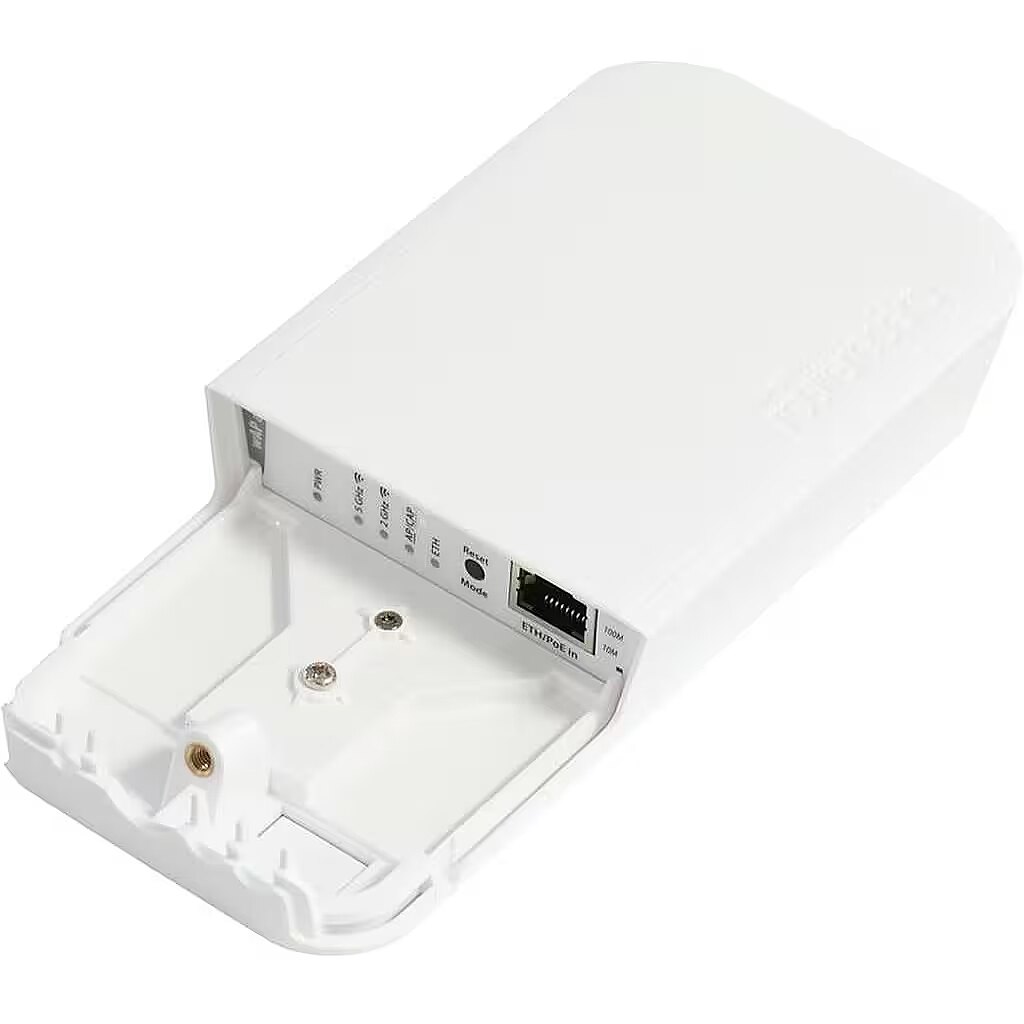

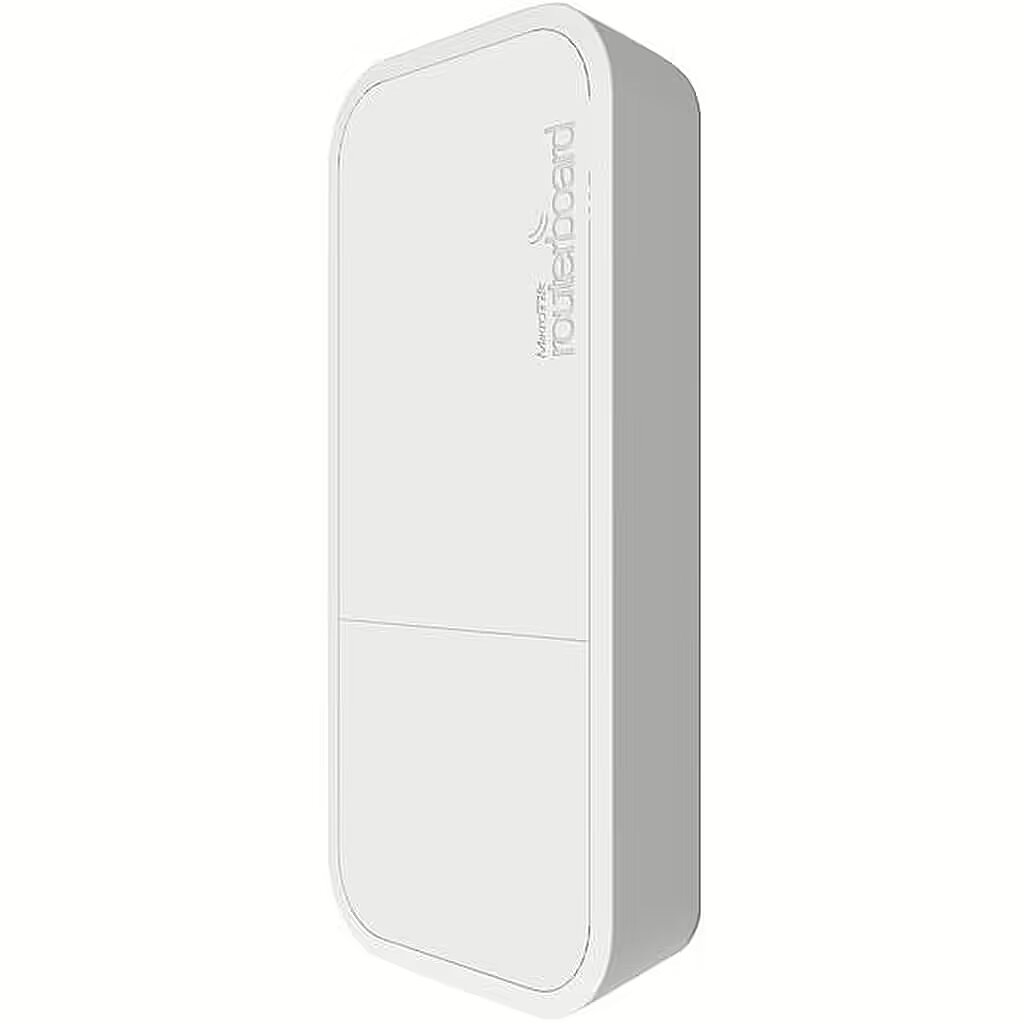

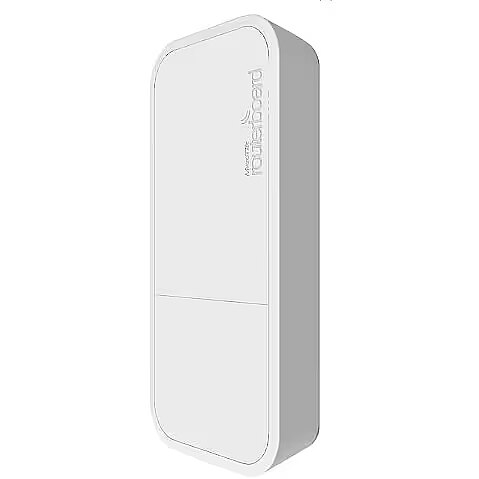

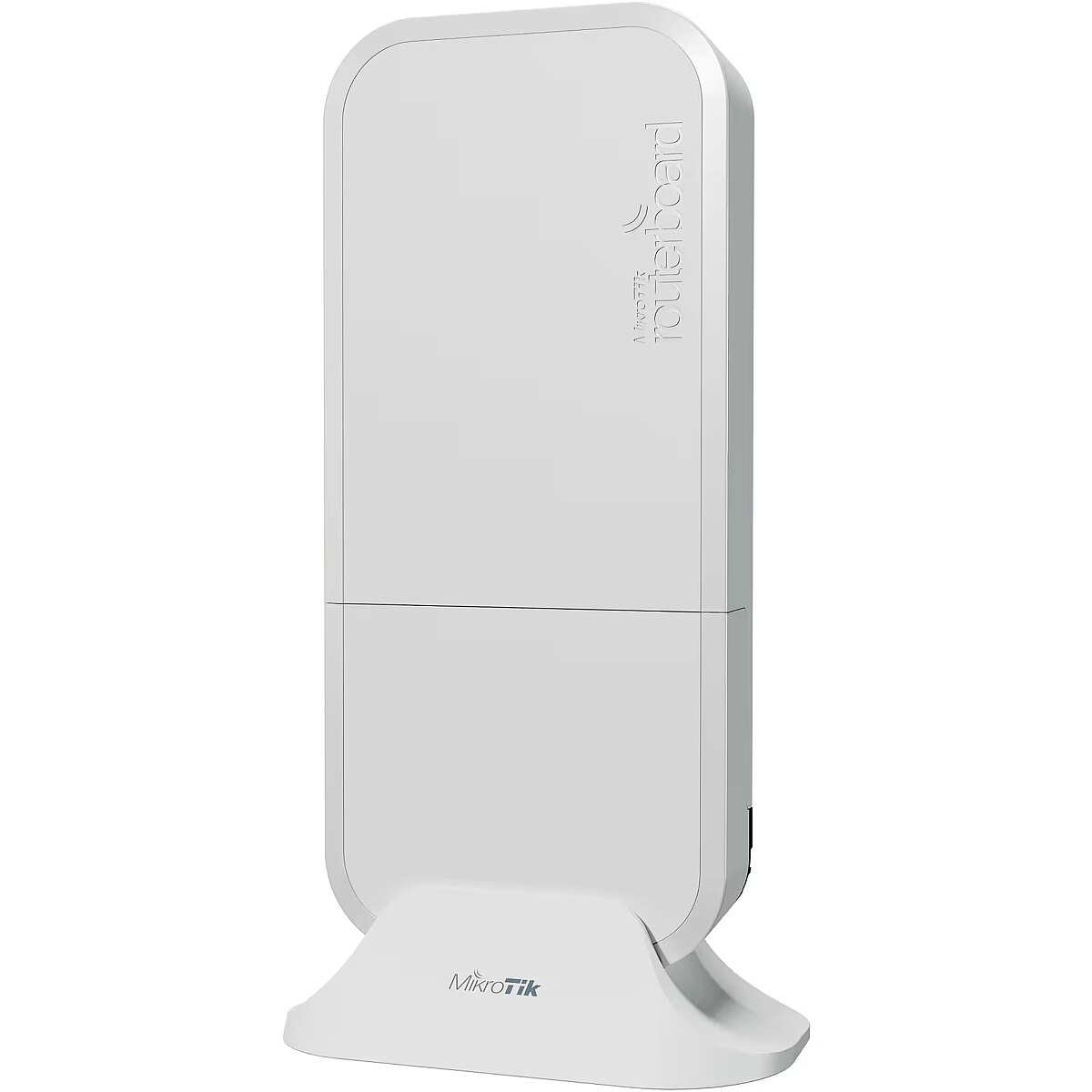

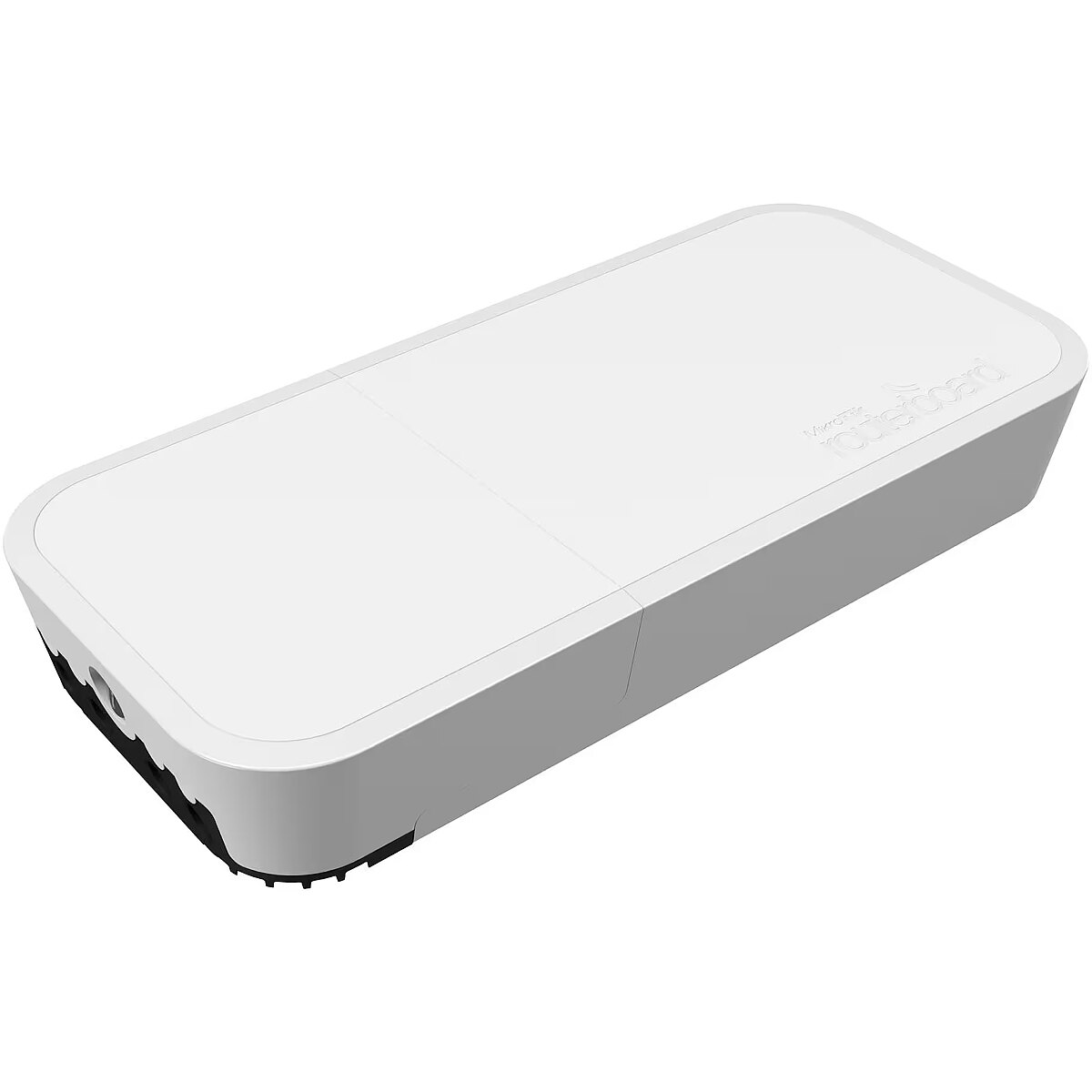

MikroTik RBwAPG-5HacT2HnD Wireless Access Point

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 141882 Product code: MT RBwAPG-5HacT2HnD
In stock 12 units
Warranty: 2 years (Warranty for business entities 1 year)
77.21 €
Delivery options
  • Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
  • Delivery to Omniva parcel locker 1.99 €: 29.11.2024
  • Courier delivery 3.99 €: 29.11.2024
Main product parameters All parameters
  • Speed index: 867
  • Type of device: Access Point
  • Wi-Fi standard: Wi-Fi 5 (802.11ac)
Basic information
Speed index : 867
Type of device Access Point

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 5 (802.11ac)
Functionality
3G/4G support Nav

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Dual-Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet N/A

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment
LAN ports : 0
Wireless
  • Alternatives
  • Alternatives
More detailed specification
Additional information in manufacturers website MikroTik RBwAPG-5HacT2HnD Wireless Access Point
10/100/1000M LAN Ports - 2
Accessories included -
Antenna - Antenna type - Internal
Antenna gain - 2.5 dBi
Antenna Type - Omni-Directional
Available bandwidth - 1200 Mbps
brand - MikroTik
category - MikroTik > Wi-Fi mājai un ofisam > wAP
Category 1 - Netzwerk
Category 2 - Accesspoints
Category Code - WOD
Code - RBwAPG-5HacD2HnD
Color - White
CPU - IPQ-4018
Data transmission speed - 867 Mbps

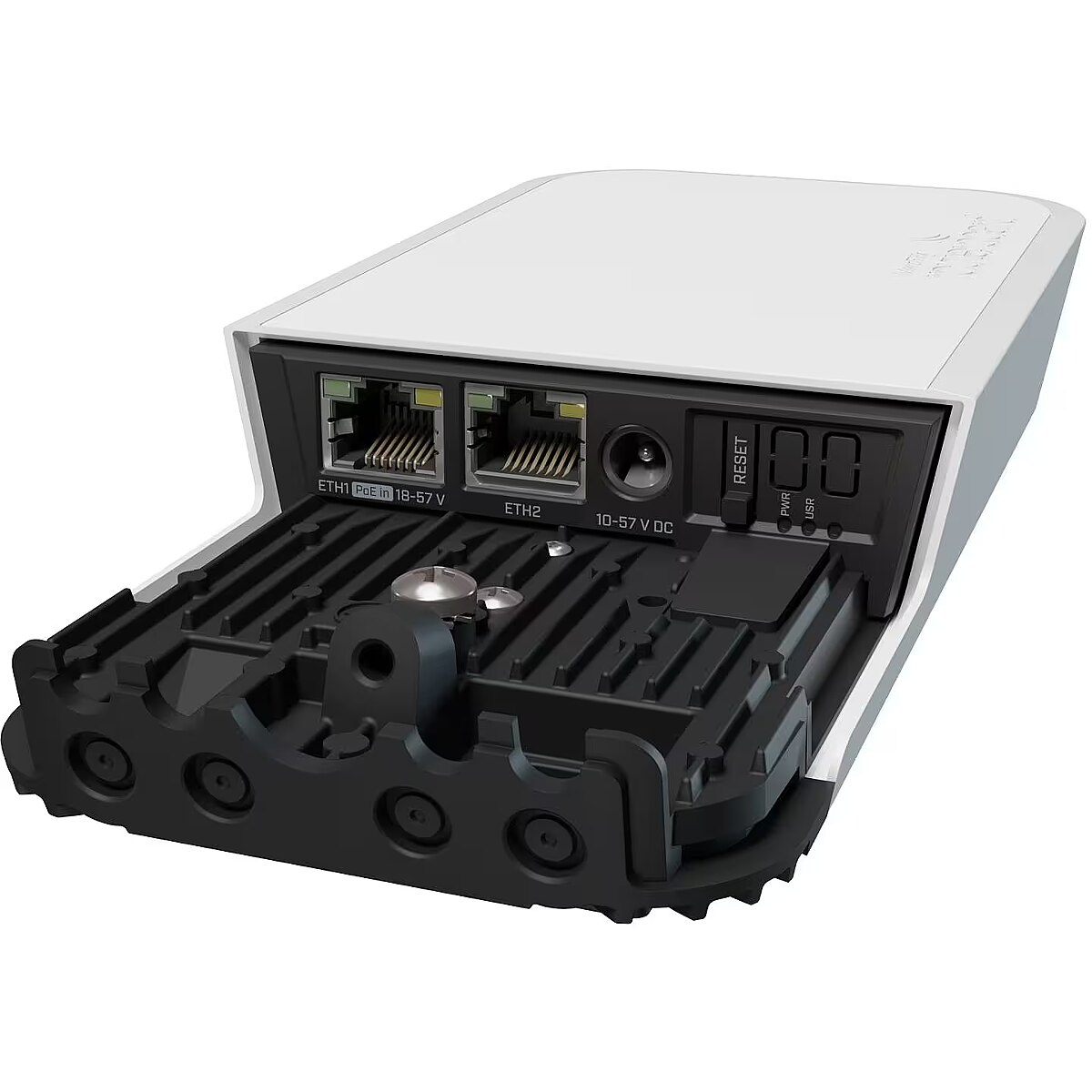

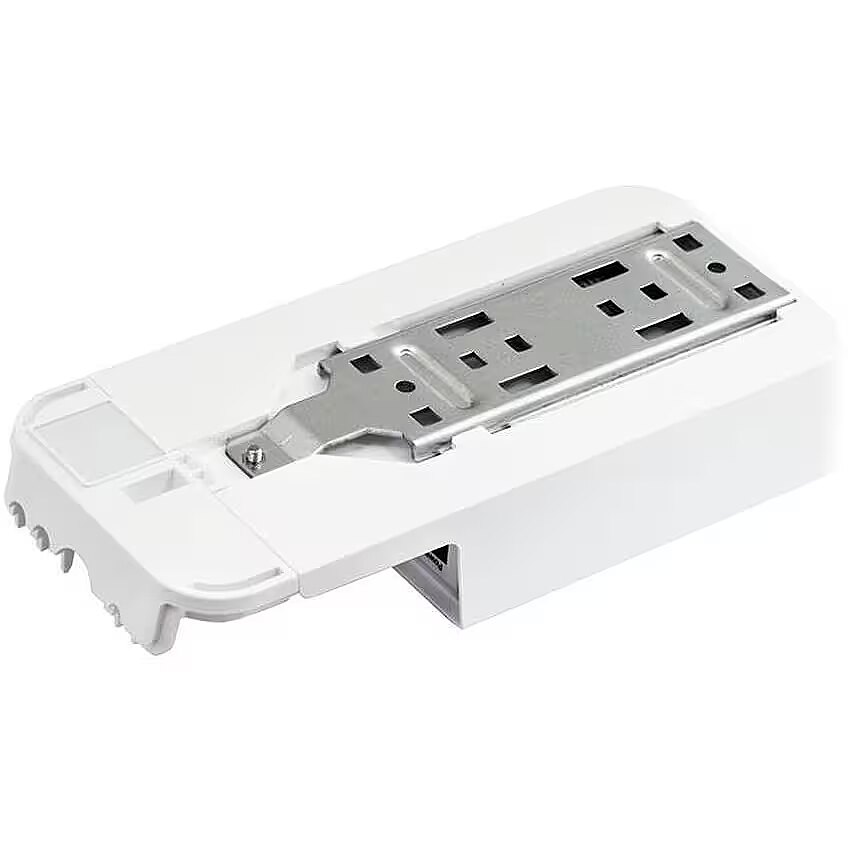

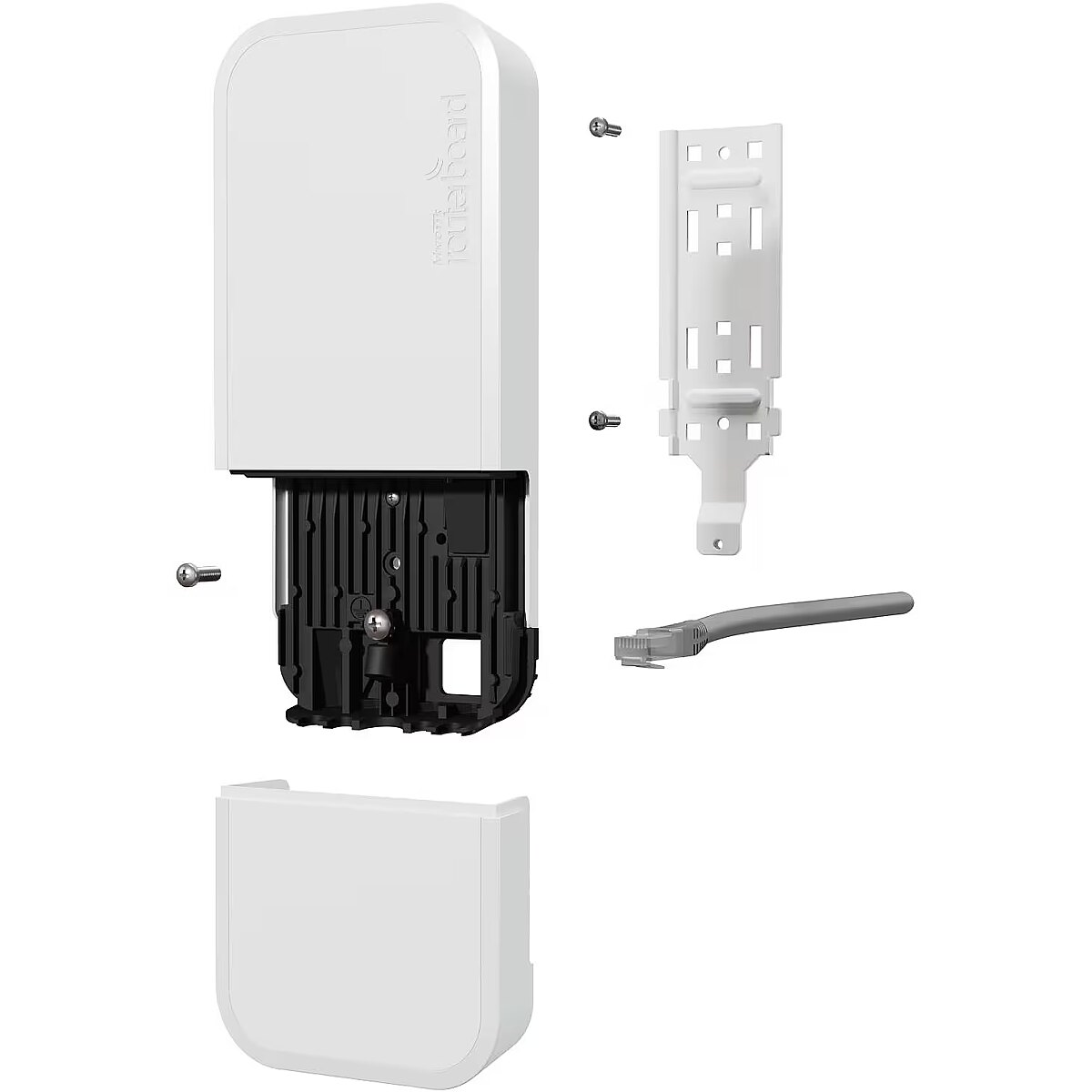

Description - MIKROTIK wAP ac wAP ac – a small dual-band weatherproof wireless access point for mounting on a pole, wall, or the ceiling. The new revision features 2x Gigabit Ethernet ports, enhanced wireless antenna performance, more RAM, and a powerful quad-core CPU

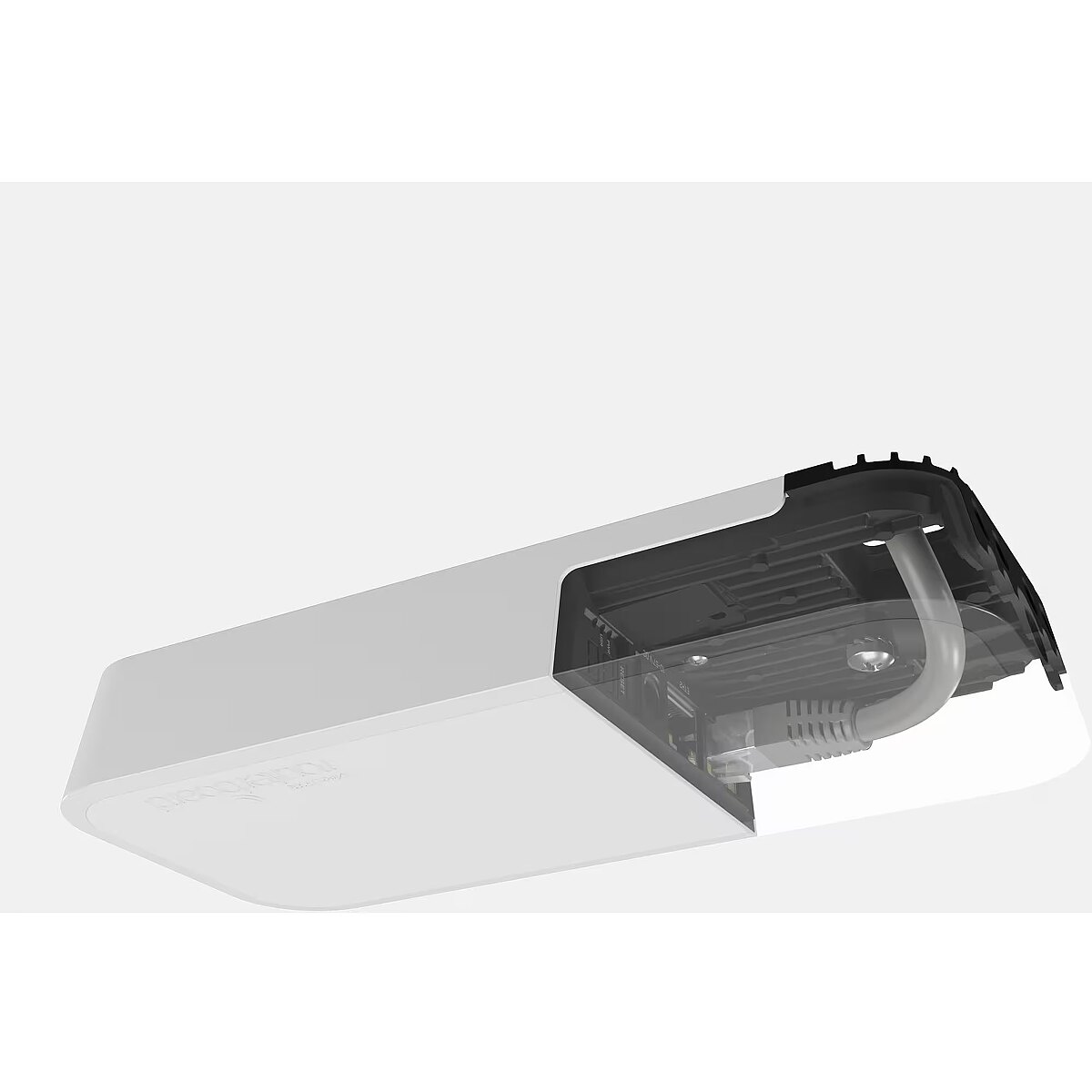

Description - wAP ac to niewielki, odporny na warunki atmosferyczne bezprzewodowy punkt dostępowy dla Twoich urządzeń mobilnych, idealny do instalacji na zewnątrz domu, w ogrodzie, na werandzie lub gdziekolwiek indziej, gdzie potrzebujesz sprawnego połączenia bezprzewodowego. Nowa wersja posiada 2x porty Gigabit Ethernet, ulepszoną wydajność anteny bezprzewodowej, więcej pamięci RAM oraz potężny czterordzeniowy procesor!  W tylnej części obudowy znajduje się otwór, który umożliwia poprowadzenie kabla Ethernet bezpośrednio za urządzeniem i przez ścianę. W ten sposób wAP ac przyciąga mniej uwagi i wtapia się w każde otoczenie.
Design - Certification - CE, FCC, IC, EAC, ROHS
Design - International Protection (IP) code - IP54
Design - Placement - Wall
Design - Product colour - White
dimensionalWeight - 551
dimension depth - 80 mm
dimension height - 280 mm
Dimensions - 185 x 85 x 30 mm
dimension weight - 500 g
dimension width - 120 mm
EAN - 4752224001757
EAN - 4752224007711
ean - 4752224007711
Features - 2.4 GHz - Yes
Features - 5 GHz - Yes
Features - Ethernet LAN data rates - 10
Features - Ethernet LAN data rates - 100
Features - Ethernet LAN data rates - 1000 Mbit/s
Features - Maximum data transfer rate - 867 Mbit/s
Features - Maximum data transfer rate (2.4 GHz) - 300 Mbit/s
Features - Maximum data transfer rate (5 GHz) - 867 Mbit/s
Features - Networking standards - IEEE 802.11a
Features - Networking standards - IEEE 802.11ac
Features - Networking standards - IEEE 802.11b
Features - Networking standards - IEEE 802.11g
Features - Networking standards - IEEE 802.11n
Features > MU-MiMO - Yes
Full Description Line - wAP ac // RBwAPG-5HacD2HnD|Data transmission speed 867 Mbps|Antenna Type Omni-Directional|Wireless Frequency Range 2.4 and 5 GHz|Dimensions 185 x 85 x 30 mm
Gross weight - 0.696 kg
guarantee - 12
guarantee_type - normal
height - 0.093 m
I/O ports - 2 x 10/100/1000 Mbit/s
length - 0.28 m
Link - https://routerboard.com/RBwAPG-5HacT2HnD
Logistics data - Harmonized System (HS) code - 85176990
Management, monitoring, configuration -
Manufacturer - MikroTik
Model name - wAP ac // RBwAPG-5HacD2HnD
mpn - RBwAPG-5HacD2HnD
MPN - RBWAPG-5HACD2HND
name - Access point 2.4/5 GHz 2GbE RBwAPG-5HacD2HnD
Name - MikroTik RBwAPG-5HacD2HnD
Name - MikroTik | RBwAPG-5HacD2HnD white | wAP ac | 802.11ac | 2.4/5.0 | 1300 Mbit/s | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 1 | MU-MiMO Yes | PoE in
Network architecture - GigabitEthernet
Networking > Wi-Fi - Yes
Networking > Wi-Fi standards - 802.11a/n/ac
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Other features - Procesor: IPQ-4018 Liczba rdzeni procesora: 4 Częstotliwość nominalna procesora: 488-896 (automatycznie) MHz System operacyjny: RouterOS Rozmiar pamięci RAM: 128 MB Rozmiar przechowywania: 16 MB MTBF: Około 100 000 godzin w 25C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 275.00 mm
Package features > Gross height (mm) - 80.00 mm
Package features > Gross width (mm) - 120.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 327 pc(s)
Package features > Paper/Pasteboard - 266 g
Package features > Plastic (No PET) - 30 g
Package features > Tare weight (kg) - 0.296 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PDF - http://www.blobs.lt/products/1/1/0/3/9/1/e07ccf6668effab1fb9a735b3ad2081d/original.pdf
Performance - Built-in processor - Yes
Performance - Flash memory - 16 MB
Performance - Internal memory - 128 MB
Performance - Operating system installed - RouterOS
Performance - Processor frequency - 716 MHz
Performance > Data transfer rate (max) - 1.3 Gbit/s
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
Performance > Flash memory - 16 MB
Performance > Frequency band - 2.4/5.0
Performance > Web-based management - Yes
Performance > Wi-Fi data rate (max) - 1300 Mbit/s
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces > Ethernet LAN (RJ-45) ports - 1
Ports & interfaces > POE - PoE in
Ports & interfaces > USB port - 0
Power - AC input voltage - 10 - 57 V
Power - Power consumption (max) - 10 W
Power - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) > Power over Ethernet (PoE) - Yes
Power supply - Liczba wejść DC: 2 (PoE-IN, gniazdo DC) Napięcie wejściowe gniazda DC: 10-57 V Maksymalne zużycie energii: 10 W
producer - Mikrotik
producerCode - RBWAPG-5HACD2HND
Producer product family - RBwAPG-5HacD2HnD white
Producer product name - wAP ac
productName - MikroTik | wAP ac | RBwAPG-5HacD2HnD white | 802.11ac | 2.4/5.0 | 1300 Mbit/s | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 1 | MU-MiMO Yes | PoE in
productSize - Normal
RAM - 128 MB
Security -
Security - Security algorithms - IPSec
Shipping Box Depth Shipping/Package Box Dimensions - 58.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 41.5 cm
Shipping box quantity - 20
Shipping Box Weight Shipping/Package Box Dimensions - 15.7 kg
Shipping Box Width Shipping/Package Box Dimensions - 25 cm
sizeX - 280
sizeY - 120
sizeZ - 82
Software -
Special functions -
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
Sustainability - Sustainability certificates - CE
Sustainability - Sustainability certificates - RoHS
System Requirements -
Technical details - Compliance certificates - CE
Technical details - Compliance certificates - RoHS
Technical details > Net weight - 0.40 kg
Technical details > Producer - MikroTik
title - MikroTik wAP ac
Unit Box Height - 0.26
Unit Box Length - 0.06
Unit Box Width - 0.15
Unit Brutto Volume - 0.003035 cubm
Unit Gross Weight - 0.785 kg
Unit Net Weight - 0.6 kg
Vendor Homepage - mikrotik.com/product/wap_ac
vendpn - RBwAPG-5HacD2HnD
Warranty - 12
Warranty - 12 month(s)
Warranty - 12 months
warrantyLength - 12
warrantyType - G
weight - 0.8 kg
Weight - 0.72
weight - 729
Weight & dimensions - Depth - 30 mm
Weight & dimensions - Height - 185 mm
Weight & dimensions - Width - 85 mm
width - 0.12 m
Wireless Frequency Range - 2.4 and 5 GHz
Wireless LAN features > Wi-Fi band - 802.11ac
