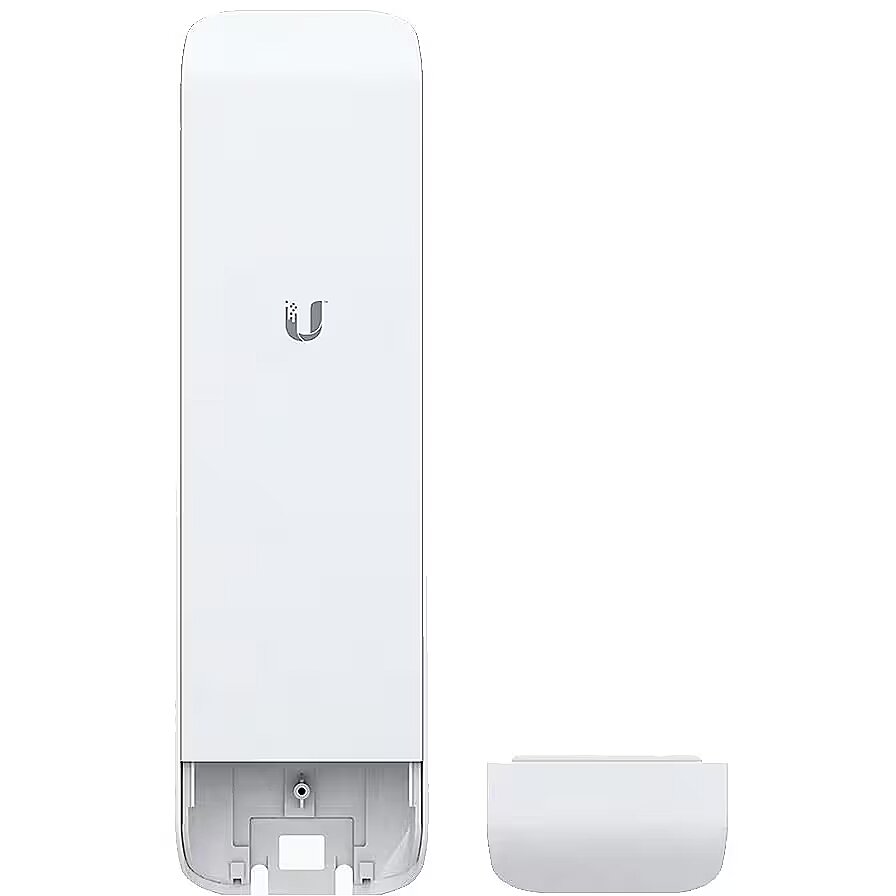

Ubiquiti NanoStation M2

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 141714 Product code: NSM2
In stock 9 units
Warranty: 2 years (Warranty for business entities 1 year)
86.83 €
Delivery options
  • Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
  • Delivery to Omniva parcel locker 1.99 €: on Wednesday, 27.11.2024
  • Courier delivery 3.99 €: on Wednesday, 27.11.2024
Main product parameters All parameters
  • Speed index: N/A
  • Type of device: Access Point
  • Wi-Fi standard: N/A
Basic information
Speed index : N/A
Type of device Access Point

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : N/A
Functionality
3G/4G support Nav

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode N/A

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 10/100

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment
LAN ports : 1
Wireless
  • Alternatives
  • Alternatives
More detailed specification
Additional information in manufacturers website Ubiquiti NanoStation M2
Accessories included -
Antenna - Built-in
Antenna - Internal
Antenna - Antenna gain level (max) - 11.2 dBi
Antenna Gain - 11 dB
Antenna gain - 11 dBi
Box Weight Brutto (kg) - 14.21 kg
brand - Ubiquiti
Category - Root/Electronics/Networks and communication/Access points
category - Ubiquiti > Āra Wi-Fi > airMAX 2.4 GHz
Category 1 - Netzwerk
Category 2 - Netzwerkartikel
Category Code - WOD
Category_1 - Network and Servers
Category_2 - Network - Network Accessories
Certificates - Certification - FCC 15.247, IC RS210, CE, RoHS
Certifications - FCC Part 15.247, IC RS210, CE
Color - White
Colour - White
CPU - Atheros MIPS 24KC
Data Bit Rate - 150 Mbps
Data transmission speed - 150 Mbps
Depth (mm) - 294 mm
Description - Access point CPE NanoStation M2 NSM2
Description - Featuring a panel antenna and dual-polarity performance, the NanoStation®M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.
Device Location - External
dimensionalWeight - 489
dimension depth - 320 mm
dimension height - 120 mm
Dimensions - 294 x 31 x 80 mm
Dimensions - 294 x 31 x 80mm
dimension weight - 710 g
dimension width - 80 mm
ean - 810354022517
EAN - 0810354022517
EAN Code - 810354022517
Eans - 0810354022517
EAN_code - 0810354022517
External Color - Balta
Features - Internal memory - 32 MB
Features - Material - Plastic
Features - Mounting type - Pole
Features - Processor family - Atheros
Features - Processor frequency - 400 MHz
Features - Processor model - MIPS 24Kc
Features - Product colour - White
Features - Product type - Network bridge
Features - RAM type - SDRAM
Flash Memory - 8 MB
Full Description Line - Network Device Type Wireless CPE|Data transmission speed 150 Mbps|Antenna Gain 11 dB|Wireless Frequency Range 2.4Ghz|Colour White|Dimensions 294 x 31 x 80mm
guarantee - 12
guarantee_type - normal
height - 0.097 m
Height (mm) - 80 mm
I/O ports - 2 x 10/100 Mbit/s
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/190116080014047661.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/190116080014059280.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/190116080014073501.jpg
Interface - Ethernet/Wi-Fi
Internal Clock Rate - 400 MHz
LAN - 2 (RJ-45)
length - 0.3 m
Local Area Network Architecture - 10Base-T/100Base-TX
Logistics data - Harmonized System (HS) code - 85176990
Management, monitoring, configuration -
Manufacturer - Ubiquiti
Manufacturer_code - NSM2
Max. Range Open Space - 13 km
Maximum Operating Ambient Temperature - 75 °C
Maximum Operating Humidity - 95 %
Memory - Flash memory - 8 MB
Minimum Operating Ambient Temperature - -30 °C
Minimum Operating Humidity - 5 %
mpn - NSM2
MPN - NSM2
name - Access point CPE NanoStation M2 NSM2
Name - NET Z Ubiquiti NSM2
Name - Ubiquiti NanoStation M2 - 11 dBi
Name - Ubiquiti NSM2
Network - Cabling technology - 10/100Base-T(X)
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN interface type - Fast Ethernet
Network/Transport Protocol - TCP/IP QoS
Network architecture - FastEthernet
Network Device Type - Wireless CPE
Networking Features - Power over Ethernet (PoE)
Networking Form Factor - External
Nominal Weight - 0.4 kg
Number of Ports - 2
Operating frequency - 2,4 GHz
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -30 - 75 °C
Other features - Operating Temperature: -30 to 75°C Operating Humidity: 5 to 95% Noncondensing Wireless Approvals FCC Part 15.247, IC RS210, CE RoHS Compliance: Yes Shock & Vibration: ETSI300-019-1.4
Package Type - Box
Packs in Box - 20
Pack Weight Brutto (kg) - 0.7 kg
Pieces in pack - 1
Ports & interfaces - Connectivity technology - Wired & Wireless
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Power - Power consumption (max) - 8 W
Power - Power over Ethernet (PoE) - Yes
Power - Power over Ethernet (PoE) voltage - 24 V
Power Consumption Operational - 8 W
Power supply -
producer - UBIQUITI
Producer - Ubiquiti
producerCode - NSM2
ProducerCode - NSM2
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=181227114939987225&THEME=asbis&LANG=lv
ProductCategory - Tīkla produkti
ProductCode - NSM2(EU)
ProductDescription - UBIQUITI airMAX NanoStation M2; 2.4 GHz frequency band; Plug-and-play integration with airMAX antennas.
productName - Ubiquiti NanoStation M2 Network bridge White
productSize - Normal
ProductType - Networking - Wireless Outdoor Access Point
RAM - 32 MB
Security -
Shipping Box Depth Shipping/Package Box Dimensions - 30 cm
Shipping Box Height Shipping/Package Box Dimensions - 9.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.679 kg
Shipping Box Width Shipping/Package Box Dimensions - 8.5 cm
ShortDescription - 150 Mbps - 802.11n, 802.3u 10/100 Mbps Fast Ethernet
sizeX - 295
sizeY - 83
sizeZ - 100
Software -
Special functions -
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
System Requirements -
Technical_details - LAN: 2x 100Base-TX Wireless: WLAN 802.11b/?g/?n Transfer rate: 300Mbps (2.4GHz) Antennas: internal Power consumption: 8W (operation) Special features: Outdoor, OpenWRT Note: Open-/?DD-WRT only for specific revisions available, please note the additional links!
title - Ubiquiti airMAX NanoStation M2
Unit Box Height - 0.095
Unit Box Length - 0.3
Unit Box Width - 0.085
Unit Brutto Volume - 0.002423 cubm
Unit Gross Weight - 0.679 kg
Unit Net Weight - 0.4 kg
Vendor - UBIQUITI
Vendor Homepage - www.ubnt.com/airmax/nanostationm/
vendpn - NSM2(EU)
Warranty - 12 months
Warranty - Warranty 12 months calculated from the date of sale
warrantyLength - 24
Warranty Products Returnable - Yes
Warranty Term (month) - 24
Warranty Term Notes - 24 months - for EU
warrantyType - G
Warranty validation Criteria - Serial Number
Weight - 0,69
Weight - 0.68
weight - 0.75 kg
weight - 70
Weight - 400 g
Weight & dimensions - Depth - 31 mm
Weight & dimensions - Height - 294 mm
Weight & dimensions - Weight - 400 g
Weight & dimensions - Width - 80 mm
Wi-Fi Band Frequency - 2.4 GHz
width - 0.1 m
Width (mm) - 31 mm
Wireless Frequency Range - 2.4Ghz
Wireless LAN features - Frequency band - 2.412 - 2.462 GHz
Wireless LAN features - Wi-Fi - Yes
Wireless LAN features - Wi-Fi band - Single-band (2.4 GHz)
