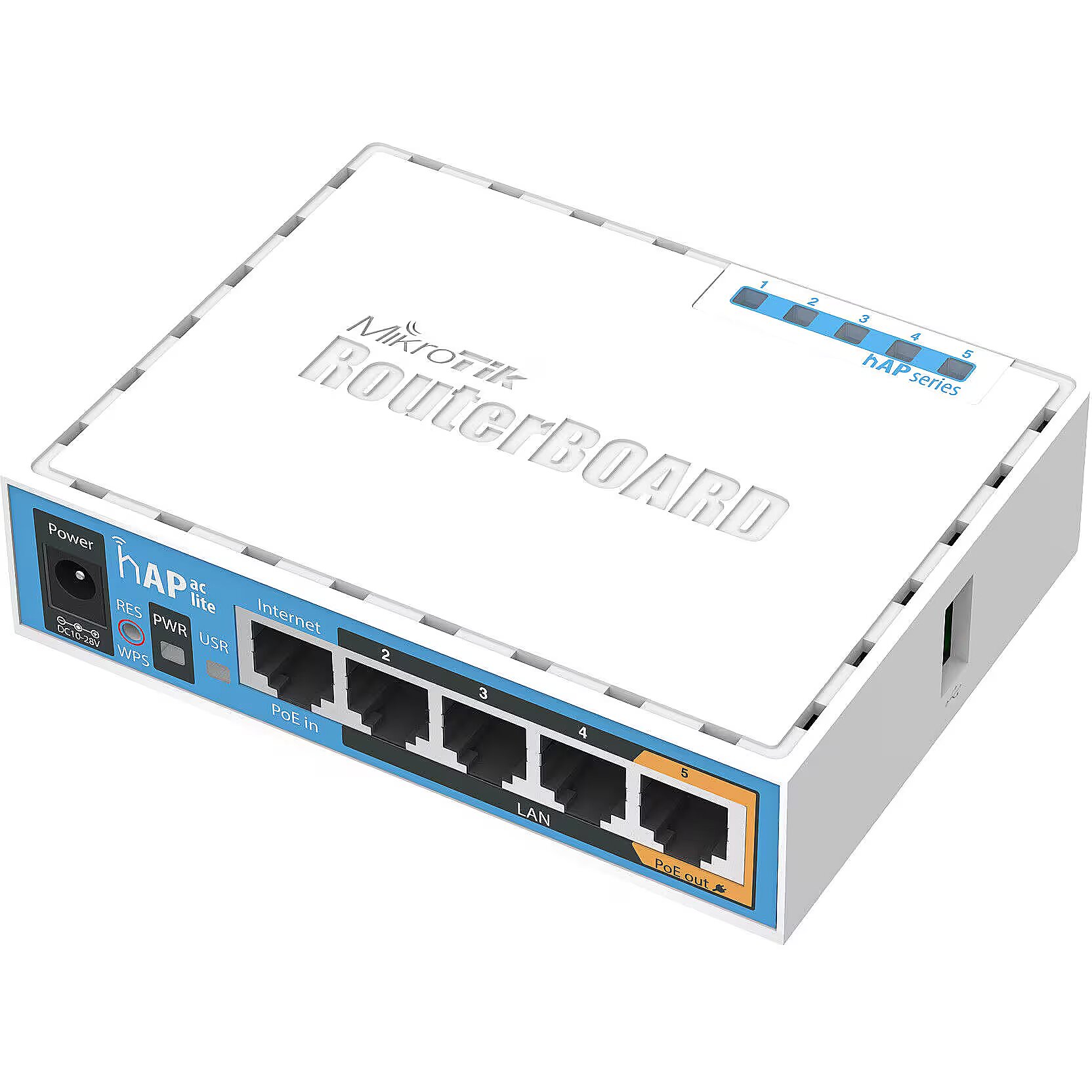

MikroTik hAP ac lite

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 126045 Product code: MT RB952Ui-5ac2nD
In stock 29 units
Warranty: 2 years (Warranty for business entities 1 year)
51.62 €
Delivery options
  • Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
  • Delivery to Omniva parcel locker 1.99 €: 02.12.2024
  • Courier delivery 3.99 €: 02.12.2024
Main product parameters All parameters
  • Speed index: N/A
  • Type of device: Access Point
  • Wi-Fi standard: Wi-Fi 5 (802.11ac)
Basic information
Speed index : N/A
Type of device Access Point

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 5 (802.11ac)
Functionality
3G/4G support USB dongle option

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Dual-Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 10/100

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment
LAN ports : 5
Wireless
  • Alternatives
  • Alternatives
More detailed specification
Additional information in manufacturers website MikroTik hAP ac lite
10Base-T / 100Base-TX Ports - 5
Accessories included -
Antenna gain - 2 dBi
brand - MikroTik
category - MikroTik > Wi-Fi mājai un ofisam > hAP
Category - Root/Electronics/Networks and communication/Access points
Category 1 - Netzwerk
Category 2 - Accesspoints
Category Code - WAP
Code - RB952Ui-5ac2nD
Color - Blue
Color - White
Description - hAP ac lite jest punktem dostępowym Dual-concurrent, który zapewnia pokrycie WiFi dla częstotliwości 2.4GHz i 5GHz w tym samym czasie. Urządzenie wyposażone jest w procesor 650MHz, 64MB RAM, pięć portów Ethernet 10/100Mbps (wyjście PoE na porcie #5), dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11a/n/ac 5GHz wireless, port USB dla modemu 3G/4G oraz licencję RouterOS L4. RB952Ui-5ac2nD (International) obsługuje zakres 2412-2484MHz i 5150MHz - 5875MHz (Konkretny zakres częstotliwości może być ograniczony przez przepisy danego kraju).
Description - The hAP ac lite is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4GHz and 5GHz frequencies at the same time. Unit is equipped with a 650MHz CPU, 64MB RAM, five 10/100Mbps Ethernet ports (PoE output on port #5), dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11ac 5GHz wireless, USB port for 3G/4G modem and a RouterOS L4 license.
dimensionalWeight - 216
dimension depth - 45 mm
dimension height - 170 mm
Dimensions - 113 x 89 x 28 mm
Dimensions - 113 x 89 x 28mm
dimension weight - 330 g
dimension width - 110 mm
EAN - 708747432510
ean - 4752224003195
EAN - 4752224003195
Eans - 4752224003195
Features > MU-MiMO - Yes
Full Description Line - hAP ac lite // RB952Ui-5ac2nD|Type Wireless Access Point|IEEE 802.11b|IEEE 802.11g|IEEE 802.11n|IEEE 802.11ac|Dimensions 113 x 89 x 28mm
Gross weight - 0.34 kg
guarantee - 12
guarantee_type - normal
height - 0.054 m
I/O ports - 5 x 10/100 Mbit/s
IEEE 802.11ac Network standard - Yes
IEEE 802.11b Network standard - Yes
IEEE 802.11g Network standard - Yes
IEEE 802.11n Network standard - Yes
length - 0.19 m
Management, monitoring, configuration -
Manufacturer - MikroTik
Model name - hAP ac lite // RB952Ui-5ac2nD
mpn - RB952Ui-5ac2nD
MPN - RB952UI-5AC2ND
name - Access point 2.4/5 GHz 5FE RB952Ui-5ac2nD
Name - MikroTik RB952Ui-5ac2nD
Name - MikroTik | RB952Ui-5ac2nD | hAP ac lite | 802.11ac | 2.4/5.0 | 867 Mbit/s | 10/100 Mbit/s | Ethernet LAN (RJ-45) ports 5 | MU-MiMO Yes | PoE in/out
Network architecture - FastEthernet
Network Device Type - Wireless Access Point
Networking > Wi-Fi - Yes
Networking > Wi-Fi standards - 802.11a/n/ac
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Other features - Procesor: QCA9531 Liczba rdzeni procesora: 1 Częstotliwość nominalna procesora: 650 MHz System operacyjny: RouterOS Rozmiar pamięci RAM: 64 MB Rozmiar przechowywania: 16 MB MTBF: Około 100 000 godzin w 25C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 175 mm
Package features > Gross depth master carton - 508 mm
Package features > Gross height (mm) - 50.00 mm
Package features > Gross height master carton - 140 mm
Package features > Gross width (mm) - 118 mm
Package features > Gross width master carton - 380 mm
Package features > Net weight master carton - 6.8 kg
Package features > Packing quantity - 1 pc(s)
Package features > Palette Qty - 1674 pc(s)
Package features > Paper/Pasteboard - 168 g
Package features > Plastic (No PET) - 19 g
Package features > Tare weight (kg) - 0.187 kg
Package features > Volume (m3) - 0.0010325 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PDF - http://www.blobs.lt/products/7/0/0/9/8/1/f1292b5b7b15cd6214f70c16f74ffc4f/original.pdf
Performance > Data transfer rate (max) - 0.867 Gbit/s
Performance > Ethernet LAN data rates - 10/100 Mbit/s
Performance > Flash memory - 16 MB
Performance > Frequency band - 2.4/5.0
Performance > Web-based management - Yes
Performance > Wi-Fi data rate (max) - 867 Mbit/s
Ports & interfaces > Ethernet LAN (RJ-45) ports - 5
Ports & interfaces > POE - PoE in/out
Ports & interfaces > USB port - 1
Power over Ethernet (PoE) > Power over Ethernet (PoE) - Yes
Power supply - Liczba wejść DC: 2 (PoE-IN, gniazdo DC) Napięcie wejściowe gniazda DC: 10-28 V Maksymalne zużycie energii: 20 W Maksymalny pobór mocy bez załączników: 8 W Napięcie wejściowe PoE: 10-28 V
producer - Mikrotik
Producer - MikroTik
producerCode - RB952Ui-5ac2nD
ProducerCode - RB952Ui-5ac2nD
Producer product family - RB952Ui-5ac2nD
Producer product name - hAP ac lite
productName - Router WiFi 5 Mikrotik hAP ac lite (RB952Ui-5ac2nD) 2,4GHz(2x2)/5GHz(1x1) 5p
productSize - Normal
Security -
Shipping Box Depth Shipping/Package Box Dimensions - 50 cm
Shipping Box Height Shipping/Package Box Dimensions - 14 cm
Shipping box quantity - 20
Shipping Box Weight Shipping/Package Box Dimensions - 10 kg
Shipping Box Width Shipping/Package Box Dimensions - 35 cm
ShortDescription -
sizeX - 180
sizeY - 50
sizeZ - 120
Software -
Special functions -
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
System Requirements -
Technical details > Net weight - 0.153 kg
Technical details > Producer - MikroTik
Technical details > Warranty - 12 month(s)
title - MikroTik hAP ac lite
Unit Box Height - 0.13
Unit Box Length - 0.05
Unit Box Width - 0.18
Unit Brutto Volume - 0.001225 cubm
Unit Gross Weight - 0.5 kg
Unit Net Weight - 0.26 kg
USB 2.0 Ports - 1
Vendor Homepage - mikrotik.com/product/RB952Ui-5ac2nD
vendpn - RB952Ui-5ac2nD
Warranty - 12
Warranty - 12 months
warrantyLength - 12
warrantyType - G
Weight - 0.34
weight - 0.38 kg
weight - 344
width - 0.14 m
Wireless LAN features > Wi-Fi band - 802.11ac
