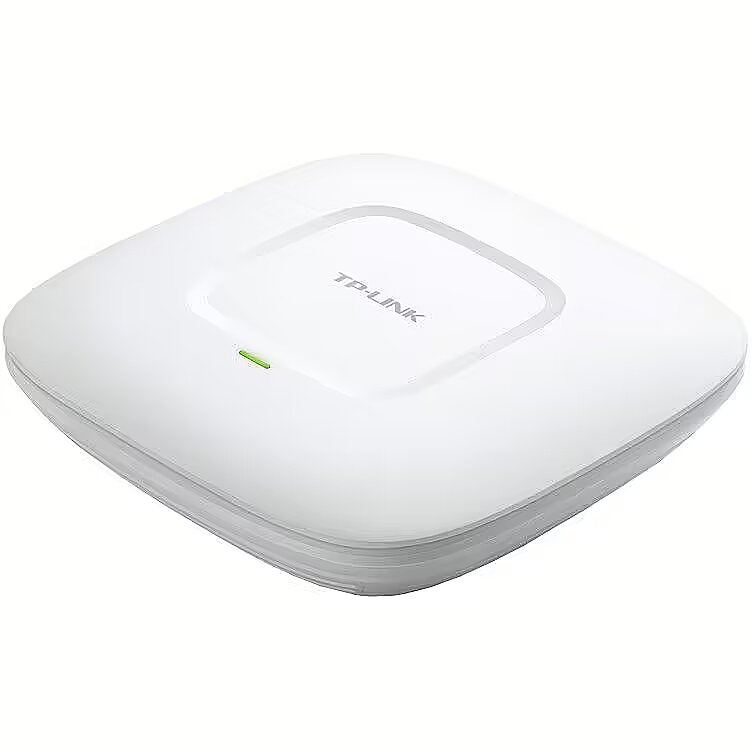

TP-LINK EAP110 Wireless Access Point

Name: TP-LINK EAP110 Wireless Access Point
Brand: TP-LINK
SKU: 110546
Price: 37.31 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 110546 Product code: EAP110

In stock 12 units

Warranty: 3 years

Compare

Delivery options

Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
Delivery to Omniva parcel locker 1.99 €: on Wednesday, 27.11.2024
Courier delivery 3.99 €: on Wednesday, 27.11.2024

Main product parameters All parameters

Speed index: 300
Type of device: Access Point
Wi-Fi standard: Wi-Fi 4 (802.11n)

Basic information

Speed index : 300

Type of device Access Point

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 4 (802.11n)

Functionality

3G/4G support Nav

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Single Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 10/100

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.

Ports and equipment

LAN ports : 1

Wireless

Without
WiFi Adapter USB (+8.67 €)
Gembird Adapter Mini USB WiFi 300 Mbps
Alternatives
WiFi Adapter PCI-E 1x (+13.16 €)
TP-LINK TL-WN781ND, PCI-E x1 WiFi Adapter
Alternatives

More detailed specification

Additional information in manufacturers website TP-LINK EAP110 Wireless Access Point

Antenna - Antenna direction type - Omni-directional
Antenna - Antenna gain level (max) - 4 dBi
Antenna - Antennas quantity - 2
Antenna - Antenna type - Internal
ARTIKEL1 - EAP110 MOUNT ACCESS POINT
ARTIKEL2 - 300MBPS WIRELESS N CEILING/WALL
Breite - 0.25
Category - Root/Electronics/Networks and communication/Access points
Category_1 - Network and Servers
Category_2 - Network - WiFi Access Points
Certificates - Compliance certificates - CE
Certificates - Compliance certificates - Federal Communications Commission (FCC)
Certificates - Compliance certificates - RoHS
Code - EAP110
Design - LED indicators - Power
Design - Placement - Ceiling, Wall
Design - Product colour - White
Design - Reset button - Yes
dimensionalWeight - 951
EAN - 6935364091620
EANCode - 6935364091620
Eans - 6935364091620
EAN_code - 6935364091620
Features - 2.4 GHz - Yes
Features - 5 GHz - No
Features - 6 GHz - No
Features - Cabling technology - 10/100Base-T(X)
Features - Ethernet LAN data rates - 10
Features - Ethernet LAN data rates - 100
Features - Frequency band - 2.4 - 2.4835 GHz
Features - Maximum data transfer rate - 300 Mbit/s
Features - Maximum data transfer rate (2.4 GHz) - 300 Mbit/s
Features - Networking standards - IEEE 802.1x
Features - Networking standards - IEEE 802.11b
Features - Networking standards - IEEE 802.11g
Features - Networking standards - IEEE 802.11n
Features - Quality of Service (QoS) support - Yes
Features - Rate limiting - Yes
Features - Receiver sensitivity - 300M: -71dBm@10% PER
150M: -75dBm@10% PER
54M: -78dBm@10% PER
11M: -93dBm@8% PER
6M: -92dBm@10% PER
1M: -96dBm@8% PER
Features - Transmitting power (CE) - 19 dBm
Features - Transmitting power (FCC) - 21 dBm
Features - Virtual LAN features - VLAN mapping
Features - VLAN support - Yes
Features - Wi-Fi Multimedia (WMM)/(WME) - Yes
Features - Wireless isolation - Yes
Gewicht - 0.8
GRUPPE1 - Network
GRUPPE2 - Wireless Lan Ap
HERSTELLER - TP-LINK
Hoehe - 0.07
HSTNUMMER - EAP110
Laenge - 0.27
Logistics data - Harmonized System (HS) code - 85176990
Management features - Syslog - Yes
Management features - Web-based management - Yes
Manufacturer - TP-Link
Manufacturer_code - EAP110
Name - TP-Link EAP110
Name - TP-LINK EAP110 PoE/300M/000M/AP, Access Point
Name - TP-LINK | Access Point | EAP110 | 802.11n | 2.4GHz | 300 Mbit/s | 10/100 Mbit/s | Ethernet LAN (RJ-45) ports 1 | MU-MiMO No | no PoE | Antenna type 2xInternal | No
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Packaging content - Cables included - AC
Packaging content - Mounting kit - Yes
Packaging content - PoE adapter included - Yes
Packaging content - Quantity per pack - 1 pc(s)
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 268 mm
Packaging data - Package height - 69 mm
Packaging data - Package type - Box
Packaging data - Package weight - 720 g
Packaging data - Package width - 246 mm
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - AC input voltage - 24 V
Power - Power consumption (typical) - 2.8 W
Power - Power over Ethernet (PoE) - Yes
Power - Power over Ethernet (PoE) type supported - Passive PoE
Producer - TP-Link
producerCode - EAP110
ProducerCode - EAP110
productName - TP-Link Omada 300Mbps Wireless N Ceiling Mount Access Point
productSize - Normal
Security - Access Control List (ACL) - Yes
Security - MAC address filtering - Yes
Security - Number of SSID supported - 8
Security - Security algorithms - 64-bit WEP
Security - Security algorithms - 128-bit WEP
Security - Security algorithms - 152-bit WEP
Security - Security algorithms - HTTPS
Security - Security algorithms - SNMP
Security - Security algorithms - SNMPv2
Security - Security algorithms - SSH
Security - Security algorithms - WPA
Security - Security algorithms - WPA-PSK
Security - Security algorithms - WPA2-Enterprise
Security - Security algorithms - WPA2-PSK
Security - Service Set Identifier (SSID) features - Multiple SSIDs
ShortDescription - Jednolite zarządzanie siecią WiFi - Centralne oprogramowanie zarządzające
sizeX - 248
sizeY - 274
sizeZ - 70
Stck_Kart - 16
Stck_Pal - 0
Storno - Y
Sustainability - Sustainability compliance - Yes
Warranty - 60 months
warrantyLength - 60
warrantyType - G
Weight - 0,76
weight - 808
Weight & dimensions - Depth - 170.5 mm
Weight & dimensions - Height - 29.7 mm
Weight & dimensions - Width - 189.5 mm
