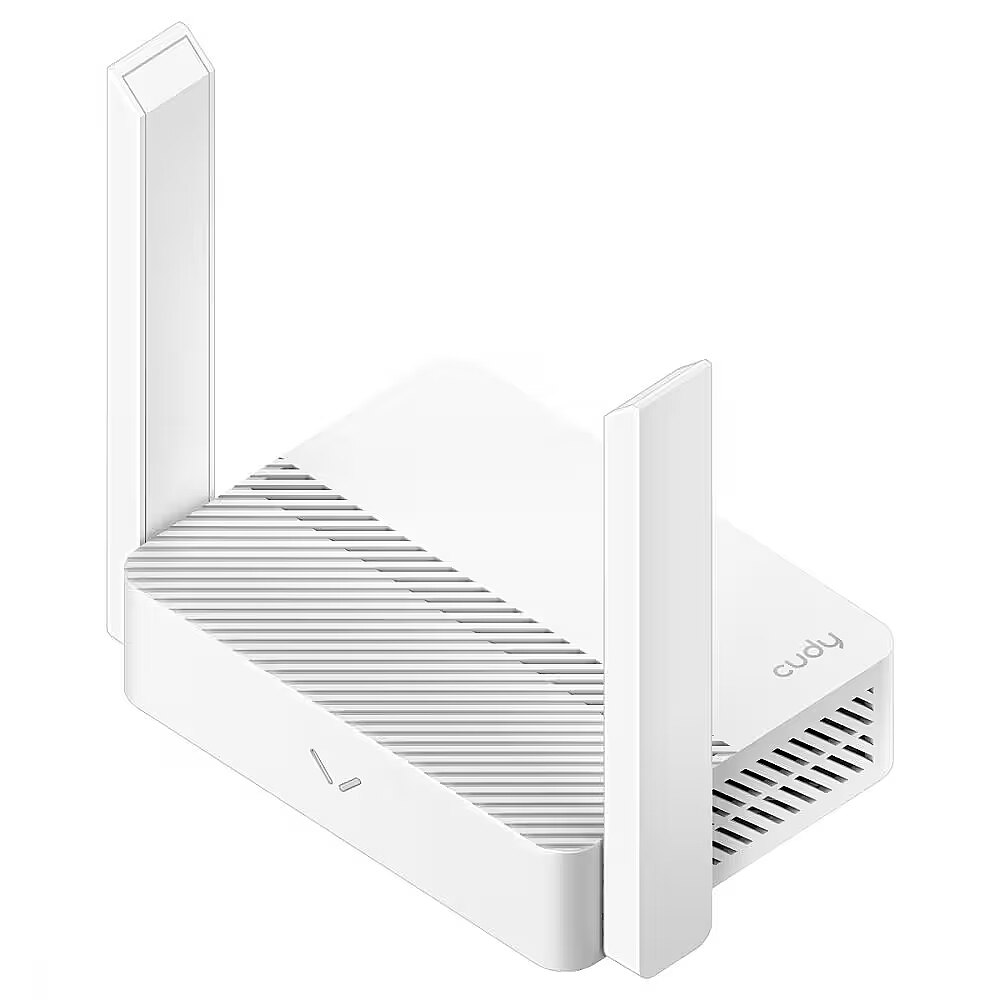

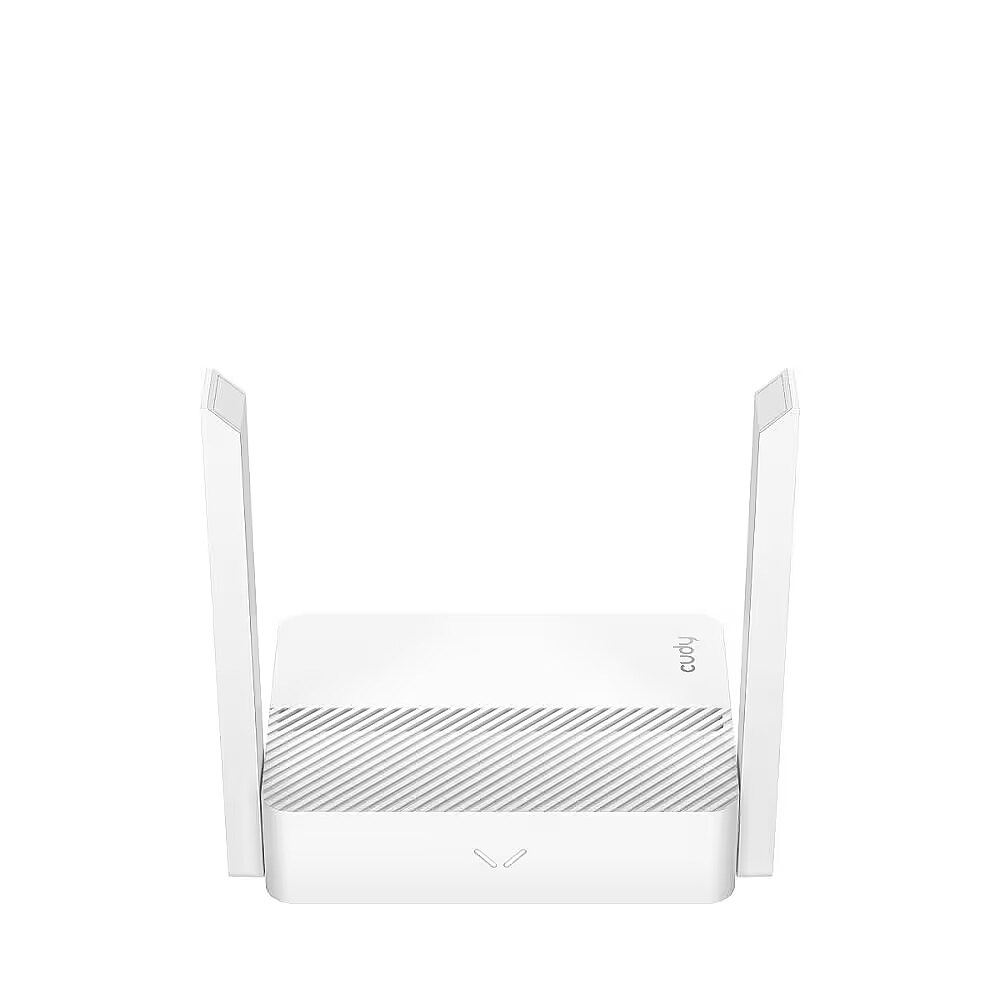

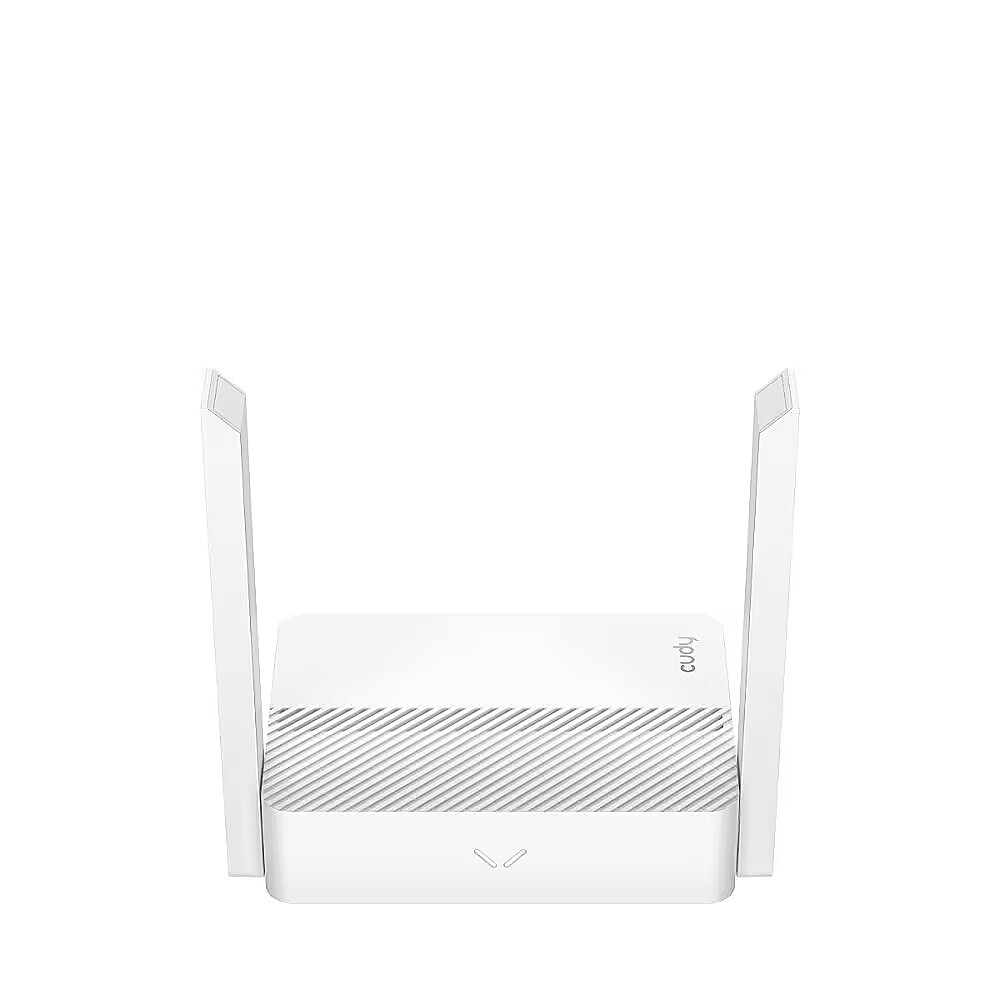

Cudy WR300 router WiFi N300 4xLAN 1xWAN

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1084262 Product code: WR300
Can be ordered 117 units Availability: 14 days after order approval
Warranty: 2 years
16.01 €
Delivery options
  • Delivery to Smartpost 1.99 €: 16.04.2025
  • Delivery to Omniva parcel locker 1.99 €: 16.04.2025
  • Courier delivery 3.99 €: 16.04.2025
Main product parameters All parameters
  • Speed index: 300
  • Type of device: Router
  • Wi-Fi standard: Wi-Fi 4 (802.11n)
Basic information
Speed index : 300
Type of device Router

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 4 (802.11n)
Functionality
3G/4G support Nav

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Dual-Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 10/100

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment
LAN ports : 4
Wireless card
More detailed specification

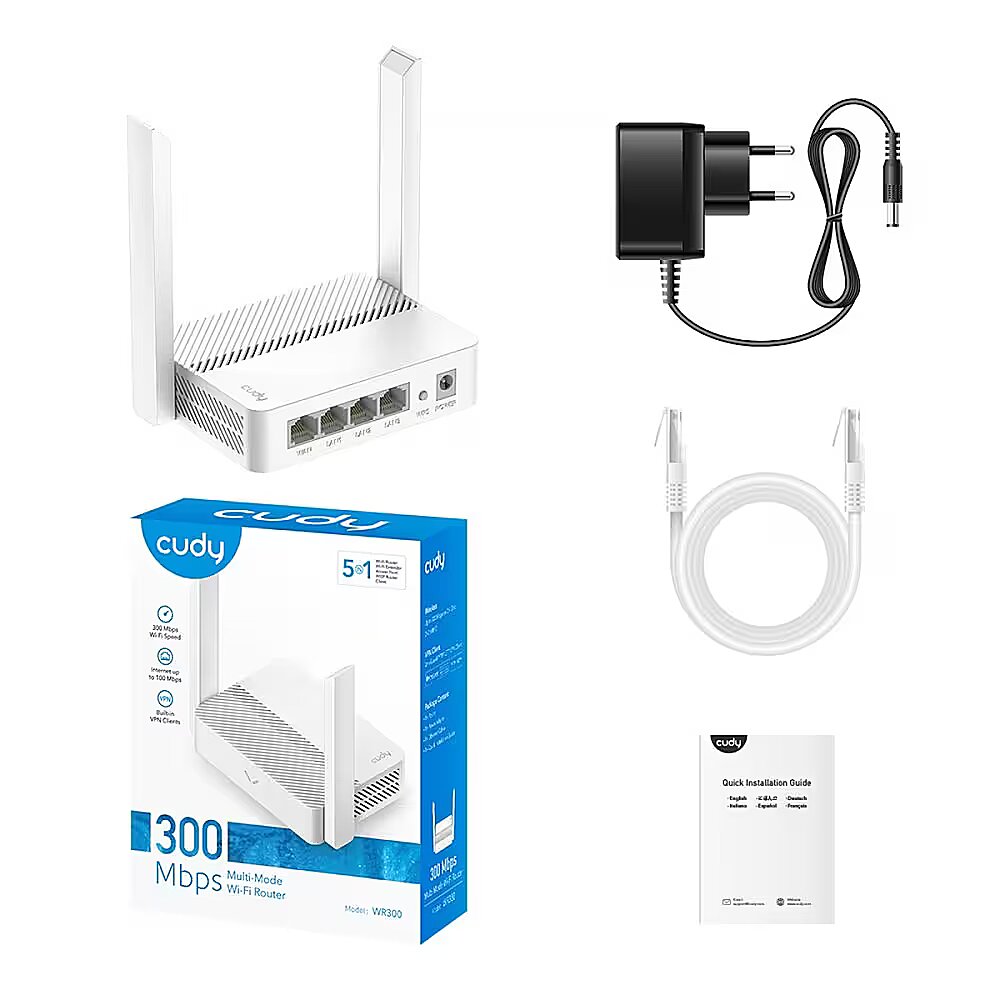

Accessories included - Router Wifi Zasilacz Kabel Ethernet RJ45 przewodnik szybkiej instalacji
Antenna - Fixed external
Antenna - Antenna design - External
Antenna - Antenna gain level (max) - 5 dBi
Antenna - Antennas quantity - 2
Category - Root/Electronics/Networks and communication/Routers
Category 1 - Netzwerk
Category 2 - Router
Certificates -
Color - White
Description - N300 Wi-Fi Router, Model: WR300 Wi-Fi do 300Mbps Cztery porty Ethernet 10/100 Mb/s Klient VPN WireGuard/L2TP/PPTP Satelita Cudy Mesh Wielomodowy router/AP/RE/WISP/Mesh Satelita Przycisk resetowania Bezbłędnie udostępnia urządzenia przewodowe
Jeden port WAN plus trzy porty LAN umożliwiają podłączenie wielu urządzeń za pomocą stabilnego kabla Ethernet bez konieczności stosowania dodatkowego przełącznika sieciowego.
Łączy bezprzewodowo 30 urządzeń
Cieszcie się razem szybką siecią Wi-Fi, gdy Twoi znajomi mają do dyspozycji dużą przepustowość Wi-Fi. 2×2 MIMO umożliwia urządzeniom korzystanie z obu anten w celu poprawy komfortu.
Łatwy w użyciu
Intuicyjny kreator konfiguracji poprowadzi Cię przez konfigurację nowej sieci.
Harmonogram Wi-Fi
Ustaw porę snu i czarną listę domen, aby regulować zachowanie dzieci w Internecie.
Klient VPN WireGuard
Umożliwia podłączenie wielu urządzeń jednocześnie do prywatnej lub komercyjnej sieci VPN.
Design - LED indicators - Activity, Power
Design - On/off switch - Yes
Design - Product colour - White
Design - Product type - Tabletop router
Design - Wall mountable - Yes
Designation - CE+WEEE
dimensionalWeight - 269
dimension depth - 55 mm
dimension height - 175 mm
Dimensions - 118 x 80 x 27.5 mm
dimension weight - 360 g
dimension width - 140 mm
ean - 6971690790028
EAN - 6971690790028
Eans - 6971690790028
Environment requirements - Temperatura pracy: 0°C - 40°C Temperatura przechowywania: -40°C - 70°C Wilgotność robocza: 10% - 90% bez kondensacji Wilgotność przechowywania: 5% - 90%, bez kondensacji
guarantee - 24
guarantee_type - normal

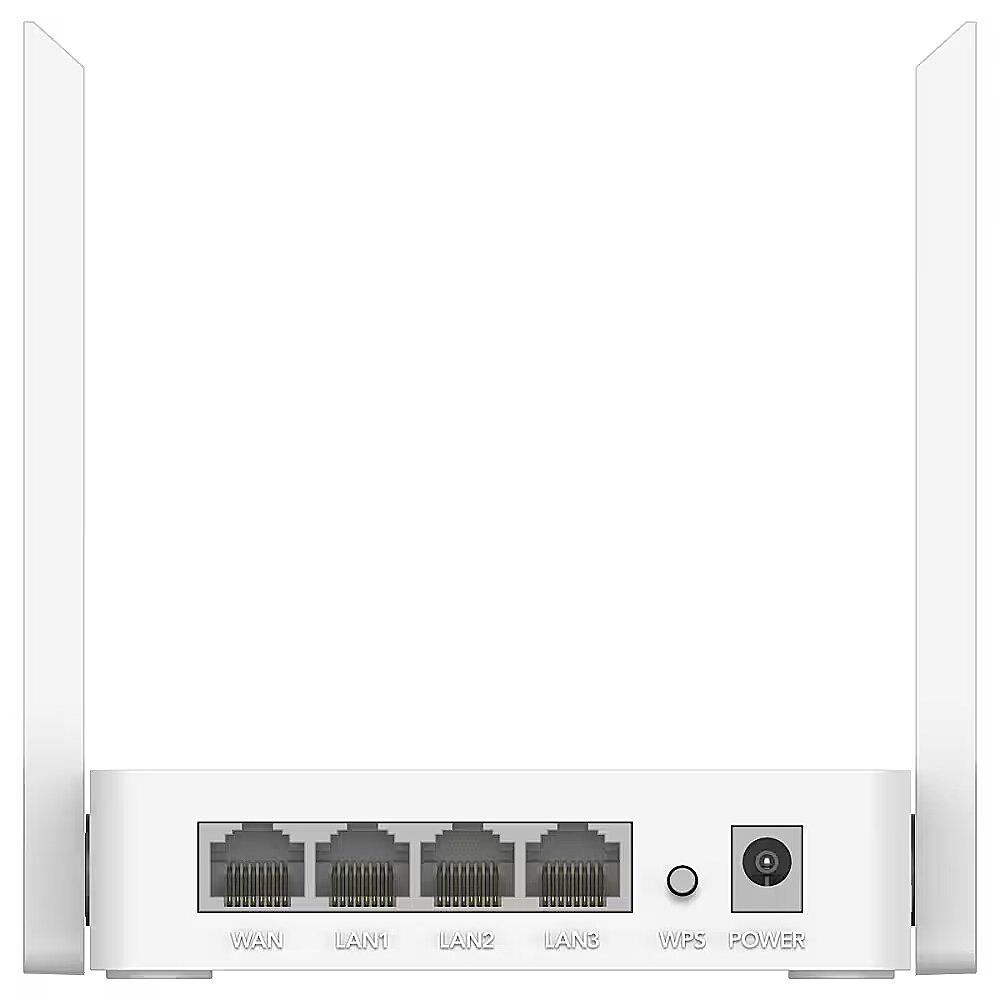

I/O ports - 1 x 10/100 Mbit/s WAN
I/O ports - 3 x 10/100 Mbit/s
Management, monitoring, configuration - Kontrola rodzicielska (filtr domeny/IP/MAC) Panel zarządzania urządzeniami Sieć gościnna
Management features - Bandwidth control - Yes
Management features - Quality of Service (QoS) support - Yes
Management features - Remote management - Yes
Management features - Reset button - Yes
Management features - Web-based management - Yes
Management features - Wi-Fi Multimedia (WMM)/(WME) - Yes
Manufacturer - Cudy
Mobile network - 3G - No
Mobile network - 4G - No
Mobile network - 5G - No
Model - WR300
MPN - WR300
Name - Cudy N300 Wi-Fi Router
Name - Cudy WR300
name - WR300 router WiFi N300 4xLAN 1xWAN
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN interface type - Fast Ethernet
Network - Number of guest networks (2.4 GHz) - 1
Network - Number of guest networks (5 GHz) - 1
Network - Port forwarding - Yes
Network - Port triggering - Yes
Network - Receiver sensitivity - 5GHz 11a 6Mbps : -96dBm, 11a 54Mbps: -79dBm 11ac HT20: -71dBm, 11ac HT40: -66dBm, 11ac HT80: -63dBm, 11n HT20: -72dBm, 11n HT40: -71dBm;2.4GHz 11g 54M: -77dBm 11n HT20: -74dBm, 11n HT40: -72dBm
Network - VPN Passthrough - Yes
Network architecture - FastEthernet
Number of antennas - 2
Operating frequency - 2,4 GHz
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Other features - Supported protocols - IPv4, IPv6
Other features - Supported WAN type - Dynamic IP/Static IP/PPPoE
Packaging content - AC adapter included - Yes
Packaging content - Cables included - LAN (RJ-45)
Packaging content - Quick installation guide - Yes
Packaging data - Number of products included - 1 pc(s)
Packaging data - Package type - Box
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - USB port - No
Power - Output current - 1 A
Power - Output voltage - 5 V
Power - Power source type - DC
Power supply - 5 V / 1 A
producer - Cudy
Producer - Cudy
producerCode - WR300
ProducerCode - WR300
productName - Cudy WR300 wireless router Fast Ethernet Single-band (2.4 GHz) White
productSize - Normal
Protocols - DHCP client - Yes
Protocols - DHCP server - Yes
Protocols - Universal Plug and Play (UPnP) - Yes
Safety warning - Warnings - Avoid contact with liquids as this may cause electric shock.
Safety warning - Warnings - Do not open the appliance housing - risk of electric shock.
Safety warning - Warnings - The product may emit radio waves that may interfere with other electronic devices.
Security - WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK IPv4 / IPv6
Security - DMZ support - Yes
Security - DoS attack prevention - Yes
Security - Firewall - Yes
Security - Firewall security - DoS, SPI Firewall;IP Address Filter/MAC Address Filter/Domain Filter;IP and MAC Address Binding
Security - Guest access - Yes
Security - IP address filtering - Yes
Security - MAC address filtering - Yes
Security - Parental control - Yes
Security - Schedule access - Yes
Security - Security algorithms - WEP
Security - Security algorithms - WPA
Security - Security algorithms - WPA-PSK
Security - Security algorithms - WPA2
Security - Security algorithms - WPA2-PSK
Security - Stateful Packet Inspection (SPI) - Yes
ShortDescription -
sizeX - 140
sizeY - 175
sizeZ - 55
Software -
Special functions -
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
Supported operating systems - Android
Supported operating systems - iOS
Supported operating systems - Mac OS
Supported operating systems - Windows
System Requirements -
Type - xDSL
vendpn - WR300
WAN connection - 3G/4G USB modem compatibility - No
WAN connection - DSL WAN - No
WAN connection - Ethernet WAN - Yes
WAN connection - SIM card slot - No
WAN connection - WAN connection type - RJ-45
warrantyLength - 24
warrantyType - G
Weight - 0.34
weight - 335
Weight & dimensions - Depth - 169 mm
Weight & dimensions - Height - 64 mm
Weight & dimensions - Width - 259 mm
Wireless LAN features - Top Wi-Fi standard - Wi-Fi 4 (802.11n)
Wireless LAN features - Wi-Fi band - Single-band (2.4 GHz)
Wireless LAN features - Wi-Fi standards - 802.11b
Wireless LAN features - Wi-Fi standards - 802.11g
Wireless LAN features - Wi-Fi standards - Wi-Fi 4 (802.11n)
Wireless LAN features - WLAN data transfer rate (max) - 300 Mbit/s
