ID: 752548
Product code: V11HA29140
In stock 4 units
Warranty: 2 years
(Warranty for business entities 1 year)

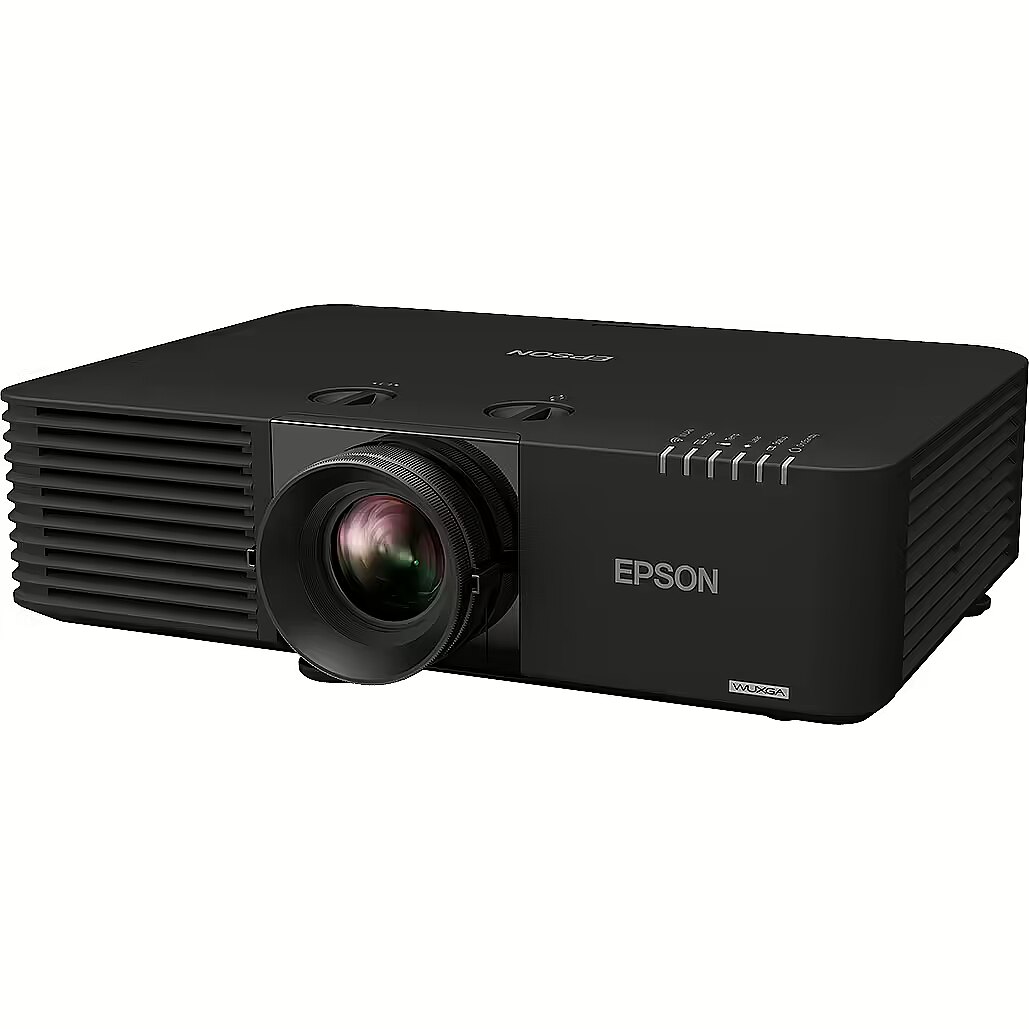

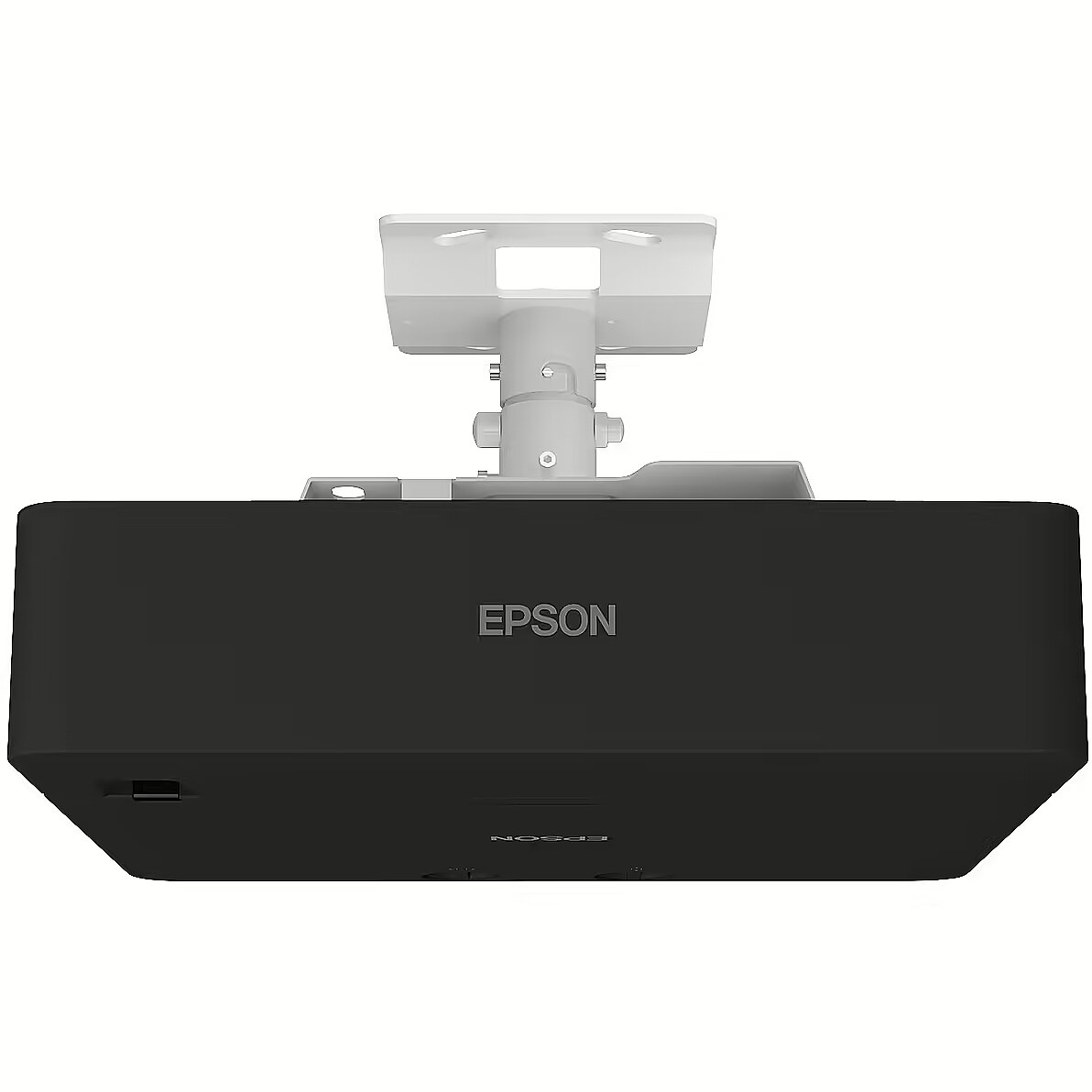

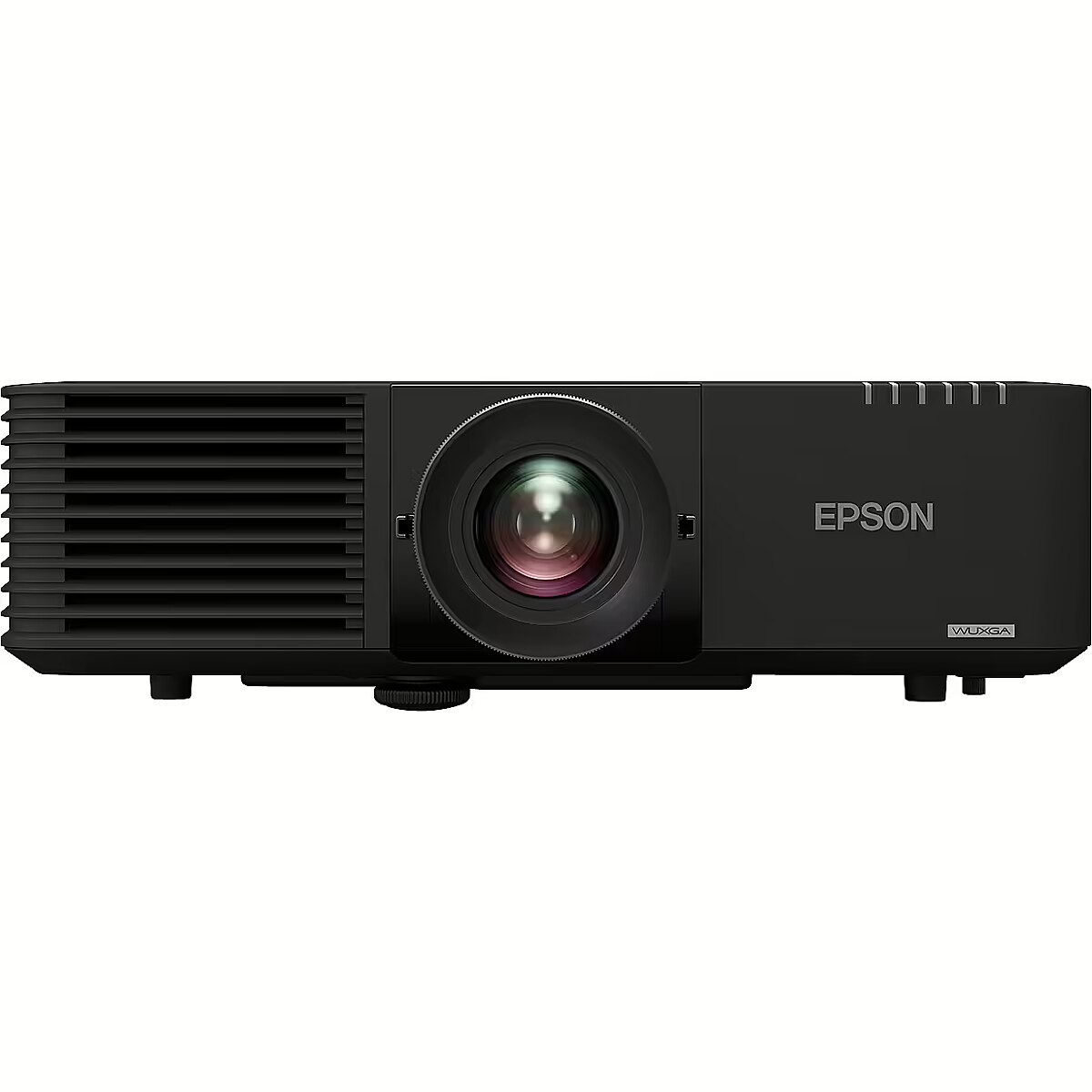

Epson EB-L635SU
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: 02.12.2024
- Courier delivery 3.99 €: 02.12.2024
Main product parameters All parameters
- Brightness (lumens): 6000 ANSI
- Contrast ratio: 2500000:1
- Native resolution: WUXGA 1920 x 1200
All parameters
Brightness (lumens)
6000 ANSI
The brightness of the projector bulb in ANSI lumens units. This is an important indicator if you want to use the projector in daylight conditions or lit rooms. A higher number of lumens means better brightness. TopPC.ee recommends to buy a projector with 2000 and more lumens.
Contrast ratio
2500000:1
The projector contrast determines the sharpness of the image. The higher the contract the clearer the visibility of the text on the screen; the contrast also determines how well the lines will be pronounced in the image created by the projector. A high contrast is an important factor when a projector for the presentation needs is selected.
The measuring unit of the contrast is the ratio between the lightest and darkest condition of the pixel. The higher the ration the better the contrast.
The measuring unit of the contrast is the ratio between the lightest and darkest condition of the pixel. The higher the ration the better the contrast.
Native resolution
WUXGA 1920 x 1200
The matrix (natural) resolution determines the number of colour dots (pixels) the projector can display without compression (at the maximum sharpness of the image). The higher the matrix resolution the better the sharpness of the image and the bigger the software desktop for efficient work.
More detailed specification
Brand - Epson
BrandPartCode - V11HA29140
Category - Data Projectors
Code - V11HA29140
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - Market positioning - Presentation
Design - Placement - Ceiling, Desktop
Design - Product colour - Black
Design - Product type - Standard throw projector
Display - Built-in display - No
EAN - 8715946695372
Features - Country of origin - Philippines
Features - HDCP - Yes
Features - Interactive - No
Features - Noise level - 38 dB
Features - Noise level (economic mode) - 27 dB
Features - Password protection - Yes
GTIN - 8715946695372
Lens system - Aperture range (F-F) - 1.7 - 1.7
Lens system - Fixed focal length - 1.18 cm
Lens system - Focus - Manual
Lens system - Horizontal lens shift range - -20 - 20%
Lens system - Throw ratio - 0.80:1
Lens system - Vertical lens shift range - -50 - 50%
Lens system - Zoom capability - Yes
Lens system - Zoom ratio - 1.35:1
Lens system - Zoom type - Auto
Light source - Light source type - Laser
Light source - Service life of light source - 20000 h
Light source - Service life of light source (economic mode) - 30000 h
Logistics data - Harmonized System (HS) code - 85286200
Logistics data - Products per pallet - 14 pc(s)
Logistics data - Products per pallet (UK) - 14 pc(s)
Logistics data - Quantity per pack - 1 pc(s)
LongDesc - As the market leader in 3LCD technology, Epson continues to improve its high brightness laser projectors with more compact short-throw display solutions. The EB-L635SU delivers effective, practical and creative applications to meet the display needs in education, corporates, museums and visitor attractions. All achieved without sacrificing image quality or lens shift flexibility.Bright, cost-effective display solutionsProviding bolder, brighter, more engaging and impactful displays even in brightly-lit environments, the EB-L635SU offers impressive 6,000-lumen brightness and WUXGA Full HD resolution at an affordable price. This means that users can upgrade to laser performance and reliability, with reduced power consumption, without paying a premium. It also features: 0.8:1 throw ratio, 4K input support, detail enhancement technology, edge blending and wide lens shift to fit challenging installation environments. The EB-L635SU is capable of large format and blended displays, without any reduction in clarity or vivid detail.Enhanced connectivityThis display solution offers many different ways to connect, show multiple sources simultaneously and present wirelessly. The EB-L635SU comes equipped with futureproofed connectivity options including HDMI and HDBaseT with 4K signal support, 5GHz wireless with enterprise security, upgraded Miracast, built-in media player and support for Epson’s ELPWP10 wireless presentation system.Easy and flexible installationThis stylish and compact projector supports 360 degree installation without compromising the display quality and supports 16:6 ultra-widescreen, HDMI output and edge blending for multi-projector installs. Also available in white.
LongProductName - 3LCD, 1920x1200, 16:10, USB, WLAN, LAN, VGA, HDMI, AC 100-240V, 440x339x136 mm
LongSummaryDescription - Epson EB-L635SU. Projector brightness: 6000 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Fixed focal length: 1.18 cm, Aperture range (F-F): 1.7 - 1.7. Video processing: 10 bit, Video colour modes: Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection. Serial interface type: RS-232C, HDMI connector type: Full-size
Multimedia - Built-in speaker(s) - Yes
Multimedia - Number of built-in speakers - 1
Multimedia - RMS rated power - 10 W
Name - Epson | EB-L635SU | WUXGA (1920x1200) | 6000 ANSI lumens | Black | Lamp warranty 12 month(s)
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Miracast - Yes
Network - Smart TV - No
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Storage relative humidity (H-H) - 10 - 90%
Operational conditions - Storage temperature (T-T) - -10 - 60 °C
Other features - Supported network protocols - HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
Packaging content - Batteries included - Yes
Packaging content - Cables included - AC
Packaging content - Manual - Yes
Packaging content - Remote control included - Yes
Packaging content - Warranty card - Yes
Packaging content - WLAN adapter included - Yes
Ports & interfaces - AC (power) in - Yes
Ports & interfaces - DVI port - No
Ports & interfaces - HDBaseT port - Yes
Ports & interfaces - HDMI connector type - Full-size
Ports & interfaces - HDMI ports quantity - 3
Ports & interfaces - PC Audio in - Yes
Ports & interfaces - PC Audio out - Yes
Ports & interfaces - Serial interface type - RS-232C
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - USB 2.0 Type-B ports quantity - 1
Ports & interfaces - VGA (D-Sub) ports quantity - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100-240 V
Power - Power consumption (economy mode) - 258 W
Power - Power consumption (standby) - 0.3 W
Power - Power consumption (typical) - 345 W
Power - Power source - AC
ProductName - EB-L635SU
Projector - Contrast ratio (typical) - 2500000:1
Projector - Keystone correction, horizontal - -30 - 30°
Projector - Keystone correction, vertical - -30 - 30°
Projector - Matrix size - 1.7 cm (0.67")
Projector - Native aspect ratio - 16:10
Projector - Number of colours - 1.07 billion colours
Projector - Projection distance (wide) - 0.9 - 3.5 m
Projector - Projection technology - 3LCD
Projector - Projector brightness - 6000 ANSI lumens
Projector - Projector brightness (economic mode) - 4200 ANSI lumens
Projector - Projector native resolution - WUXGA (1920x1200)
Projector - Screen size compatibility - 1270 - 5080 mm (50 - 200")
Projector - Smart projector - No
ShortSummaryDescription - Epson EB-L635SU, 6000 ANSI lumens, 3LCD, WUXGA (1920x1200), 2500000:1, 16:10, 1270 - 5080 mm (50 - 200")
Software - Software support - via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
Storage - Card reader integrated - No
Title - Epson EB-L635SU data projector Standard throw projector 6000 ANSI lumens 3LCD WUXGA (1920x1200) Black
URL - https://www.epson.eu/products/projectors/installation/eb-l635su
Video - Full HD - Yes
Video - Video colour modes - Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection
Video - Video processing - 10 bit
WarrantyInfo -
Weight & dimensions - Depth - 334 mm
Weight & dimensions - Height - 136 mm
Weight & dimensions - Package depth - 560 mm
Weight & dimensions - Package height - 210 mm
Weight & dimensions - Package weight - 12.3 kg
Weight & dimensions - Package width - 540 mm
Weight & dimensions - Weight - 8.4 kg
Weight & dimensions - Width - 440 mm
