ID: 1103826
Product code: V11H741040
In stock 3 units
Warranty: 3 years

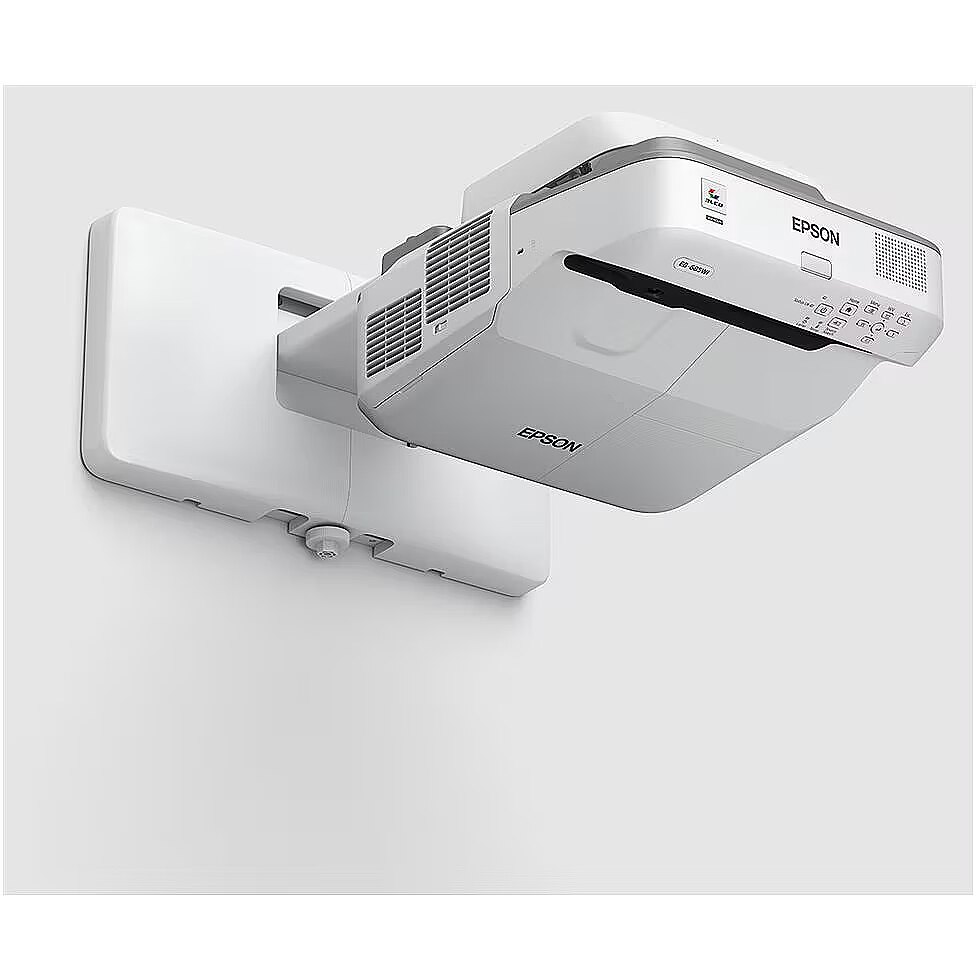

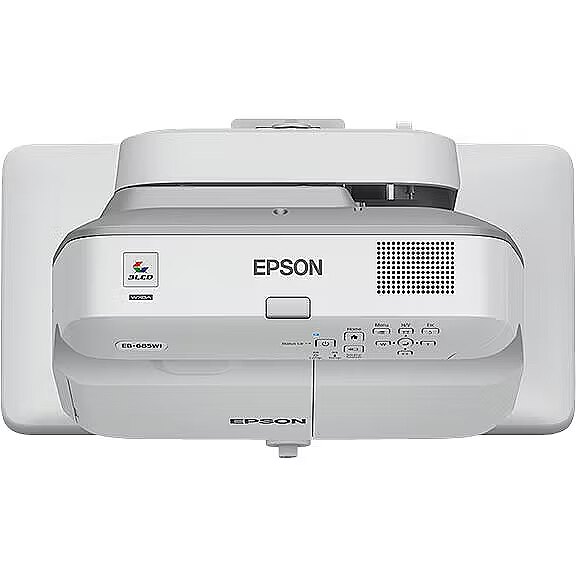

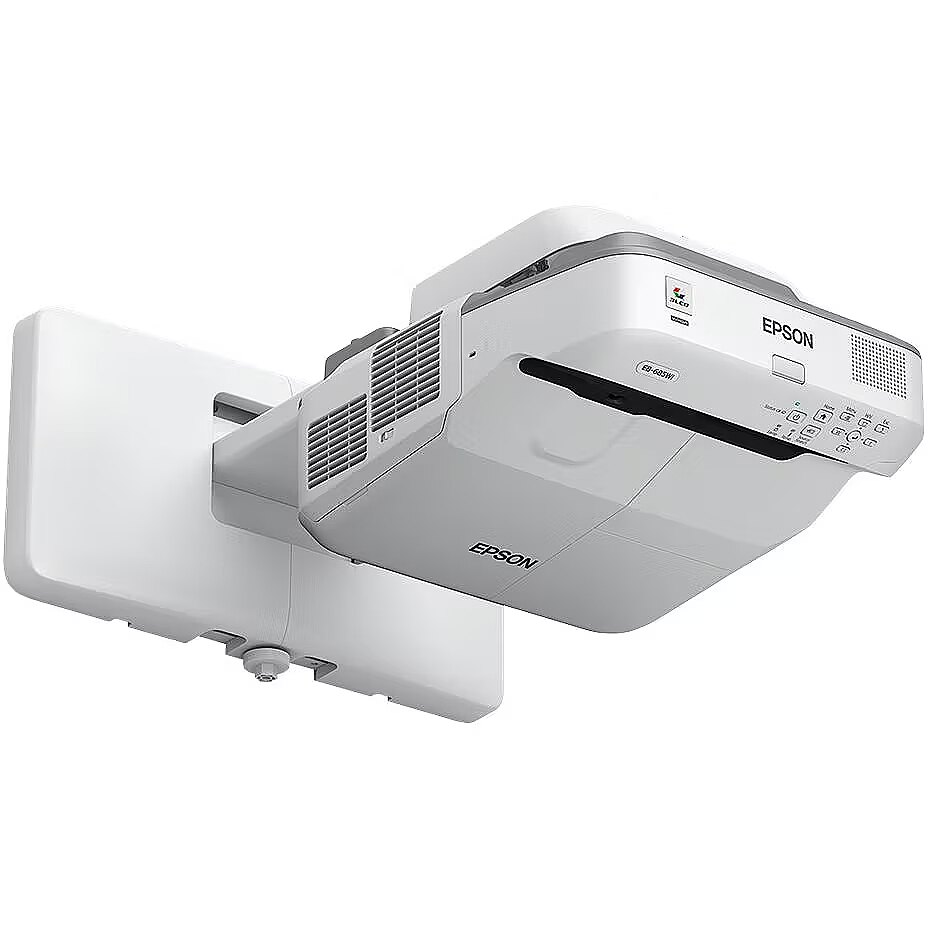

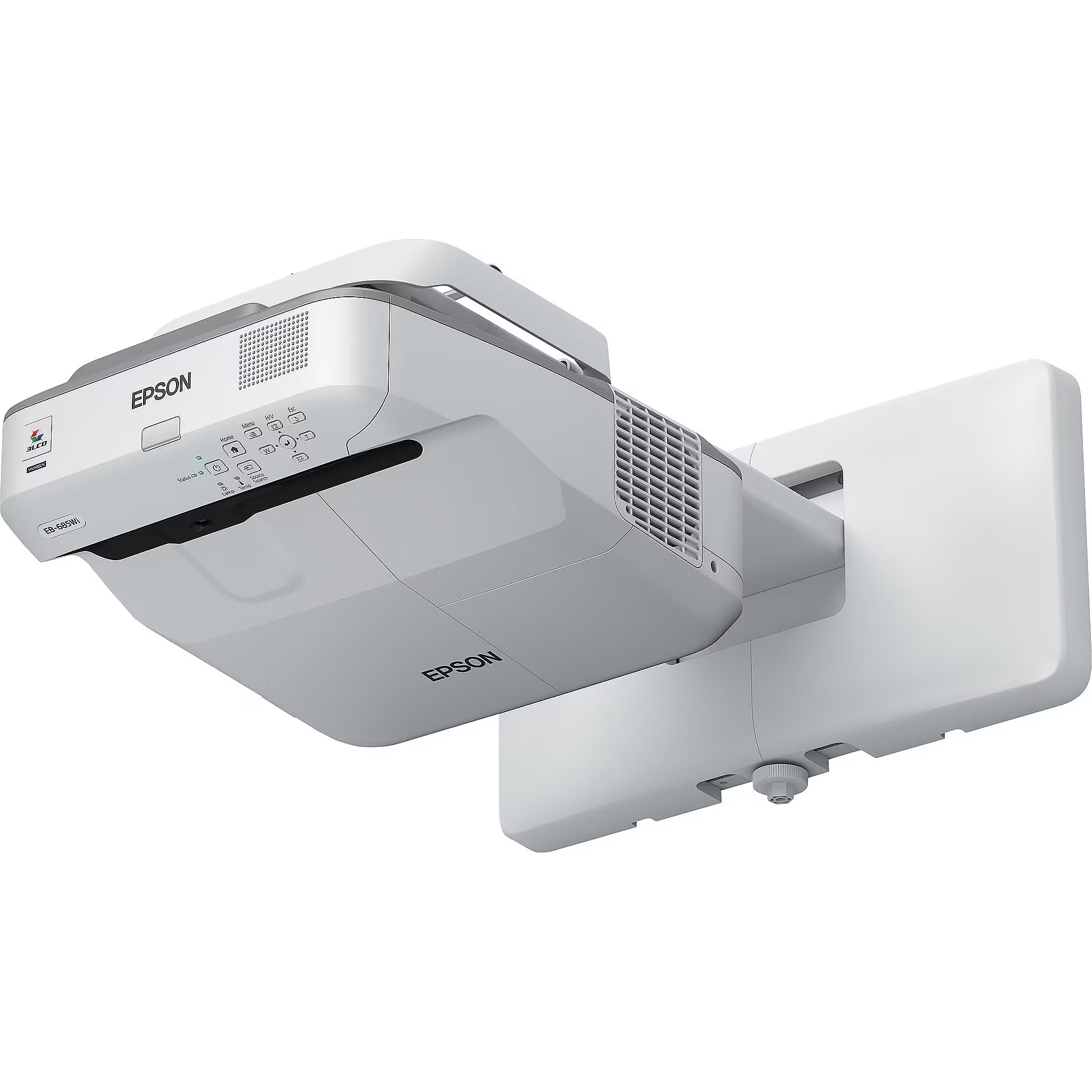

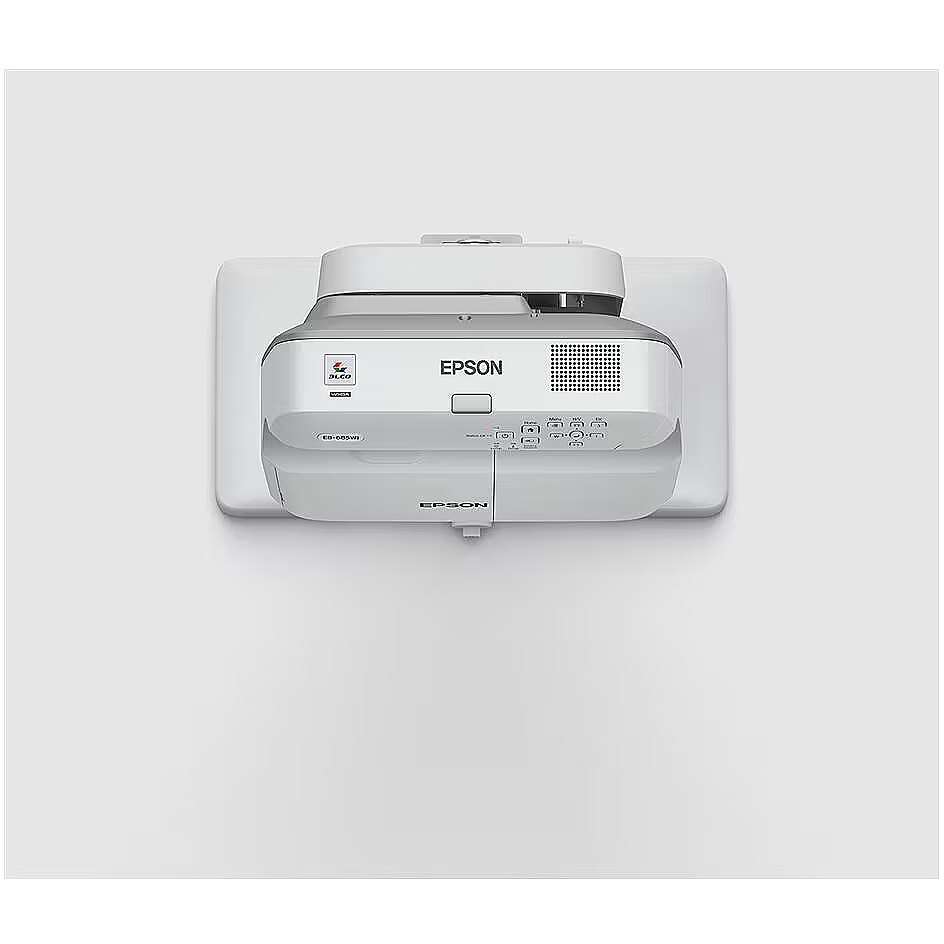

Epson EB-685WI
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Courier delivery 3.99 €: 19.11.2024
Main product parameters All parameters
- Brightness (lumens): 3500 ANSI
- Contrast ratio: 14000:1
- Native resolution: WXGA 1280x800
All parameters
Brightness (lumens)
3500 ANSI
The brightness of the projector bulb in ANSI lumens units. This is an important indicator if you want to use the projector in daylight conditions or lit rooms. A higher number of lumens means better brightness. TopPC.ee recommends to buy a projector with 2000 and more lumens.
Contrast ratio
14000:1
The projector contrast determines the sharpness of the image. The higher the contract the clearer the visibility of the text on the screen; the contrast also determines how well the lines will be pronounced in the image created by the projector. A high contrast is an important factor when a projector for the presentation needs is selected.
The measuring unit of the contrast is the ratio between the lightest and darkest condition of the pixel. The higher the ration the better the contrast.
The measuring unit of the contrast is the ratio between the lightest and darkest condition of the pixel. The higher the ration the better the contrast.
Native resolution
WXGA 1280x800
The matrix (natural) resolution determines the number of colour dots (pixels) the projector can display without compression (at the maximum sharpness of the image). The higher the matrix resolution the better the sharpness of the image and the bigger the software desktop for efficient work.
More detailed specification
Brand - Epson
BrandPartCode - V11H741040
Category - Data Projectors
Code - V11H741040
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - LED indicators - Yes
Design - Market positioning - Ulta short throw

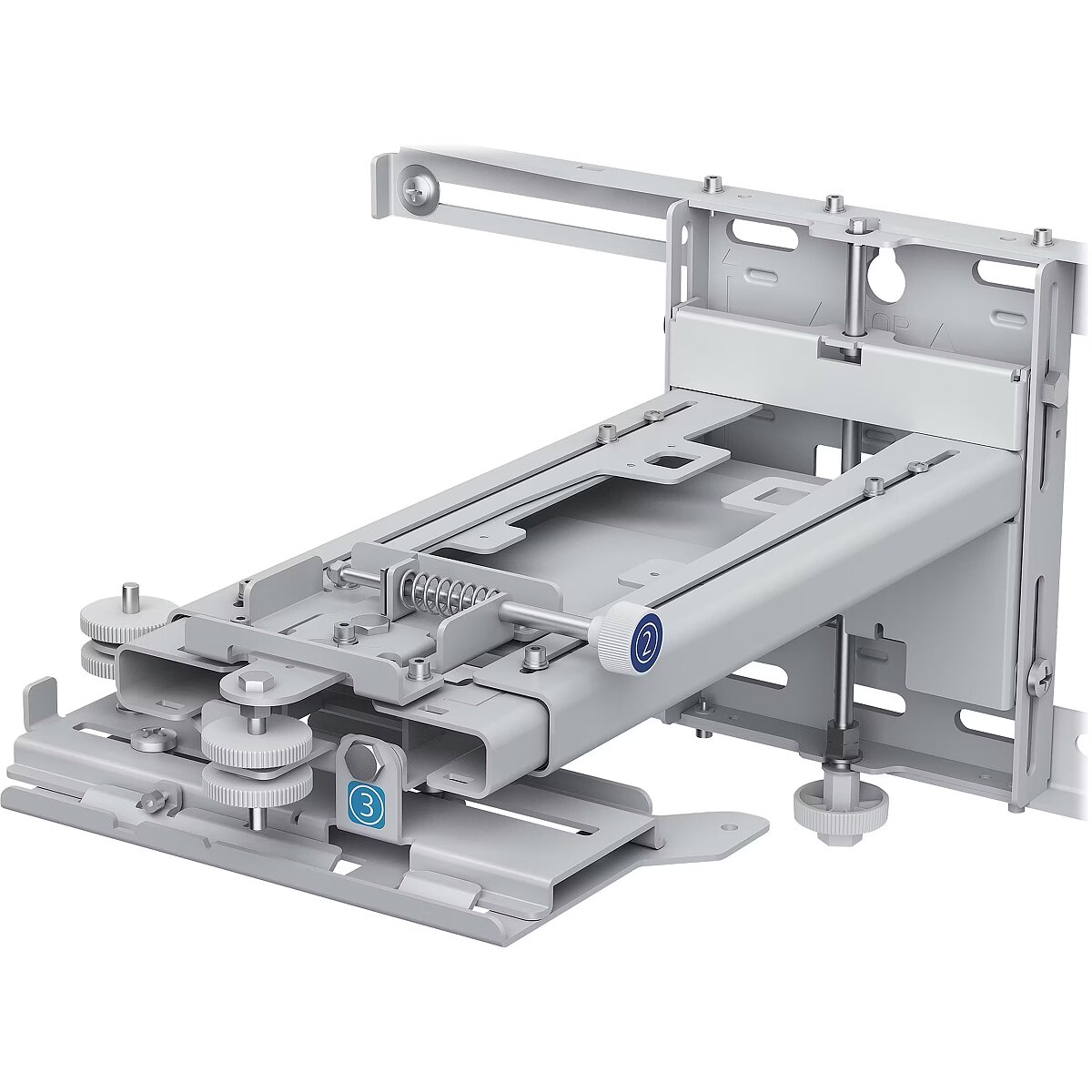

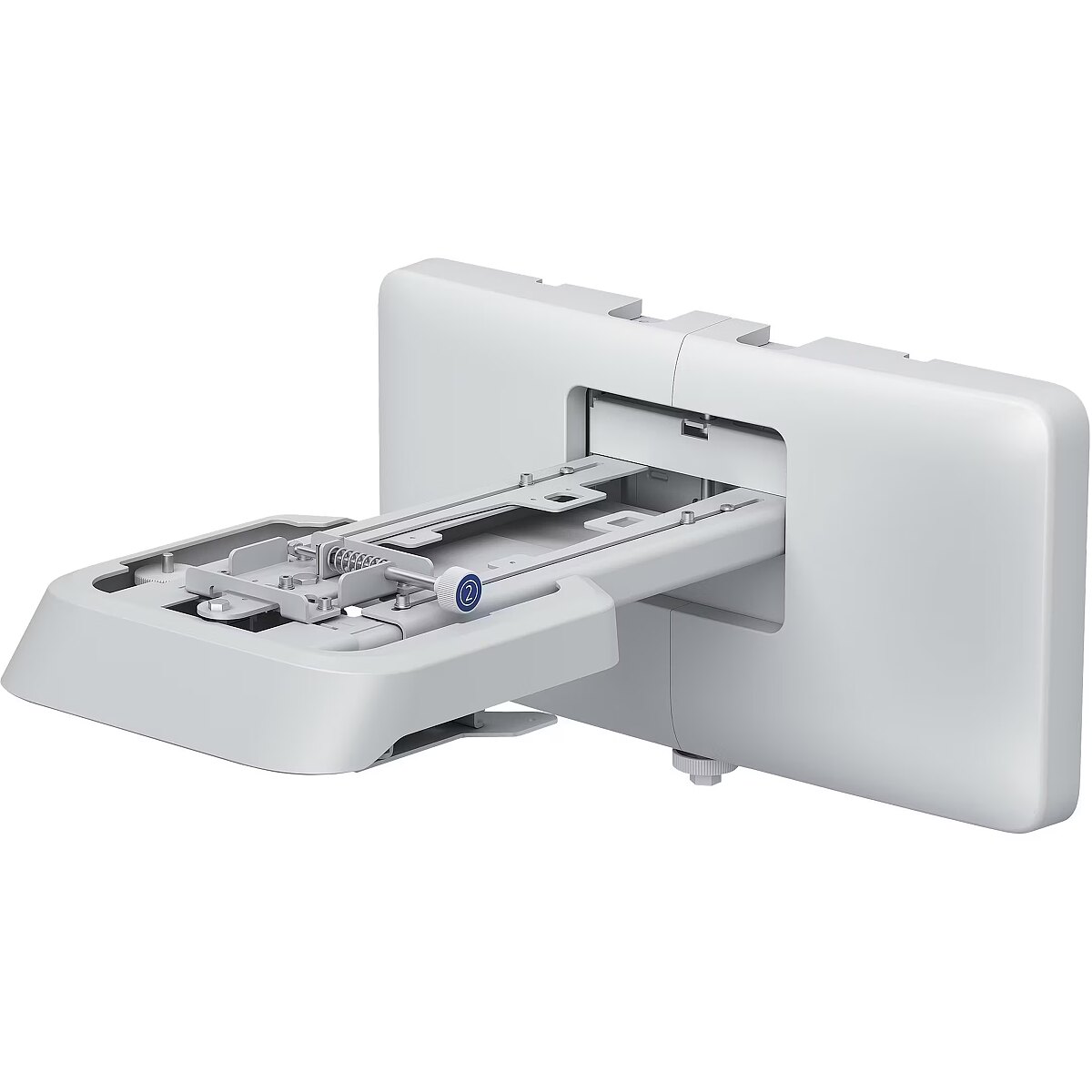

Design - Placement - Wall
Design - Product colour - White, Grey
Design - Product type - Ultra short throw projector
Design > Colour of product - White
Design > Producer product family - Ultra Short Throw Series
Display - Built-in display - No
EAN - 8715946605159
Features - Compatible operating systems - Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04 LTS, Windows 10, Windows 8, Windows 8.1
Features - Country of origin - Philippines
Features - Interactive - Yes

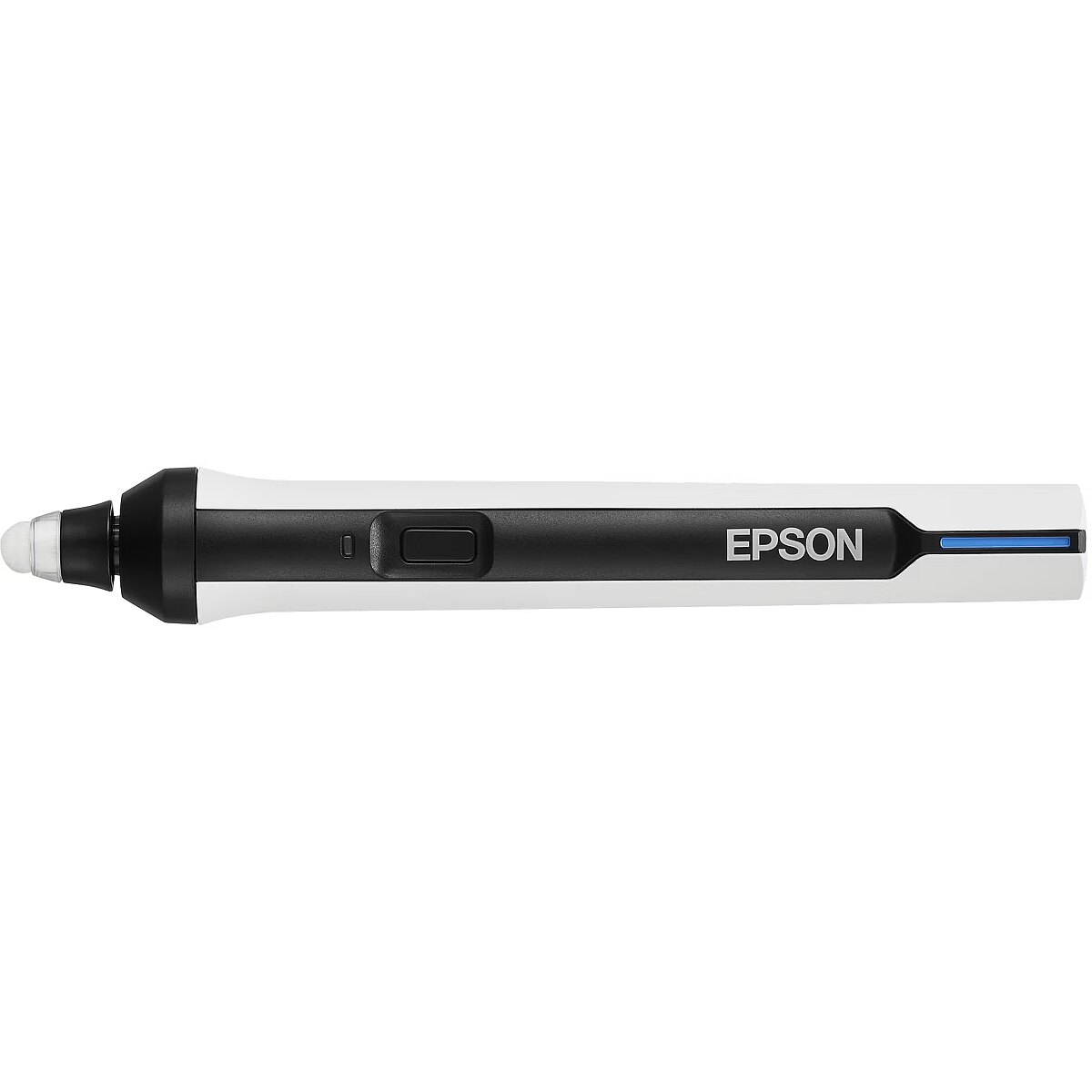

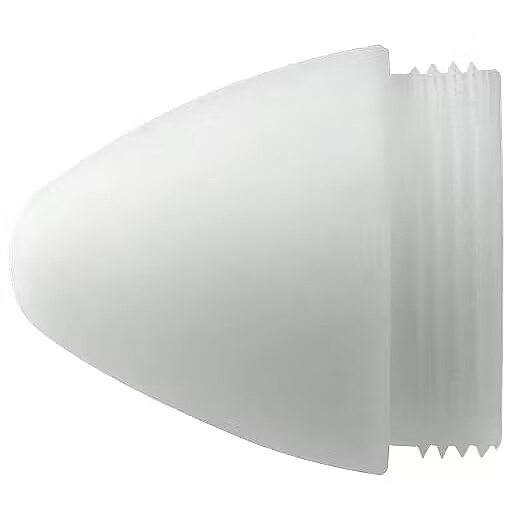

Features - Interactive input supported - Interactive pen
Features - Noise level - 35 dB
Features - Noise level (economic mode) - 30 dB
Features - Password protection - Yes
Gross weight - 20.6 kg
GTIN - 8715946605159
Lamps > Lamp power (economic mode) - 250 W
Lamps > Service life of lamp (economic mode) - 10000 h
Lens system - Fixed focal length - 3.7 mm
Lens system - Focal length range - 3.7 mm
Lens system - Focus - Manual
Lens system - Throw ratio - 0.28 - 0.37:1
Lens system - Zoom ratio - 1.35:1
Lens system - Zoom type - Auto

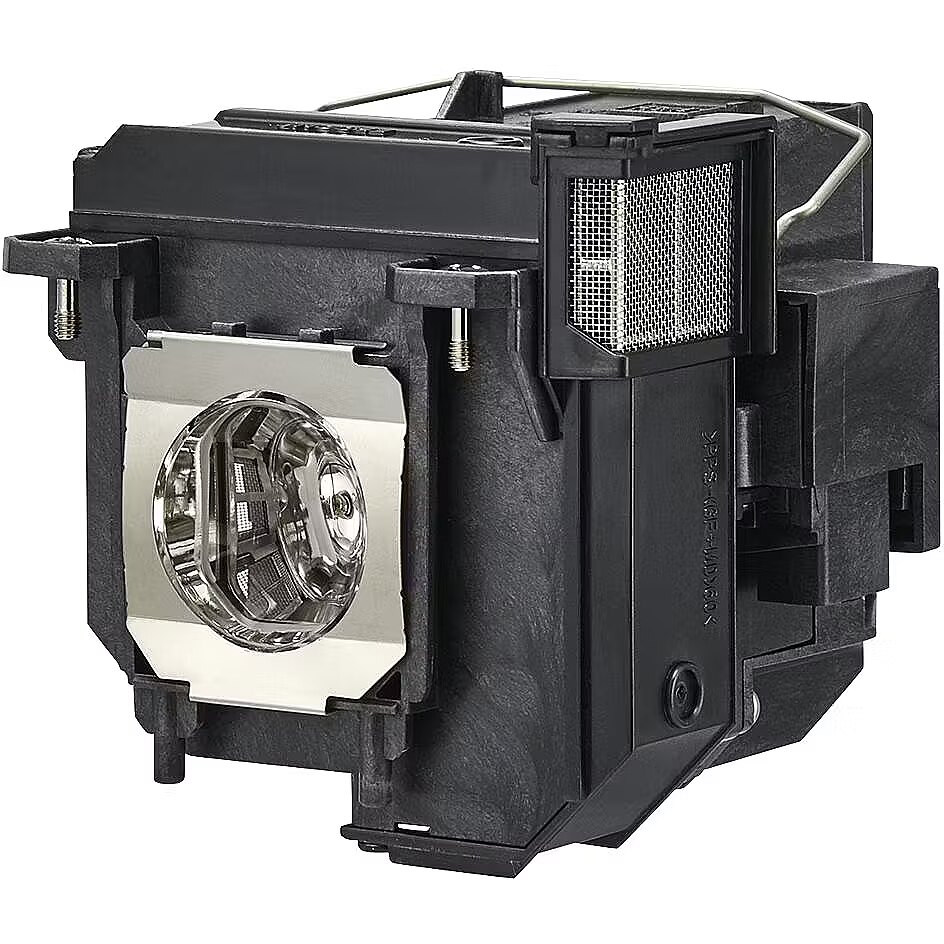

Light source - Lamp power - 250 W
Light source - Light source type - Lamp
Light source - Service life of light source - 5000 h
Light source - Service life of light source (economic mode) - 10000 h
Link - https://www.epson.eu/products/projectors/ultra-short-distance/eb-685wi
Logistics data - Harmonized System (HS) code - 85286200
Logistics data - Pallet gross height - 15 cm
Logistics data - Pallet gross length - 120 cm
Logistics data - Pallet gross width - 80 cm
Logistics data - Pallet height (UK) - 15 cm
Logistics data - Pallet length (UK) - 120 cm
Logistics data - Pallet width (UK) - 100 cm
Logistics data - Products per pallet - 12 pc(s)
Logistics data - Products per pallet (UK) - 12 pc(s)
Logistics data - Products per pallet layer - 2 pc(s)
Logistics data - Products per pallet layer (UK) - 2 pc(s)
Logistics data - Quantity per pack - 1 pc(s)
LongDesc - This projector offers superb interactivity thanks to its dual pen capability. With a brightness of 3,500 lumens and HD-ready WXGA resolution, the EB-685Wi's ultra-short-throw design allows you to present large images from a very short distance with minimised shadows and glare. A 14,000:1 contrast ratio and HDMI input mean that students benefit from sharp, clear images.High brightness and image qualityEpson’s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than competitive projectors1. With a scalable display size of up to 100 inches, two types of content can be displayed using the split-screen without compromising on quality.Dual penEpson's interactive pens are now even more responsive and easy to use when annotating directly on screen. With the new dual pens, teacher and student or two students can work simultaneously using different attributes.Highly reliableProject for longer with improved reliability and a longer lamp life of up to 10,000 hours in eco mode.Interact and enhance learningMulti-PC projection software allows teachers and students to share content simultaneously. The moderator function allows teachers to remain in control, choosing what content to display. Combine two projectors to create one large interactive display. Split-screen capability allows teachers to display two separate types of content simultaneously, such as a lesson plan from a PC and a still image or video clip from a document camera.Optional wireless capabilityWirelessly display content easily from a range of smart devices and Google Chromebooks using our iProjection App.
LongProductName - 0.59", 3LCD, WXGA (1280x800), 3500 Lumen, 14000:1, 250W, 3x HDMI, White/Grey
LongSummaryDescription - Epson EB-685Wi. Projector brightness: 3500 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WXGA (1280x800). Light source type: Lamp, Service life of light source: 5000 h, Service life of light source (economic mode): 10000 h. Focus: Manual, Focal length range: 3.7 mm, Fixed focal length: 3.7 mm. Video processing: 10 bit, Video colour modes: Blackboard, Cinema, Dynamic, Presentation, sRGB, Whiteboard. Serial interface type: RS-232C
Multimedia - Built-in speaker(s) - Yes
Multimedia - RMS rated power - 16 W
Name - Epson | EB-685WI | WXGA (1280x800) | 3500 ANSI lumens | 14.000:1 | White | Lamp warranty 12 month(s)
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Networking > Wi-Fi connection - Yes (optional)
Networking > Wi-Fi standards - 802.11b/g/n
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Operating temperature (T-T) - 5 - 35 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 90%
Operational conditions - Storage temperature (T-T) - -10 - 60 °C
Other features - RS-232 ports - 1
Other features - RS-232C - Yes

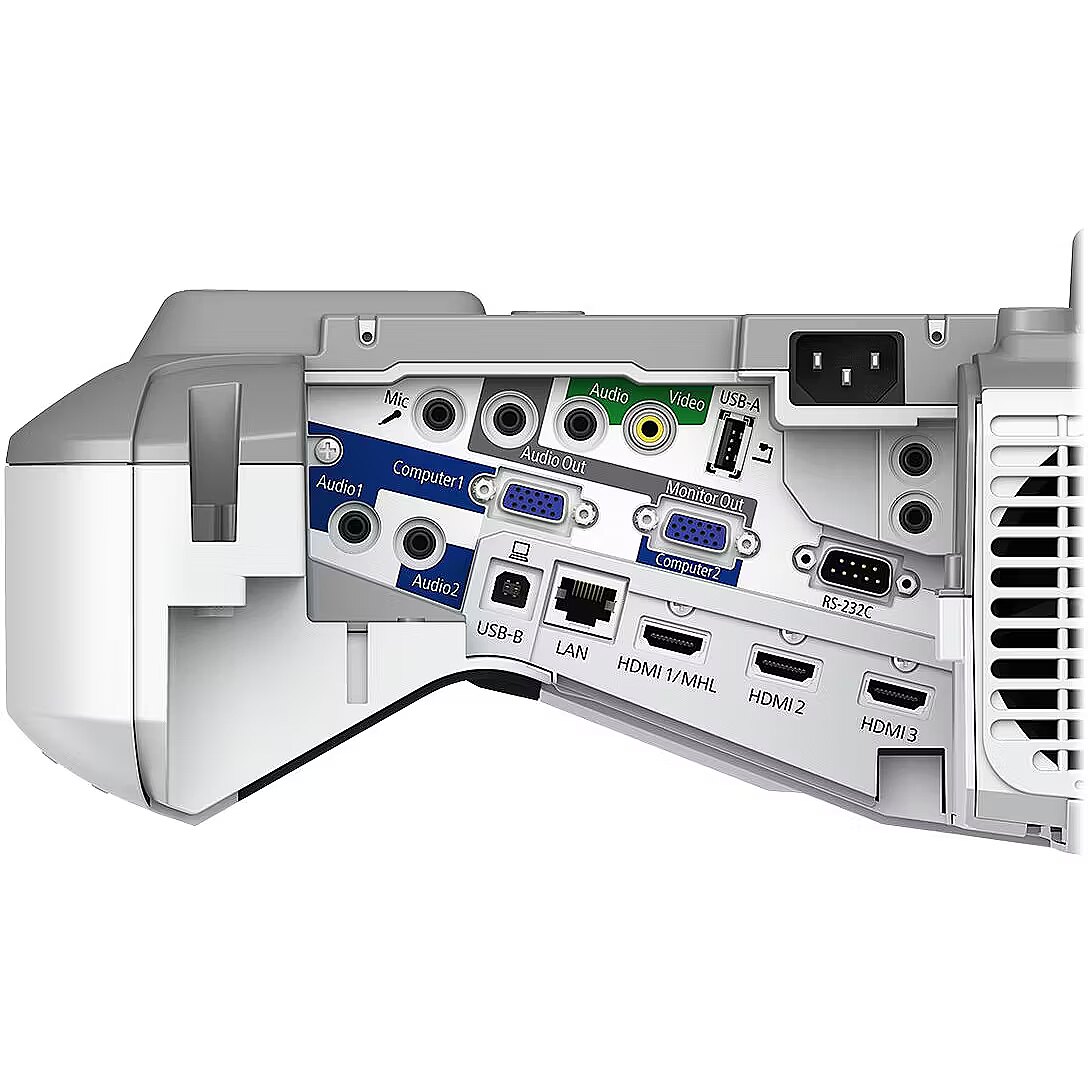

Other features > I/O ports - Composite in, RGB in (2x), RGB out, MHL, Stereo mini jack audio out, Stereo mini jack audio in (3x), Microphone input, Sync. in, Sync. out
Other features > Network connection type - Wired Network, Wireless LAN IEEE 802.11b/g/n
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 720 mm
Package features > Gross height (mm) - 330 mm
Package features > Gross width (mm) - 480 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 15 pc(s)
Package features > Paper/Pasteboard - 3478.00 g
Package features > PET - 51.00 g
Package features > Plastic (No PET) - 216.00 g
Package features > Tare weight (kg) - 3.98 kg
Package features > TI weight (kg) - 0.02 kg
Package features > Type of battery - Battery
Package features > Volume (m3) - 0.114048 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Package features > Wooden - 594.00 g
Packaging content - Bundled software - Easy Interactive Tools, EasyMP Multi PC Projection, Epson Projektor Management
Packaging content - Cables included - AC
Packaging content - Manual - Yes
Packaging content - Quick start guide - Yes
Packaging content - Remote control included - No
Packaging content - WLAN adapter included - Yes
Ports & interfaces - AC (power) in - Yes
Ports & interfaces - Audio (L/R) in - 1
Ports & interfaces - Composite video in - 1
Ports & interfaces - DVI port - No
Ports & interfaces - HDMI ports quantity - 3
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Microphone in - Yes
Ports & interfaces - S-Video inputs quantity - 1
Ports & interfaces - Serial interface type - RS-232C
Ports & interfaces - USB 2.0 ports quantity - 3
Ports & interfaces - VGA (D-Sub) ports quantity - 3
Ports & interfaces > HDMI ports quantity - 3
Ports & interfaces > USB 2.0 ports quantity - USB 2.0 Type A, USB 2.0 Type B
Ports & interfaces > VGA (D-Sub) ports quantity - VGA in x 2, VGA out
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100-240 V
Power - Power consumption (economy mode) - 310 W
Power - Power consumption (standby) - 0.39 W
Power - Power consumption (typical) - 354 W
Power - Power source - AC
Producer product name - EB-685WI
ProductName - EB-685Wi
Projector - Colour light output - 3500 ANSI lumens
Projector - Contrast ratio (dynamic) - 14000:1
Projector - Contrast ratio (typical) - 14000:1
Projector - Keystone correction, horizontal - -3 - 3°
Projector - Keystone correction, vertical - -3 - 3°
Projector - Matrix size - 1.5 cm (0.59")
Projector - Native aspect ratio - 16:10
Projector - Number of colours - 1.07 billion colours
Projector - Projection distance (tele) - 0 - 0.6 m
Projector - Projection distance (wide) - 0 - 0.4 m
Projector - Projection technology - 3LCD
Projector - Projector brightness - 3500 ANSI lumens
Projector - Projector brightness (economic mode) - 2900 ANSI lumens
Projector - Projector native resolution - WXGA (1280x800)
Projector - Screen size compatibility - 1524 - 2540 mm (60 - 100")
Projector - Supported aspect ratios - 16:10
Projector - Vertical scan range - 100 - 120 Hz
Projector - Vertical synchronization (max) - 0.12 kHz
Projector - Vertical synchronization (min) - 0.1 kHz
Projector - White light output - 3500 ANSI lumens
Projector > Contrast ratio (typical) - 14.000:1
Projector > Native aspect ratio - 16:10
Projector > Projection technology - 3LCD
Projector > Zoom ratio - Digital, Factor: 1 - 1.35
ShortSummaryDescription - Epson EB-685Wi, 3500 ANSI lumens, 3LCD, WXGA (1280x800), 14000:1, 16:10, 1524 - 2540 mm (60 - 100")
Software - Software support - via: AMX, Crestron (Network), Control4
Software - Windows operating systems supported - Windows 10, Windows 8, Windows 8.1
Storage - Card reader integrated - No
Technical details - USB display function - 3 in 1: Image / Mouse / Sound
Technical details > Brightness - 3500 ANSI lumens
Technical details > Contrast ratio - 14000
Technical details > Lamp warranty - 12 month(s)
Technical details > Maximum resolution - WXGA (1280x800)
Technical details > Net weight - 16.62 kg
Technical details > Producer - Epson
Technical details > RS-232C - Yes
Technical details > Warranty - 60 month(s)
Title - Epson EB-685Wi data projector Ultra short throw projector 3500 ANSI lumens 3LCD WXGA (1280x800) White, Grey
URL - https://www.epson.co.uk/products/projectors/ultra-short-distance/epson-eb-685wi
Video - 3D - No
Video - Full HD - No
Video - Video colour modes - Blackboard, Cinema, Dynamic, Presentation, sRGB, Whiteboard
Video - Video processing - 10 bit
Warranty - 60
WarrantyInfo -
Weight & dimensions - Depth - 400 mm
Weight & dimensions - Height - 149 mm
Weight & dimensions - Package depth - 730 mm
Weight & dimensions - Package height - 335 mm
Weight & dimensions - Package weight - 20 kg
Weight & dimensions - Package width - 490 mm
Weight & dimensions - Weight - 5.9 kg
Weight & dimensions - Width - 367 mm
BrandPartCode - V11H741040
Category - Data Projectors
Code - V11H741040
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - LED indicators - Yes
Design - Market positioning - Ulta short throw
Design - Placement - Wall
Design - Product colour - White, Grey
Design - Product type - Ultra short throw projector
Design > Colour of product - White
Design > Producer product family - Ultra Short Throw Series
Display - Built-in display - No
EAN - 8715946605159
Features - Compatible operating systems - Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04 LTS, Windows 10, Windows 8, Windows 8.1
Features - Country of origin - Philippines
Features - Interactive - Yes
Features - Interactive input supported - Interactive pen
Features - Noise level - 35 dB
Features - Noise level (economic mode) - 30 dB
Features - Password protection - Yes
Gross weight - 20.6 kg
GTIN - 8715946605159
Lamps > Lamp power (economic mode) - 250 W
Lamps > Service life of lamp (economic mode) - 10000 h
Lens system - Fixed focal length - 3.7 mm
Lens system - Focal length range - 3.7 mm
Lens system - Focus - Manual
Lens system - Throw ratio - 0.28 - 0.37:1
Lens system - Zoom ratio - 1.35:1
Lens system - Zoom type - Auto
Light source - Lamp power - 250 W
Light source - Light source type - Lamp
Light source - Service life of light source - 5000 h
Light source - Service life of light source (economic mode) - 10000 h
Link - https://www.epson.eu/products/projectors/ultra-short-distance/eb-685wi
Logistics data - Harmonized System (HS) code - 85286200
Logistics data - Pallet gross height - 15 cm
Logistics data - Pallet gross length - 120 cm
Logistics data - Pallet gross width - 80 cm
Logistics data - Pallet height (UK) - 15 cm
Logistics data - Pallet length (UK) - 120 cm
Logistics data - Pallet width (UK) - 100 cm
Logistics data - Products per pallet - 12 pc(s)
Logistics data - Products per pallet (UK) - 12 pc(s)
Logistics data - Products per pallet layer - 2 pc(s)
Logistics data - Products per pallet layer (UK) - 2 pc(s)
Logistics data - Quantity per pack - 1 pc(s)
LongDesc - This projector offers superb interactivity thanks to its dual pen capability. With a brightness of 3,500 lumens and HD-ready WXGA resolution, the EB-685Wi's ultra-short-throw design allows you to present large images from a very short distance with minimised shadows and glare. A 14,000:1 contrast ratio and HDMI input mean that students benefit from sharp, clear images.High brightness and image qualityEpson’s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than competitive projectors1. With a scalable display size of up to 100 inches, two types of content can be displayed using the split-screen without compromising on quality.Dual penEpson's interactive pens are now even more responsive and easy to use when annotating directly on screen. With the new dual pens, teacher and student or two students can work simultaneously using different attributes.Highly reliableProject for longer with improved reliability and a longer lamp life of up to 10,000 hours in eco mode.Interact and enhance learningMulti-PC projection software allows teachers and students to share content simultaneously. The moderator function allows teachers to remain in control, choosing what content to display. Combine two projectors to create one large interactive display. Split-screen capability allows teachers to display two separate types of content simultaneously, such as a lesson plan from a PC and a still image or video clip from a document camera.Optional wireless capabilityWirelessly display content easily from a range of smart devices and Google Chromebooks using our iProjection App.
LongProductName - 0.59", 3LCD, WXGA (1280x800), 3500 Lumen, 14000:1, 250W, 3x HDMI, White/Grey
LongSummaryDescription - Epson EB-685Wi. Projector brightness: 3500 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WXGA (1280x800). Light source type: Lamp, Service life of light source: 5000 h, Service life of light source (economic mode): 10000 h. Focus: Manual, Focal length range: 3.7 mm, Fixed focal length: 3.7 mm. Video processing: 10 bit, Video colour modes: Blackboard, Cinema, Dynamic, Presentation, sRGB, Whiteboard. Serial interface type: RS-232C
Multimedia - Built-in speaker(s) - Yes
Multimedia - RMS rated power - 16 W
Name - Epson | EB-685WI | WXGA (1280x800) | 3500 ANSI lumens | 14.000:1 | White | Lamp warranty 12 month(s)
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Networking > Wi-Fi connection - Yes (optional)
Networking > Wi-Fi standards - 802.11b/g/n
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Operating temperature (T-T) - 5 - 35 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 90%
Operational conditions - Storage temperature (T-T) - -10 - 60 °C
Other features - RS-232 ports - 1
Other features - RS-232C - Yes
Other features > I/O ports - Composite in, RGB in (2x), RGB out, MHL, Stereo mini jack audio out, Stereo mini jack audio in (3x), Microphone input, Sync. in, Sync. out
Other features > Network connection type - Wired Network, Wireless LAN IEEE 802.11b/g/n
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 720 mm
Package features > Gross height (mm) - 330 mm
Package features > Gross width (mm) - 480 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 15 pc(s)
Package features > Paper/Pasteboard - 3478.00 g
Package features > PET - 51.00 g
Package features > Plastic (No PET) - 216.00 g
Package features > Tare weight (kg) - 3.98 kg
Package features > TI weight (kg) - 0.02 kg
Package features > Type of battery - Battery
Package features > Volume (m3) - 0.114048 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Package features > Wooden - 594.00 g
Packaging content - Bundled software - Easy Interactive Tools, EasyMP Multi PC Projection, Epson Projektor Management
Packaging content - Cables included - AC
Packaging content - Manual - Yes
Packaging content - Quick start guide - Yes

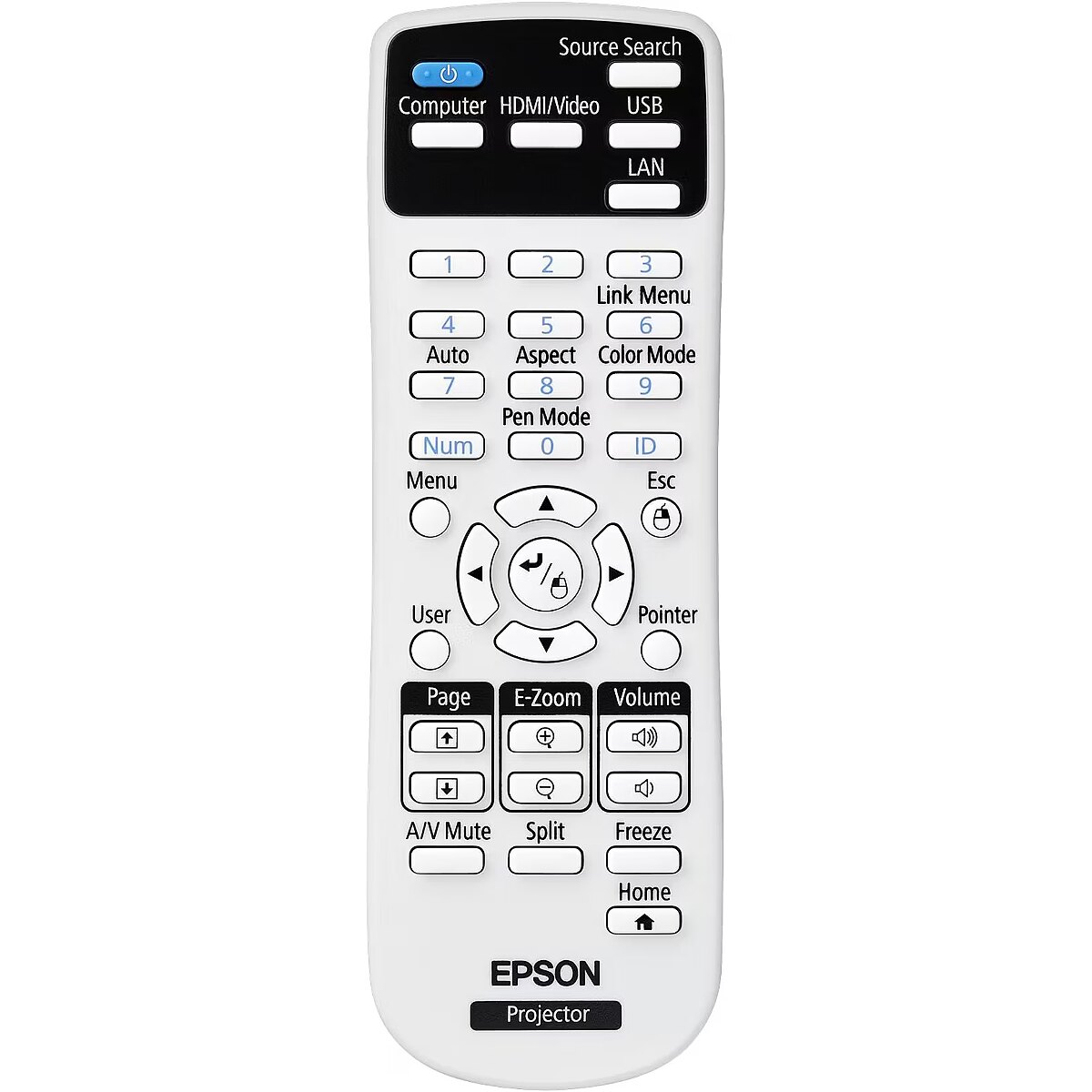

Packaging content - Remote control included - No
Packaging content - WLAN adapter included - Yes
Ports & interfaces - AC (power) in - Yes
Ports & interfaces - Audio (L/R) in - 1
Ports & interfaces - Composite video in - 1
Ports & interfaces - DVI port - No
Ports & interfaces - HDMI ports quantity - 3
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Microphone in - Yes
Ports & interfaces - S-Video inputs quantity - 1
Ports & interfaces - Serial interface type - RS-232C
Ports & interfaces - USB 2.0 ports quantity - 3
Ports & interfaces - VGA (D-Sub) ports quantity - 3
Ports & interfaces > HDMI ports quantity - 3
Ports & interfaces > USB 2.0 ports quantity - USB 2.0 Type A, USB 2.0 Type B
Ports & interfaces > VGA (D-Sub) ports quantity - VGA in x 2, VGA out
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100-240 V
Power - Power consumption (economy mode) - 310 W
Power - Power consumption (standby) - 0.39 W
Power - Power consumption (typical) - 354 W
Power - Power source - AC
Producer product name - EB-685WI
ProductName - EB-685Wi
Projector - Colour light output - 3500 ANSI lumens
Projector - Contrast ratio (dynamic) - 14000:1
Projector - Contrast ratio (typical) - 14000:1
Projector - Keystone correction, horizontal - -3 - 3°
Projector - Keystone correction, vertical - -3 - 3°
Projector - Matrix size - 1.5 cm (0.59")
Projector - Native aspect ratio - 16:10
Projector - Number of colours - 1.07 billion colours
Projector - Projection distance (tele) - 0 - 0.6 m
Projector - Projection distance (wide) - 0 - 0.4 m
Projector - Projection technology - 3LCD
Projector - Projector brightness - 3500 ANSI lumens
Projector - Projector brightness (economic mode) - 2900 ANSI lumens
Projector - Projector native resolution - WXGA (1280x800)
Projector - Screen size compatibility - 1524 - 2540 mm (60 - 100")
Projector - Supported aspect ratios - 16:10
Projector - Vertical scan range - 100 - 120 Hz
Projector - Vertical synchronization (max) - 0.12 kHz
Projector - Vertical synchronization (min) - 0.1 kHz
Projector - White light output - 3500 ANSI lumens
Projector > Contrast ratio (typical) - 14.000:1
Projector > Native aspect ratio - 16:10
Projector > Projection technology - 3LCD
Projector > Zoom ratio - Digital, Factor: 1 - 1.35
ShortSummaryDescription - Epson EB-685Wi, 3500 ANSI lumens, 3LCD, WXGA (1280x800), 14000:1, 16:10, 1524 - 2540 mm (60 - 100")
Software - Software support - via: AMX, Crestron (Network), Control4
Software - Windows operating systems supported - Windows 10, Windows 8, Windows 8.1
Storage - Card reader integrated - No
Technical details - USB display function - 3 in 1: Image / Mouse / Sound
Technical details > Brightness - 3500 ANSI lumens
Technical details > Contrast ratio - 14000
Technical details > Lamp warranty - 12 month(s)
Technical details > Maximum resolution - WXGA (1280x800)
Technical details > Net weight - 16.62 kg
Technical details > Producer - Epson
Technical details > RS-232C - Yes
Technical details > Warranty - 60 month(s)
Title - Epson EB-685Wi data projector Ultra short throw projector 3500 ANSI lumens 3LCD WXGA (1280x800) White, Grey
URL - https://www.epson.co.uk/products/projectors/ultra-short-distance/epson-eb-685wi
Video - 3D - No
Video - Full HD - No
Video - Video colour modes - Blackboard, Cinema, Dynamic, Presentation, sRGB, Whiteboard
Video - Video processing - 10 bit
Warranty - 60
WarrantyInfo -
Weight & dimensions - Depth - 400 mm
Weight & dimensions - Height - 149 mm
Weight & dimensions - Package depth - 730 mm
Weight & dimensions - Package height - 335 mm
Weight & dimensions - Package weight - 20 kg
Weight & dimensions - Package width - 490 mm
Weight & dimensions - Weight - 5.9 kg
Weight & dimensions - Width - 367 mm
