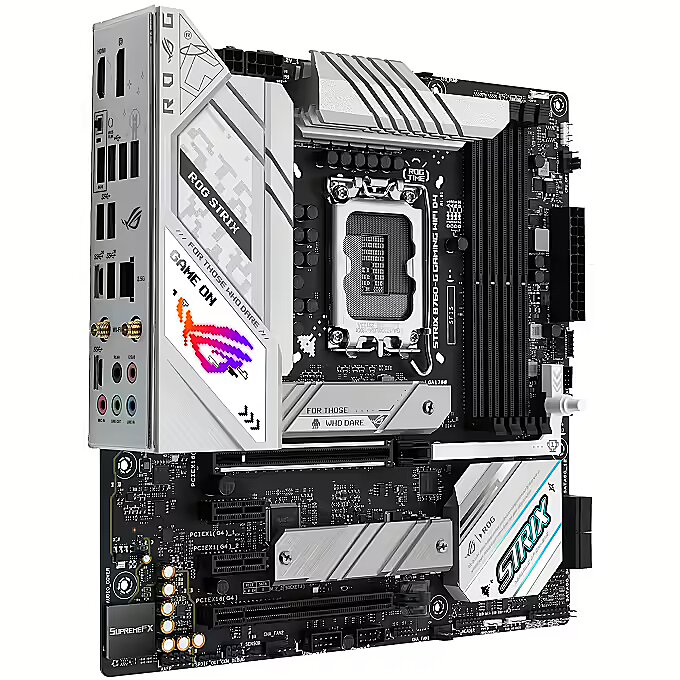

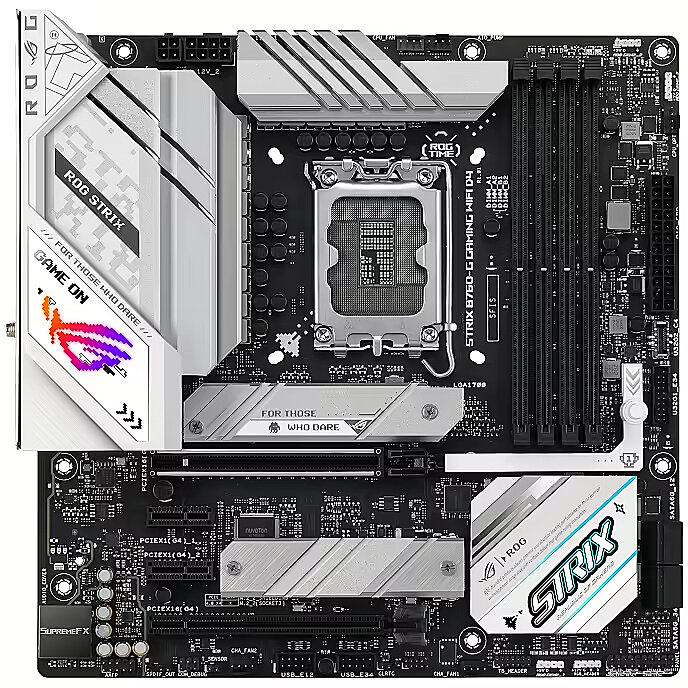

Asus ROG STRIX B760-G GAMING WIFI D4

Name: Asus ROG STRIX B760-G GAMING WIFI D4
Brand: Asus
SKU: 928627
Price: 245.02 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 928627 Product code: ROG STRIX B760-G GAMING WIFI D4

Can be ordered 2 units Availability: 14 days after order approval

Warranty: 3 years

Compare

Delivery options

Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
Delivery to Omniva parcel locker 1.99 €: 11.12.2024
Courier delivery 3.99 €: 11.12.2024

Main product parameters All parameters

Series: ASUS ROG Strix
CPU Socket: LGA 1700
Chipset: Intel B760
Form factor: Micro ATX
Type: DDR4
RAM Slots: 4
Built-in Wi-Fi: Ir

Basic information

Series : ASUS ROG Strix

CPU Socket LGA 1700

The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.

Chipset Intel B760

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.

Form factor Micro ATX

The physical size of the motherboard. TopPC.ee offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Random-access memory (RAM)

Type : DDR4

RAM Slots 4

The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.

Memory support DDR4 3200 (OC 5333)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card

Video card port PCI-EXPRESS

VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.

Integrated graphics Only with iGPU-ready CPU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment

PCI ports 0

PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.

D-Sub : 0

DVI : 0

HDMI : 1

DisplayPort : 1

Integrated sound card : ROG SupremeFX CODEC S1220A

Wireless connections

Built-in Bluetooth : Ir

Built-in Wi-Fi : Ir

External ports

External USB Type-C : 2

External USB 2.0 : 2

External USB 3.0 (USB 3.2 Gen1) : 2

External USB 3.1 (USB 3.2 Gen2) : 1

Internal ports

Internal A-RGB 5V (3-pin) : 3

Internal RGB 12V (4-pin) : 1

Internal USB 2.0 : 2

Internal USB 3.0 : 1

Internal USB Type-C : 1

M.2 Port : 2

SATA3 ports : 4

More detailed specification

Additional information in manufacturers website Asus ROG STRIX B760-G GAMING WIFI D4

BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Brand - ASUS
BrandPartCode - 90MB1DE0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Code - 90MB1DE0-M0EAY0
code - 90MB1DE0-M1EAY0
dimensionalWeight - 1249
EAN - 4711387002896
ean - 4711387002896
EAN_code - 4711387002896
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 4.x) slots - 2
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Features - Windows operating systems supported - Windows 11
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.30 kg
GTIN - 4711387002896
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Peripheral (Molex) power connectors (4-pin) - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://rog.asus.com/motherboards/rog-strix/rog-strix-b760-g-gaming-wifi-d4-model/
LongDesc - ROG STRIX B760-G D4 GAMING WIFIGo big and stay compact. The ROG Strix B760-G D4 pairs perfectly with the Prime AP201 and the latest crop of compact chassis driving the m-ATX renaissance. Stout heatsinks and amped power delivery ensure ample headroom to propel Intel® 13th Gen Core processors, while a PCIe 5.0 SafeSlot welcomes high-performance graphics cards for gaming at 4K and beyond. Blisteringly-fast USB Type-C® and WiFi 6 connectivity further emphasize readiness for things to come. And the black, white, and silver colorway and customizable lighting combine to put endless build themes at your disposal.PCIE® SLOT Q-RELEASEA physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.CLEAR CMOSThe Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected.ALL-ROUND PERFORMANCEWith a powerful VRM and thick stacked heatsinks, the ROG Strix B760-G D4 is ready for any chip in the Intel 13th Gen lineup. Connected devices can run at incredible speeds as well, thanks to immense PCIe bandwidth.POWER ARCHITECTURE16 + 1 power stages, each rated to 60A, deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.ALLOY CHOKES AND DURABLE CAPACITORSHigh-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.SIX-LAYER PCBA multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.LEADING CONNECTIVITYSupersmooth networking, extensive USB bandwidth, and immersive audio all come together to give the ROG Strix B760-G D4 a robust connectivity package.The top x16 expansion slot is ready for the future with incredible PCIe 5.0 bandwidth, and it is protected with a SafeSlot retention bracket to support the bulk of the latest graphics cards. Zippy storage options abound with three PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance.PLAY IN STYLEWith colorful accents, Aura Sync lighting, and a sleek black PCB, the ROG Strix B760-G D4 gives you a bold start to your rig, especially when complemented by similarly vibrant products in the ROG ecosystem.UNDENIABLY ROG STRIXKeeping true to its roots, the Strix B760-G D4 is proudly decorated with allusions to games of yesteryear. Scattered decals create a techno-retro fusion backdrop that is punctuated with vibrant highlights and a signature illuminated ROG logo on the I/O shroud.SOFTWARE UTILITIESTake command of your system through a bevy of ROG-exclusive tools that let you maximize performance and customize your experienceTWO-WAY AI NOISE CANCELATIONThis utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.
LongProductName - LGA 1700, Intel B760 Chipset, 4 x DDR4-SDRAM up to 128GB, LAN, WLAN, 1 x RJ-45, 4 x SATA III, 2 x M.2(M), UEFI AMI, Micro ATX
LongSummaryDescription - ASUS ROG STRIX B760-G GAMING WIFI D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Manufacturer - Asus
Manufacturer_code - 90MB1DE0-M1EAY0
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 5333 MHz
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5066,5333 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666
Memory - Supported memory clock speeds - 2800
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3000
Memory - Supported memory clock speeds - 3200 MHz
Memory - Supported memory clock speeds - 3333
Memory - Supported memory clock speeds - 3400
Memory - Supported memory clock speeds - 3466
Memory - Supported memory clock speeds - 3600 MHz
Memory - Supported memory clock speeds - 3733
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4266
Memory - Supported memory clock speeds - 4400
Memory - Supported memory clock speeds - 4600
Memory - Supported memory clock speeds - 4800 MHz
Memory - Supported memory clock speeds - 5000
Memory - Supported memory clock speeds - 5066
Memory - Supported memory clock speeds - 5333 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - DDR4 DIMM
Name - Asus ROG STRIX B760-G gaming wifi D4 - 1700
name - ASUS ROG Strix B760-G Gaming WiFi D4, Intel B760 Mainboard - Sockel 1700, DDR4
Name - Asus | ROG STRIX B760-G GAMING WIFI D4 | Processor family Intel | Processor socket LGA1700 | DDR4 DIMM | Memory slots 4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset Intel B760 | 24.4 cm x 24.4 cm
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 340.00 mm
Package features > Gross height (mm) - 60.00 mm
Package features > Gross width (mm) - 270.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 314 pc(s)
Package features > Paper/Pasteboard - 250.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
Packaging data - Package depth - 275 mm
Packaging data - Package height - 67.5 mm
Packaging data - Package weight - 1.34 kg
Packaging data - Package width - 275 mm
Performance > Chipset - Intel B760
Performance > Motherboard form factor - 24.4 cm x 24.4 cm
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Compatible processor series - Supports 13th Gen Intel Core Processors and 12th Gen Intel Core, Pentium Gold and Celeron Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
producerCode - 90MB1DE0-M0EAY0
Producer product name - ROG STRIX B760-G GAMING WIFI D4
productName - ASUS ROG STRIX B760-G GAMING WIFI D4 Intel B760 LGA 1700 micro ATX
ProductName - ROG STRIX B760-G GAMING WIFI D4
productSize - Normal

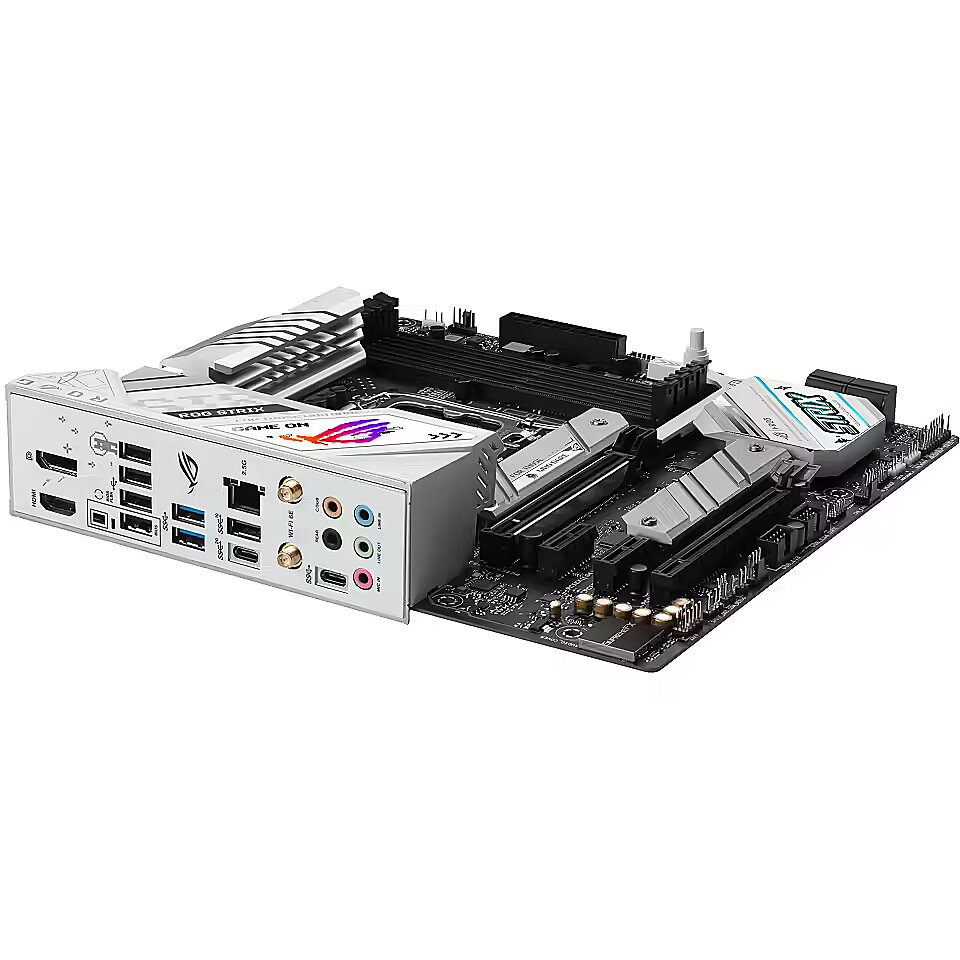

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1

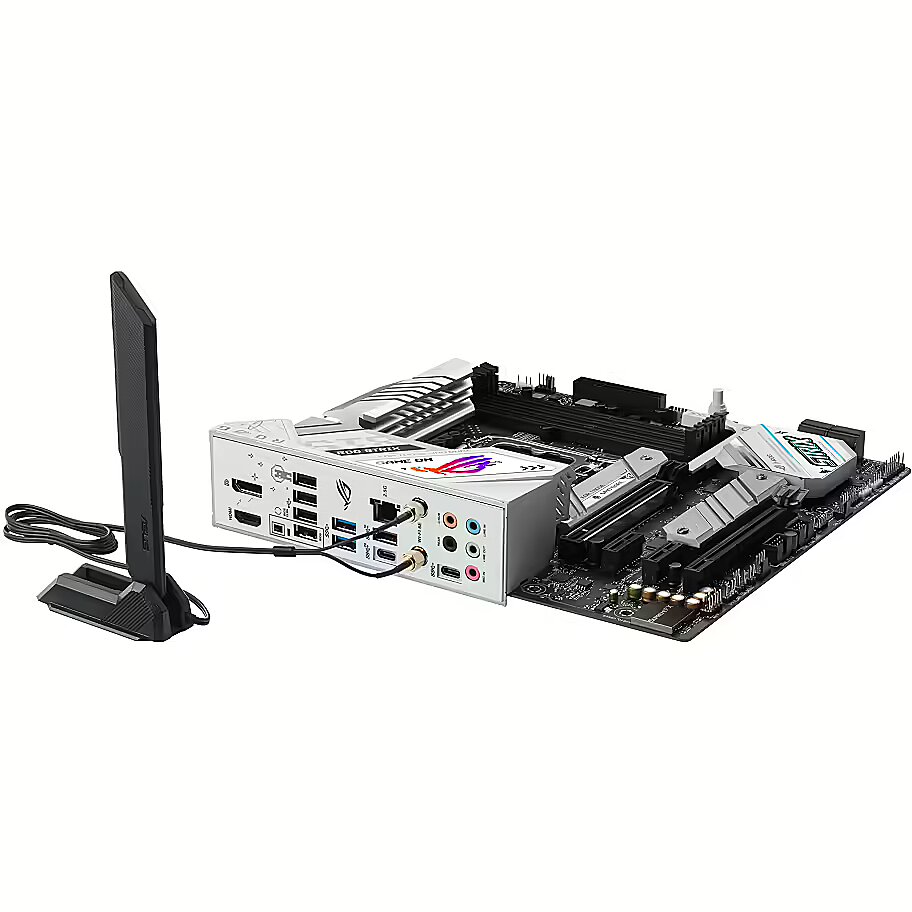

Rear panel I/O ports - WiFi-AP antenna jack - 1
ShortSummaryDescription - ASUS ROG STRIX B760-G GAMING WIFI D4, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, LGA 1700, DDR4-SDRAM, 128 GB
sizeX - 73
sizeY - 290
sizeZ - 295
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Net weight - 1.00 kg
Technical details > Producer - Asus
Title - ASUS ROG STRIX B760-G GAMING WIFI D4 Intel B760 LGA 1700 micro ATX
URL - https://rog.asus.com/motherboards/rog-strix/rog-strix-b760-g-gaming-wifi-d4-model/
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 2,00
weight - 1850
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 244 mm
