ID: 972703
Product code: PRO H510M-B
Can be ordered 40 units Availability: 14 days after order approval
Warranty: 3 years

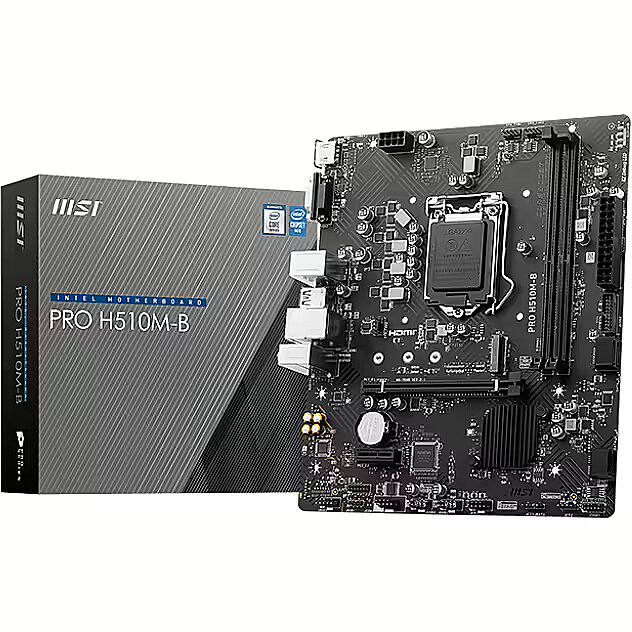

MSI PRO H510M-B
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: 10.12.2024
- Courier delivery 3.99 €: 10.12.2024
Main product parameters All parameters
- Series: MSI PRO
- CPU Socket: LGA 1200
- Chipset: Intel H470
- Form factor: Micro ATX
- Type: DDR4
- RAM Slots: 2
- Built-in Wi-Fi: Nav
Basic information
Series
: MSI PRO
CPU Socket
LGA 1200
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel H470
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
Micro ATX
The physical size of the motherboard. TopPC.ee offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR4
RAM Slots
2
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR4 2933
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 1
DVI
: 0
HDMI
: 1
DisplayPort
: 0
Integrated sound card
: Realtek ALC897
Wireless connections
Built-in Bluetooth
: Nav
Built-in Wi-Fi
: Nav
External ports
External USB Type-C
: 0
External USB 2.0
: 4
External USB 3.0 (USB 3.2 Gen1)
: 2
External USB 3.1 (USB 3.2 Gen2)
: 0
Internal ports
Internal A-RGB 5V (3-pin)
: 0
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 0
M.2 Port
: 1
SATA3 ports
: 4
More detailed specification
15pin D-sub Input/Output connectors - 1
Accessories included -
Audio port Input/Output connectors - 3
BIOS -
Brand - MSI
BrandPartCode - PRO H510M-B
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Socket 1200
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Chipset - Intel H470 Express
Chipset manufacturer - Intel
Chipset type - Intel H470
code - 7E05-002R
Code - PRO H510M-B
COM connector / port - Yes
CPU socket - LGA1200
Description - - Supports 10th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket - Supports DDR4 Memory, up to 2933MHz (MAX) - Core Boost : With premium layout and digital power design to support more cores and provide better performance - Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility - Audio Boost: Reward your ears with studio grade sound quality - Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Description - MSI PRO H510M-B motherboard. Supports Intel 10th generation Core, Pentium Gold and Celeron processors for LGA 1200 socket Supports DDR4 memory, up to 2933 MHz (MAX) Core Boost: with premium chip and digital power design to support more cores and deliver better performance Memory Boost: advanced technology to deliver clean data signals for best performance, stability and compatibility Audio Boost: reward your ears with studio-quality sound Steel Armor: protects VGA cards from bending and electromagnetic interference for better performance, stability and durability.
Detailed data on disk/drive interfaces - 1x M.2 M.2_1 source (from chipset) supports up to PCIe 3.0 x4/SATA mode, supports 2280/2260/2242 devices 4xSATA 6G
dimensionalWeight - 826
dimension depth - 60 mm
dimension height - 260 mm
Dimensions - 202 x 236 mm
dimension weight - 678 g
dimension width - 265 mm
EAN - 4711377078870
ean - 4711377078870
Eans - 4711377078870
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
External connectors - 1 x D-Sub
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 2 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel H470
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 2133/2400/2666/2933 MHz
Full Description Line - Intel H470 Express|LGA1200|Micro-ATX|DDR4|2933/2666/2400/2133 MHz|Memory slots 2|1xPCI-Express 1x|1xPCI-Express 16x|1xM.2|1x15pin D-sub|1xHDMI|4xUSB 2.0|2xUSB 3.0|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN Gigabit|Audio Realtek ALC897|TPM Header
Graphics - 1x HDMI Support HDMI 1.4, maximum resolution 4K 30Hz 1xVGA VGA support, maximum resolution 2048x1536 50Hz, 1920x1200 60Hz
Gross weight - 0.75 kg
GTIN - 0824142317358
GTIN - 824142317358
GTIN - 4711377078870
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.msi.com/Motherboard/PRO-H510M-B/Specification
LongDesc -
LongProductName - Intel® H470. LGA 1200, 2 DIMMs, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1, HDMI 1.4, VGA, Realtek® RTL8111H Gigabit LAN, 1x M.2 Gen3 x4 32Gbps slot 4x SATA 6Gbps, 8-Channel (7.1) HD Audio with Audio Boost
LongSummaryDescription - MSI PRO H510M-B. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek 8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
LPT connector / port - No
M.2 Expansion slots - 1
Manufacturer - MSI
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 64 GB
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2666,2933 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666
Memory - Supported memory clock speeds - 2933
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 2
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2666 MHz
Memory bus frequency - 2933 MHz
Memory slots - 2
Memory type - DDR4
Memory type - DDR4
Model - PRO H510M-B
MPN - 7E05-002R
Name - 1200 MSI H510M-B
name - H510M-B s1200 2DDR4 HDMI/VGA mATX
Name - MSI PRO H510M-B
name - MSI Pro H510M-B, Intel H510 Mainboard - Sockel 1200, DDR4
Name - MSI | PRO H510M-B | Processor family Intel | Processor socket LGA1200 | DDR4 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset Intel H470 | mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek 8111H
Network interface - Realtek 8111H Gigabit LAN
Number of DDR4 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x TPM header
Onboard connectors - 2 x System panel header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 4 x USB 2.0/1.1
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 60.00 mm
Package features > Gross height (mm) - 260.00 mm
Package features > Gross width (mm) - 260.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 213 pc(s)
Package features > Paper/Pasteboard - 160.00 g
Package features > Plastic (No PET) - 40.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
PCI-Express 1x Expansion slots - 1
PCI-Express 16x Expansion slots - 1
PDF - https://www.blobs.lt/products/6/7/6/1/0/4/152a46792a461f0bf39baeade9888064/original.pdf
Performance > Chipset - Intel H470
Performance > Motherboard form factor - mATX
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1200 (Socket H5)
Processor > Compatible processor series - Supports 10th Gen Intel Core and Pentium Gold/Celeron processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1200
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium
producer - MSI
Producer - MSI
producerCode - 7E05-002R
ProducerCode - PRO H510M-B
Producer product name - PRO H510M-B
productName - MSI PRO H510M-B motherboard Intel H470 LGA 1200 (Socket H5) micro ATX
ProductName - PRO H510M-B
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - No
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 1.4
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 27 cm
Shipping Box Height Shipping/Package Box Dimensions - 26 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.664 kg
Shipping Box Width Shipping/Package Box Dimensions - 6 cm
ShortDescription - Socket 1200| Chipset Intel H470 | DDR4 |
ShortSummaryDescription - MSI PRO H510M-B, Intel, LGA 1200 (Socket H5), Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., DDR4-SDRAM, 64 GB, DIMM
sizeX - 265
sizeY - 260
sizeZ - 60
Socket - LGA1200
Software -
Sound card - Realtek ALC897 Codec 7.1-Channel High Definition Audio
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 0.55 kg
Technical details > Producer - MSI
Title - MSI PRO H510M-B motherboard Intel H470 LGA 1200 (Socket H5) micro ATX
TPM - Header
Unit Box Height - 0.26
Unit Box Length - 0.27
Unit Box Width - 0.06
Unit Brutto Volume - 0.004212 cubm
Unit Gross Weight - 0.664 kg
Unit Net Weight - 0.5 kg
URL - https://www.msi.com/Motherboard/PRO-H510M-B/Specification
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.0 Input/Output connectors - 2
USB 3.2 Interface - Yes
USB ports at back panel - 6
USB ports on motherboard - 6
Vendor Homepage - www.msi.com/Motherboard/PRO-H510M-B/Overview
vendpn - PRO H510M-B
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 0.66
weight - 670
Weight & dimensions - Depth - 236 mm
Weight & dimensions - Width - 202 mm
Accessories included -
Audio port Input/Output connectors - 3
BIOS -
Brand - MSI
BrandPartCode - PRO H510M-B
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Socket 1200
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Chipset - Intel H470 Express
Chipset manufacturer - Intel
Chipset type - Intel H470
code - 7E05-002R
Code - PRO H510M-B
COM connector / port - Yes
CPU socket - LGA1200
Description - - Supports 10th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket - Supports DDR4 Memory, up to 2933MHz (MAX) - Core Boost : With premium layout and digital power design to support more cores and provide better performance - Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility - Audio Boost: Reward your ears with studio grade sound quality - Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Description - MSI PRO H510M-B motherboard. Supports Intel 10th generation Core, Pentium Gold and Celeron processors for LGA 1200 socket Supports DDR4 memory, up to 2933 MHz (MAX) Core Boost: with premium chip and digital power design to support more cores and deliver better performance Memory Boost: advanced technology to deliver clean data signals for best performance, stability and compatibility Audio Boost: reward your ears with studio-quality sound Steel Armor: protects VGA cards from bending and electromagnetic interference for better performance, stability and durability.
Detailed data on disk/drive interfaces - 1x M.2 M.2_1 source (from chipset) supports up to PCIe 3.0 x4/SATA mode, supports 2280/2260/2242 devices 4xSATA 6G
dimensionalWeight - 826
dimension depth - 60 mm
dimension height - 260 mm
Dimensions - 202 x 236 mm
dimension weight - 678 g
dimension width - 265 mm
EAN - 4711377078870
ean - 4711377078870
Eans - 4711377078870
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
External connectors - 1 x D-Sub
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 2 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel H470
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 2133/2400/2666/2933 MHz
Full Description Line - Intel H470 Express|LGA1200|Micro-ATX|DDR4|2933/2666/2400/2133 MHz|Memory slots 2|1xPCI-Express 1x|1xPCI-Express 16x|1xM.2|1x15pin D-sub|1xHDMI|4xUSB 2.0|2xUSB 3.0|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN Gigabit|Audio Realtek ALC897|TPM Header
Graphics - 1x HDMI Support HDMI 1.4, maximum resolution 4K 30Hz 1xVGA VGA support, maximum resolution 2048x1536 50Hz, 1920x1200 60Hz
Gross weight - 0.75 kg
GTIN - 0824142317358
GTIN - 824142317358
GTIN - 4711377078870
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.msi.com/Motherboard/PRO-H510M-B/Specification
LongDesc -
LongProductName - Intel® H470. LGA 1200, 2 DIMMs, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1, HDMI 1.4, VGA, Realtek® RTL8111H Gigabit LAN, 1x M.2 Gen3 x4 32Gbps slot 4x SATA 6Gbps, 8-Channel (7.1) HD Audio with Audio Boost
LongSummaryDescription - MSI PRO H510M-B. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek 8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
LPT connector / port - No
M.2 Expansion slots - 1
Manufacturer - MSI
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 64 GB
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2666,2933 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666
Memory - Supported memory clock speeds - 2933
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 2
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2666 MHz
Memory bus frequency - 2933 MHz
Memory slots - 2
Memory type - DDR4
Memory type - DDR4
Model - PRO H510M-B
MPN - 7E05-002R
Name - 1200 MSI H510M-B
name - H510M-B s1200 2DDR4 HDMI/VGA mATX
Name - MSI PRO H510M-B
name - MSI Pro H510M-B, Intel H510 Mainboard - Sockel 1200, DDR4
Name - MSI | PRO H510M-B | Processor family Intel | Processor socket LGA1200 | DDR4 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset Intel H470 | mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek 8111H
Network interface - Realtek 8111H Gigabit LAN
Number of DDR4 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x TPM header
Onboard connectors - 2 x System panel header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 4 x USB 2.0/1.1
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 60.00 mm
Package features > Gross height (mm) - 260.00 mm
Package features > Gross width (mm) - 260.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 213 pc(s)
Package features > Paper/Pasteboard - 160.00 g
Package features > Plastic (No PET) - 40.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
PCI-Express 1x Expansion slots - 1
PCI-Express 16x Expansion slots - 1
PDF - https://www.blobs.lt/products/6/7/6/1/0/4/152a46792a461f0bf39baeade9888064/original.pdf
Performance > Chipset - Intel H470
Performance > Motherboard form factor - mATX
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1200 (Socket H5)
Processor > Compatible processor series - Supports 10th Gen Intel Core and Pentium Gold/Celeron processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1200
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium
producer - MSI
Producer - MSI
producerCode - 7E05-002R
ProducerCode - PRO H510M-B
Producer product name - PRO H510M-B
productName - MSI PRO H510M-B motherboard Intel H470 LGA 1200 (Socket H5) micro ATX
ProductName - PRO H510M-B
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - No
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 1.4
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 27 cm
Shipping Box Height Shipping/Package Box Dimensions - 26 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.664 kg
Shipping Box Width Shipping/Package Box Dimensions - 6 cm
ShortDescription - Socket 1200| Chipset Intel H470 | DDR4 |
ShortSummaryDescription - MSI PRO H510M-B, Intel, LGA 1200 (Socket H5), Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., DDR4-SDRAM, 64 GB, DIMM
sizeX - 265
sizeY - 260
sizeZ - 60
Socket - LGA1200
Software -
Sound card - Realtek ALC897 Codec 7.1-Channel High Definition Audio
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 0.55 kg
Technical details > Producer - MSI
Title - MSI PRO H510M-B motherboard Intel H470 LGA 1200 (Socket H5) micro ATX
TPM - Header
Unit Box Height - 0.26
Unit Box Length - 0.27
Unit Box Width - 0.06
Unit Brutto Volume - 0.004212 cubm
Unit Gross Weight - 0.664 kg
Unit Net Weight - 0.5 kg
URL - https://www.msi.com/Motherboard/PRO-H510M-B/Specification
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.0 Input/Output connectors - 2
USB 3.2 Interface - Yes
USB ports at back panel - 6
USB ports on motherboard - 6
Vendor Homepage - www.msi.com/Motherboard/PRO-H510M-B/Overview
vendpn - PRO H510M-B
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 0.66
weight - 670
Weight & dimensions - Depth - 236 mm
Weight & dimensions - Width - 202 mm
