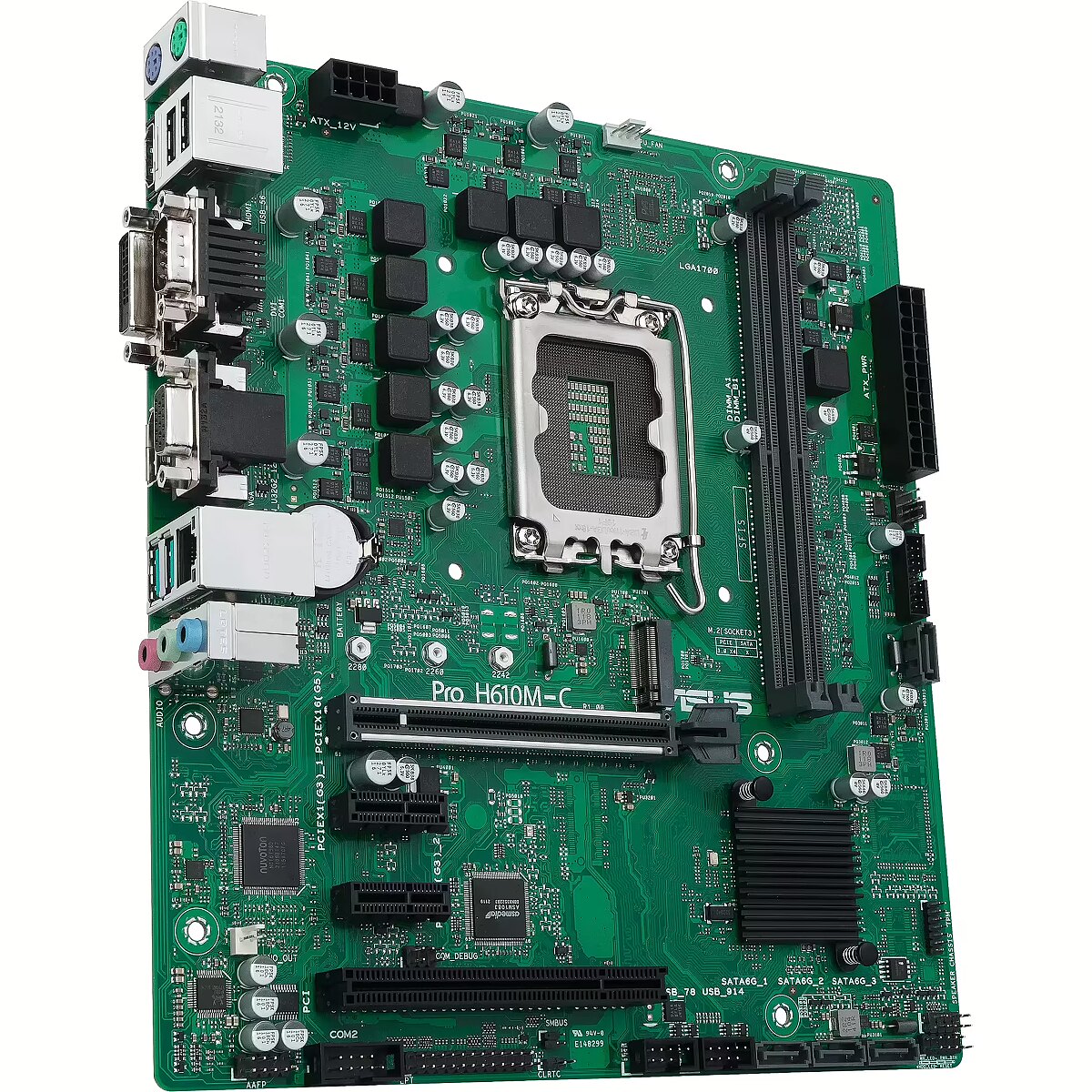

Asus PRO H610M-C-CSM

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 943144 Product code: PRO H610M-C-CSM
Can be ordered 1 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
118.63 €
Delivery options
  • Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
  • Delivery to Omniva parcel locker 1.99 €: 20.12.2024
  • Courier delivery 3.99 €: 20.12.2024
Main product parameters All parameters
  • Series: ASUS Business
  • CPU Socket: LGA 1700
  • Chipset: Intel H610
  • Form factor: Micro ATX
  • Type: DDR5
  • RAM Slots: 2
  • Built-in Wi-Fi: Nav
Basic information
Series : ASUS Business
CPU Socket LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset Intel H610

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor Micro ATX

The physical size of the motherboard. TopPC.ee offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Random-access memory (RAM)
Type : DDR5
RAM Slots 2
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 4800

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
Video card port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready CPU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
PCI ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub : 1
DVI : 1
HDMI : 1
DisplayPort : 1
Integrated sound card : Realtek 7.1 CODEC
Wireless connections
Built-in Bluetooth : Nav
Built-in Wi-Fi : Nav
External ports
External USB Type-C : 0
External USB 2.0 : 2
External USB 3.0 (USB 3.2 Gen1) : 0
External USB 3.1 (USB 3.2 Gen2) : 2
Internal ports
Internal A-RGB 5V (3-pin) : 0
Internal RGB 12V (4-pin) : 0
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C : 0
M.2 Port : 1
SATA3 ports : 4
More detailed specification
Additional information in manufacturers website Asus PRO H610M-C-CSM
BIOS - BIOS memory size - 128 Mbit
Brand - ASUS
BrandPartCode - 90MB1AT0-M0EAYC
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
code - 90MB1AT0-M0EAYC
ean - 4711081655152
EAN - 4711081655152
Eans - 4711081655152
EAN_code - 4711081655152
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel H610
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Graphics - Number of displays supported - 3
Graphics - Parallel processing technology support - Not supported
Gross Weight Kg - 0,7
GTIN - 4711081655152
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.ASUS Corporate Stable ModelASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.ASUS Control Center ExpressASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization. Purchase of a Pro motherboard entitles you to a copy of Control Center Express – a US$60Internationally Certified Business MotherboardASUS Business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organizations, ASUS Business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business.DDR5 SupportThis business motherboard is a DDR5-compatible motherboard that optimizes memory module speeds and stability, while providing an advanced voltage delivery architecture for greater energy efficiency.PCIe 5.0 slotThe 12 Gen Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and backward compatibility with previous versions of PCI Express.ASUS SHIELDEnhances system security from bottom to topASUS Self-recovering BIOSASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.Trusted Platform Module(TPM)Hardware-based security offers better data protection, enhances network security, protects digital identities and ensures platform integrity.Certified NIST SP 800-147ASUS Business motherboard is certified by the national computer security standards.ASUS Secure BootASUS business motherboard is set to check the firmware and signature of each piece of boot software.ASUS Self-recovering BIOSWith ASUS Self-recovering BIOSThe user simply needs to reboot the system and ASUS Self-recovering BIOS will restore the latest BIOS update.ASUS RELIANTEnsures consistent performance with the finest components and rigorous reliability testingAnti-moisture CoatingProtection against moisture and corrosionAn innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers and internet cafes. It also minimizes internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard.Anti-sulfur ResistorsConsider long-term reliability of commercial product, ASUS Business motherboard is equipped with anti-sulfur resistors. The resistors provide excellent resistance to sulfuration by constructed in a high grade ceramic body (aluminum oxide). With anti-sulfur resistors, ASUS Business motherboard can be operated under the harsh environments.Stainless-Steel Back I/O3X corrosion-resistance for greater durabilityCorrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.Overvoltage ProtectionWorld-class circuit-protecting power designAn exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.ESD GuardsElectrostatic discharge protectionASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/-15kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components.LANGuardPumped-up throughput. 2.5X higher surge tolerance.ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.24/7 Reliability TestOptimized for twenty-four seven operations, the motherboard is tested under temperature up to 45°C and relative humidity up to 80% to ensure it can handle diverse temperature and humidity range of different location.
LongProductName - Intel H610, LGA1700, 2x DDR5, DP, HDMI, VGA, DVI-D, M.2, SATA III, 1G LAN, USB, PS/2, mATX, 244x220 mm
LongSummaryDescription - ASUS Pro H610M-C-CSM. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®. Supported memory types: DDR5-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Manufacturer - Asus
Manufacturer - ASUS
Manufacturer Code - 90MB1AT0-M0EAYC
Manufacturer Name - Asustek
Manufacturer_code - 90MB1AT0-M0EAYC
Memory - Maximum internal memory - 64 GB
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 4800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - No
MPN - 90MB1AT0-M0EAYC
Name - 1700 ASUS PRO H610M-C-CSM
Name - ASUS PRO H610M-C-CS
name - ASUS PRO H610M-C-CSM, Intel H610 Mainboard, Sockel 1700, DDR5
Name - Asus PRO H610M-C-CSM - Socket 1700 - motherboard
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wake-on-LAN ready - Yes
Network - Wi-Fi - No
Other features - Weight - 382 g
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Producer - Asus
ProducerCode - Pro H610M-C-CS
ProductName - Pro H610M-C-CSM
Rear panel I/O ports - COM ports quantity - 1
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - DVI-D ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - PS/2 ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
Short description - ASUS PRO H610M-C-CSM S1700/DDR5/DP-HDMI-DVI-VGA/PCI/24-7
ShortDescription - Socket 1700| Chipset Intel H610 | DDR5 |
ShortSummaryDescription - ASUS Pro H610M-C-CSM, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, DDR5-SDRAM, 64 GB, DIMM
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Title - ASUS Pro H610M-C-CSM Intel H610 LGA 1700 micro ATX
URL - https://www.asus.com/Motherboards-Components/Motherboards/CSM/Pro-H610M-C-CSM/
WarrantyInfo -
Weight - 0,90
Weight - 0.94
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 58 mm
Weight & dimensions - Width - 244 mm
