ID: 924977
Product code: Z790 UD
In stock 8 units
Warranty: 3 years

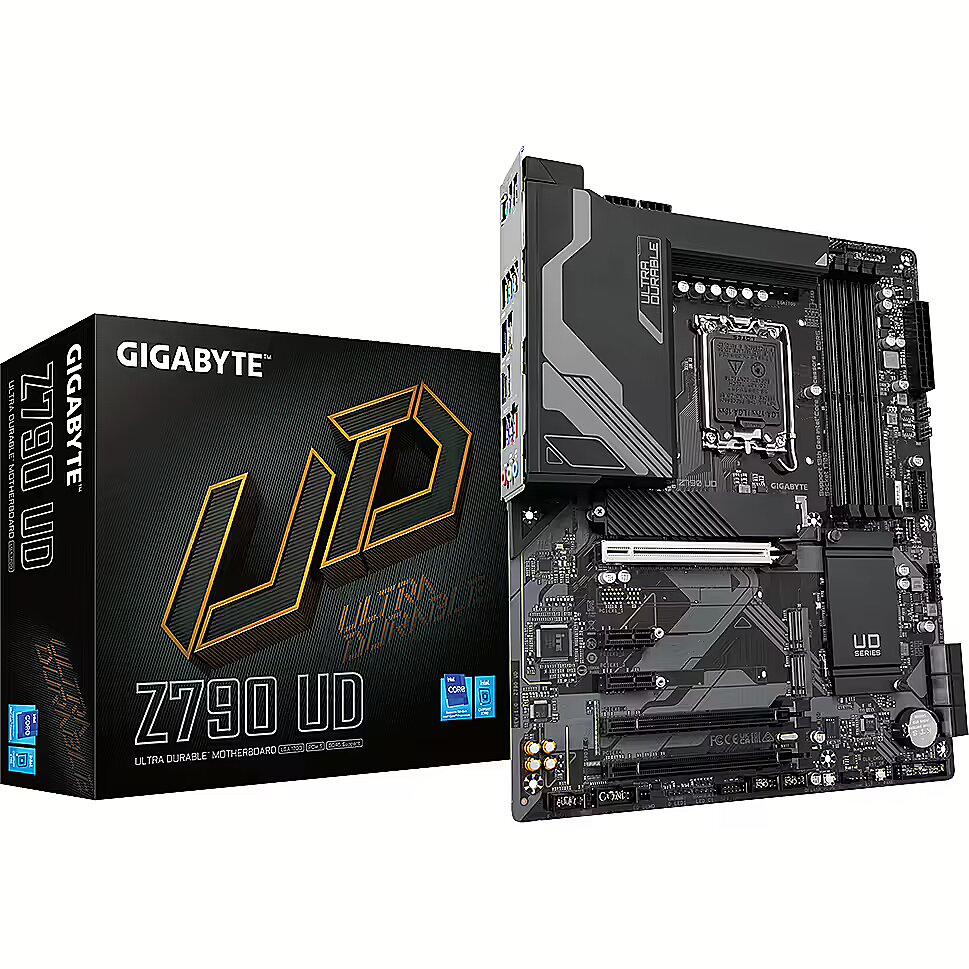

Gigabyte Z790 UD
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: on Wednesday, 27.11.2024
- Courier delivery 3.99 €: on Wednesday, 27.11.2024
Main product parameters All parameters
- Series: Gigabyte Ultra Durable
- CPU Socket: LGA 1700
- Chipset: Intel Z790
- Form factor: ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: Nav
Basic information
Series
: Gigabyte Ultra Durable
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel Z790
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
ATX
The physical size of the motherboard. TopPC.ee offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 5600 (OC 7600)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integrated sound card
: Realtek Audio CODEC
Wireless connections
Built-in Bluetooth
: Nav
Built-in Wi-Fi
: Nav
External ports
External USB Type-C
: 1
External USB 2.0
: 4
External USB 3.0 (USB 3.2 Gen1)
: 4
External USB 3.1 (USB 3.2 Gen2)
: 2
Internal ports
Internal A-RGB 5V (3-pin)
: 2
Internal RGB 12V (4-pin)
: 2
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 1
M.2 Port
: 3
SATA3 ports
: 6
More detailed specification
Accessories included -
Audio port Input/Output connectors - 3
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandCode - GIGABYTE
BrandPartCode - Z790 UD
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel Z790
Chipset manufacturer - Intel
Chipset type - Intel Z790 Express Chipset
code - Z790 UD
Code - Z790 UD
COM connector / port - No
CPU socket - LGA1700
Description - - Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors - Unparalleled Performance:Twin 16*+1+1 Phases Digital VRM Solution - Dual Channel DDR5:4*SMD DIMMs with XMP 3.0 Memory Module Support - Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors - Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance - EZ-Latch:PCIe 5.0 x16 Slot with Quick Release & Screwless Design - Fast Networks:2.5GbE LAN - Extended Connectivity:DP, HDMI, Front USB-C® 5Gb/s, Rear USB-C® 20Gb/s - Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP - Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Description - Intel Socket LGA 1700: Support for 13th and 12th generation processors Unrivaled performance: digital VRM solution with two phases 16*+1+* Dual-channel DDR5 memory: 4*SMD DIMMs with support for XMP 3.0 memory modules Next Generation Storage: 3*PCIe 4.0 x4 M.2 Advanced thermal design and M.2 thermal shield: to ensure VRM power stability and M.2 SSD performance EZ Latch: PCIe 5.0 x16 slot with quick release feature and screwless design Fast networks: 2.5 GbE LAN Enhanced connectivity: DP, HDMI, USB-C 5Gbps front, USB-C 20Gbps rear Smart Fan 6: includes multiple temperature sensors, hybrid fan connectors with FAN STOP function Q-Flash Plus: BIOS update without installing CPU, memory and graphics card *Parallel 8+8 phase power supply design
Desktop - motherboard type - ATX
Detailed data on disk/drive interfaces - CPU 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * If you are installing a single PCI Express graphics card, please ensure that the card is connected to the PCIEX16 connector for optimal performance. Chipset 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) Support for AMD CrossFire technology (PCIEX16 and PCIEX4) CPU 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB) 6 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
dimensionalWeight - 1474
dimension depth - 80 mm
dimension height - 270 mm
Dimensions - 30.5 x 24.4cm
dimension weight - 1730 g
dimension width - 335 mm
DisplayPort Input/Output connectors - 1
EAN - 4719331850364
ean - 4719331850364
Eans - 4719331850364
EAN_code - 4719331850364
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x PCIe 3.0 x 1
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x1 slots - 2
Expansion slots - PCI Express x16 slots - 4
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1
External connectors - 1 x USB 3.1 Type-C
External connectors - 4 x USB 2.0
External connectors - 4 x USB 3.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - PC health monitoring - Water cooling
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4000/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz
Full Description Line - Intel Z790|LGA1700|ATX|DDR5|7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/4800/4000 MHz|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|5xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN 2.5 Gigabit|Audio|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header
General parameters - manufacturer - Gigabyte
Graphics - Integrated graphics processor - Intel HD graphics support 1 x HDMI port supporting a maximum resolution of 4096x2160 at 60 Hz * Support for HDMI 2.0 and HDCP 2.3 versions. 1 x DisplayPort, supporting a maximum resolution of 4096x2304 at 60 Hz * Support for DisplayPort 1.2 and HDCP 2.3. (Graphics specifications may vary depending on processor support.)
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - Parallel processing technology support - Crossfire
Gross weight - 1.56 kg
GrossWeight - 2.0000
Gross Weight Kg - 1,93
Group - IT > IT ACCESSORIES > PC COMPONENTS > MOTHERBOARDS
GTIN - 4719331850364
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Height - 0.0800
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Interfaces - DisplayPort
Interfaces - HDMI
Interfaces - headset connector
Interfaces - LAN (network, RJ45)
Interfaces - USB-A 2.0 - 4
Interfaces - USB-A 3.2 - 5
Interfaces - USB-C 3.2 - 1
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 6
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - Serial port headers - 1
Internal I/O - Thunderbolt headers - 2
Internal I/O - Total number of SATA connectors - 6
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 6
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Length - 0.2800
Link - https://www.gigabyte.com/Motherboard/Z790-UD-rev-10#kf
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - Z790 UD Intel LGA 1700 ATX Motherboard, 4x DDR5, 3x PCI-E x16, 3x M.2, 6x SATA, 5x USB 3.2, 1x USB-C,4x USB 2.0
LongSummaryDescription - GIGABYTE Z790 UD Motherboard - Supports Intel Core 14th CPUs, 16*+1+１ Phases Digital VRM, up to 7600MHz DDR5, 3xPCIe 4.0 M.2, 2.5GbE LAN , USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Parallel processing technology support: Crossfire, Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C
LPT connector / port - No
M.2 Expansion slots - 3
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer Code - Z790 UD
Manufacturer Name - Gigabyte
Manufacturer_code - Z790 UD
Max. number of ATA devices - 0
Max. number of SATA devices - 6
Max memory size - 192 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7600 MHz
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800 MHz
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200 MHz
Memory - Supported memory clock speeds - 7400
Memory - Supported memory clock speeds - 7600
Memory - Supported memory module capacities - 1GB
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Memory - Supported memory module capacities - 2GB
Memory - Supported memory module capacities - 4GB
Memory - Supported memory module capacities - 8GB
Memory - Supported memory module capacities - 12GB
Memory - Supported memory module capacities - 16GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory module capacities - 48GB
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - DDR5 DIMM
Memory bus frequency - 4000 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - Z790 UD
MPN - Z790 UD
Name - 1700 Gigabyte Z790 UD DDR5
Name - Gigabyte Z790 UD
name - GIGABYTE Z790 UD, Intel Z790 Mainboard, Sockel 1700, DDR5
Name - GIGABYTE Z790 UD, motherboard - 1700
Name - Gigabyte | Z790 UD 1.0 M/B | Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Memory slots 4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 6 | Chipset Intel Z790 Express | ATX
name - Z790 UD s1700 4DDR5 HDMI/DP ATX
Name EN - MB Gigabyte, Intel Z790, LGA1700, DDR5, ATX
Name ET - MB Gigabyte, Intel Z790, LGA1700, DDR5, ATX
NameInWeb EN - Gigabyte, Intel Z790, LGA1700, DDR5, ATX - Mainboard
NameInWeb ET - Gigabyte, Intel Z790, LGA1700, DDR5, ATX - Emaplaat
NameInWeb LV - Gigabyte, Intel Z790, LGA1700, DDR5, ATX - Mātesplate
Name LV - MB Gigabyte, Intel Z790, LGA1700, DDR5, ATX
NetWeight - 1.5000
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 2
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Q-Flash Plus button
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x S/PDIF Out header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x Thunderbolt
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 3 x M.2
Onboard connectors - 6 x SATA III 6Gb/s
Other information - Voltage detection Temperature detection Fan speed detection Cooling water flow rate detection Fan failure warning Fan speed control * Whether the fan (pump) speed control is supported depends on the fan (pump) installed.
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 335.00 mm
Package features > Gross height (mm) - 80.00 mm
Package features > Gross width (mm) - 270.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 119 pc(s)
Package features > Paper/Pasteboard - 180.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Cables included - SATA
Packaging data - Package depth - 270 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 1.93 kg
Packaging data - Package width - 335 mm
PCI-Express 3.0 1x Expansion slots - 2
PCI-Express 3.0 16x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Performance > Chipset - Intel Z790 Express
Performance > Motherboard form factor - ATX
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Maximum internal memory supported by processor - 192 GB
Processor - processor -
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Compatible processor series - Supports 13th and 12th Gen Series Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium Gold
producer - Gigabyte
Producer - Gigabyte
producerCode - Z790 UD
ProducerCode - Z790 UD
Producer product name - Z790 UD 1.0 M/B
ProductCode - Z790UD
ProductionCountry - CN
productName - Gigabyte Z790 UD Motherboard - Supports Intel Core 14th CPUs, 16*+1+１ Phases Digital VRM, up to 7600MHz DDR5, 3xPCIe 4.0 M.2, 2.5GbE LAN , USB 3.2 Gen 2
ProductName - Z790 UD Motherboard - Supports Intel Core 14th CPUs, 16*+1+１ Phases Digital VRM, up to 7600MHz DDR5, 3xPCIe 4.0 M.2, 2.5GbE LAN , USB 3.2 Gen 2
productSize - Normal
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
RAID - Yes
Random-access memory - memory type - DDR5
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.0
Rear panel I/O ports - Headphone outputs - 3
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - USB connector type - USB Type-A, USB Type-C
Rear panel I/O ports - USB connector type - USB Type-C
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 34 cm
Shipping Box Height Shipping/Package Box Dimensions - 8 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.731 kg
Shipping Box Width Shipping/Package Box Dimensions - 27 cm
Short description - GIGA Z790 UD S1700/DDR5/ATX
ShortDescription - Socket 1700| Chipset Intel Z790 | DDR5 |
ShortDescription EN - Intel Z790 | LGA1700 | ATX | DDR5 | 7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/4800/4000 MHz | Memory slots 4 | 2xPCI-Express 3.0 1x | 1xPCI-Express 3.0 16x | 1xPCI-Express 4.0 16x | 1xPCI-Express 5.0 16x | 3xM.2 | 1xHDMI | 1xDisplayPort | 4xUSB 2.0 | 5xUSB 3.2 | 1xUSB-C | 1xRJ45 | 3xAudio port | SATA | USB 2.0 | USB 3.2 | Video Depending on CPU | LAN 2.5 Gigabit | Audio | RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10 | TPM Header
ShortDescription ET - Intel Z790 | LGA1700 | ATX | DDR5 | Mälu pesad 4 | 2xPCI-Express 3.0 1x | 1xPCI-Express 3.0 16x | 1xPCI-Express 4.0 16x | 1xPCI-Express 5.0 16x | 3xM.2 | 1xHDMI | 1xDisplayPort | 4xUSB 2.0 | 5xUSB 3.2 | 1xUSB-C | 1xRJ45 | 3xAudio port | SATA | USB 2.0 | USB 3.2 | Video sõltuvalt CPU-st | LAN 2,5 Gigabit | Heli | RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10 | TPM pesa
ShortSummaryDescription - GIGABYTE Z790 UD Motherboard - Supports Intel Core 14th CPUs, 16*+1+１ Phases Digital VRM, up to 7600MHz DDR5, 3xPCIe 4.0 M.2, 2.5GbE LAN , USB 3.2 Gen 2, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, 192 GB, DDR5-SDRAM
sizeX - 335
sizeY - 275
sizeZ - 80
Socket - LGA1700
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Realtek audio codec High Definition Audio support Number of audio channels 2/4/5.1/7.1 * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Special functions - GIGABYTE Control Center (GCC) Support *Apps available on GCC may vary depending on motherboard model. The supported features of each application may also vary depending on the motherboard specifications. Q-Flash support Support for Q-Flash Plus Smart backup support
Storage controllers - Number of HDDs supported - 6
Storage controllers - Number of storage drives supported - 9
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
TariffNo - 84733020
Technical details - Warranty period - 3 year(s)
Technical details > Net weight - 1.36 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE Z790 UD Motherboard - Supports Intel Core 14th CPUs, 16*+1+１ Phases Digital VRM, up to 7600MHz DDR5, 3xPCIe 4.0 M.2, 2.5GbE LAN , USB 3.2 Gen 2
TPM - Header
Unit Box Height - 0.08
Unit Box Length - 0.34
Unit Box Width - 0.27
Unit Brutto Volume - 0.007344 cubm
Unit Gross Weight - 1.73 kg
Unit Net Weight - 1.6 kg
UnitOfMeasureCode - tk
UnitsPerPackage - 1
URL - https://www.gigabyte.com/Motherboard/Z790-UD-rev-10#kf
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
USB ports at back panel - 10
USB ports on motherboard - 7
Vendor Homepage - www.gigabyte.com/Motherboard/Z790-UD-rev-10
vendpn - Z790 UD
Volume - 0.00784000
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
Weight - 1,73
Weight - 1.74
weight - 1750
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
Width - 0.3500
Audio port Input/Output connectors - 3
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandCode - GIGABYTE
BrandPartCode - Z790 UD
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel Z790
Chipset manufacturer - Intel
Chipset type - Intel Z790 Express Chipset
code - Z790 UD
Code - Z790 UD
COM connector / port - No
CPU socket - LGA1700
Description - - Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors - Unparalleled Performance:Twin 16*+1+1 Phases Digital VRM Solution - Dual Channel DDR5:4*SMD DIMMs with XMP 3.0 Memory Module Support - Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors - Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance - EZ-Latch:PCIe 5.0 x16 Slot with Quick Release & Screwless Design - Fast Networks:2.5GbE LAN - Extended Connectivity:DP, HDMI, Front USB-C® 5Gb/s, Rear USB-C® 20Gb/s - Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP - Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Description - Intel Socket LGA 1700: Support for 13th and 12th generation processors Unrivaled performance: digital VRM solution with two phases 16*+1+* Dual-channel DDR5 memory: 4*SMD DIMMs with support for XMP 3.0 memory modules Next Generation Storage: 3*PCIe 4.0 x4 M.2 Advanced thermal design and M.2 thermal shield: to ensure VRM power stability and M.2 SSD performance EZ Latch: PCIe 5.0 x16 slot with quick release feature and screwless design Fast networks: 2.5 GbE LAN Enhanced connectivity: DP, HDMI, USB-C 5Gbps front, USB-C 20Gbps rear Smart Fan 6: includes multiple temperature sensors, hybrid fan connectors with FAN STOP function Q-Flash Plus: BIOS update without installing CPU, memory and graphics card *Parallel 8+8 phase power supply design
Desktop - motherboard type - ATX
Detailed data on disk/drive interfaces - CPU 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * If you are installing a single PCI Express graphics card, please ensure that the card is connected to the PCIEX16 connector for optimal performance. Chipset 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) Support for AMD CrossFire technology (PCIEX16 and PCIEX4) CPU 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB) 6 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
dimensionalWeight - 1474
dimension depth - 80 mm
dimension height - 270 mm
Dimensions - 30.5 x 24.4cm
dimension weight - 1730 g
dimension width - 335 mm
DisplayPort Input/Output connectors - 1
EAN - 4719331850364
ean - 4719331850364
Eans - 4719331850364
EAN_code - 4719331850364
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x PCIe 3.0 x 1
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x1 slots - 2
Expansion slots - PCI Express x16 slots - 4
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1
External connectors - 1 x USB 3.1 Type-C
External connectors - 4 x USB 2.0
External connectors - 4 x USB 3.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - PC health monitoring - Water cooling
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4000/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz
Full Description Line - Intel Z790|LGA1700|ATX|DDR5|7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/4800/4000 MHz|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|5xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN 2.5 Gigabit|Audio|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header
General parameters - manufacturer - Gigabyte
Graphics - Integrated graphics processor - Intel HD graphics support 1 x HDMI port supporting a maximum resolution of 4096x2160 at 60 Hz * Support for HDMI 2.0 and HDCP 2.3 versions. 1 x DisplayPort, supporting a maximum resolution of 4096x2304 at 60 Hz * Support for DisplayPort 1.2 and HDCP 2.3. (Graphics specifications may vary depending on processor support.)
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - Parallel processing technology support - Crossfire
Gross weight - 1.56 kg
GrossWeight - 2.0000
Gross Weight Kg - 1,93
Group - IT > IT ACCESSORIES > PC COMPONENTS > MOTHERBOARDS
GTIN - 4719331850364
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Height - 0.0800
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Interfaces - DisplayPort
Interfaces - HDMI
Interfaces - headset connector
Interfaces - LAN (network, RJ45)
Interfaces - USB-A 2.0 - 4
Interfaces - USB-A 3.2 - 5
Interfaces - USB-C 3.2 - 1
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 6
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - Serial port headers - 1
Internal I/O - Thunderbolt headers - 2
Internal I/O - Total number of SATA connectors - 6
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 6
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Length - 0.2800
Link - https://www.gigabyte.com/Motherboard/Z790-UD-rev-10#kf
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - Z790 UD Intel LGA 1700 ATX Motherboard, 4x DDR5, 3x PCI-E x16, 3x M.2, 6x SATA, 5x USB 3.2, 1x USB-C,4x USB 2.0
LongSummaryDescription - GIGABYTE Z790 UD Motherboard - Supports Intel Core 14th CPUs, 16*+1+１ Phases Digital VRM, up to 7600MHz DDR5, 3xPCIe 4.0 M.2, 2.5GbE LAN , USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Parallel processing technology support: Crossfire, Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C
LPT connector / port - No
M.2 Expansion slots - 3
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer Code - Z790 UD
Manufacturer Name - Gigabyte
Manufacturer_code - Z790 UD
Max. number of ATA devices - 0
Max. number of SATA devices - 6
Max memory size - 192 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7600 MHz
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800 MHz
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200 MHz
Memory - Supported memory clock speeds - 7400
Memory - Supported memory clock speeds - 7600
Memory - Supported memory module capacities - 1GB
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Memory - Supported memory module capacities - 2GB
Memory - Supported memory module capacities - 4GB
Memory - Supported memory module capacities - 8GB
Memory - Supported memory module capacities - 12GB
Memory - Supported memory module capacities - 16GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory module capacities - 48GB
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - DDR5 DIMM
Memory bus frequency - 4000 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - Z790 UD
MPN - Z790 UD
Name - 1700 Gigabyte Z790 UD DDR5
Name - Gigabyte Z790 UD
name - GIGABYTE Z790 UD, Intel Z790 Mainboard, Sockel 1700, DDR5
Name - GIGABYTE Z790 UD, motherboard - 1700
Name - Gigabyte | Z790 UD 1.0 M/B | Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Memory slots 4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 6 | Chipset Intel Z790 Express | ATX
name - Z790 UD s1700 4DDR5 HDMI/DP ATX
Name EN - MB Gigabyte, Intel Z790, LGA1700, DDR5, ATX
Name ET - MB Gigabyte, Intel Z790, LGA1700, DDR5, ATX
NameInWeb EN - Gigabyte, Intel Z790, LGA1700, DDR5, ATX - Mainboard
NameInWeb ET - Gigabyte, Intel Z790, LGA1700, DDR5, ATX - Emaplaat
NameInWeb LV - Gigabyte, Intel Z790, LGA1700, DDR5, ATX - Mātesplate
Name LV - MB Gigabyte, Intel Z790, LGA1700, DDR5, ATX
NetWeight - 1.5000
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 2
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Q-Flash Plus button
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x S/PDIF Out header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x Thunderbolt
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 3 x M.2
Onboard connectors - 6 x SATA III 6Gb/s
Other information - Voltage detection Temperature detection Fan speed detection Cooling water flow rate detection Fan failure warning Fan speed control * Whether the fan (pump) speed control is supported depends on the fan (pump) installed.
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 335.00 mm
Package features > Gross height (mm) - 80.00 mm
Package features > Gross width (mm) - 270.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 119 pc(s)
Package features > Paper/Pasteboard - 180.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Cables included - SATA
Packaging data - Package depth - 270 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 1.93 kg
Packaging data - Package width - 335 mm
PCI-Express 3.0 1x Expansion slots - 2
PCI-Express 3.0 16x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Performance > Chipset - Intel Z790 Express
Performance > Motherboard form factor - ATX
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Maximum internal memory supported by processor - 192 GB
Processor - processor -
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Compatible processor series - Supports 13th and 12th Gen Series Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium Gold
producer - Gigabyte
Producer - Gigabyte
producerCode - Z790 UD
ProducerCode - Z790 UD
Producer product name - Z790 UD 1.0 M/B
ProductCode - Z790UD
ProductionCountry - CN
productName - Gigabyte Z790 UD Motherboard - Supports Intel Core 14th CPUs, 16*+1+１ Phases Digital VRM, up to 7600MHz DDR5, 3xPCIe 4.0 M.2, 2.5GbE LAN , USB 3.2 Gen 2
ProductName - Z790 UD Motherboard - Supports Intel Core 14th CPUs, 16*+1+１ Phases Digital VRM, up to 7600MHz DDR5, 3xPCIe 4.0 M.2, 2.5GbE LAN , USB 3.2 Gen 2
productSize - Normal
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
RAID - Yes
Random-access memory - memory type - DDR5
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.0
Rear panel I/O ports - Headphone outputs - 3
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - USB connector type - USB Type-A, USB Type-C
Rear panel I/O ports - USB connector type - USB Type-C
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 34 cm
Shipping Box Height Shipping/Package Box Dimensions - 8 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.731 kg
Shipping Box Width Shipping/Package Box Dimensions - 27 cm
Short description - GIGA Z790 UD S1700/DDR5/ATX
ShortDescription - Socket 1700| Chipset Intel Z790 | DDR5 |
ShortDescription EN - Intel Z790 | LGA1700 | ATX | DDR5 | 7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/4800/4000 MHz | Memory slots 4 | 2xPCI-Express 3.0 1x | 1xPCI-Express 3.0 16x | 1xPCI-Express 4.0 16x | 1xPCI-Express 5.0 16x | 3xM.2 | 1xHDMI | 1xDisplayPort | 4xUSB 2.0 | 5xUSB 3.2 | 1xUSB-C | 1xRJ45 | 3xAudio port | SATA | USB 2.0 | USB 3.2 | Video Depending on CPU | LAN 2.5 Gigabit | Audio | RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10 | TPM Header
ShortDescription ET - Intel Z790 | LGA1700 | ATX | DDR5 | Mälu pesad 4 | 2xPCI-Express 3.0 1x | 1xPCI-Express 3.0 16x | 1xPCI-Express 4.0 16x | 1xPCI-Express 5.0 16x | 3xM.2 | 1xHDMI | 1xDisplayPort | 4xUSB 2.0 | 5xUSB 3.2 | 1xUSB-C | 1xRJ45 | 3xAudio port | SATA | USB 2.0 | USB 3.2 | Video sõltuvalt CPU-st | LAN 2,5 Gigabit | Heli | RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10 | TPM pesa
ShortSummaryDescription - GIGABYTE Z790 UD Motherboard - Supports Intel Core 14th CPUs, 16*+1+１ Phases Digital VRM, up to 7600MHz DDR5, 3xPCIe 4.0 M.2, 2.5GbE LAN , USB 3.2 Gen 2, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, 192 GB, DDR5-SDRAM
sizeX - 335
sizeY - 275
sizeZ - 80
Socket - LGA1700
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Realtek audio codec High Definition Audio support Number of audio channels 2/4/5.1/7.1 * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Special functions - GIGABYTE Control Center (GCC) Support *Apps available on GCC may vary depending on motherboard model. The supported features of each application may also vary depending on the motherboard specifications. Q-Flash support Support for Q-Flash Plus Smart backup support
Storage controllers - Number of HDDs supported - 6
Storage controllers - Number of storage drives supported - 9
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
TariffNo - 84733020
Technical details - Warranty period - 3 year(s)
Technical details > Net weight - 1.36 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE Z790 UD Motherboard - Supports Intel Core 14th CPUs, 16*+1+１ Phases Digital VRM, up to 7600MHz DDR5, 3xPCIe 4.0 M.2, 2.5GbE LAN , USB 3.2 Gen 2
TPM - Header
Unit Box Height - 0.08
Unit Box Length - 0.34
Unit Box Width - 0.27
Unit Brutto Volume - 0.007344 cubm
Unit Gross Weight - 1.73 kg
Unit Net Weight - 1.6 kg
UnitOfMeasureCode - tk
UnitsPerPackage - 1
URL - https://www.gigabyte.com/Motherboard/Z790-UD-rev-10#kf
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
USB ports at back panel - 10
USB ports on motherboard - 7
Vendor Homepage - www.gigabyte.com/Motherboard/Z790-UD-rev-10
vendpn - Z790 UD
Volume - 0.00784000
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
Weight - 1,73
Weight - 1.74
weight - 1750
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
Width - 0.3500
