ID: 905578
Product code: ROG STRIX Z790-I GAMING WIFI
In stock 1 units
Warranty: 3 years

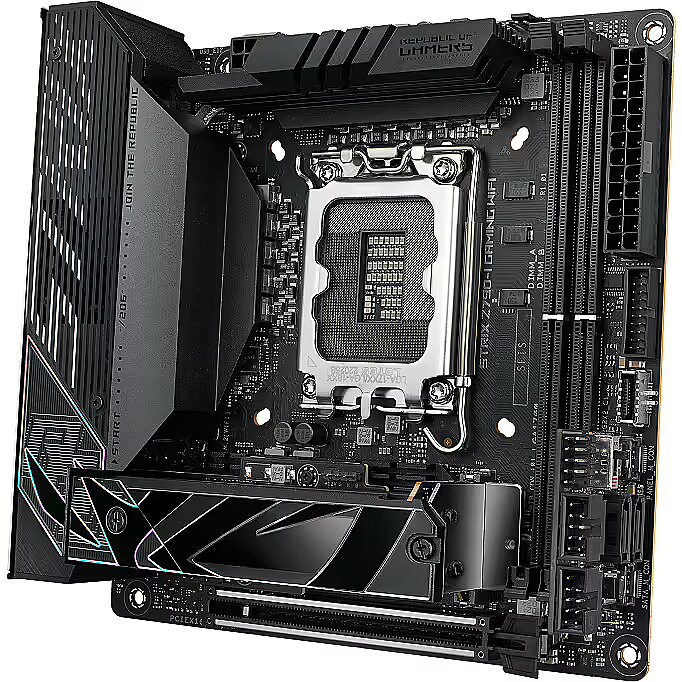

Asus ROG STRIX Z790-I GAMING WIFI
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: 19.11.2024
- Courier delivery 3.99 €: 19.11.2024
Main product parameters All parameters
- Series: ASUS ROG Strix
- CPU Socket: LGA 1700
- Chipset: Intel Z790
- Form factor: Mini-ITX
- Type: DDR5
- RAM Slots: 2
- Built-in Wi-Fi: Ir
Basic information
Series
: ASUS ROG Strix
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel Z790
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
Mini-ITX
The physical size of the motherboard. TopPC.ee offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
2
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 5600 (OC 7600)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 0
Integrated sound card
: Realtek ALC4050
Wireless connections
Built-in Bluetooth
: Ir
Built-in Wi-Fi
: Ir
External ports
External USB Type-C
: 3
External USB 2.0
: 2
External USB 3.0 (USB 3.2 Gen1)
: 1
External USB 3.1 (USB 3.2 Gen2)
: 3
Internal ports
Internal A-RGB 5V (3-pin)
: 1
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 0
Internal USB 3.0
: 1
Internal USB Type-C
: 1
M.2 Port
: 2
SATA3 ports
: 2
More detailed specification
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Bluetooth Interface - Yes
Brand - ASUS
BrandPartCode - 90MB1CM0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel Z790
code - 90MB1CM0-M0EAY0
Code - 90MB1CM0-M0EAY0
Description - ROG STRIX Z790-I GAMING WIFI Rules are made to be broken. Smashing the conventions of what a mini-ITX motherboard can do, the ROG Strix Z790-I’s power delivery rivals that of full-scale titans and its stacked thermal array is more than a match for multi-core behemoths. It also expands the boundaries of connectivity, with the innovative ROG Hive, a hybrid audio and USB hub with an added twist - an AI Overclocking button makes tuning so easy, it feels like cheating.
EAN - 4711081947493
ean - 4711081947493
Eans - 4711081947493
EAN_code - 4711081947493
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Features - Component for - PC
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - mini ITX
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10, Windows 11
Form Factor - Mini-ITX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz
Full Description Line - Intel Z790|Mini-ITX|DDR5|7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 2|1xPCI-Express 5.0 16x|2xM.2|1xHDMI|2xUSB 2.0|4xUSB 3.2|1xUSB-C|2xUSB-C w/Thunderbolt|1xRJ45|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC4080
Graphics - Parallel processing technology support - Not supported
Gross weight - 2.05 kg
GTIN - 4711081947493
HDMI Input/Output connectors - 1
Included Accessories -
Cables
2 x SATA 6Gb/s cables
1 x ROG USB2.0 splitter cable
1 x Panel Cable
ROG FPS-II Card
1 x ROG FPS-II Card
ROG STRIX HIVE
1 x ROG STRIX HIVE
1 x USB Type-C® power connection cable
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x Rubber Package(s) for M.2
1 x Q-Latch package(s) for M.2
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Installation Media
1 x User guide
Integrated audio - Realtek ALC4080
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 1
Internal I/O - Number of SATA III connectors - 2
Internal I/O - RGB LED pin header - Yes
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 2
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://rog.asus.com/motherboards/rog-strix/rog-strix-z790-i-gaming-wifi-model/
LongDesc - Rules are made to be broken. Smashing the conventions of what a mini-ITX motherboard can do, the ROG Strix Z790-I’s power delivery rivals that of full-scale titans and its stacked thermal array is more than a match for multi-core behemoths. It also expands the boundaries of connectivity, with the innovative ROG Hive, a hybrid audio and USB hub with an added twist - an AI Overclocking button makes tuning so easy, it feels like cheating.ALL-ROUND PERFORMANCEThroughout its compact frame, the Strix Z790-I teems with engineering tweaks that boost CPU and memory performance and lay a potent foundation for full-size SSDs and graphics cards.AI OVERCLOCKINGTuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.PCIE 5.0The ROG Strix Z790-I offers end-to-end PCIe 5.0 support with a unique twist. Both the x16 expansion slot and one of the onboard M.2 slots are Gen 5-ready, but that M.2 slot has additional PCIe 4.0 routing to the chipset.This allows the user to choose how to prioritize their throughput: if the M.2 slot is in Gen 5 mode, it can scale up to 16 GB/s read and write speeds. If the M.2 slot uses PCIe 4.0, all of the Gen 5 bandwidth is allocated to the expansion slot for unfettered graphics card performance.POWER ARCHITECTURE10 + 1 power stages each rated to 105A deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.ALLOY CHOKES AND DURABLE CAPACITORSHi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.8-PIN PROCOOL II POWER CONNECTORA ProCool II connector is precision-built to ensure flush contact with PSU power lines. A metal sheath improves heat dissipation and lowers electrical impedance.TEN-LAYER PCBA multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.DDR5 DOMINATIONROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 7 GT/s mark on the Strix Z790-I, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.AEMP IIASUS Enhanced Memory Profile (AEMP) is an exclusive hardware and firmware solution to overclock generic memory modules. AEMP’s second version allows for automatic tuning of kits during system startup and leverages the PCB trace optimizations of the Strix Z790-I to push frequencies higher than ever before. AEMP II can even overclock mixed kits in a quad-DIMM arrangement, and the vast library of support now extends to nearly every DDR5 module that does not otherwise have XMP support.VRM COOLING ARRAYSubstantial heatsinks cover the power solution, bolstered by a quiet thermal system that intakes from the core and outputs heat upwards through a ventilated top, so the VRM stays cool even in air-restricted systems.M.2 HEATSINK STACKOn-board M.2 slots are sandwiched between thick heatsinks over the chipset in a clever space-saving arrangement. Thermal efficiency is ensured by a miniature active cooling solution so high-performance drives maintain peak performance.CPU FAN HEADERPositioned near the top of the motherboard, a PWM/DC fan header gives easy access for CPU coolers.AIO PUMP FAN HEADERA dedicated PWM/DC header connects self-contained water-cooling setups.4-PIN FAN HEADERSThe Strix Z790-I features a chassis fan header that auto-detects any PWM or DC fan connected to it.LEADING CONNECTIVITYThe ATX experience thoughtfully scaled into mini-ITX: grace your desktop with the ROG Strix Hive for superb audio and control, build easier with the ROG FPS-II card, and make faster connections with the latest Thunderbolt and WiFi support.ROG STRIX HIVEThe all-new ROG Strix Hive brings critical controls and I/O within arm's reach, moving them from the cramped quarters of an SFF chassis to a compact peripheral that sits on the desktop. DIY-friendly buttons and diagnostic LEDs are brought front and center along with a large volume dial. On the sides, a varied group of I/O ports handle audio input and output and provide convenient connectivity for grab-and-go peripherals.ROG FPS-II CardThe ROG FPS-II card groups I/O onto a vertically-mounted card, saving valuable on-board space and tidying cable management. Connections can be made before the card is installed, greatly simplifying installation in cramped quarters. On board are two SATA ports, front panel headers, two USB 2.0 headers (allowing for up to three USB 2.0 connections), a CPU_OV jumper for extreme overclocking, and an Alteration mode switch.TWO THUNDERBOLT 4 TYPE-C® PORTSEach port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. Both ports can be employed for up to two external 4K displays, and PCIe bandwidth extends to up to 32 Gbps.WIFI 6EOnboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.*WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.Intel 2.5G EthernetLow-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.PLAY IN STYLEThe black shrouds and gentle accents of the Strix Z790-I make it a solid foundation for nearly any rig, especially when coordinated with the vast range of offerings in the ROG ecosystem.UNDENIABLY ROG STRIXLinear vents and subtle grid-like textures give the Strix Z790-I a stealthy form that blends in the shadows of most SFF builds. But if a little lighting hits the side of its M.2 shroud, its true colors show in the form of a prismatic sheen glinting off of the highly-reflective aluminum that outlines the embossed ROG logo.COOLER COMPATIBILITYThe ROG Strix Z790-I bears the same LGA 1700 socket as the Z690 models, so it is backward compatible with all coolers that supported the previous generation, including all AIO offerings from ASUS and ROG.THE ROG STRIX ECOSYSTEM AWAITSLevel up your game with ROG Strix. Enjoy complementary aesthetics, control, and compatibility across AIO coolers, cases, peripherals, and much more. ROG offers more choices than any other brand.SOFTWARE UTILITIESROG-exclusive software delivers intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want.AI COOLING IIBalance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.TWO-WAY AI NOISE CANCELATIONThis utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.AI NETWORKINGGameFirst VI optimizes networking performance by allocating bandwidth in real time based on application usage scenarios and corresponding learning algorithms. The latest update includes dedicated support for GeForce NOW to ensure the lowest latency possible during intense game streaming sessions.The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.MEMTEST86For diagnostic convenience, MemTest86 has been pre-installed into the ROG UEFI. Run the test to pinpoint memory issues without the need to start up the OS or attach a USB drive. Memory test results are stored in the BIOS archives for later reference.Intuitive Graphical Fan ControlsFine-tune individual fans simply by dragging a curve with the mouse.Storage InformationView SATA port details for easy device recognition.Clock AdjustmentClick on the settings icon to quickly change time and date settings.The dashboard-style control panel of AI Suite 3 lets you fine-tune your system with ease. Get the best balance between performance, cooling, stability, and efficiency via simple and intuitive interfaces.The TurboV Processing Unit (TPU) is an intelligent onboard micro-controller that provides an array of system-tuning features, including the ability to fine-tune voltages, monitor system stats and adjust overclocking parameters.The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.Modern processors feature per-core tuning, and the ASUS Turbo app makes use of this feature by letting you assign applications to specific processor cores, prioritizing computing power where it's needed most.Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.SONIC STUDIO LINKEasily apply Sonic Studio effects on all playback devices. Simply press the Sonic Studio Link button to enjoy the effect on any playback device.SONIC STUDIO VIRTUAL MIXERCombine audio output from selected apps with audio from the microphone input and stream the compiled mix.APP-SPECIFIC PROFILESApply customized audio settings to different applications, so everything you do is perfectly tuned to the way you want to listen.Through the pre-loaded DTS® Sound Unbound™ app, the ROG Strix Z790-I envelops you in rich audio, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By exploiting Microsoft spatial sound technology, DTS Sound Unbound creates an audial 3D space — putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep, or other sound in your virtual environment.* DTS Sound Unbound requires in-game support. Check with developers for supported titles.STEREO SOUNDDiscrete left and right audio channels enable headphone or two-speaker setups.SURROUND SOUNDAudio is split and served over multiple speaker channels – e.g., 5.1 or 7.1 – to create an enveloping experience on a single, logical plane.SPATIAL SOUNDA virtual 360-degree soundscape immerses you in a realistic sonic experience.The ROG Strix Z790-I includes a sixty-day AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers*.*Support available for ROG Ryujin II and later models.Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.You can use Armoury Crate to download drivers, tools, and user manuals, and to register products. It also taps into a special news feed that connects you to the global ASUS gaming community.* Windows 10 or 11 required for full Aura Sync functionality within Armoury Crate. For Windows 8 and earlier versions, standalone Aura Sync software is available for free download from the product support site.
LongProductName - Intel® Z790 LGA 1700 Mini-ITX motherboard with 10+1 power stages, DDR5, two M.2 slots, PCIe® 5.0 NVMe® SSD slot, PCIe 5.0 x16 SafeSlot, ROG Strix Hive with AI Overclocking button, Wi-Fi 6E , USB 3.2 Gen 2x2 Type-C® rear IO port and front panel connector, two Thunderbolt™ 4 ports and AI Cooling II
LongSummaryDescription - ASUS ROG STRIX Z790-I GAMING WIFI. Processor manufacturer: AMD, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: mini ITX, Motherboard chipset family: Intel
M.2 Expansion slots - 2
Manufacturer - Asus
Manufacturer_code - 90MB1CM0-M0EAY0
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 7600 MHz
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 2
Memory > Supported memory types - DDR5 DIMM
Memory slots - 2
Memory type - DDR5
Model - ROG STRIX Z790-I
Name - ASUS ROG STRIX Z790-I GAMING WIFI
name - ASUS ROG Strix Z790-I Gaming WiFi, Intel Z790 Mainboard - Sockel 1700, DDR5
Name - ASUS ROG STRIX Z790-I GAMING WIFI, Motherboard - Socket 1700
Name - Asus | ROG STRIX Z790-I GAMING WIFI | Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 2 | Chipset Intel Z790 | Mini-ITX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Other features - Packaging content - Cables
2 x SATA 6Gb/s cables
1 x ROG USB2.0 splitter cable
1 x Panel Cable
ROG FPS-II Card
1 x ROG FPS-II Card
ROG STRIX HIVE
1 x ROG STRIX HIVE
1 x USB Type-C® power connection cable
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x Rubber Package(s) for M.2
1 x Q-Latch package(s) for M.2
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 310.00 mm
Package features > Gross height (mm) - 160.00 mm
Package features > Gross width (mm) - 250.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 139 pc(s)
Package features > Paper/Pasteboard - 200.00 g
Package features > Plastic (No PET) - 30.00 g
Package features > Tare weight (kg) - 0.23 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
Packaging content - User guide - Yes
Packaging data - Package depth - 220 mm
Packaging data - Package height - 110 mm
Packaging data - Package weight - 1.48 kg
Packaging data - Package width - 285 mm
PCI-Express 5.0 16x Expansion slots - 1
Performance > Chipset - Intel Z790
Performance > Motherboard form factor - Mini-ITX
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Processor manufacturer - AMD
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Compatible processor series - Supports 13th Gen Intel Core Processors and 12th Gen Intel Core, Pentium Gold and Celeron Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Producer - Asus
ProducerCode - ROG STRIX Z790-I GAMING WIFI
Producer product name - ROG STRIX Z790-I GAMING WIFI
ProductName - ROG STRIX Z790-I GAMING WIFI
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Thunderbolt ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 28.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 11 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.759 kg
Shipping Box Width Shipping/Package Box Dimensions - 22 cm
ShortDescription - Socket 1700| Chipset Intel Z790 | DDR5 |
ShortSummaryDescription - ASUS ROG STRIX Z790-I GAMING WIFI, AMD, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR5-SDRAM, 64 GB
Storage controllers - RAID levels - 0, 1
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Net weight - 1.82 kg
Technical details > Producer - Asus
Title - ASUS ROG STRIX Z790-I GAMING WIFI Intel Z790 LGA 1700 mini ITX
Unit Box Height - 0.11
Unit Box Length - 0.285
Unit Box Width - 0.22
Unit Brutto Volume - 0.006897 cubm
Unit Gross Weight - 1.76 kg
Unit Net Weight - 1.2 kg
URL - https://rog.asus.com/motherboards/rog-strix/rog-strix-z790-i-gaming-wifi-model/
USB-C Input/Output connectors - 1
USB-C w/Thunderbolt Input/Output connectors - 2
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 4
USB 3.2 Interface - Yes
Vendor Homepage - rog.asus.com/motherboards/rog-strix/rog-strix-z790-i-gaming-wifi-model/
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
Weight - 1,76
Weight & dimensions - Depth - 170 mm
Weight & dimensions - Width - 170 mm
WiFi Interface - Yes
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Bluetooth Interface - Yes
Brand - ASUS
BrandPartCode - 90MB1CM0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel Z790
code - 90MB1CM0-M0EAY0
Code - 90MB1CM0-M0EAY0
Description - ROG STRIX Z790-I GAMING WIFI Rules are made to be broken. Smashing the conventions of what a mini-ITX motherboard can do, the ROG Strix Z790-I’s power delivery rivals that of full-scale titans and its stacked thermal array is more than a match for multi-core behemoths. It also expands the boundaries of connectivity, with the innovative ROG Hive, a hybrid audio and USB hub with an added twist - an AI Overclocking button makes tuning so easy, it feels like cheating.
EAN - 4711081947493
ean - 4711081947493
Eans - 4711081947493
EAN_code - 4711081947493
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Features - Component for - PC
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - mini ITX
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10, Windows 11
Form Factor - Mini-ITX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz
Full Description Line - Intel Z790|Mini-ITX|DDR5|7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 2|1xPCI-Express 5.0 16x|2xM.2|1xHDMI|2xUSB 2.0|4xUSB 3.2|1xUSB-C|2xUSB-C w/Thunderbolt|1xRJ45|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC4080
Graphics - Parallel processing technology support - Not supported
Gross weight - 2.05 kg
GTIN - 4711081947493
HDMI Input/Output connectors - 1
Included Accessories -
Cables
2 x SATA 6Gb/s cables
1 x ROG USB2.0 splitter cable
1 x Panel Cable
ROG FPS-II Card
1 x ROG FPS-II Card
ROG STRIX HIVE
1 x ROG STRIX HIVE
1 x USB Type-C® power connection cable
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x Rubber Package(s) for M.2
1 x Q-Latch package(s) for M.2
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Installation Media
1 x User guide
Integrated audio - Realtek ALC4080
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 1
Internal I/O - Number of SATA III connectors - 2
Internal I/O - RGB LED pin header - Yes
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 2
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://rog.asus.com/motherboards/rog-strix/rog-strix-z790-i-gaming-wifi-model/
LongDesc - Rules are made to be broken. Smashing the conventions of what a mini-ITX motherboard can do, the ROG Strix Z790-I’s power delivery rivals that of full-scale titans and its stacked thermal array is more than a match for multi-core behemoths. It also expands the boundaries of connectivity, with the innovative ROG Hive, a hybrid audio and USB hub with an added twist - an AI Overclocking button makes tuning so easy, it feels like cheating.ALL-ROUND PERFORMANCEThroughout its compact frame, the Strix Z790-I teems with engineering tweaks that boost CPU and memory performance and lay a potent foundation for full-size SSDs and graphics cards.AI OVERCLOCKINGTuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.PCIE 5.0The ROG Strix Z790-I offers end-to-end PCIe 5.0 support with a unique twist. Both the x16 expansion slot and one of the onboard M.2 slots are Gen 5-ready, but that M.2 slot has additional PCIe 4.0 routing to the chipset.This allows the user to choose how to prioritize their throughput: if the M.2 slot is in Gen 5 mode, it can scale up to 16 GB/s read and write speeds. If the M.2 slot uses PCIe 4.0, all of the Gen 5 bandwidth is allocated to the expansion slot for unfettered graphics card performance.POWER ARCHITECTURE10 + 1 power stages each rated to 105A deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.ALLOY CHOKES AND DURABLE CAPACITORSHi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.8-PIN PROCOOL II POWER CONNECTORA ProCool II connector is precision-built to ensure flush contact with PSU power lines. A metal sheath improves heat dissipation and lowers electrical impedance.TEN-LAYER PCBA multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.DDR5 DOMINATIONROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 7 GT/s mark on the Strix Z790-I, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.AEMP IIASUS Enhanced Memory Profile (AEMP) is an exclusive hardware and firmware solution to overclock generic memory modules. AEMP’s second version allows for automatic tuning of kits during system startup and leverages the PCB trace optimizations of the Strix Z790-I to push frequencies higher than ever before. AEMP II can even overclock mixed kits in a quad-DIMM arrangement, and the vast library of support now extends to nearly every DDR5 module that does not otherwise have XMP support.VRM COOLING ARRAYSubstantial heatsinks cover the power solution, bolstered by a quiet thermal system that intakes from the core and outputs heat upwards through a ventilated top, so the VRM stays cool even in air-restricted systems.M.2 HEATSINK STACKOn-board M.2 slots are sandwiched between thick heatsinks over the chipset in a clever space-saving arrangement. Thermal efficiency is ensured by a miniature active cooling solution so high-performance drives maintain peak performance.CPU FAN HEADERPositioned near the top of the motherboard, a PWM/DC fan header gives easy access for CPU coolers.AIO PUMP FAN HEADERA dedicated PWM/DC header connects self-contained water-cooling setups.4-PIN FAN HEADERSThe Strix Z790-I features a chassis fan header that auto-detects any PWM or DC fan connected to it.LEADING CONNECTIVITYThe ATX experience thoughtfully scaled into mini-ITX: grace your desktop with the ROG Strix Hive for superb audio and control, build easier with the ROG FPS-II card, and make faster connections with the latest Thunderbolt and WiFi support.ROG STRIX HIVEThe all-new ROG Strix Hive brings critical controls and I/O within arm's reach, moving them from the cramped quarters of an SFF chassis to a compact peripheral that sits on the desktop. DIY-friendly buttons and diagnostic LEDs are brought front and center along with a large volume dial. On the sides, a varied group of I/O ports handle audio input and output and provide convenient connectivity for grab-and-go peripherals.ROG FPS-II CardThe ROG FPS-II card groups I/O onto a vertically-mounted card, saving valuable on-board space and tidying cable management. Connections can be made before the card is installed, greatly simplifying installation in cramped quarters. On board are two SATA ports, front panel headers, two USB 2.0 headers (allowing for up to three USB 2.0 connections), a CPU_OV jumper for extreme overclocking, and an Alteration mode switch.TWO THUNDERBOLT 4 TYPE-C® PORTSEach port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. Both ports can be employed for up to two external 4K displays, and PCIe bandwidth extends to up to 32 Gbps.WIFI 6EOnboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.*WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.Intel 2.5G EthernetLow-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.PLAY IN STYLEThe black shrouds and gentle accents of the Strix Z790-I make it a solid foundation for nearly any rig, especially when coordinated with the vast range of offerings in the ROG ecosystem.UNDENIABLY ROG STRIXLinear vents and subtle grid-like textures give the Strix Z790-I a stealthy form that blends in the shadows of most SFF builds. But if a little lighting hits the side of its M.2 shroud, its true colors show in the form of a prismatic sheen glinting off of the highly-reflective aluminum that outlines the embossed ROG logo.COOLER COMPATIBILITYThe ROG Strix Z790-I bears the same LGA 1700 socket as the Z690 models, so it is backward compatible with all coolers that supported the previous generation, including all AIO offerings from ASUS and ROG.THE ROG STRIX ECOSYSTEM AWAITSLevel up your game with ROG Strix. Enjoy complementary aesthetics, control, and compatibility across AIO coolers, cases, peripherals, and much more. ROG offers more choices than any other brand.SOFTWARE UTILITIESROG-exclusive software delivers intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want.AI COOLING IIBalance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.TWO-WAY AI NOISE CANCELATIONThis utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.AI NETWORKINGGameFirst VI optimizes networking performance by allocating bandwidth in real time based on application usage scenarios and corresponding learning algorithms. The latest update includes dedicated support for GeForce NOW to ensure the lowest latency possible during intense game streaming sessions.The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.MEMTEST86For diagnostic convenience, MemTest86 has been pre-installed into the ROG UEFI. Run the test to pinpoint memory issues without the need to start up the OS or attach a USB drive. Memory test results are stored in the BIOS archives for later reference.Intuitive Graphical Fan ControlsFine-tune individual fans simply by dragging a curve with the mouse.Storage InformationView SATA port details for easy device recognition.Clock AdjustmentClick on the settings icon to quickly change time and date settings.The dashboard-style control panel of AI Suite 3 lets you fine-tune your system with ease. Get the best balance between performance, cooling, stability, and efficiency via simple and intuitive interfaces.The TurboV Processing Unit (TPU) is an intelligent onboard micro-controller that provides an array of system-tuning features, including the ability to fine-tune voltages, monitor system stats and adjust overclocking parameters.The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.Modern processors feature per-core tuning, and the ASUS Turbo app makes use of this feature by letting you assign applications to specific processor cores, prioritizing computing power where it's needed most.Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.SONIC STUDIO LINKEasily apply Sonic Studio effects on all playback devices. Simply press the Sonic Studio Link button to enjoy the effect on any playback device.SONIC STUDIO VIRTUAL MIXERCombine audio output from selected apps with audio from the microphone input and stream the compiled mix.APP-SPECIFIC PROFILESApply customized audio settings to different applications, so everything you do is perfectly tuned to the way you want to listen.Through the pre-loaded DTS® Sound Unbound™ app, the ROG Strix Z790-I envelops you in rich audio, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By exploiting Microsoft spatial sound technology, DTS Sound Unbound creates an audial 3D space — putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep, or other sound in your virtual environment.* DTS Sound Unbound requires in-game support. Check with developers for supported titles.STEREO SOUNDDiscrete left and right audio channels enable headphone or two-speaker setups.SURROUND SOUNDAudio is split and served over multiple speaker channels – e.g., 5.1 or 7.1 – to create an enveloping experience on a single, logical plane.SPATIAL SOUNDA virtual 360-degree soundscape immerses you in a realistic sonic experience.The ROG Strix Z790-I includes a sixty-day AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers*.*Support available for ROG Ryujin II and later models.Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.You can use Armoury Crate to download drivers, tools, and user manuals, and to register products. It also taps into a special news feed that connects you to the global ASUS gaming community.* Windows 10 or 11 required for full Aura Sync functionality within Armoury Crate. For Windows 8 and earlier versions, standalone Aura Sync software is available for free download from the product support site.
LongProductName - Intel® Z790 LGA 1700 Mini-ITX motherboard with 10+1 power stages, DDR5, two M.2 slots, PCIe® 5.0 NVMe® SSD slot, PCIe 5.0 x16 SafeSlot, ROG Strix Hive with AI Overclocking button, Wi-Fi 6E , USB 3.2 Gen 2x2 Type-C® rear IO port and front panel connector, two Thunderbolt™ 4 ports and AI Cooling II
LongSummaryDescription - ASUS ROG STRIX Z790-I GAMING WIFI. Processor manufacturer: AMD, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: mini ITX, Motherboard chipset family: Intel
M.2 Expansion slots - 2
Manufacturer - Asus
Manufacturer_code - 90MB1CM0-M0EAY0
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 7600 MHz
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 2
Memory > Supported memory types - DDR5 DIMM
Memory slots - 2
Memory type - DDR5
Model - ROG STRIX Z790-I
Name - ASUS ROG STRIX Z790-I GAMING WIFI
name - ASUS ROG Strix Z790-I Gaming WiFi, Intel Z790 Mainboard - Sockel 1700, DDR5
Name - ASUS ROG STRIX Z790-I GAMING WIFI, Motherboard - Socket 1700
Name - Asus | ROG STRIX Z790-I GAMING WIFI | Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 2 | Chipset Intel Z790 | Mini-ITX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Other features - Packaging content - Cables
2 x SATA 6Gb/s cables
1 x ROG USB2.0 splitter cable
1 x Panel Cable
ROG FPS-II Card
1 x ROG FPS-II Card
ROG STRIX HIVE
1 x ROG STRIX HIVE
1 x USB Type-C® power connection cable
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x Rubber Package(s) for M.2
1 x Q-Latch package(s) for M.2
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 310.00 mm
Package features > Gross height (mm) - 160.00 mm
Package features > Gross width (mm) - 250.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 139 pc(s)
Package features > Paper/Pasteboard - 200.00 g
Package features > Plastic (No PET) - 30.00 g
Package features > Tare weight (kg) - 0.23 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
Packaging content - User guide - Yes
Packaging data - Package depth - 220 mm
Packaging data - Package height - 110 mm
Packaging data - Package weight - 1.48 kg
Packaging data - Package width - 285 mm
PCI-Express 5.0 16x Expansion slots - 1
Performance > Chipset - Intel Z790
Performance > Motherboard form factor - Mini-ITX
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Processor manufacturer - AMD
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Compatible processor series - Supports 13th Gen Intel Core Processors and 12th Gen Intel Core, Pentium Gold and Celeron Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Producer - Asus
ProducerCode - ROG STRIX Z790-I GAMING WIFI
Producer product name - ROG STRIX Z790-I GAMING WIFI
ProductName - ROG STRIX Z790-I GAMING WIFI
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Thunderbolt ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 28.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 11 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.759 kg
Shipping Box Width Shipping/Package Box Dimensions - 22 cm
ShortDescription - Socket 1700| Chipset Intel Z790 | DDR5 |
ShortSummaryDescription - ASUS ROG STRIX Z790-I GAMING WIFI, AMD, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR5-SDRAM, 64 GB
Storage controllers - RAID levels - 0, 1
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Net weight - 1.82 kg
Technical details > Producer - Asus
Title - ASUS ROG STRIX Z790-I GAMING WIFI Intel Z790 LGA 1700 mini ITX
Unit Box Height - 0.11
Unit Box Length - 0.285
Unit Box Width - 0.22
Unit Brutto Volume - 0.006897 cubm
Unit Gross Weight - 1.76 kg
Unit Net Weight - 1.2 kg
URL - https://rog.asus.com/motherboards/rog-strix/rog-strix-z790-i-gaming-wifi-model/
USB-C Input/Output connectors - 1
USB-C w/Thunderbolt Input/Output connectors - 2
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 4
USB 3.2 Interface - Yes
Vendor Homepage - rog.asus.com/motherboards/rog-strix/rog-strix-z790-i-gaming-wifi-model/
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
Weight - 1,76
Weight & dimensions - Depth - 170 mm
Weight & dimensions - Width - 170 mm
WiFi Interface - Yes
