ID: 893811
Product code: H610MHP
In stock 18 units
Warranty: 3 years

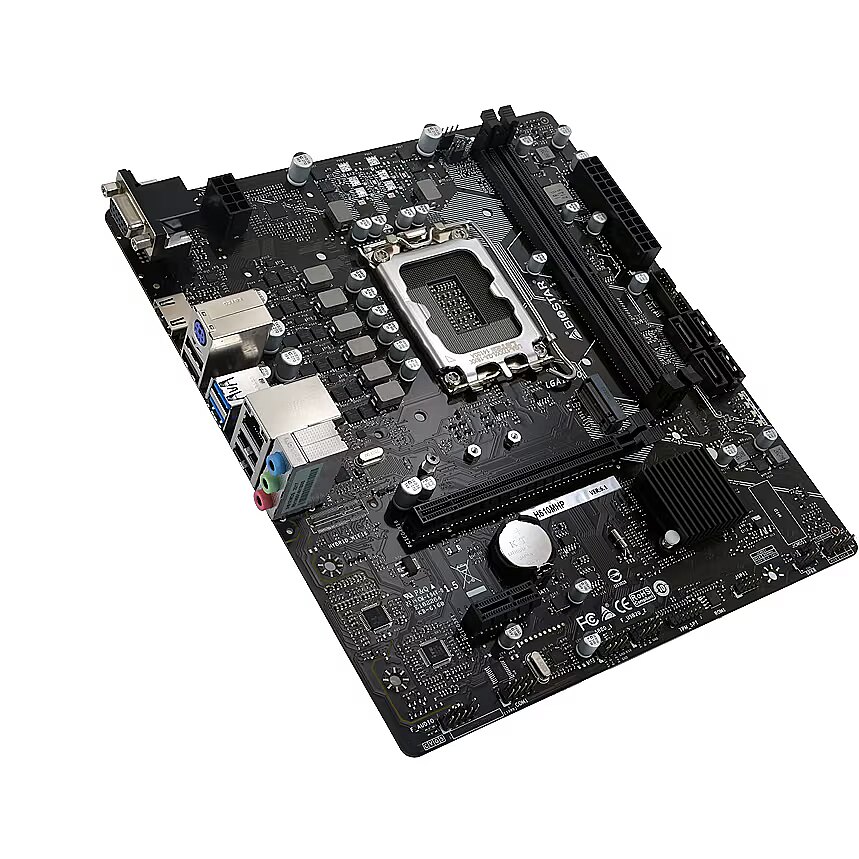

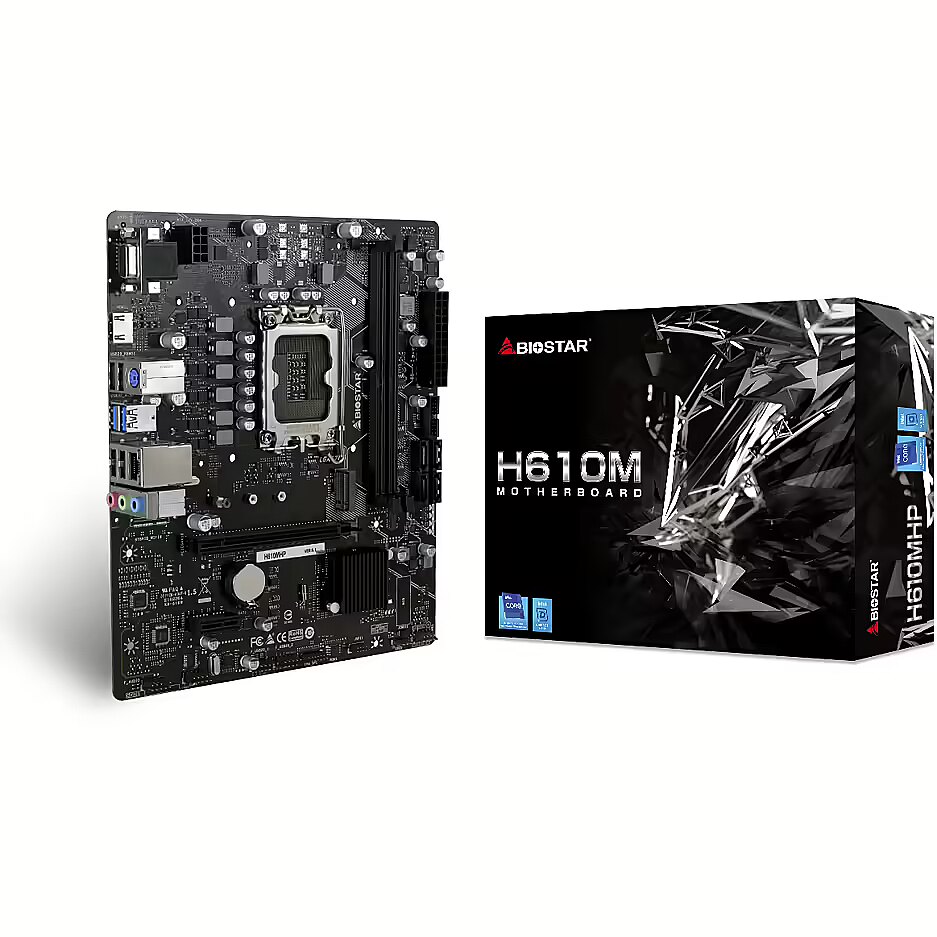

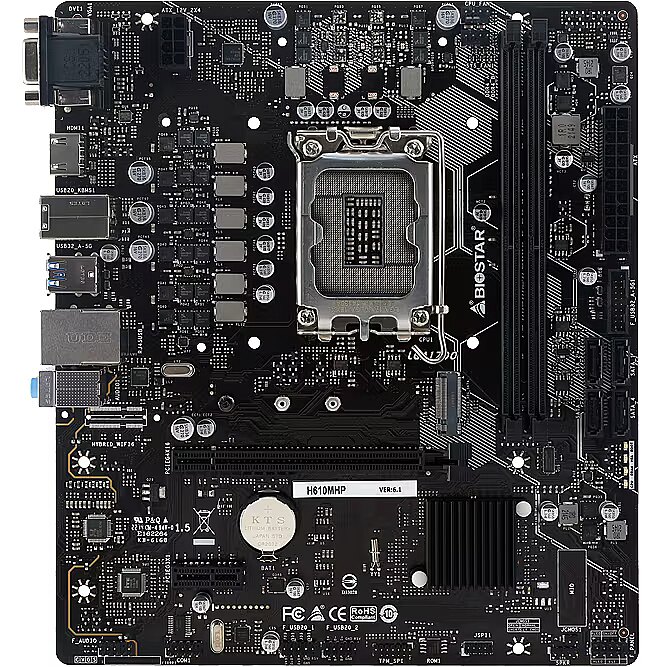

Biostar H610MHP
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: on Monday, 09.12.2024
- Courier delivery 3.99 €: on Monday, 09.12.2024
Main product parameters All parameters
- Series: Nav
- CPU Socket: LGA 1700
- Chipset: Intel H610
- Form factor: Micro ATX
- Type: DDR4
- RAM Slots: 2
- Built-in Wi-Fi: Nav
Basic information
Series
: Nav
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel H610
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
Micro ATX
The physical size of the motherboard. TopPC.ee offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR4
RAM Slots
2
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR4 3200
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 1
DVI
: 0
HDMI
: 1
DisplayPort
: 0
Integrated sound card
: Realtek ALC897
Wireless connections
Built-in Bluetooth
: Nav
Built-in Wi-Fi
: Nav
External ports
External USB Type-C
: 0
External USB 2.0
: 4
External USB 3.0 (USB 3.2 Gen1)
: 2
External USB 3.1 (USB 3.2 Gen2)
: 0
Internal ports
Internal A-RGB 5V (3-pin)
: 0
Internal RGB 12V (4-pin)
: 0
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 0
M.2 Port
: 1
SATA3 ports
: 4
More detailed specification
15pin D-sub Input/Output connectors - 1
Audio port Input/Output connectors - 3
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel H610
Description - - Supports 12th Generation Intel Core™ Processor - Intel H610 single chip architecture - Supports 2-DIMM DDR4- 1866/ 2133/ 2400/ 2666/ 2933/ 3200 up to 64 GB Memory - Supports PCIe 4.0 - Supports PCIe M.2 3.0 (32Gb/s) - Supports HDMI 4K2K - Supports USB 3.2 Gen1
EAN_code - 4712960686007
Form Factor - Micro-ATX
Frequency speed - 1866/2133/2400/2666/2933/3200 MHz

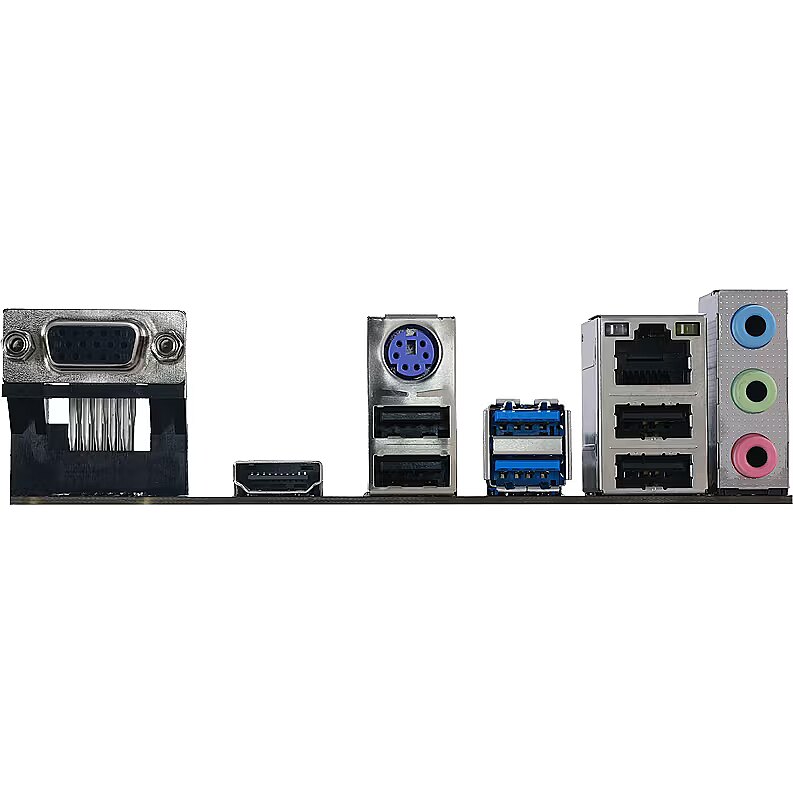

Full Description Line - Intel H610|LGA1700|Micro-ATX|DDR4|3200/2933/2666/2400/2133/1866 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video|LAN Gigabit|Audio Realtek ALC897|TPM Header
HDMI Input/Output connectors - 1
Included Accessories - 2 x SATA Cable;
1 x I/O Shield;
1 x DVD Driver;
1 x Quick Guide
Integrated audio - Realtek ALC897
Integrated LAN - Gigabit
Integrated video - Yes
M.2 Expansion slots - 1
Manufacturer - Biostar
Manufacturer_code - H610MHP
Memory slots - 2
Memory type - DDR4
Model - H610MHP
Name - Biostar H610MHP motherboard - 1700
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
PS/2 Input/Output connectors - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 27 cm
Shipping Box Height Shipping/Package Box Dimensions - 6 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.716 kg
Shipping Box Width Shipping/Package Box Dimensions - 22 cm
Socket - LGA1700
Technical_details - Type: motherboard Manufacturer No.: H610MHP Socket: 1700 Max CPUs supported: 1 Operating system: Windows 10 ready, Windows 11 ready Processor: Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i5 13xxxK (Raptor Lake), Core i5 13xxxKF (Raptor Lake), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF (Alder Lake), Core i7 13xxxK (Raptor Lake), Core i7 13xxxKF (Raptor Lake), Core i9 12xxx (Alder Lake), Core i9 12xxxK ( Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxF (Alder Lake), Core i9 12xxxKS (Alder Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxK (Raptor Lake ), Core i9 13xxxKF (Raptor Lake), Pentium Gold Gxxxx (Alder Lake), Celeron Gxxxx (Alder Lake) Chipset: Intel® H610 Slots: 1x (of which: 1x PCIe x16) : 1 BIOS: 128Mbit UEFI AMI BIOS : Yes : Yes Form factor: µATX Use: personal computer Power supply: ATX12V (24-pin + 8-pin) Memory: 64GB : 2x DDR4 : SDRAM DDR4 DDR4-3200/3000/2933/2800/2666/2400/2133Mhz : 2 : 8th : Yes : 8192 Mbit Connections (external): 1 : 2 The designation USB 3.2 Gen 1 corresponds to the former designations USB 3.1 Gen 1 or USB 3.0. : 4 : 1 : 1 : 1 : 1 : 1 : 1 Connections (internal): 4 : 1 : M : SATA, PCIe : 42 - 80mm : 2 Connections (optional): 2 : 4 : Yes RGB default: AURA sync SATA Controller: Intel® H610 USB Controller: Intel® H610 Onboard graphics: The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. Sound: Realtek ALC897 LAN: Intel I219V GbE LAN Additional information: A BIOS update may be required to support the latest processor cores. Accessories: 2x SATA cables, 1x I/O shield, 1x driver DVD, 1x quick start guide. Dimensions: Width: 244mm x Height: 244mm
TPM - Header
Unit Box Height - 0.06
Unit Box Length - 0.27
Unit Box Width - 0.22
Unit Brutto Volume - 0.003564 cubm
Unit Gross Weight - 0.716 kg
Unit Net Weight - 0.5 kg
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 4
USB 3.2 Interface - Yes
Vendor Homepage - www.biostar.com.tw/app/en/mb/introduction.php?S_ID=1069
Warranty - 36 months
Weight - 0,72
