ID: 1113617
Product code: Z790 S DDR4
In stock 5 units
Warranty: 3 years

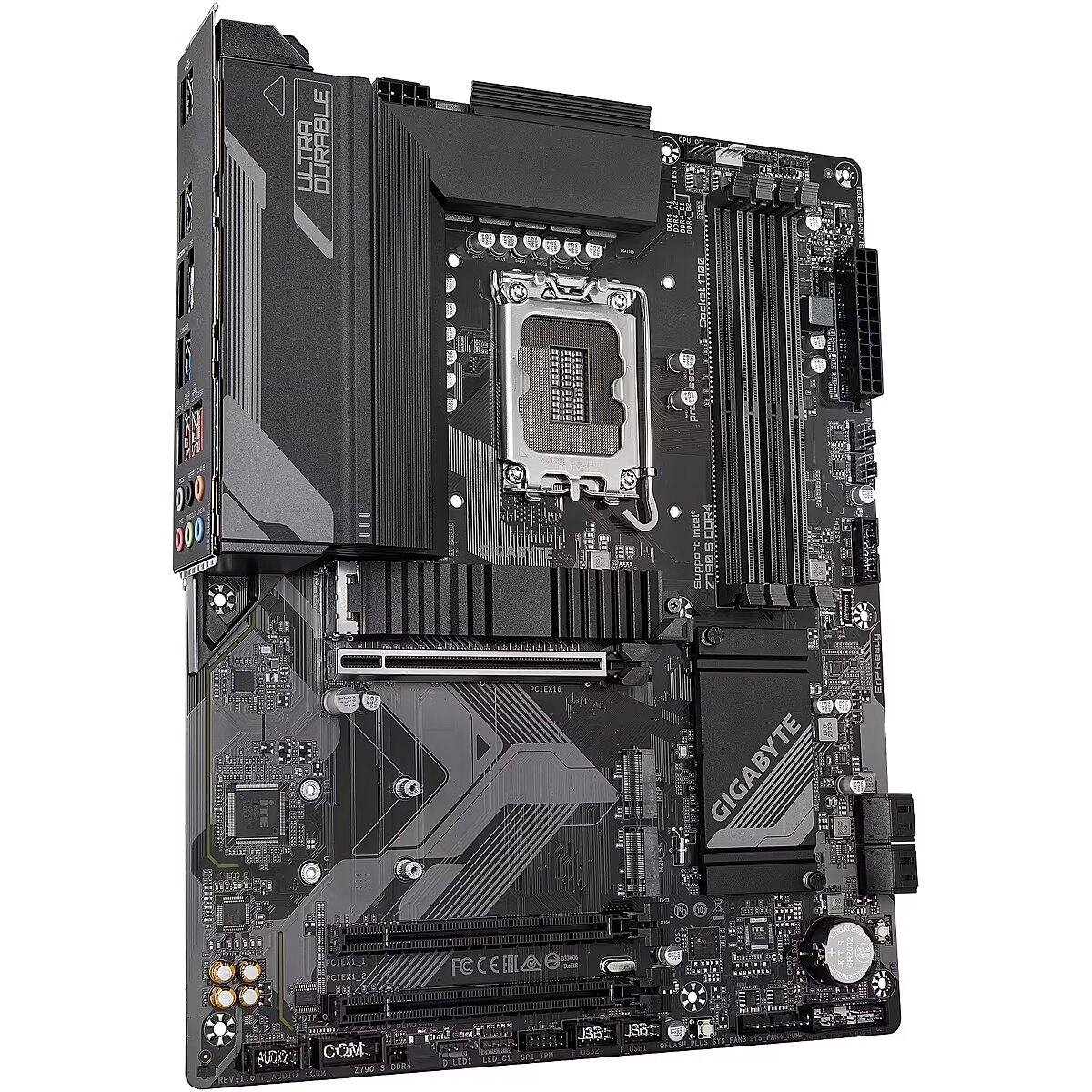

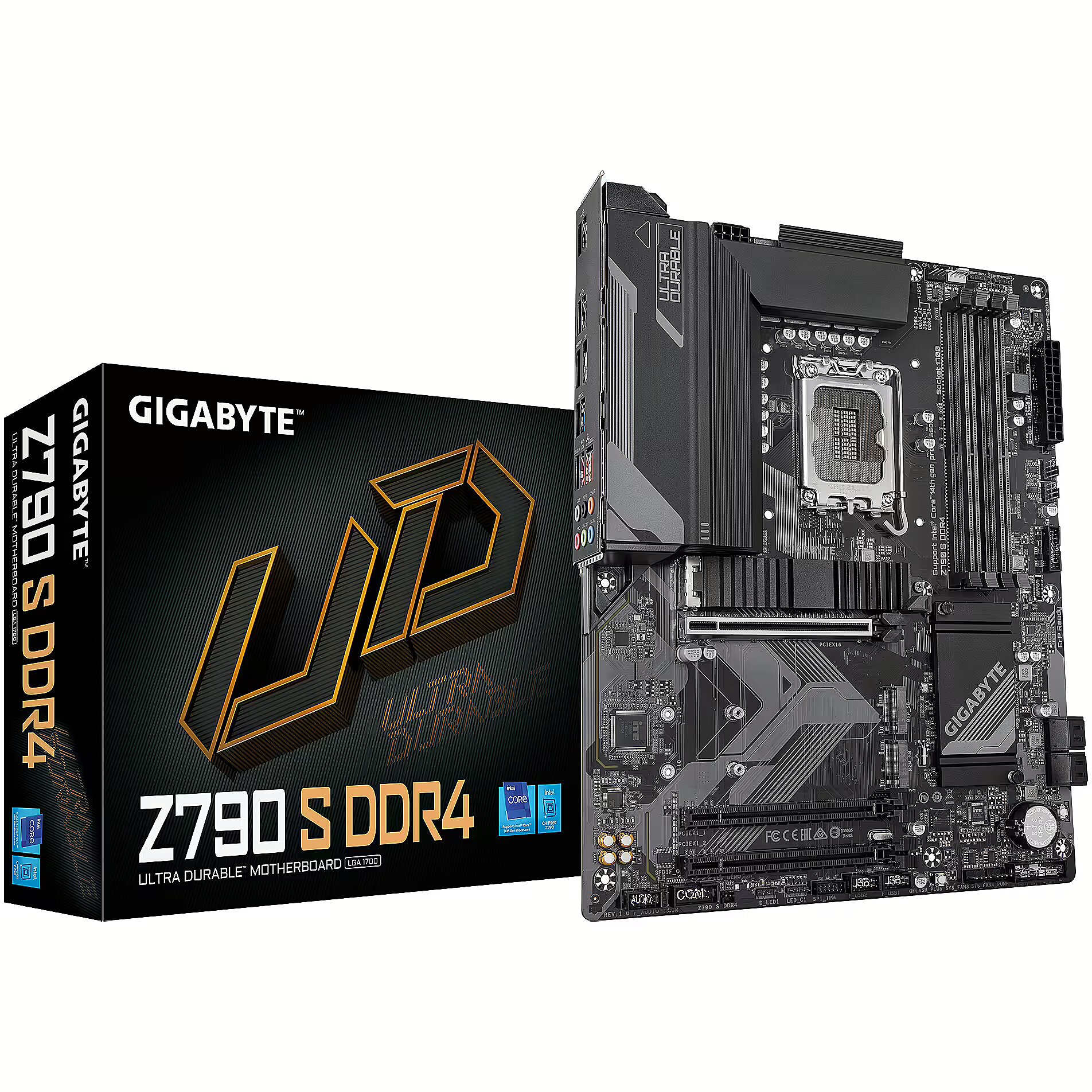

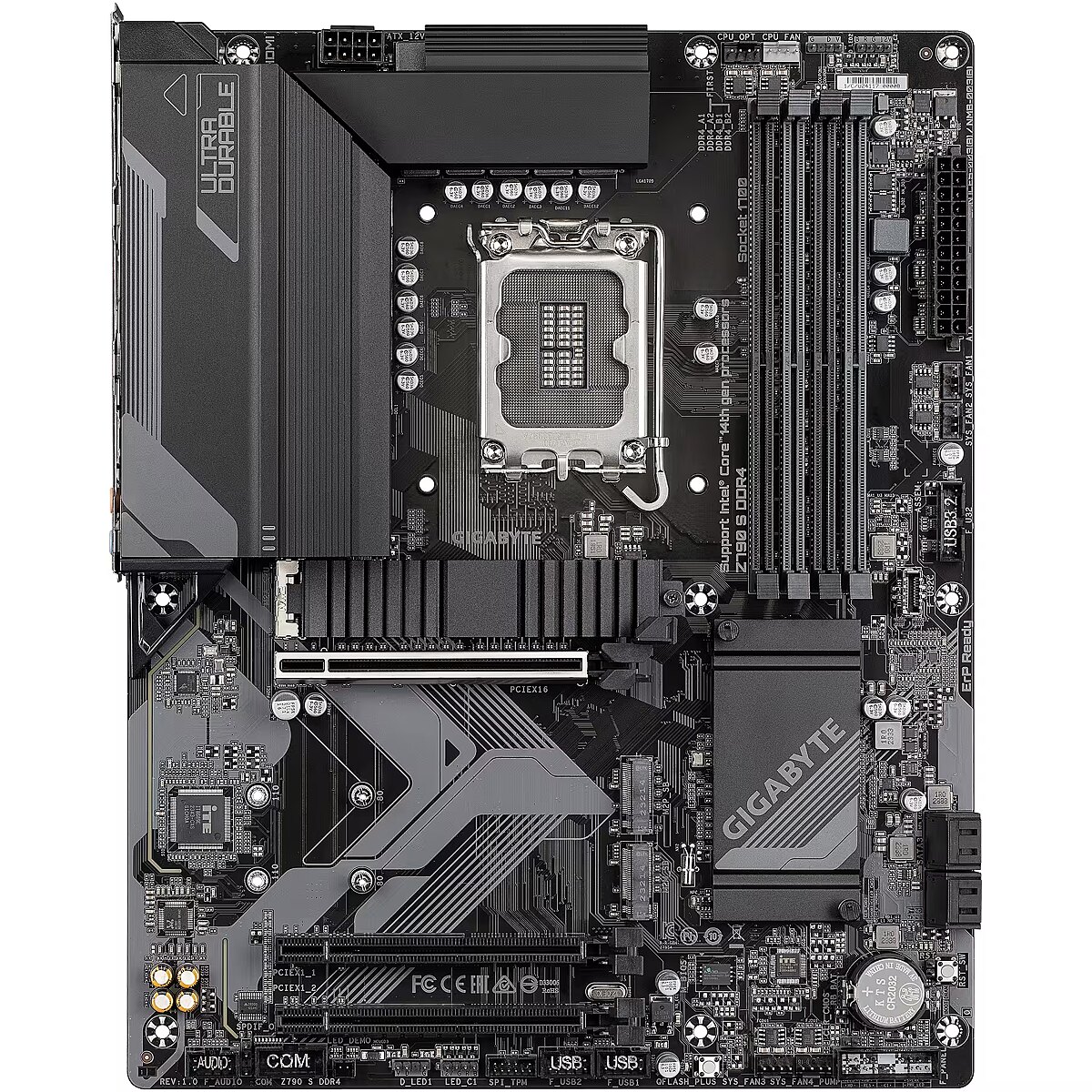

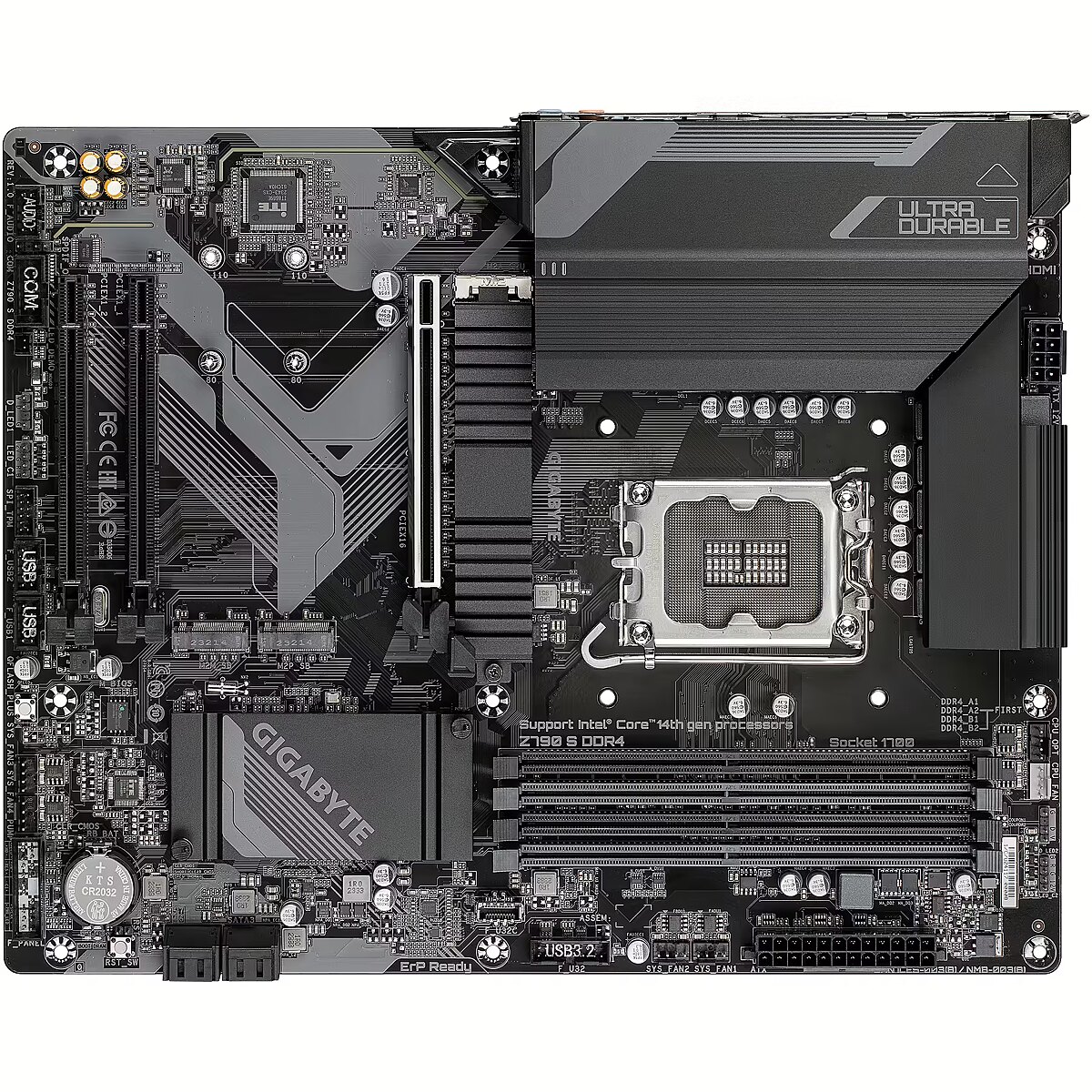

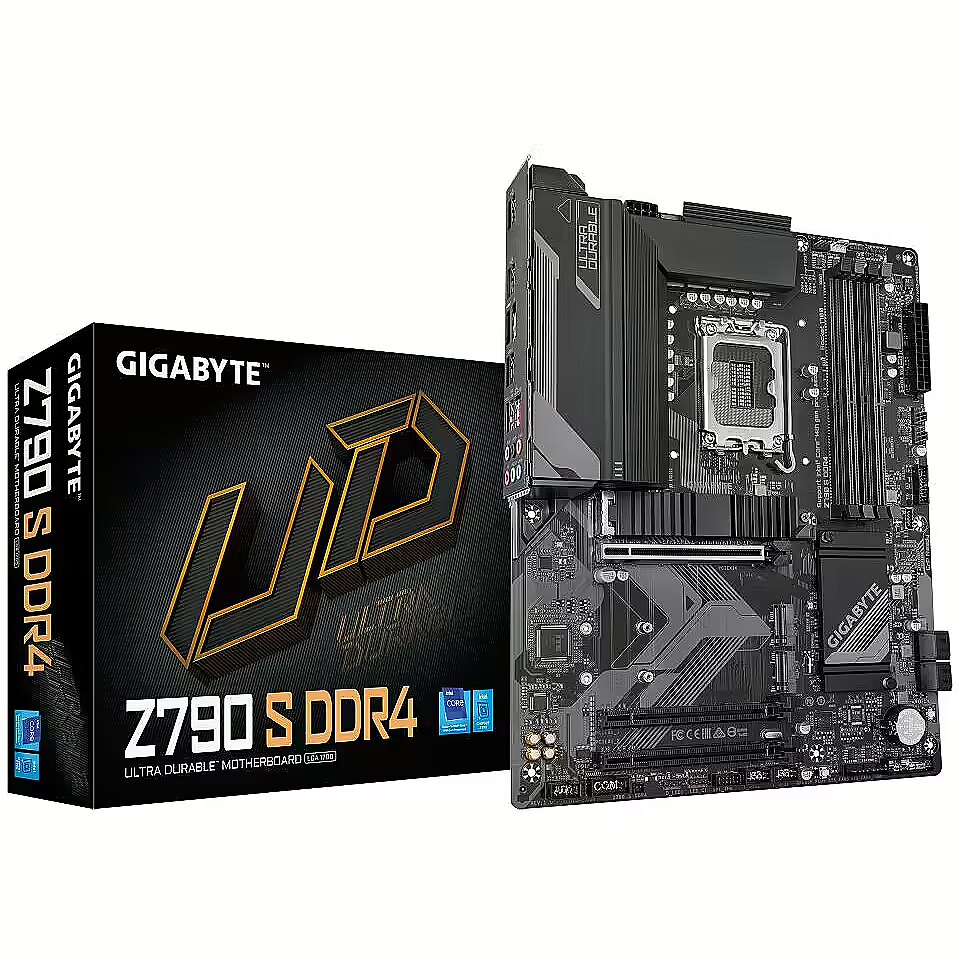

Gigabyte Z790 S DDR4
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: 19.11.2024
- Courier delivery 3.99 €: 19.11.2024
Main product parameters All parameters
- Series: Gigabyte Ultra Durable
- CPU Socket: LGA 1700
- Chipset: Intel Z790
- Form factor: ATX
- Type: DDR4
- RAM Slots: 4
- Built-in Wi-Fi: Nav
Basic information
Series
: Gigabyte Ultra Durable
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel Z790
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
ATX
The physical size of the motherboard. TopPC.ee offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR4
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR4 3200 (OC 5333)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 0
Integrated sound card
: Realtek Audio CODEC
Wireless connections
Built-in Bluetooth
: Nav
Built-in Wi-Fi
: Nav
External ports
External USB Type-C
: 0
External USB 2.0
: 5
External USB 3.0 (USB 3.2 Gen1)
: 2
External USB 3.1 (USB 3.2 Gen2)
: 1
Internal ports
Internal A-RGB 5V (3-pin)
: 2
Internal RGB 12V (4-pin)
: 2
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 1
M.2 Port
: 3
SATA3 ports
: 4
More detailed specification
Audio port Input/Output connectors - 6
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - Z790 S DDR4
Category - Motherboards
category - PC Components|Mainboards
Category Code - MBI
Chipset - Intel Z790
code - Z790 S DDR4
Code - Z790 S DDR4
Description - Z790 S DDR4 - Supports Intel® Core™ 14th/ 13th /12th processors - Unparalleled Performance:Hybrid 8+1+1 Phases Digital VRM Solution - Dual Channel DDR4:4*DIMMs XMP Memory Module Support - Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors - Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & M.2 SSD Performance - EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design - Fast Networks:2.5GbE LAN - Extended Connectivity:Front USB-C® 10Gb/s, DP, HDMI - Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP - Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
DisplayPort Input/Output connectors - 1
EAN - 4719331861902
ean - 4719331861902
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x1 slots - 2
Expansion slots - PCI Express x16 slots - 3
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - Product colour - Brown
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Form Factor - ATX
Frequency speed - 2133/2400/2666/2933/3000/3200/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4300/4500/4600/4700/4800/4933/5000/5133/5333 MHz
Full Description Line - Intel Z790|LGA1700|ATX|DDR4|5333/5133/5000/4933/4800/4700/4600/4500/4300/4133/4000/3866/3800/3733/3666/3600/3466/3400/3333/3200/3000/2933/2666/2400/2133 MHz|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|3xM.2|1xHDMI|1xDisplayPort|1xUSB 2.0|4xUSB 3.2 type B|1xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|6xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Video Depending on CPU|LAN 2.5 Gigabit|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
GTIN - 4719331861902
HDMI Input/Output connectors - 1
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - Serial port headers - 1
Internal I/O - Thunderbolt headers - 2
Internal I/O - Total number of SATA connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.gigabyte.com/Motherboard/Z790-S-DDR4-rev-10#kf
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - ATX, LGA 1700 socket, Intel Z790 Express chipset, 4x DDR4 DIMM, AMI UEFI BIOS
LongSummaryDescription - GIGABYTE Z790 S DDR4 Motherboard - Supports Intel Core 14th CPUs, 8+1+1 Phases Digital VRM, up to 5333MHz DDR4, 3xPCIe 4.0 M.2, 2.5GbE LAN , USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C
M.2 Expansion slots - 3
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 5333 MHz
Memory - Supported memory clock speeds - 2133,2400,2666,2800,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR4
Memory type - DDR4
Model - Z790 S DDR4
name - Gigabyte Z790 S - Intel Z790-Chipsatz, Sockel 1700, DDR4
Name - Gigabyte Z790 S DDR4 | Processor family Intel | Processor socket LGA1700 | DDR4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Optical S/PDIF Input/Output connectors - 1
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 270.00 mm
Package features > Gross height (mm) - 90.00 mm
Package features > Gross width (mm) - 335.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 106 pc(s)
Package features > Paper/Pasteboard - 130 g
Package features > Plastic (No PET) - 20 g
Package features > Tare weight (kg) - 0.15 kg
Package features > TI weight (kg) - 0.00 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security
Packaging content - Cables included - SATA
Packaging data - Package depth - 270 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 1.79 kg
Packaging data - Package width - 335 mm
PCI-Express 3.0 1x Expansion slots - 2
PCI-Express 4.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Maximum internal memory supported by processor - 128 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
ProductName - Z790 S DDR4 Motherboard - Supports Intel Core 14th CPUs, 8+1+1 Phases Digital VRM, up to 5333MHz DDR4, 3xPCIe 4.0 M.2, 2.5GbE LAN , USB 3.2 Gen 2
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10

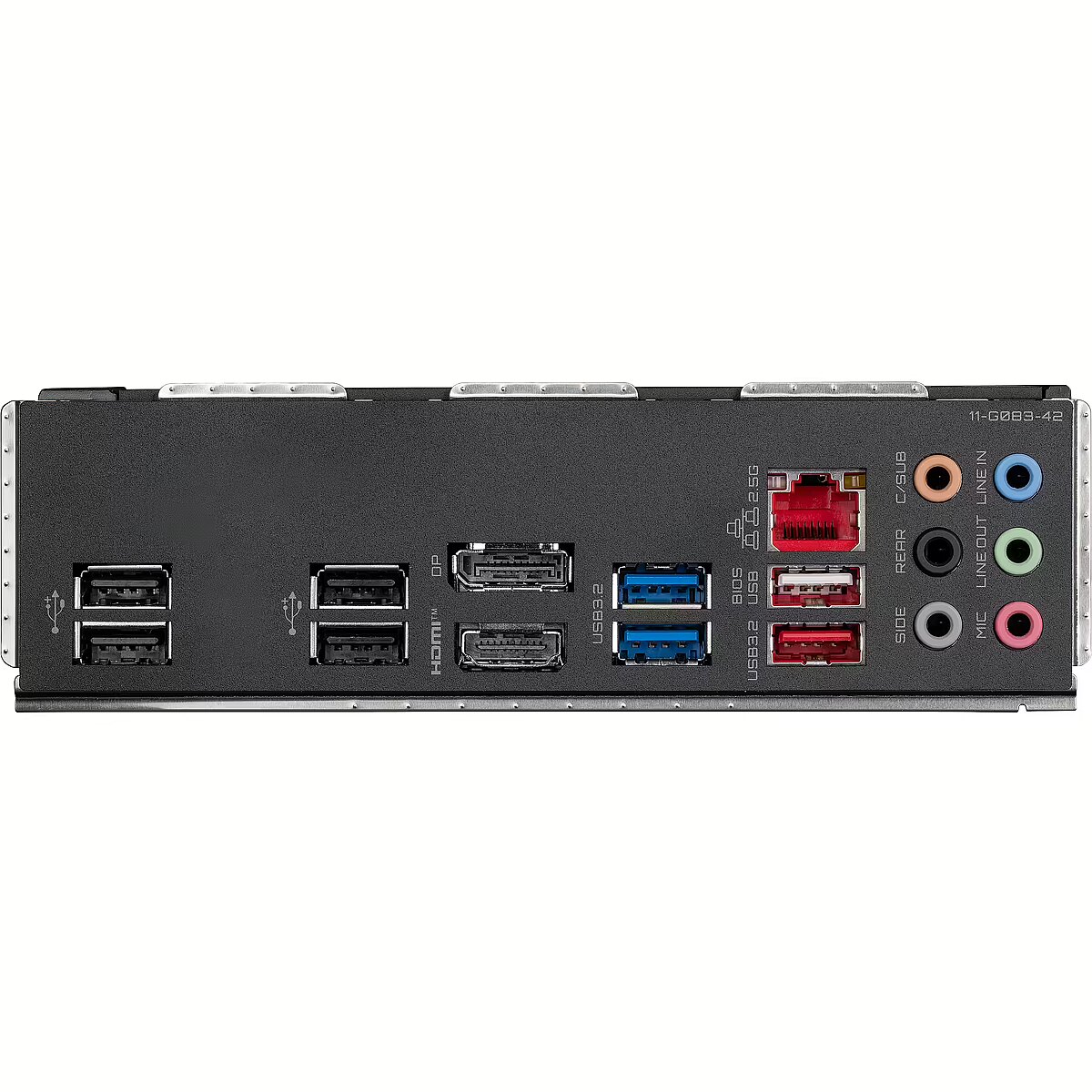

Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.0
Rear panel I/O ports - Headphone outputs - 6
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 5
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB connector type - USB Type-A, USB Type-C
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 58 cm
Shipping Box Height Shipping/Package Box Dimensions - 38 cm
Shipping box quantity - 8
Shipping Box Weight Shipping/Package Box Dimensions - 14.52 kg
Shipping Box Width Shipping/Package Box Dimensions - 37 cm
ShortSummaryDescription - GIGABYTE Z790 S DDR4 Motherboard - Supports Intel Core 14th CPUs, 8+1+1 Phases Digital VRM, up to 5333MHz DDR4, 3xPCIe 4.0 M.2, 2.5GbE LAN , USB 3.2 Gen 2, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, 128 GB, DDR4-SDRAM
Socket - LGA1700
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 7
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details - Warranty period - 3 year(s)
Technical details > Gross weight - 1.94 kg
Technical details > Net weight - 1.79 kg
Technical details > Producer - Gigabyte
Technical details > Producer product name - Z790 S DDR4
Title - GIGABYTE Z790 S DDR4 Motherboard - Supports Intel Core 14th CPUs, 8+1+1 Phases Digital VRM, up to 5333MHz DDR4, 3xPCIe 4.0 M.2, 2.5GbE LAN , USB 3.2 Gen 2
TPM - Header
Unit Box Height - 0.082
Unit Box Length - 0.335
Unit Box Width - 0.273
Unit Brutto Volume - 0.01019 cubm
Unit Gross Weight - 1.81 kg
Unit Net Weight - 1 kg
URL - https://www.gigabyte.com/uk/Motherboard/Z790-S-DDR4-rev-10#kf
USB-C Input/Output connectors - 1
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 1
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 1
USB 3.2 Interface - Yes
USB 3.2 type B Input/Output connectors - 4
Vendor Homepage - www.gigabyte.com/Motherboard/Z790-S-DDR4-rev-10#kf
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - Z790 S DDR4
Category - Motherboards
category - PC Components|Mainboards
Category Code - MBI
Chipset - Intel Z790
code - Z790 S DDR4
Code - Z790 S DDR4
Description - Z790 S DDR4 - Supports Intel® Core™ 14th/ 13th /12th processors - Unparalleled Performance:Hybrid 8+1+1 Phases Digital VRM Solution - Dual Channel DDR4:4*DIMMs XMP Memory Module Support - Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors - Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & M.2 SSD Performance - EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design - Fast Networks:2.5GbE LAN - Extended Connectivity:Front USB-C® 10Gb/s, DP, HDMI - Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP - Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
DisplayPort Input/Output connectors - 1
EAN - 4719331861902
ean - 4719331861902
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x1 slots - 2
Expansion slots - PCI Express x16 slots - 3
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - Product colour - Brown
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Form Factor - ATX
Frequency speed - 2133/2400/2666/2933/3000/3200/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4300/4500/4600/4700/4800/4933/5000/5133/5333 MHz
Full Description Line - Intel Z790|LGA1700|ATX|DDR4|5333/5133/5000/4933/4800/4700/4600/4500/4300/4133/4000/3866/3800/3733/3666/3600/3466/3400/3333/3200/3000/2933/2666/2400/2133 MHz|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|3xM.2|1xHDMI|1xDisplayPort|1xUSB 2.0|4xUSB 3.2 type B|1xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|6xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Video Depending on CPU|LAN 2.5 Gigabit|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
GTIN - 4719331861902
HDMI Input/Output connectors - 1
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - Serial port headers - 1
Internal I/O - Thunderbolt headers - 2
Internal I/O - Total number of SATA connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.gigabyte.com/Motherboard/Z790-S-DDR4-rev-10#kf
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - ATX, LGA 1700 socket, Intel Z790 Express chipset, 4x DDR4 DIMM, AMI UEFI BIOS
LongSummaryDescription - GIGABYTE Z790 S DDR4 Motherboard - Supports Intel Core 14th CPUs, 8+1+1 Phases Digital VRM, up to 5333MHz DDR4, 3xPCIe 4.0 M.2, 2.5GbE LAN , USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C
M.2 Expansion slots - 3
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 5333 MHz
Memory - Supported memory clock speeds - 2133,2400,2666,2800,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR4
Memory type - DDR4
Model - Z790 S DDR4
name - Gigabyte Z790 S - Intel Z790-Chipsatz, Sockel 1700, DDR4
Name - Gigabyte Z790 S DDR4 | Processor family Intel | Processor socket LGA1700 | DDR4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Optical S/PDIF Input/Output connectors - 1
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 270.00 mm
Package features > Gross height (mm) - 90.00 mm
Package features > Gross width (mm) - 335.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 106 pc(s)
Package features > Paper/Pasteboard - 130 g
Package features > Plastic (No PET) - 20 g
Package features > Tare weight (kg) - 0.15 kg
Package features > TI weight (kg) - 0.00 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security
Packaging content - Cables included - SATA
Packaging data - Package depth - 270 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 1.79 kg
Packaging data - Package width - 335 mm
PCI-Express 3.0 1x Expansion slots - 2
PCI-Express 4.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Maximum internal memory supported by processor - 128 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
ProductName - Z790 S DDR4 Motherboard - Supports Intel Core 14th CPUs, 8+1+1 Phases Digital VRM, up to 5333MHz DDR4, 3xPCIe 4.0 M.2, 2.5GbE LAN , USB 3.2 Gen 2
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.0
Rear panel I/O ports - Headphone outputs - 6
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 5
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB connector type - USB Type-A, USB Type-C
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 58 cm
Shipping Box Height Shipping/Package Box Dimensions - 38 cm
Shipping box quantity - 8
Shipping Box Weight Shipping/Package Box Dimensions - 14.52 kg
Shipping Box Width Shipping/Package Box Dimensions - 37 cm
ShortSummaryDescription - GIGABYTE Z790 S DDR4 Motherboard - Supports Intel Core 14th CPUs, 8+1+1 Phases Digital VRM, up to 5333MHz DDR4, 3xPCIe 4.0 M.2, 2.5GbE LAN , USB 3.2 Gen 2, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, 128 GB, DDR4-SDRAM
Socket - LGA1700
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 7
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details - Warranty period - 3 year(s)
Technical details > Gross weight - 1.94 kg
Technical details > Net weight - 1.79 kg
Technical details > Producer - Gigabyte
Technical details > Producer product name - Z790 S DDR4
Title - GIGABYTE Z790 S DDR4 Motherboard - Supports Intel Core 14th CPUs, 8+1+1 Phases Digital VRM, up to 5333MHz DDR4, 3xPCIe 4.0 M.2, 2.5GbE LAN , USB 3.2 Gen 2
TPM - Header
Unit Box Height - 0.082
Unit Box Length - 0.335
Unit Box Width - 0.273
Unit Brutto Volume - 0.01019 cubm
Unit Gross Weight - 1.81 kg
Unit Net Weight - 1 kg
URL - https://www.gigabyte.com/uk/Motherboard/Z790-S-DDR4-rev-10#kf
USB-C Input/Output connectors - 1
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 1
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 1
USB 3.2 Interface - Yes
USB 3.2 type B Input/Output connectors - 4
Vendor Homepage - www.gigabyte.com/Motherboard/Z790-S-DDR4-rev-10#kf
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
