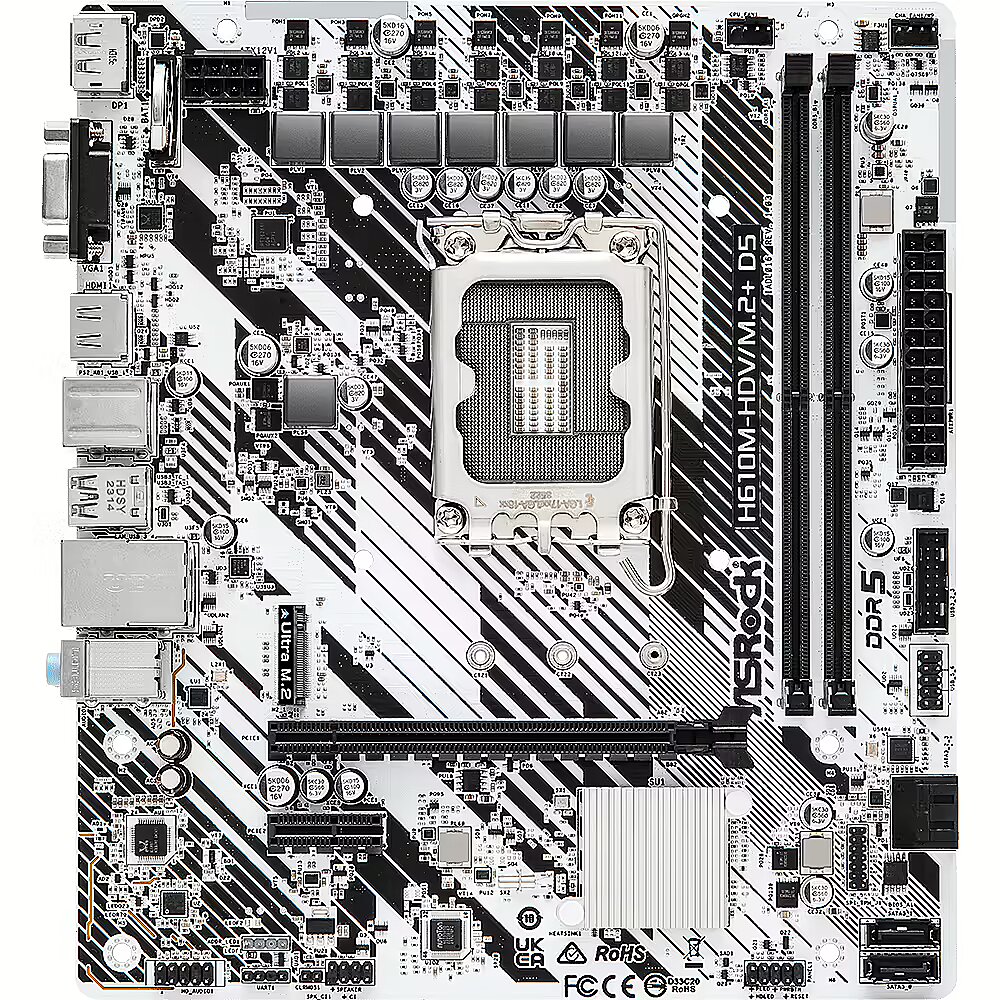

Asrock H610M-HDV/M.2+ D5

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1026826 Product code: H610M-HDV/M.2+ D5
Can be ordered 2 units Availability: 14 days after order approval
Warranty: 2 years
82.53 €
Delivery options
  • Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
  • Delivery to Omniva parcel locker 1.99 €: 20.12.2024
  • Courier delivery 3.99 €: 20.12.2024
Main product parameters All parameters
  • Series: Nav
  • CPU Socket: LGA 1700
  • Chipset: Intel H610
  • Form factor: Micro ATX
  • Type: DDR5
  • RAM Slots: 2
  • Built-in Wi-Fi: Nav
Basic information
Series : Nav
CPU Socket LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset Intel H610

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor Micro ATX

The physical size of the motherboard. TopPC.ee offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Random-access memory (RAM)
Type : DDR5
RAM Slots 2
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 5600

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
Video card port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready CPU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
PCI ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub : 1
DVI : 0
HDMI : 1
DisplayPort : 1
Integrated sound card : Realtek ALC897
Wireless connections
Built-in Bluetooth : Nav
Built-in Wi-Fi : Nav
External ports
External USB Type-C : 1
External USB 2.0 : 4
External USB 3.0 (USB 3.2 Gen1) : 2
External USB 3.1 (USB 3.2 Gen2) : 0
Internal ports
Internal A-RGB 5V (3-pin) : 1
Internal RGB 12V (4-pin) : 0
Internal USB 2.0 : 1
Internal USB 3.0 : 1
Internal USB Type-C : 0
M.2 Port : 1
SATA3 ports : 4
More detailed specification
Additional information in manufacturers website Asrock H610M-HDV/M.2+ D5
BIOS - BIOS type - UEFI AMI
Category - Root/Electronics/PC parts/Motherboards
Code - H610M-HDV/M.2+ D5
dimensionalWeight - 940
EAN - 4710483943478
Eans - 4710483943478
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Features - Audio chip - Realtek ALC897
Features - Motherboard chipset - Intel H610
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - CPU
Features - PC health monitoring - Fan
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
Graphics - HDCP - Yes
Graphics - Maximum resolution - 7680 x 4320 pixels
Graphics - Parallel processing technology support - Not supported
Gross weight - 2.30 kg
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Number of chassis fan connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA3, M.2
Memory - Maximum internal memory - 96 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 5600
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5 DIMM
Name - ASRock H610M-HDV/M.2+ D5
Name - ASRock | H610M-HDV/M.2+ D5 | Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Supported hard disk drive interfaces SATA3, M.2 | Number of SATA connectors 4
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek 8111H
Network - Wake-on-LAN ready - Yes
Network - Wi-Fi - No
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 70.00 mm
Package features > Gross height (mm) - 295.00 mm
Package features > Gross width (mm) - 360.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 116 pc(s)
Package features > Paper/Pasteboard - 450.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Cables included - SATA
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium®
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Producer - ASRock
producerCode - H610M-HDV/M.2+ D5
ProducerCode - H610M-HDV/M.2+D5
Producer product name - H610M-HDV/M.2+ D5
productName - Asrock H610M-HDV/M.2+ D5 Intel H610 LGA 1700 micro ATX
productSize - Normal
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
ShortDescription - Socket 1700 | Chipset Intel H610 | DDR5 |
sizeX - 60
sizeY - 280
sizeZ - 280
Storage controllers - RAID support - No
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Net weight - 1.80 kg
Technical details > Producer - ASRock
Warranty - 24
Warranty - 24 month(s)
warrantyLength - 24
warrantyType - G
weight - 750
Weight & dimensions - Depth - 193 mm
Weight & dimensions - Width - 220 mm
82.53 €
