ID: 1000937
Product code: Z790 A ELITE X WIFI7
In stock 6 units
Warranty: 3 years

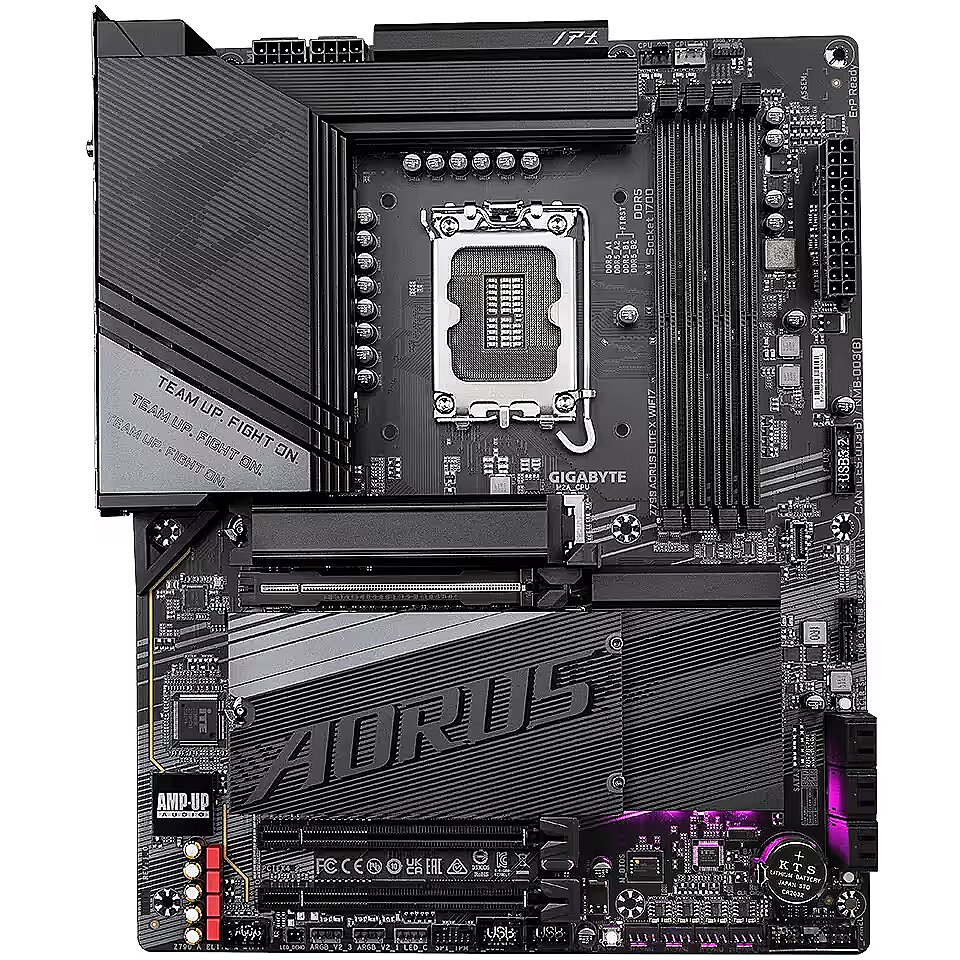

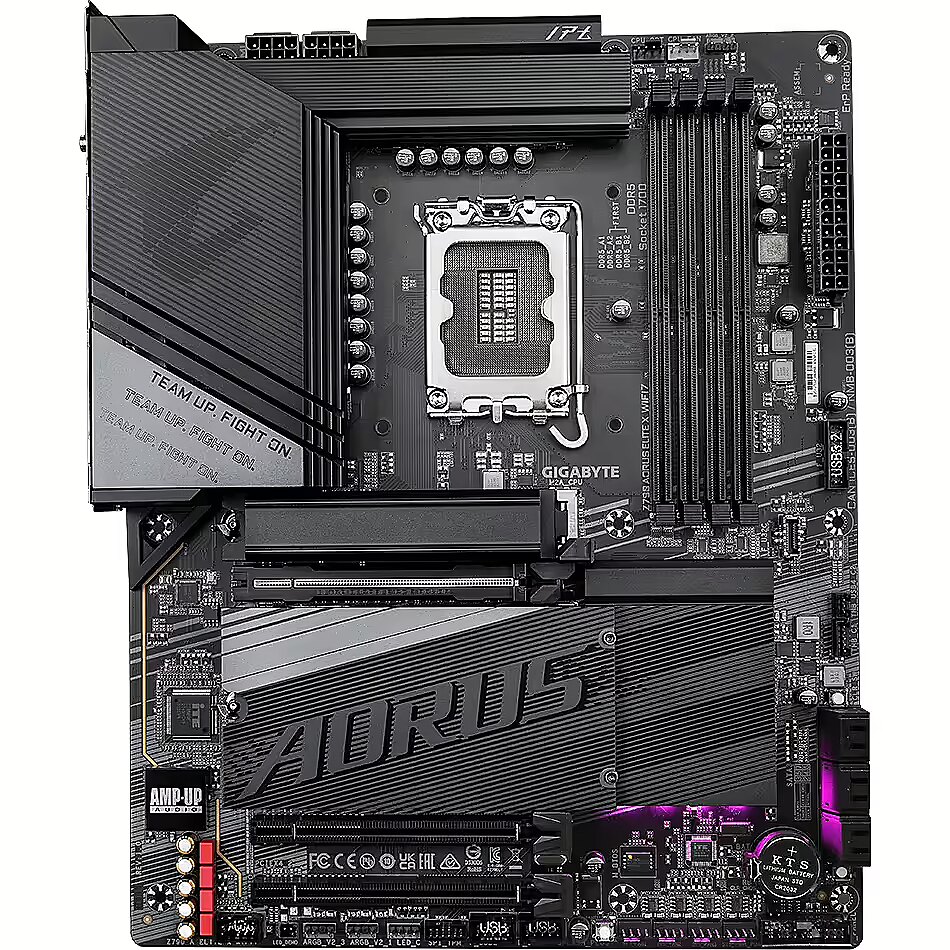

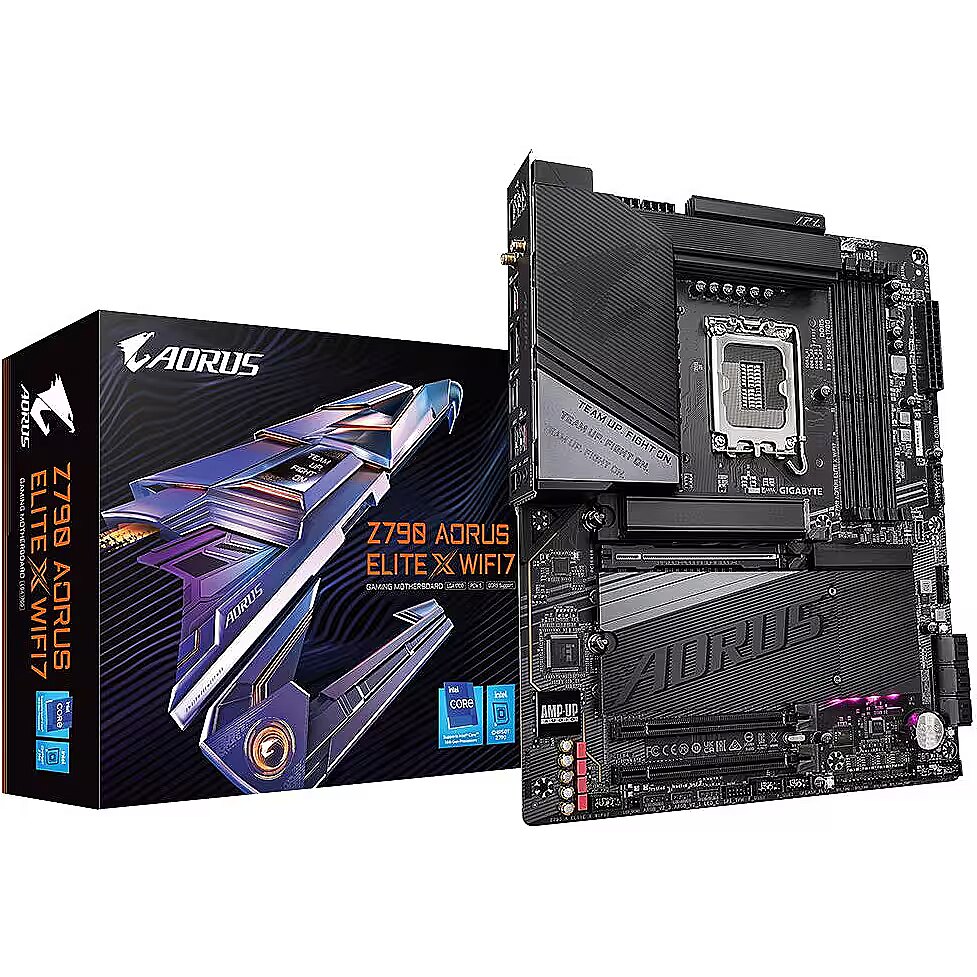

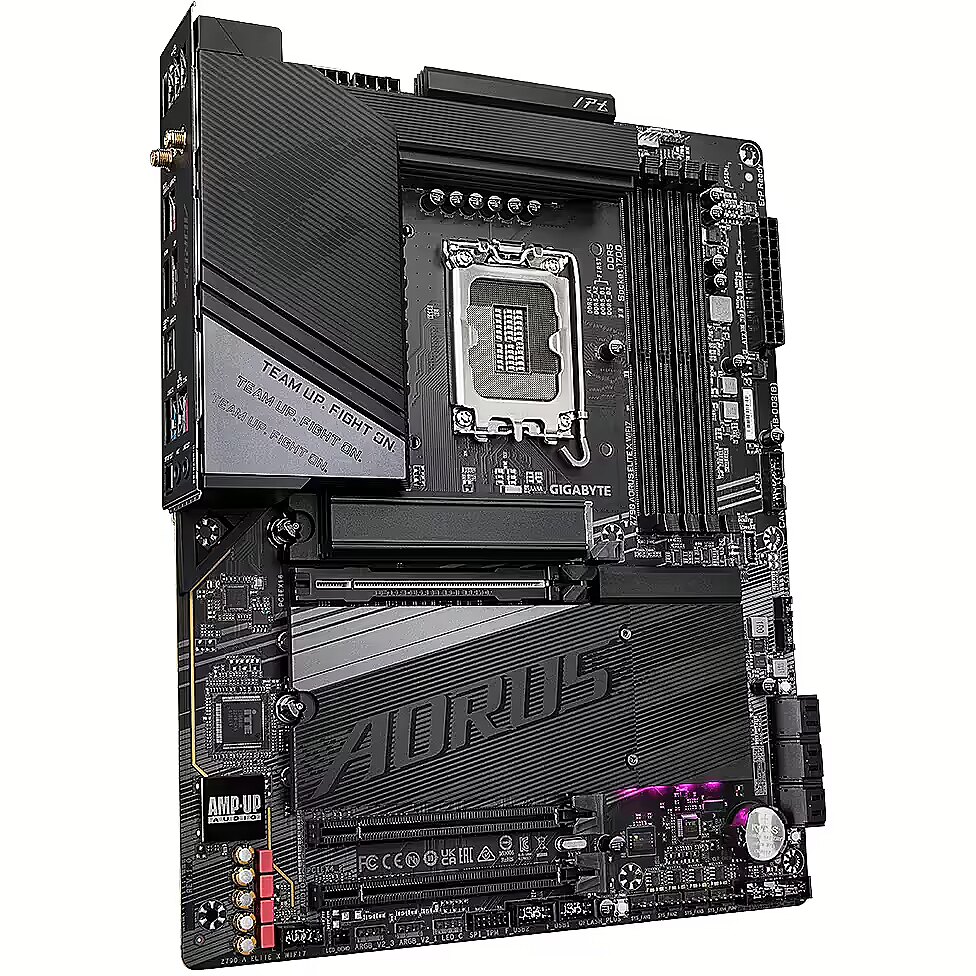

Gigabyte Z790 AORUS ELITE X WIFI7
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: on Thuesday, 26.11.2024
- Courier delivery 3.99 €: on Thuesday, 26.11.2024
Main product parameters All parameters
- Series: Gigabyte AORUS
- CPU Socket: LGA 1700
- Chipset: Intel Z790
- Form factor: ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: Ir
Basic information
Series
: Gigabyte AORUS
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel Z790
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
ATX
The physical size of the motherboard. TopPC.ee offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 4800 (OC 8266)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integrated sound card
: Realtek ALC1220-VB
Wireless connections
Built-in Bluetooth
: Ir
Built-in Wi-Fi
: Ir
External ports
External USB Type-C
: 1
External USB 2.0
: 4
External USB 3.0 (USB 3.2 Gen1)
: 3
External USB 3.1 (USB 3.2 Gen2)
: 2
Internal ports
Internal A-RGB 5V (3-pin)
: 3
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 1
M.2 Port
: 4
SATA3 ports
: 6
More detailed specification
Audio port Input/Output connectors - 2
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Bluetooth Interface - Yes
Brand - GIGABYTE
BrandPartCode - Z790 AORUS ELITE X WIFI7
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel Z790
code - Z790 A ELITE X WIFI7
Code - Z790 A ELITE X WIFI7
Description - - Supports Intel® Core™ 13th and next-gen processors - Digital twin 16+1+2 phases VRM solution - Dual Channel DDR5:4*DIMMs with XMP 3.0 memory module support - PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card - EZ-Latch Click:M.2 heatsinks with screwless design - EZ-Latch Plus:M.2 slots with quick release design - UC BIOS:User-Centred intuitive UX with Quick Access function - Ultra-Fast Storage:4*PCIe 4.0 x4 M.2 slots - Efficient Overall Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard L - Fast Networking:2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna - Extended Connectivity:DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s - Precision Audio:ALC1220 & Audiophile Grade Capacitors
DisplayPort Input/Output connectors - 1
EAN - 4719330000000
EAN - 4719331857592
ean - 4719331857592
Eans - 4719331857592
EAN_code - 4719331857592
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x16 (Gen 4.x) slots - 2
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Features - Audio chip - Realtek ALC1220-VB
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11 x64
Form Factor - ATX
Frequency speed - 4000/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/8000/8200/8266 MHz
Full Description Line - Intel Z790|LGA1700|ATX|DDR5|8266/8200/8000/7900/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/4800/4000 MHz|Memory slots 4|2xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|5xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC1220-VB|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - On-board graphics card - No
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.13 kg
Gross Weight Kg - 2,32
GTIN - 0889523039298
GTIN - 889523039298
GTIN - 4719331857592
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC1220-VB
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of EATX power connectors - 2
Internal I/O - Number of SATA III connectors - 6
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 2
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 6
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.gigabyte.com/Motherboard/Z790-AORUS-ELITE-X-WIFI7#kf
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - Intel Core 14th, 4 x DIMM, PCIe 5.0 x16, DP, HDMI, USB-C
LongSummaryDescription - GIGABYTE Z790 AORUS ELITE X WIFI7 Motherboard - Supports Intel 14th Gen CPUs, 16+1+2 phases VRM, up to 8266MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 7, 2.5GbE LAN, USB 3.2 Gen 2x2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C
M.2 Expansion slots - 4
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer Code - Z790 AORUS ELITE X WIFI7
Manufacturer Name - Gigabyte
Manufacturer_code - Z790 A ELITE X WIFI7
Memory - ECC - Yes
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8266 MHz
Memory - Supported memory clock speeds - 4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - DDR5 DIMM
Memory slots - 4
Memory type - DDR5
Model - Z790 AORUS ELITE X WIFI7 1.0
MPN - Z790 AORUS ELITE X WIFI7
Name - 1700 Gigabyte Z790 AORUS ELITE X WIFI7
Name - Gigabyte Z790 A ELITE X WIFI7
Name - GIGABYTE Z790 AORUS ELITE AX WIFI 7 - Socket 1700 - motherboard
name - GIGABYTE Z790 Aorus Elite X WiFi 7, Intel Z790 Mainboard, Sockel 1700, DDR5
Name - Gigabyte | Z790 A ELITE X WIFI7 1.0 M/B | Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Memory slots 4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 6 | Chipset Intel Z790 Express | ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8125
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Optical S/PDIF Input/Output connectors - 1
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 335.00 mm
Package features > Gross depth master carton - 570 mm
Package features > Gross height (mm) - 80.00 mm
Package features > Gross height master carton - 285 mm
Package features > Gross width (mm) - 270.00 mm
Package features > Gross width master carton - 285 mm
Package features > Inner carton packing Qty - 1.00 pc(s)
Package features > Net weight master carton - 8.02 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 119 pc(s)
Package features > Paper/Pasteboard - 100.00 g
Package features > Plastic (No PET) - 80.00 g
Package features > Tare weight (kg) - 0.18 kg
Package features > Tare weight master carton - 0.787 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Antenna included - Yes
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
LAN bandwidth management software
Packaging content - Cables included - SATA
Packaging data - Package depth - 270 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 2.52 kg
Packaging data - Package width - 335 mm
PCI-Express 4.0 16x Expansion slots - 2
PCI-Express 5.0 16x Expansion slots - 1
Performance > Chipset - Intel Z790 Express
Performance > Motherboard form factor - ATX
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Compatible processor series - Supports 13th/12th Gen Intel Core, Pentium Gold and Celeron Series Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Producer - Gigabyte
ProducerCode - Z790 A ELITE X WIFI7
Producer product name - Z790 A ELITE X WIFI7 1.0 M/B
ProductName - Z790 AORUS ELITE X WIFI7 Motherboard - Supports Intel 14th Gen CPUs, 16+1+2 phases VRM, up to 8266MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 7, 2.5GbE LAN, USB 3.2 Gen 2x2
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10

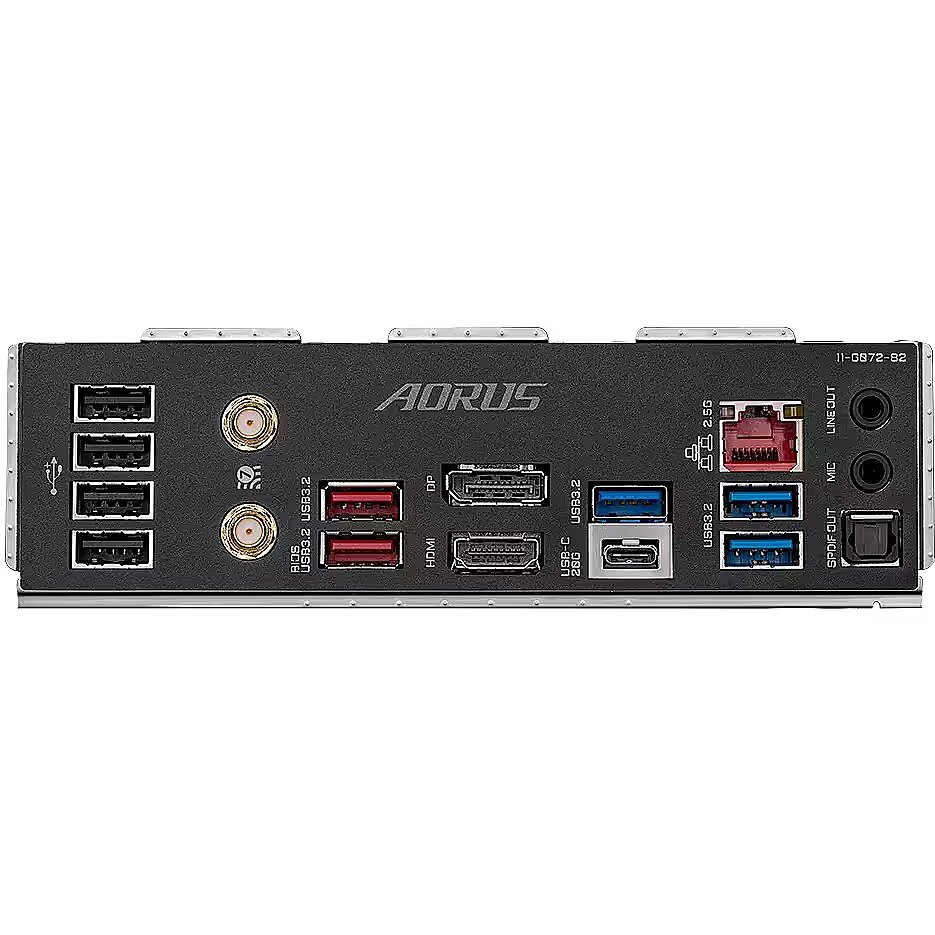

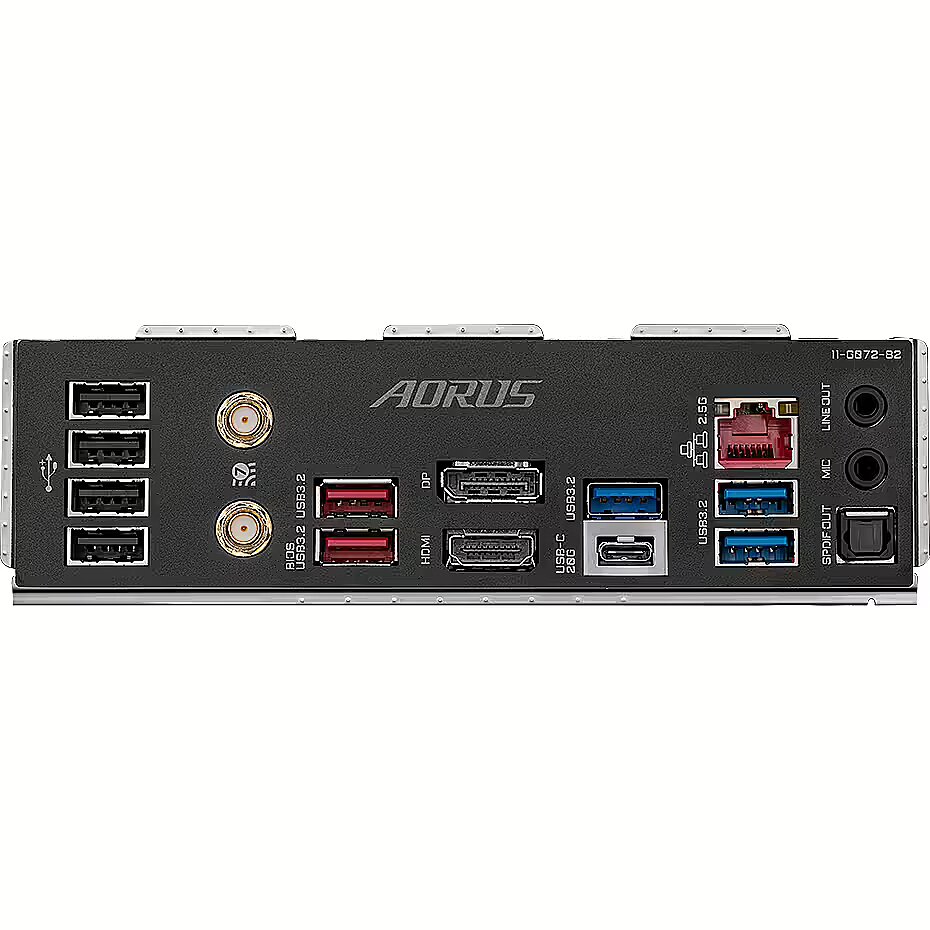

Rear panel I/O ports - Digital audio optical out - 1
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.0
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - USB connector type - USB Type-A, USB Type-C
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 53 cm
Shipping Box Height Shipping/Package Box Dimensions - 37.5 cm
Shipping box quantity - 6
Shipping Box Weight Shipping/Package Box Dimensions - 15.3 kg
Shipping Box Width Shipping/Package Box Dimensions - 31 cm
Short description - GIGA Z790 AORUS ELITE X WIFI7 S1700/DDR5/ATX
ShortDescription - Socket 1700| Chipset Intel Z790 | DDR5 |
ShortSummaryDescription - GIGABYTE Z790 AORUS ELITE X WIFI7 Motherboard - Supports Intel 14th Gen CPUs, 16+1+2 phases VRM, up to 8266MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 7, 2.5GbE LAN, USB 3.2 Gen 2x2, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR5-SDRAM, 192 GB
Socket - LGA1700
Storage controllers - Number of HDDs supported - 6
Storage controllers - Number of storage drives supported - 10
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details - Warranty period - 3 year(s)
Technical details > Net weight - 0.95 kg
Technical details > Producer - Gigabyte
Technical details > Warranty - 36 month(s)
Title - GIGABYTE Z790 AORUS ELITE X WIFI7 Motherboard - Supports Intel 14th Gen CPUs, 16+1+2 phases VRM, up to 8266MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 7, 2.5GbE LAN, USB 3.2 Gen 2x2
TPM - Header
Unit Box Height - 0.08
Unit Box Length - 0.335
Unit Box Width - 0.27
Unit Brutto Volume - 0.01027 cubm
Unit Gross Weight - 2.55 kg
Unit Net Weight - 1.7 kg
URL - https://www.gigabyte.com/Motherboard/Z790-AORUS-ELITE-X-WIFI7#kf
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
Vendor Homepage - www.gigabyte.com/Motherboard/Z790-AORUS-ELITE-X-WIFI7#kf
Warranty - 36
Warranty - 36 months
WarrantyInfo - 3 years
Weight - 2,25
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Bluetooth Interface - Yes
Brand - GIGABYTE
BrandPartCode - Z790 AORUS ELITE X WIFI7
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel Z790
code - Z790 A ELITE X WIFI7
Code - Z790 A ELITE X WIFI7
Description - - Supports Intel® Core™ 13th and next-gen processors - Digital twin 16+1+2 phases VRM solution - Dual Channel DDR5:4*DIMMs with XMP 3.0 memory module support - PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card - EZ-Latch Click:M.2 heatsinks with screwless design - EZ-Latch Plus:M.2 slots with quick release design - UC BIOS:User-Centred intuitive UX with Quick Access function - Ultra-Fast Storage:4*PCIe 4.0 x4 M.2 slots - Efficient Overall Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard L - Fast Networking:2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna - Extended Connectivity:DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s - Precision Audio:ALC1220 & Audiophile Grade Capacitors
DisplayPort Input/Output connectors - 1
EAN - 4719330000000
EAN - 4719331857592
ean - 4719331857592
Eans - 4719331857592
EAN_code - 4719331857592
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x16 (Gen 4.x) slots - 2
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Features - Audio chip - Realtek ALC1220-VB
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11 x64
Form Factor - ATX
Frequency speed - 4000/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/8000/8200/8266 MHz
Full Description Line - Intel Z790|LGA1700|ATX|DDR5|8266/8200/8000/7900/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/4800/4000 MHz|Memory slots 4|2xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|5xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC1220-VB|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - On-board graphics card - No
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.13 kg
Gross Weight Kg - 2,32
GTIN - 0889523039298
GTIN - 889523039298
GTIN - 4719331857592
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC1220-VB
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of EATX power connectors - 2
Internal I/O - Number of SATA III connectors - 6
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 2
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 6
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.gigabyte.com/Motherboard/Z790-AORUS-ELITE-X-WIFI7#kf
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - Intel Core 14th, 4 x DIMM, PCIe 5.0 x16, DP, HDMI, USB-C
LongSummaryDescription - GIGABYTE Z790 AORUS ELITE X WIFI7 Motherboard - Supports Intel 14th Gen CPUs, 16+1+2 phases VRM, up to 8266MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 7, 2.5GbE LAN, USB 3.2 Gen 2x2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C
M.2 Expansion slots - 4
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer Code - Z790 AORUS ELITE X WIFI7
Manufacturer Name - Gigabyte
Manufacturer_code - Z790 A ELITE X WIFI7
Memory - ECC - Yes
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8266 MHz
Memory - Supported memory clock speeds - 4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - DDR5 DIMM
Memory slots - 4
Memory type - DDR5
Model - Z790 AORUS ELITE X WIFI7 1.0
MPN - Z790 AORUS ELITE X WIFI7
Name - 1700 Gigabyte Z790 AORUS ELITE X WIFI7
Name - Gigabyte Z790 A ELITE X WIFI7
Name - GIGABYTE Z790 AORUS ELITE AX WIFI 7 - Socket 1700 - motherboard
name - GIGABYTE Z790 Aorus Elite X WiFi 7, Intel Z790 Mainboard, Sockel 1700, DDR5
Name - Gigabyte | Z790 A ELITE X WIFI7 1.0 M/B | Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Memory slots 4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 6 | Chipset Intel Z790 Express | ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8125
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Optical S/PDIF Input/Output connectors - 1
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 335.00 mm
Package features > Gross depth master carton - 570 mm
Package features > Gross height (mm) - 80.00 mm
Package features > Gross height master carton - 285 mm
Package features > Gross width (mm) - 270.00 mm
Package features > Gross width master carton - 285 mm
Package features > Inner carton packing Qty - 1.00 pc(s)
Package features > Net weight master carton - 8.02 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 119 pc(s)
Package features > Paper/Pasteboard - 100.00 g
Package features > Plastic (No PET) - 80.00 g
Package features > Tare weight (kg) - 0.18 kg
Package features > Tare weight master carton - 0.787 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Antenna included - Yes
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
LAN bandwidth management software
Packaging content - Cables included - SATA
Packaging data - Package depth - 270 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 2.52 kg
Packaging data - Package width - 335 mm
PCI-Express 4.0 16x Expansion slots - 2
PCI-Express 5.0 16x Expansion slots - 1
Performance > Chipset - Intel Z790 Express
Performance > Motherboard form factor - ATX
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Compatible processor series - Supports 13th/12th Gen Intel Core, Pentium Gold and Celeron Series Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Producer - Gigabyte
ProducerCode - Z790 A ELITE X WIFI7
Producer product name - Z790 A ELITE X WIFI7 1.0 M/B
ProductName - Z790 AORUS ELITE X WIFI7 Motherboard - Supports Intel 14th Gen CPUs, 16+1+2 phases VRM, up to 8266MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 7, 2.5GbE LAN, USB 3.2 Gen 2x2
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
Rear panel I/O ports - Digital audio optical out - 1
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.0
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - USB connector type - USB Type-A, USB Type-C
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 53 cm
Shipping Box Height Shipping/Package Box Dimensions - 37.5 cm
Shipping box quantity - 6
Shipping Box Weight Shipping/Package Box Dimensions - 15.3 kg
Shipping Box Width Shipping/Package Box Dimensions - 31 cm
Short description - GIGA Z790 AORUS ELITE X WIFI7 S1700/DDR5/ATX
ShortDescription - Socket 1700| Chipset Intel Z790 | DDR5 |
ShortSummaryDescription - GIGABYTE Z790 AORUS ELITE X WIFI7 Motherboard - Supports Intel 14th Gen CPUs, 16+1+2 phases VRM, up to 8266MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 7, 2.5GbE LAN, USB 3.2 Gen 2x2, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR5-SDRAM, 192 GB
Socket - LGA1700
Storage controllers - Number of HDDs supported - 6
Storage controllers - Number of storage drives supported - 10
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details - Warranty period - 3 year(s)
Technical details > Net weight - 0.95 kg
Technical details > Producer - Gigabyte
Technical details > Warranty - 36 month(s)
Title - GIGABYTE Z790 AORUS ELITE X WIFI7 Motherboard - Supports Intel 14th Gen CPUs, 16+1+2 phases VRM, up to 8266MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 7, 2.5GbE LAN, USB 3.2 Gen 2x2
TPM - Header
Unit Box Height - 0.08
Unit Box Length - 0.335
Unit Box Width - 0.27
Unit Brutto Volume - 0.01027 cubm
Unit Gross Weight - 2.55 kg
Unit Net Weight - 1.7 kg
URL - https://www.gigabyte.com/Motherboard/Z790-AORUS-ELITE-X-WIFI7#kf
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
Vendor Homepage - www.gigabyte.com/Motherboard/Z790-AORUS-ELITE-X-WIFI7#kf
Warranty - 36
Warranty - 36 months
WarrantyInfo - 3 years
Weight - 2,25
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
