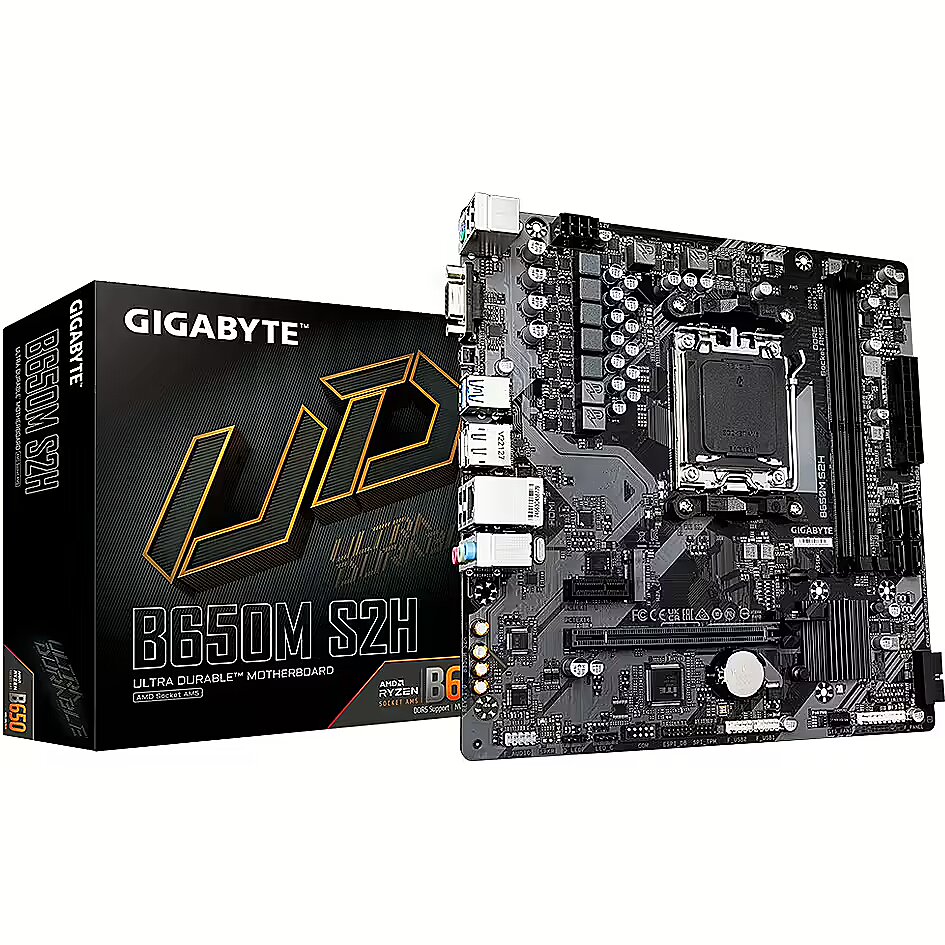

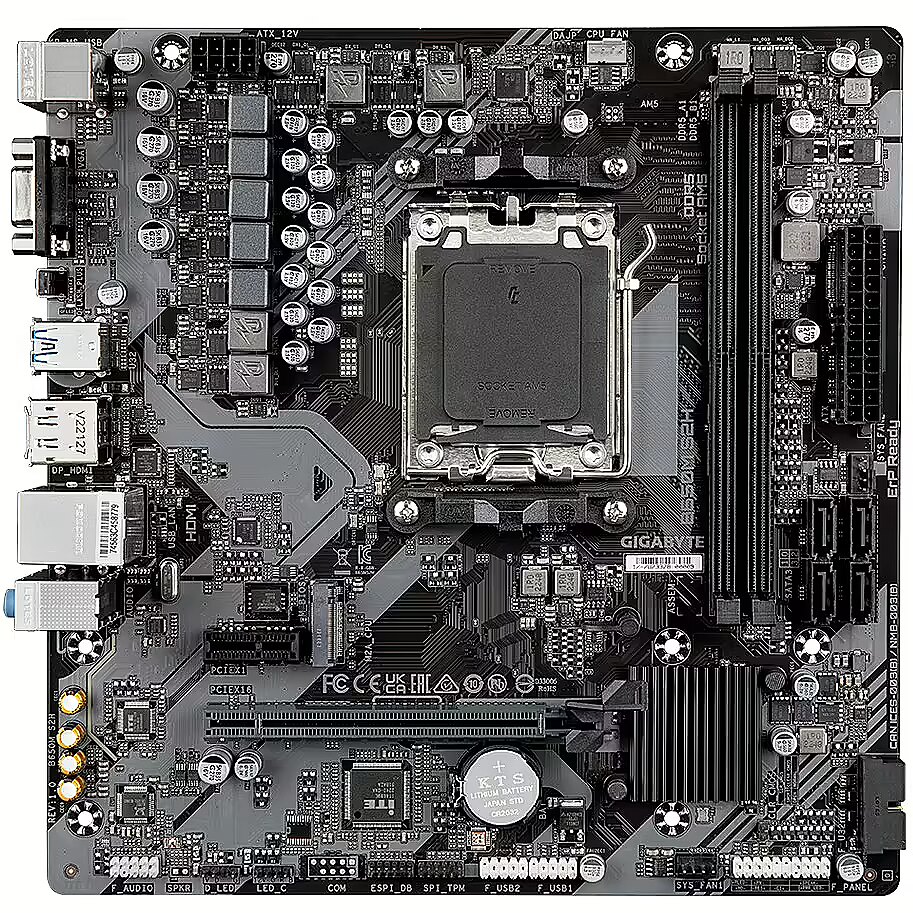

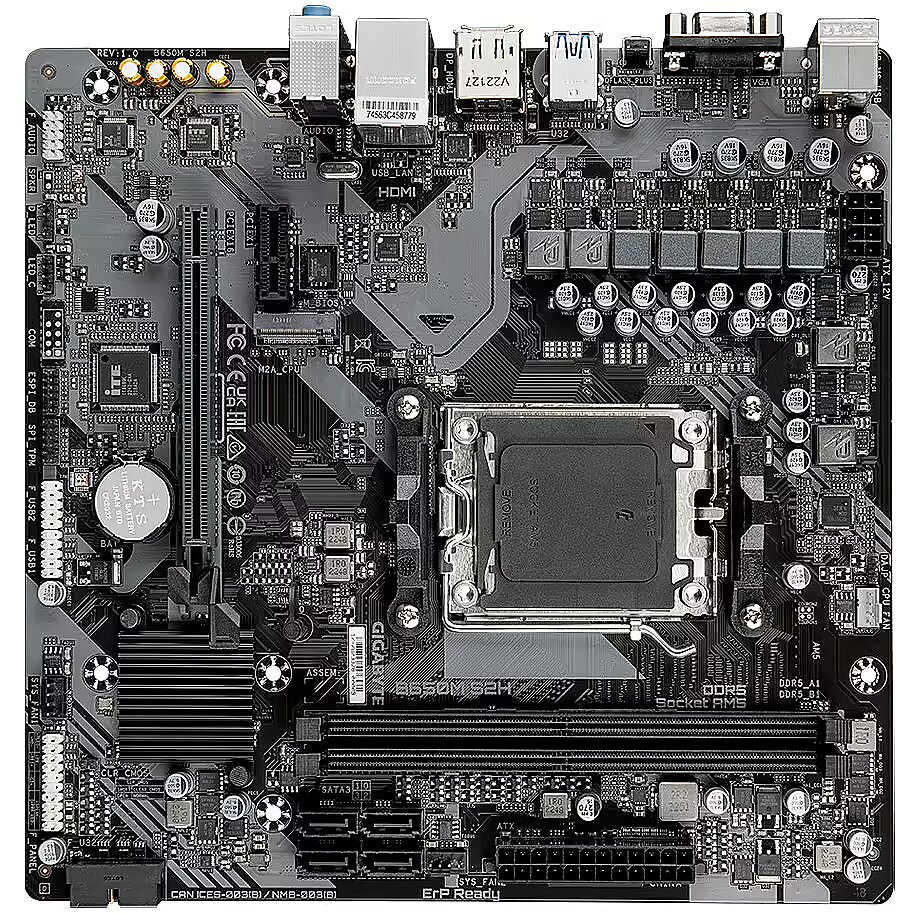

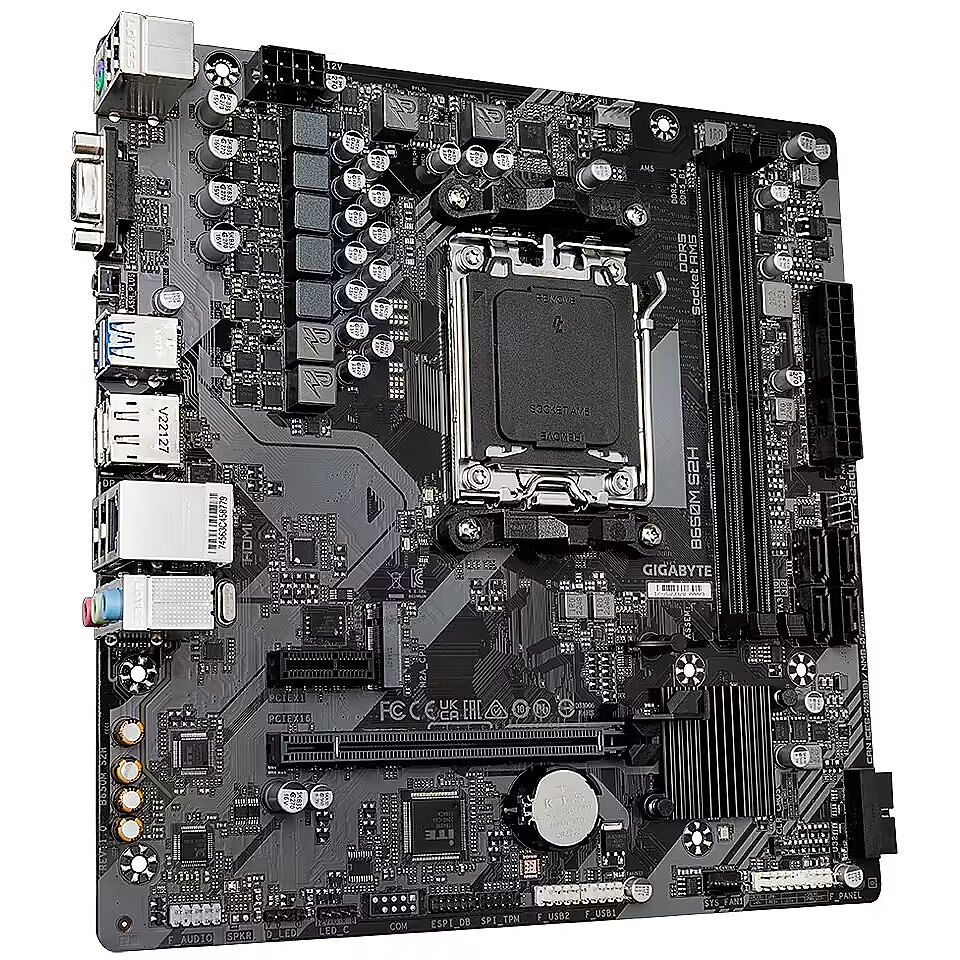

Gigabyte B650M S2H

Name: Gigabyte B650M S2H
Brand: Gigabyte
SKU: 991573
Price: 106.77 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 991573 Product code: B650M S2H

In stock 20 units

Warranty: 3 years

Compare

Delivery options

Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
Delivery to Omniva parcel locker 1.99 €: on Thursday, 28.11.2024
Courier delivery 3.99 €: on Thursday, 28.11.2024

Main product parameters All parameters

Series: Gigabyte Ultra Durable
Plate size: mATX
Chipset: AMD B650
Socket: AM5
Type: DDR5
RAM Slots: 2
Built-in Wi-Fi: Nav
M.2 ports: 1

Basic information

Series : Gigabyte Ultra Durable

Plate size mATX

The physical size of the motherboard. TopPC.ee offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD B650

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.

Socket AM5

The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.

Random-access memory (RAM)

Type : DDR5

RAM Slots 2

The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.

Memory support DDR5 5200MHz (6400MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card

VGA Port PCI-EXPRESS

VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.

Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment

D-Sub : 1

DisplayPort : 1

DVI : 0

HDMI : 1

Integrated sound card : Nav norādīts

PCI Ports 0

PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.

Wireless connections

Built-in Bluetooth : Nav

Built-in Wi-Fi : Nav

External ports

External USB 2.0 : 4

External USB Type-C (USB 3.2 Gen2) : 0

External USB Type-C (USB 4.0) : 0

External USB 3.0 (USB 3.2 Gen1) : 2

External USB 3.1 (USB 3.2 Gen2) : 0

Internal ports

Internal A-RGB 5V (3-pin) : 1

Internal RGB 12V (4-pin) : 1

Internal USB 2.0 : 2

Internal USB 3.0 : 1

Internal USB Type-C : 0

M.2 ports : 1

SATA3 ports : 4

More detailed specification

Additional information in manufacturers website Gigabyte B650M S2H

15pin D-sub Input/Output connectors - 1
Accessories included -
Audio port Input/Output connectors - 3
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - B650M S2H
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Chipset - AMD B650
Chipset manufacturer - AMD
Chipset type - AMD B650
Code - B650M S2H
COM connector / port - No
CPU socket - Socket AM5
Description - AMD AM5 socket: Supports AMD Ryzen 7000 series processors Unrivaled performance: 5+2+2 phase digital VRM solution Dual-channel DDR5 memory: 2*SMD DIMM with support for AMD EXPO and Intel XMP memory modules SuperSpeed storage: PCIe 4.0 x4 M.2 EZ Latch: PCIe x16 slot with quick release design Fast networks: GbE LAN Extended connectivity: DP, HDMI, D-Sub Smart Fan 6: Includes multiple temperature sensors, hybrid fan connectors with FAN STOP function Q-Flash Plus: Update BIOS without installing CPU, memory and graphics card Lasting performance GIGABYTE Ultra Durable motherboards are built with optimized components for superior performance and a timeless platform. Connectivity has come Ultimate connectivity with blazing-fast data transfer speeds for next-generation networking and storage. GbE LAN with bandwidth management GbE LAN includes a network bandwidth management application that helps reduce network latency and keep ping times low for better response in congested LAN environments. PCIe 4.0 hardware design GIGABYTE B650 motherboards are ready for PCIe 4.0 devices, which are designed to provide twice the bandwidth of current PCIe 3.0 devices. To achieve high speed and maintain good signal integrity, GIGABYTE R&D uses a low impedance PCB to ensure maximum performance. High-class audio capacitors GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help ensure high resolution and audio fidelity, providing gamers with the most realistic sound effects. Audio noise protection GIGABYTE motherboards feature audio noise protection, which essentially isolates the board's sensitive analog audio components from potential interference at the circuit board level. Easy friendly Innovative and intuitive hardware, software and BIOS interface design to create your personal style. EZ latch Easily unlock the PCIe slot latch by removing the graphics card from the PCIe slot. Q-Flash Plus Easily update BIOS without having to install CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card or enter the BIOS menu to flash the BIOS. Just download and save the new BIOS file (rename it gigabyte.bin) to your USB flash drive, then press the dedicated Q-Flash Plus button and you're done! Smart fan 6 Smart Fan 6 includes several unique cooling features that ensure your gaming PC maintains its performance while staying cool and quiet. Multiple fan headers can support a PWM/DC fan and pump, and users can easily define each fan's curve based on various temperature sensors across the board via an intuitive user interface. Cooling functions High Current Support: Each fan connector supports PWM and DC fan and water cooling pump and power up to 24W (12V x 2A) with overcurrent protection Precise Control: Multiple temperature/fan speed control points ensure precise fan curve Dual Curve Mode: Dual incline/stair mode for different user scenarios Fan Stop: The fan can stop completely below a user-defined temperature point Intelligent fan BIOS interface 6 Improve Fan Curve UI: We are increasing control points from 5 to 7 and a larger fan speed graph to provide precise and easier fan curve control. Dual Slope/Stair Graph Mode: The fan curve can be quickly switched between incline and stair modes for different user scenarios. Slope is the traditional and intuitive linear fan speed curve. With the newly added non-linear staircase mode, the fan maintains the same speed within a specific temperature range. Manual Entry: For advanced users, we provide manual fan speed entry for more precise control. EZ Tuning: With can place 4 EZ Tuning points at difficult temperature/fan speed, and Smart Fan 6 can quickly generate fan curve. Fan Curve Profile: The fan curve profile can be saved in BIOS ROM, the profile will be retained after BIOS update. GIGABYTE Control Center GIGABYTE Control CENTER (GCC) is the unified software for all supported GIGABYTE products. It provides a newly designed intuitive user interface to control all necessary functions. A unified software platform for all products supported by Gigabyte Intuitive user interface for ease of use Modular control components only for installed hardware Auto update feature to keep your system up to date and support future products
Description - B650M S2H - AMD Socket AM5:Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors - Unparalleled Performance:5+2+2 Phases Digital VRM Solution - Dual Channel DDR5:2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support - SuperSpeed Storage:PCIe 4.0 x4 M.2 Connector - EZ-Latch:PCIe x16 Slot with Quick Release Design - Fast Networks:GbE LAN - Extended Connectivity:DP, HDMI, D-Sub - Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP - Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Detailed data on disk/drive interfaces - PROCESSOR: 1 x M.2 connector (Socket 3, M key, supports 2580 PCIe 4.0 x4/x2 SSDs) Chipset: 4 SATA 6 Gb/s connectors RAID 0, RAID 1 and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1 and RAID 10 support for SATA storage devices
dimensionalWeight - 801
dimension depth - 55 mm
dimension height - 264 mm
Dimensions - 23 x 22.5 cm
dimension weight - 821 g
dimension width - 265 mm
DisplayPort Input/Output connectors - 1
EAN - 4719331856298
ean - 4719331856298
Eans - 4719331856298
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 slots - 1
Expansion slots - PCI Express x16 slots - 1

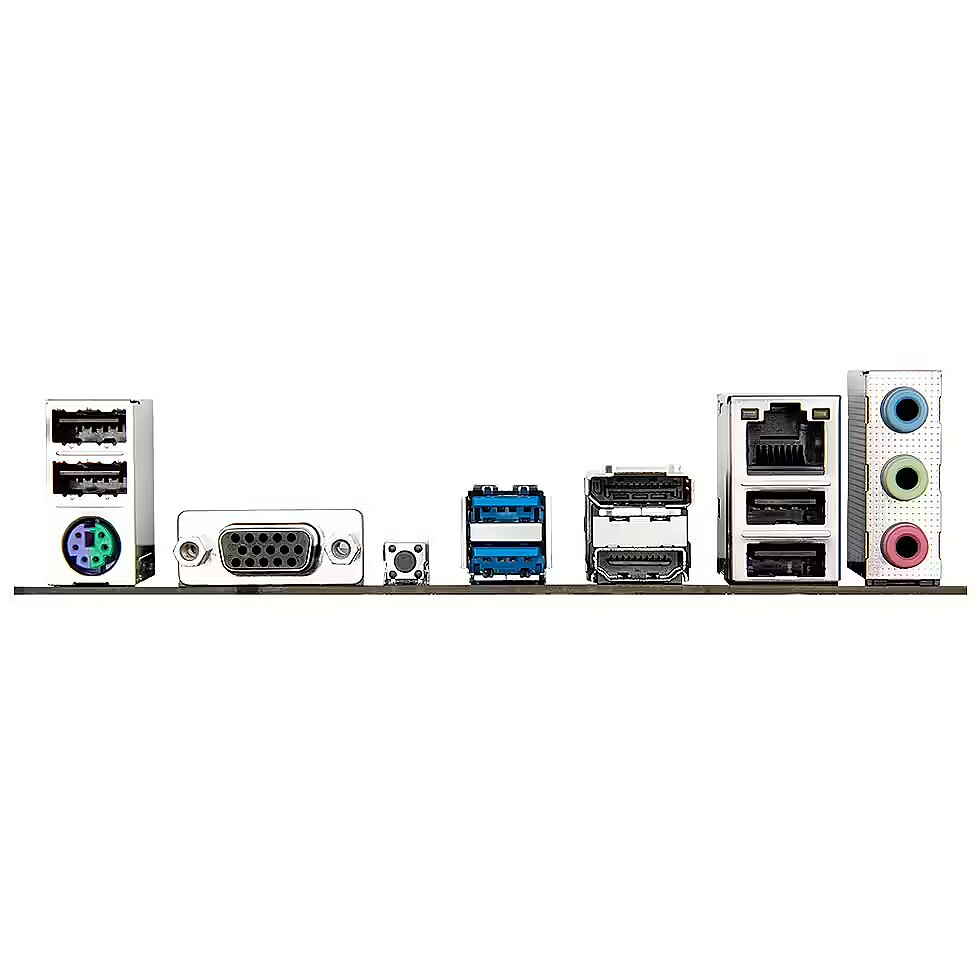

External connectors - 1 x D-Sub
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x Q-Flash Plus button
External connectors - 1 x RJ-45
External connectors - 2 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B650
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - PC health monitoring - Water cooling
Features - Product colour - Bronze
Features - Product colour - Brown
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 4400/4800/5200/5600/6000/6200/6400/6600/6800/7200 MHz
Full Description Line - AMD B650|SAM5|Micro-ATX|DDR5|7200/6800/6600/6400/6200/6000/5600/5200/4800/4400 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|Audio|LAN Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10|TPM Header
Graphics - Integrated graphics processor: 1 x D-Sub port supporting a maximum resolution of 1920x1200@60 Hz 1 x DisplayPort supporting a maximum resolution of 3840x2160 at 144 Hz * Support for DisplayPort version 1.4. 1 x HDMI port supporting a maximum resolution of 4096x2160@60 Hz * Support HDMI 2.1 and HDCP 2.3 versions. ** Support for native HDMI 2.1 TMDS compliant ports. (Graphics specifications may vary depending on processor support.) Support for up to 3 displays simultaneously
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - Number of displays supported - 3
Graphics - Parallel processing technology support - Not supported
Gross weight - 0.76 kg
GTIN - 4719331856298
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Total number of SATA connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA
Link - https://www.gigabyte.com/Motherboard/B650M-S2H-rev-10#kf
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - Micro ATX, Socket AM5, AMD B650 chipset, 2x DDR5 DIMM, 7.1ch audio, AMI UEFI BIOS
LongSummaryDescription - GIGABYTE B650M S2H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 6400MHz DDR5, 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 5 7th Gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A
LPT connector / port - No
M.2 Expansion slots - 1
Max. number of SATA devices - 4
Max memory size - 96 GB
Memory - Maximum internal memory - 96 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 6200 MHz
Memory - Supported memory clock speeds - 4400
Memory - Supported memory clock speeds - 4400,4800,5200,5600,6000,6200,6400 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 2
Memory > Supported memory types - DDR5 DIMM
Memory bus frequency - 4400 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory slots - 2
Memory type - DDR5
Memory type - DDR5
Model - B650M S2H
Model - B650M S2H (rev. 1.2)
name - B650M S2H AM5 2DDR5 HDMI/DP M2 m.ATX
Name - Gigabyte B650M S2H
Name - Gigabyte | B650M S2H 1.0 M/B | Processor family AMD | Processor socket AM5 | DDR5 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA | Number of SATA connectors 4 | Chipset AMD B650 | Micro ATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Number of DDR5 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x M.2
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 2 x 4pin Chassis fan
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 4 x SATA III 6Gb/s
Other information - GIGABYTE Control Center (GCC) Support * Available applications in GCC may vary depending on the motherboard model. The supported features of each application may also vary depending on the motherboard specifications. Q-Flash support Support for Q-Flash Plus
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 265.00 mm
Package features > Gross height (mm) - 52.00 mm
Package features > Gross width (mm) - 235.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 534 pc(s)
Package features > Paper/Pasteboard - 200.00 g
Package features > Plastic (No PET) - 25.00 g
Package features > Tare weight (kg) - 0.23 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security
Packaging content - Cables included - SATA
Packaging data - Package depth - 265 mm
Packaging data - Package height - 54 mm
Packaging data - Package weight - 917 g
Packaging data - Package width - 265 mm
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Performance > Chipset - AMD B650
Performance > Motherboard form factor - Micro ATX
Processor - Compatible processor series - AMD Ryzen 5 7th Gen
Processor - Compatible processor series - AMD Ryzen 5 7th Gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Processor - Compatible processor series - AMD Ryzen 7 7th Gen
Processor - Compatible processor series - AMD Ryzen 9 7th Gen
Processor - Maximum internal memory supported by processor - 96 GB
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Compatible processor series - AMD Ryzen 7000 Series Processors
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
producer - Gigabyte
Producer - Gigabyte
producerCode - B650M S2H
ProducerCode - B650M S2H
Producer product name - B650M S2H 1.0 M/B
ProductName - B650M S2H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 6400MHz DDR5, 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1
productName - GIGABYTE B650M S2H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 6400MHz DDR5, 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 10; NVMe 0, 1, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 3
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 58 cm
Shipping Box Height Shipping/Package Box Dimensions - 30 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 9.25 kg
Shipping Box Width Shipping/Package Box Dimensions - 28.5 cm
ShortDescription - Socket AM5 | Chipset AMD B650 | DDR5
ShortSummaryDescription - GIGABYTE B650M S2H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 6400MHz DDR5, 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1, AMD, Socket AM5, AMD Ryzen 5 7th Gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen, Socket AM5, 96 GB, DDR5-SDRAM
sizeX - 270
sizeY - 55
sizeZ - 270
Socket - SAM5
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Realtek audio CODEC High quality sound 2/4/5.1/7.1-channel * You can change the functionality of the audio jack using audio software. To configure 7.1 channel audio, go to your audio software for audio settings.
Special functions - Voltage detection Temperature detection Fan speed detection Cooling water flow rate detection Fan failure warning Fan speed control * Whether fan speed control is supported depends on the installed fan.
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 5
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Technical details > Net weight - 0.53 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE B650M S2H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 6400MHz DDR5, 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1
TPM - Header
Unit Box Height - 0.055
Unit Box Length - 0.27
Unit Box Width - 0.265
Unit Brutto Volume - 0.004959 cubm
Unit Gross Weight - 0.925 kg
Unit Net Weight - 0.65 kg
URL - https://www.gigabyte.com/Motherboard/B650M-S2H-rev-10
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 2
USB 3.2 Interface - Yes
USB ports at back panel - 6
USB ports on motherboard - 6
Vendor Homepage - www.gigabyte.com/Motherboard/B650M-S2H-rev-12#kf
vendpn - B650M S2H
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
weight - 800
Weight & dimensions - Depth - 225 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 230 mm
