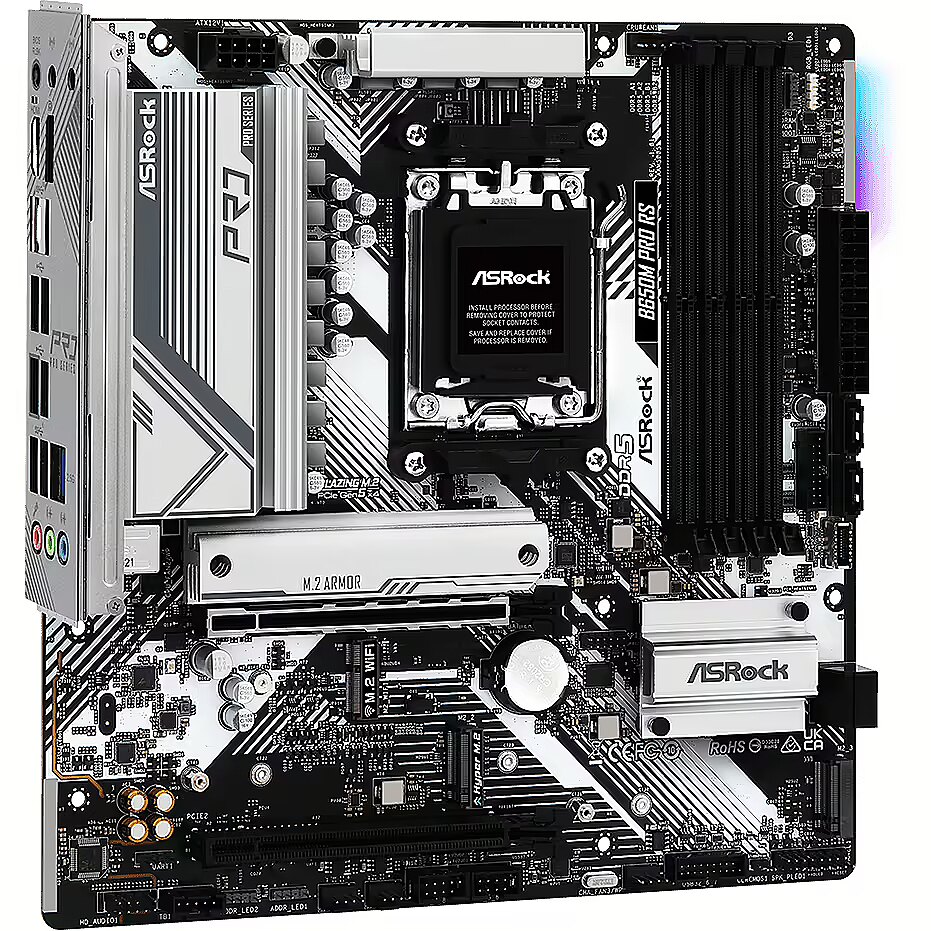

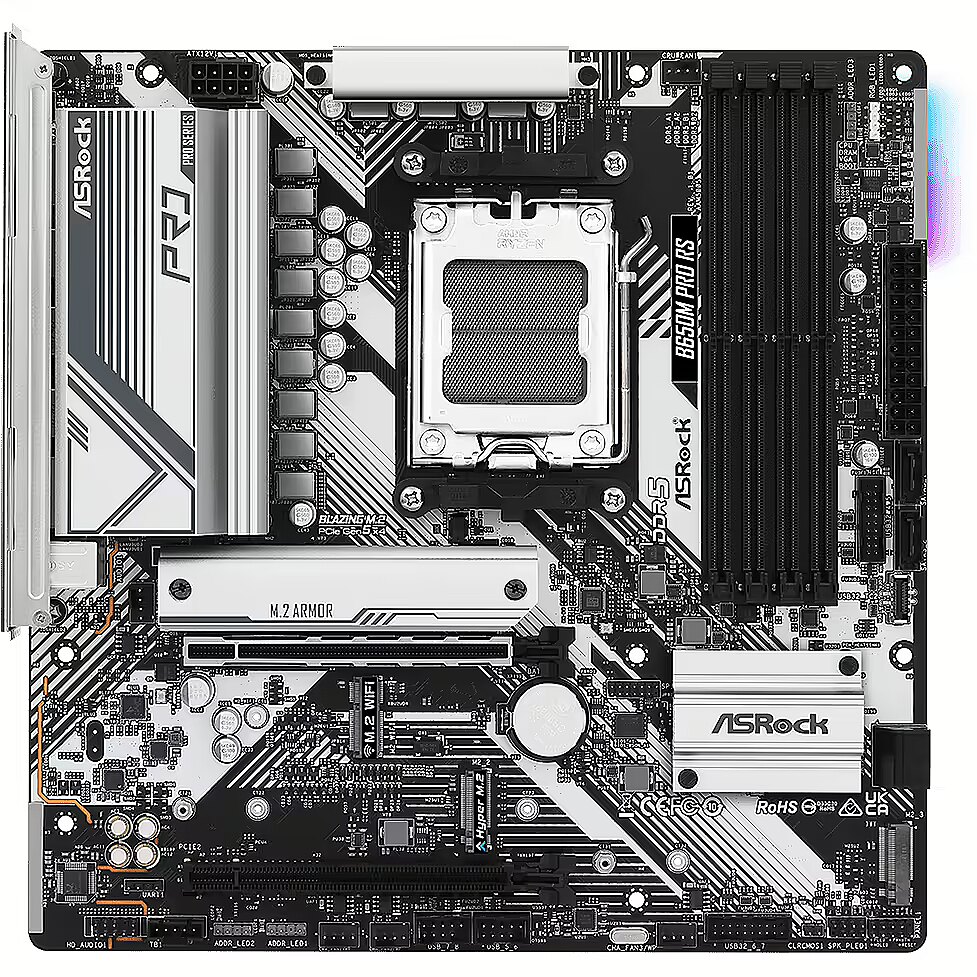

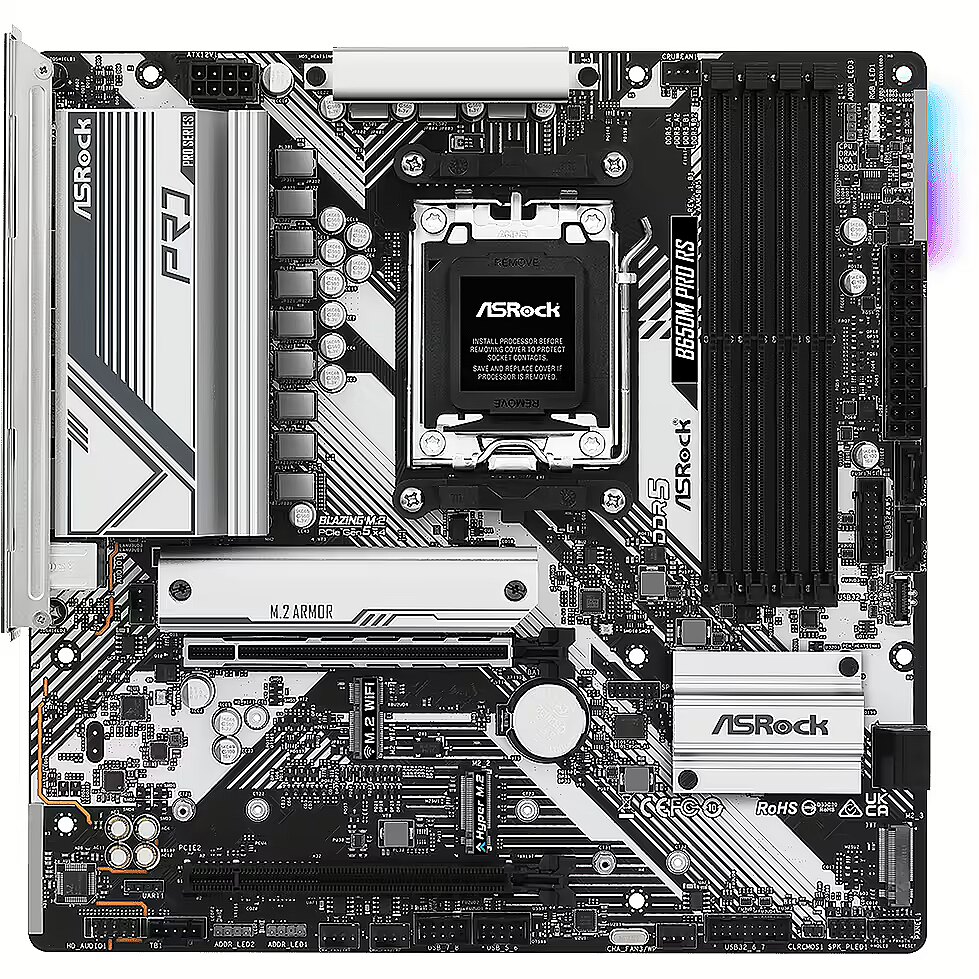

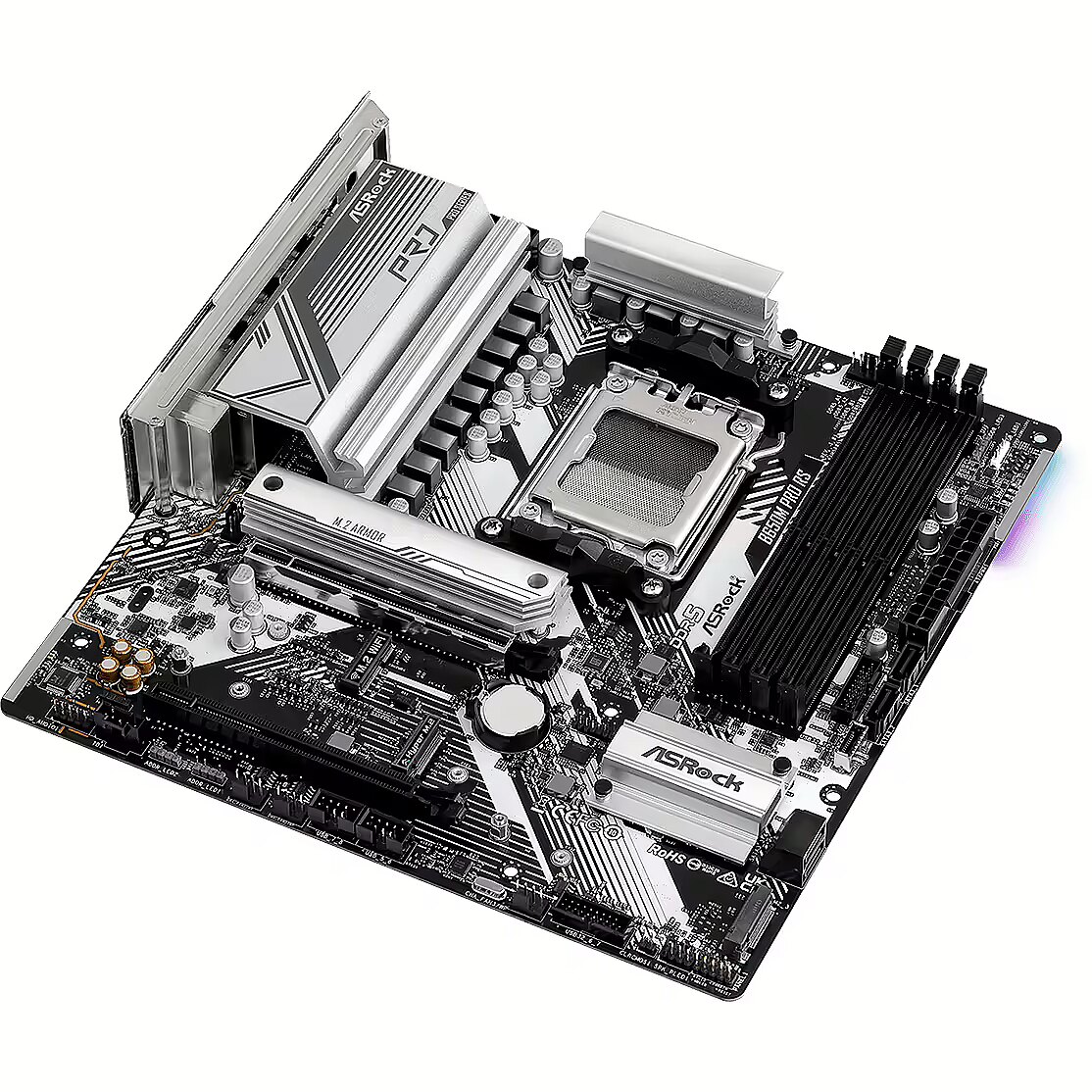

Asrock B650M Pro RS

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 969184 Product code: B650M PRO RS
In stock 15 units
Warranty: 2 years
155.00 €
Delivery options
  • Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
  • Delivery to Omniva parcel locker 1.99 €: on Wednesday, 27.11.2024
  • Courier delivery 3.99 €: on Wednesday, 27.11.2024
Main product parameters All parameters
  • Series: ASRock PRO
  • Plate size: mATX
  • Chipset: AMD B650
  • Socket: AM5
  • Type: DDR5
  • RAM Slots: 4
  • Built-in Wi-Fi: Nav
  • M.2 ports: 1
Basic information
Series : ASRock PRO
Plate size mATX

The physical size of the motherboard. TopPC.ee offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD B650

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM5
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR5
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 5200MHz (6200MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 1
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC897
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Nav
Built-in Wi-Fi : Nav
External ports
External USB 2.0 : 4
External USB Type-C (USB 3.2 Gen2) : 1
External USB Type-C (USB 4.0) : 0
External USB 3.0 (USB 3.2 Gen1) : 2
External USB 3.1 (USB 3.2 Gen2) : 1
Internal ports
Internal A-RGB 5V (3-pin) : 3
Internal RGB 12V (4-pin) : 1
Internal USB 2.0 : 2
Internal USB 3.0 : 2
Internal USB Type-C : 1
M.2 ports : 1
SATA3 ports : 4
More detailed specification
Additional information in manufacturers website Asrock B650M Pro RS
Accessories included - Instrukcja obsługi 2 x Kabel do transmisji danych SATA 4 x Śruby do gniazda M.2 Dystans do gniazda M.2
BIOS - 256Mb AMI UEFI Legal BIOS z obsługą GUI
BIOS - BIOS type - UEFI AMI
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Chipset - AMD B650
Chipset manufacturer - AMD
Chipset type - AMD B650
code - 90-MXBLP0-A0UAYZ
Code - B650M PRO RS
COM connector / port - No
CPU socket - Socket AM5
Description - - Supports AMD Socket AM5 Ryzen™ 7000 Series Processors - 8+2+1 Power Phase, Dr.MOS - Supports DDR5 6000+ MHz (OC) - 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key E for WiFi - Graphics Output Options: HDMI, DisplayPort - Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio - 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4); 1 Hyper M.2 (PCIe Gen4 x4); 1 M.2 (PCIe Gen4 x2) - 1 USB 3.2 Gen2 Type A+C (Rear); 1 USB 3.2 Gen1 Type-C (Front); 6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - Dragon 2.5G LAN
Description - B650M Pro RS Obsługuje procesory AMD Socket AM5 Ryzen z serii 8000 i 7000 8+2+1 Power Phase, Dr.MOS 4 x DDR5 DIMMs Obsługa Dual Channel, up to 7200+ (OC) 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key E for WiFi Wyjścia graficzne: HDMI, DisplayPort Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4) 1 Hyper M.2 (PCIe Gen4 x4) 1 M.2 (PCIe Gen4 x2) 1 USB 3.2 Gen2 Type A+C (Tył) 1 USB 3.2 Gen1 Type-C (Przód) 6 USB 3.2 Gen1 Type-A (2 Tył, 4 Przód) Dragon 2.5G LAN
Detailed data on disk/drive interfaces - Sloty CPU: 1 x gniazdo PCIe 4.0 x16 (PCIE1), obsługuje tryb x16 1 x gniazdo PCIe 3.0 x16 (PCIE2), obsługuje tryb x4 Chipset: 1 x gniazdo M.2 (Klucz E), obsługuje moduł Wi-Fi typu 2230 WiFi/BT PCIe Obsługuje AMD CrossFire Złoty styk 15u w gnieździe VGA PCIe (PCIE1)   Przechowywanie CPU: 1 x gniazdo Blazing M.2 (M2_1, klucz M), obsługuje tryb 2260/2280 PCIe Gen5x4 (128 Gb/s) Chipset: 1 x gniazdo Hyper M.2 (M2_2, klucz M), obsługuje tryb 2260/2280 PCIe Gen4x4 (64 Gb/s) 1 x gniazdo M.2 (M2_3, klucz M), obsługuje tryb 2260/2280 PCIe Gen4x2 (32 Gb/s) 4 złącza SATA3 6,0 Gb/s
dimensionalWeight - 858
dimension depth - 60 mm
dimension height - 260 mm
Dimensions - 24.4 x 24.4 cm
dimension weight - 1245 g
dimension width - 280 mm
DisplayPort Input/Output connectors - 1
EAN - 4710483943096
ean - 4710483943096
Eans - 4710483943096
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 4 x M.2
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - AMD B650
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 6000 MHz
Full Description Line - AMD B650|SAM5|Micro-ATX|DDR5|6000 MHz|Memory slots 4|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|1xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|3xUSB 3.2|1xUSB-C|1xRJ45|SATA|USB 3.2|Video Depending on CPU|Audio Realtek ALC897|LAN 2.5 Gigabit|RAID SATA 0, 1, 10|TPM Header
Graphics - Zintegrowana grafika AMD RDNA (rzeczywista obsługa może się różnić w zależności od procesora) 1 x HDMI 2.1 Kompatybilny z TMDS/FRL 8G, obsługuje HDR, HDCP 2.3 i max. rozdzielczość do 4K 120 Hz 1 x DisplayPort 1.4 z DSC (skompresowany), obsługuje HDCP 2.3 i max. rozdzielczość do 4K 120 Hz
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Included Accessories - - 1 x User Manual
- 2 x SATA Data Cables
- 4 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Thunderbolt headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
LPT connector / port - No
M.2 Expansion slots - 1
Max. number of SATA devices - 4
Max memory size - 192 GB
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5
Memory bus frequency - 7200 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - B650M Pro RS
Model - B650M PRO RS
Name - ASRock B650M Pro RS
name - ASRock B650M Pro RS, AMD B650 Mainboard - Sockel AM5, DDR5
Name - ASRock | B650M PRO RS | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
name - Motherboard B650M PRO RS AM5 4DDR5 HDMI/DP mATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - 2,5-gigabitowa sieć LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Obsługuje oprogramowanie Dragon 2.5G LAN Inteligentna automatyczna regulacja przepustowości Wizualny, przyjazny dla użytkownika interfejs użytkownika Statystyki wykorzystania sieci wizualnej Zoptymalizowane ustawienia domyślne dla trybów gry, przeglądarki i przesyłania strumieniowego Dostosowana przez użytkownika kontrola priorytetów
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 2
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power led header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 4 x USB 2.0/1.1
Onboard connectors - 4 x USB 3.0
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 250.00 mm
Package features > Gross height (mm) - 100.00 mm
Package features > Gross width (mm) - 250.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 138 pc(s)
Package features > Paper/Pasteboard - 400.00 g
Package features > Plastic (No PET) - 150.00 g
Package features > Tare weight (kg) - 0.55 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
PCI-Express 3.0 16x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Processor - Compatible processor series - AMD Ryzen™ 5
Processor - Compatible processor series - AMD Ryzen™ 7
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen
producer - ASRock
Producer - ASRock
producerCode - B650M PRO RS
ProducerCode - B650M PRO RS
Producer product name - B650M PRO RS
productName - Asrock B650M Pro RS AMD B650 Socket AM5 micro ATX
productSize - Normal
RAID - SATA 0, 1, 10
RAID - Yes

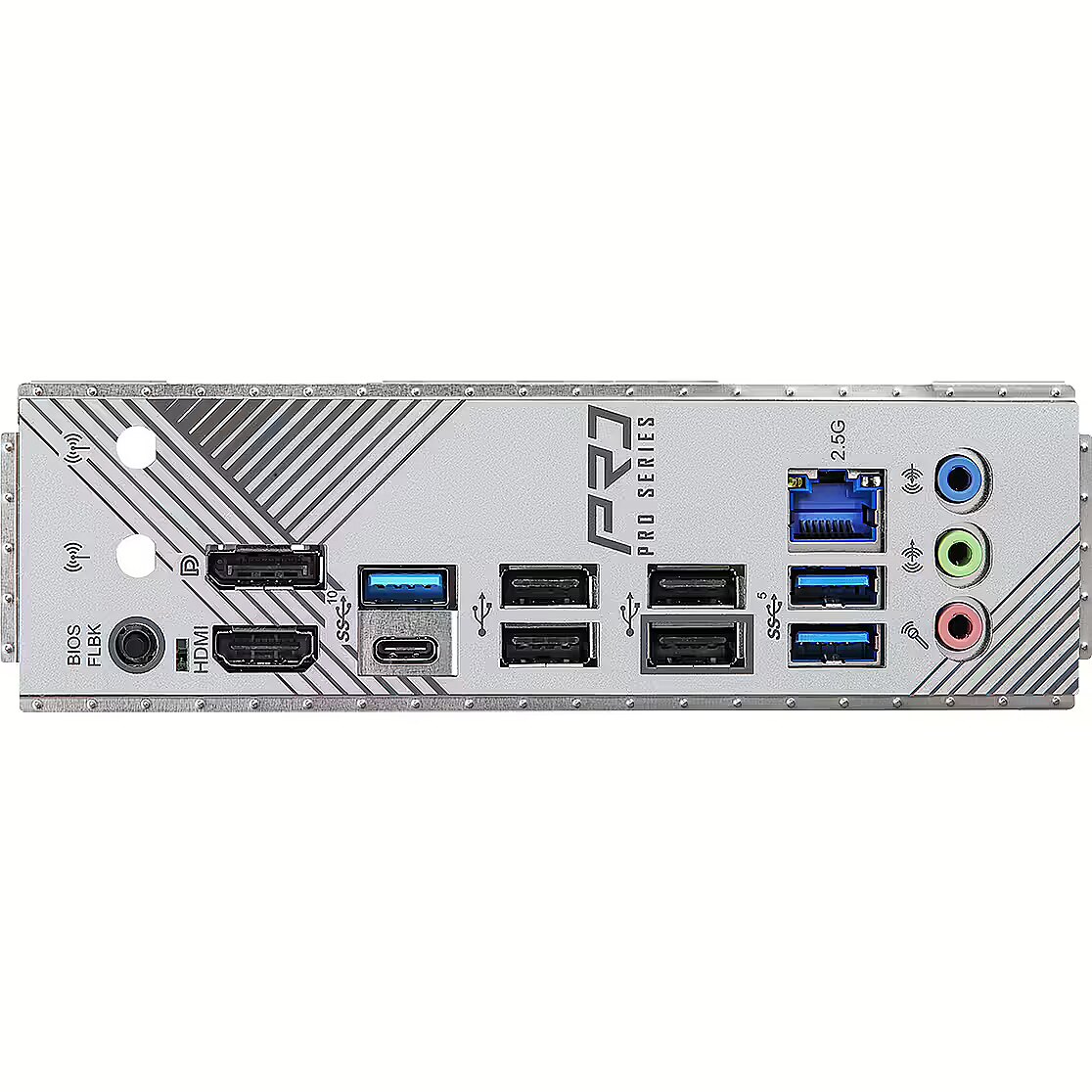

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 28 cm
Shipping Box Height Shipping/Package Box Dimensions - 26.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.244 kg
Shipping Box Width Shipping/Package Box Dimensions - 6.5 cm
ShortDescription - Socket AM5 | Chipset B650 | DDR5
sizeX - 275
sizeY - 60
sizeZ - 260
Socket - SAM5
Software - Software: ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI: ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Special functions - Niesamowita Produktywność PCIe Gen5 (M.2) Dual Channel DDR5 Solidna jak Skała 8+2+1 Power Phase, 50A Dr.MOS Pre-Installed I/O Shield Ultraszybka Łączność 2.5G LAN Aktualizacje EZ BIOS Flashback Button ASRock Auto Driver Installer Narzędzie EZ do Rozwiązywania Problemów ASRock Post Status Checker
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Gross weight - 1.53 kg
Technical details > Net weight - 0.98 kg
Technical details > Producer - ASRock
TPM - Header
Unit Box Height - 0.265
Unit Box Length - 0.28
Unit Box Width - 0.065
Unit Brutto Volume - 0.004823 cubm
Unit Gross Weight - 1.24 kg
Unit Net Weight - 1.2 kg
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 4
USB 3.2 Input/Output connectors - 3
USB 3.2 Interface - Yes
USB ports at back panel - 8
USB ports on motherboard - 9
Vendor Homepage - www.asrock.com/MB/AMD/B650M%20Pro%20RS/index.asp
vendpn - B650M PRO RS
Warranty - 24
Warranty - 24 month(s)
Warranty - 36 months
warrantyLength - 36
warrantyType - G
weight - 1250
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 244 mm
