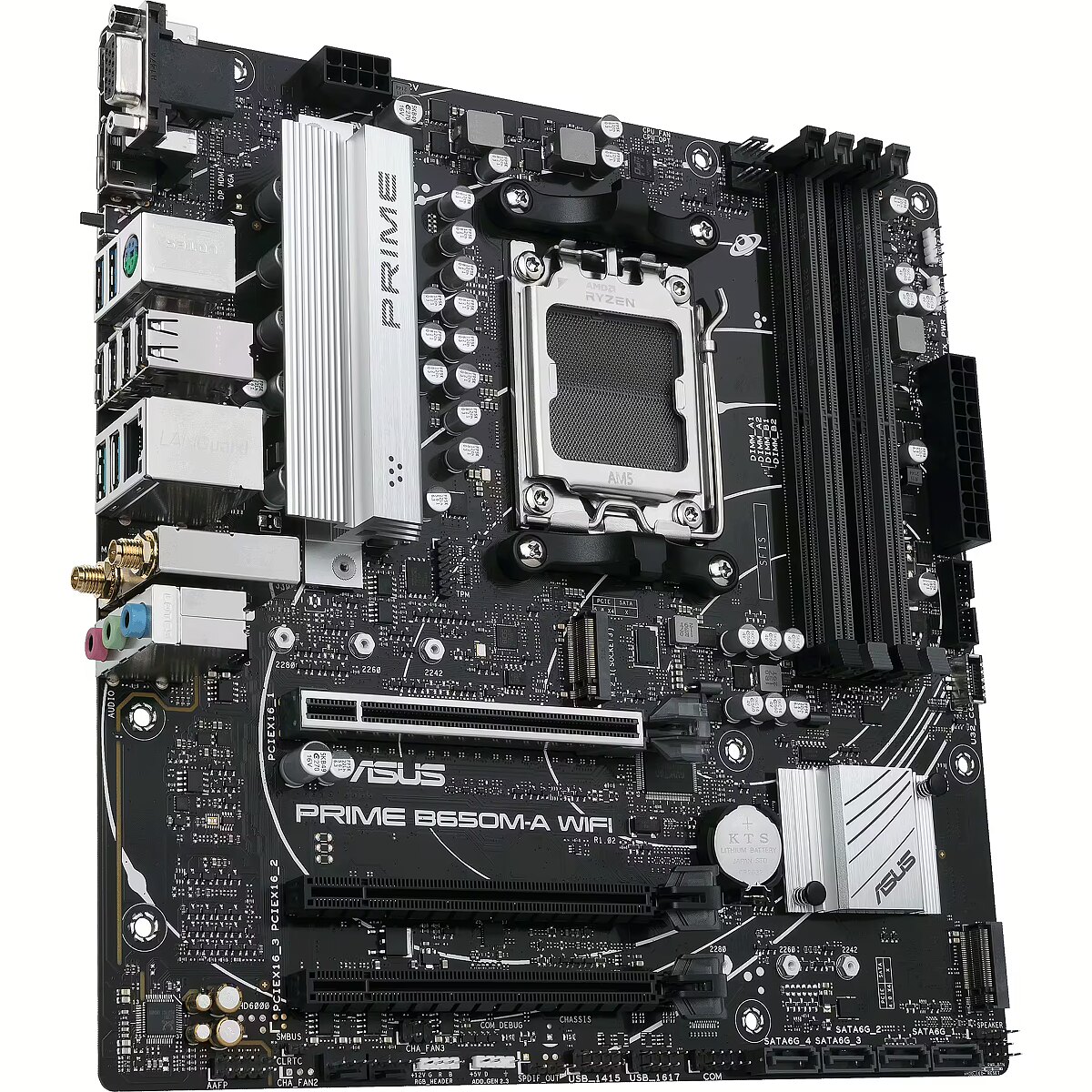

Asus PRIME B650M-A WIFI

Name: Asus PRIME B650M-A WIFI
Brand: Asus
SKU: 911745
Price: 227.05 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 911745 Product code: PRIME B650M-A WIFI

Can be ordered 7 units Availability: 14 days after order approval

Warranty: 2 years

Compare

Delivery options

Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
Delivery to Omniva parcel locker 1.99 €: 11.12.2024
Courier delivery 3.99 €: 11.12.2024

Main product parameters All parameters

Series: ASUS Prime
Plate size: mATX
Chipset: AMD B650
Socket: AM5
Type: DDR5
RAM Slots: 4
Built-in Wi-Fi: Ir
M.2 ports: 2

Basic information

Series : ASUS Prime

Plate size mATX

The physical size of the motherboard. TopPC.ee offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD B650

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.

Socket AM5

The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.

Random-access memory (RAM)

Type : DDR5

RAM Slots 4

The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.

Memory support DDR5 5200MHz (5600MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card

VGA Port PCI-EXPRESS

VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.

Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment

D-Sub : 0

DisplayPort : 1

DVI : 0

HDMI : 1

Integrated sound card : Nav norādīts

PCI Ports 0

PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.

Wireless connections

Built-in Bluetooth : Ir

Built-in Wi-Fi : Ir

External ports

External USB 2.0 : 4

External USB Type-C (USB 3.2 Gen2) : 0

External USB Type-C (USB 4.0) : 0

External USB 3.0 (USB 3.2 Gen1) : 2

External USB 3.1 (USB 3.2 Gen2) : 2

Internal ports

Internal A-RGB 5V (3-pin) : 3

Internal RGB 12V (4-pin) : 1

Internal USB 2.0 : 2

Internal USB 3.0 : 1

Internal USB Type-C : 1

M.2 ports : 2

SATA3 ports : 4

More detailed specification

Additional information in manufacturers website Asus PRIME B650M-A WIFI

BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
Brand - ASUS
BrandPartCode - 90MB1C00-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
code - 90MB1C00-M0EAY0
dimensionalWeight - 1078
ean - 4711081926368
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x16 (Gen 4.x) slots - 3
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B650
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
GTIN - 4711081926368
GTIN - 4711081926375
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 3
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
LongDesc - AMD B650 Micro-ATX motherboard, DDR5, PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, VGA, HDMI®, SATA 6 Gbps, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®, BIOS FlashBack™, Arua SyncPRIME B650M-A WIFIASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-A WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.FLEXIBILITYComprehensive controls form the foundation of the ASUS PRIME series. The PRIME B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.Intelligent ControlCPU Performance BoostAMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.All-Around Energy EfficiencyThe Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.Flexible Air- and Liquid-Cooling ControlsASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.Precise Digital Power ControlThe Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.UEFI BIOSThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.Advanced ModeAdvanced Tuning for Serious TweakersAn intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.Search FunctionQuickly and easily find the option or setting you need.ASUS User ProfilePort configuration settings between different BIOS versions or share them with friends.EZ ModeQuick and Simple SetupEZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.Intuitive Graphical Fan ControlFine-tune individual fan settings simply by dragging a curve with the mouse.Aura On/Off Mode (Stealth)Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.COOLINGPRIME B650 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.Heatsink & PCB DesignVRM Heatsink and Thermal PadVRM heatsink and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.Six-Layer PCB DesignMultiple PCB layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds.Cooler by DesignPrime B650 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.PERFORMANCEThe PRIME B650 series is built to handle the high core counts and bandwidth demands of AMD processors. ASUS B650 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.MemoryDDR5 Performance EnhancementComprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME B650M-A WIFI, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.For entry-level modules without EXPO™ memory support, we’ve got you covered. Click here to learn more about AEMP. arrow .For those who want to fly past stock DDR5 speeds, the PRIME B650M-A WIFI is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.ASUS OptiMem IIRevisions to the motherboard’s trace routing provide the latest processors with unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.Benefits of ASUS OptiMem II:- Improved memory stability and compatibility- Allows lower memory latencies at equivalent voltages- Improved memory frequency marginMotherboards with OptiMem II technology were tested with Synopsys HSPICE simulation softwareStoragePCIe 5.0 M.2 SupportPRIME B650M-A WIFI offers a total of two M.2 slots, the first one supports data-transfer speeds of up to 128Gbps via PCIe 5.0, enabling quicker boot-up and app load times with OS or application drives.*Actual transmission speeds will be lower than the theoretical maximum speed.ConnectivityPCIe 4.0 SlotPrime B650 motherboards offer PCIe 4.0 Slot connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.Front USB Type-C®A full complement of USB ports support high-end rigs loaded with peripherals, including a front-panel USB 3.2 Gen 1 Type-C® connector that provides data transfer speeds of up to 5Gbps.WiFi 6The WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 1.2Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.Realtek 2.5 Gb EthernetRealtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.LANGuardASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.CUSTOMIZATIONThe PRIME B650 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.AudioOutstanding AudioCombined onboard features deliver elevated audioIntelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.Audio ShieldingAudio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.Dedicated Audio PCB LayersSeparate layers for left and right tracks ensures both channels deliver consistent, equal quality.Premium Audio CapacitorsProvides warm, natural, and immersive sound with exceptional clarity and fidelity.PersonalizationAura SyncOutshine the CompetitionA well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.Addressable Gen 2 HeadersThree addressable Gen 2 headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.Armoury CrateWithin a single intuitive interface, Armoury Crate offers easily customized Aura Sync RGB settings for every compatible device in your arsenal , plus controls for an ever-growing family of ASUS products, including keyboard and mouse preferences. Armoury Crate also integrates product registration and a news feed so that you never miss updates of interest to the ASUS community.DIY FriendlyQ-LED CoreThe Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.BIOS FlashBack™BIOS FlashBack™ is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS FlashBack™ port and press the button. Updates can even be performed without a memory or a CPU installed.SafeSlot Core+SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.Overvoltage ProtectionWorld-class circuit-protecting power designAn exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.Stainless-Steel Back I/O3X corrosion-resistance for greater durabilityCorrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.THIS CHANGES EVERYTHING.FROM THIS NEW PLATFORM, YOU CAN SEE THE FUTUREBuild your next rig with an AMD Ryzen™ 7000 Series processor and PRIME B650M-A WIFI to experience advanced performance. With up to 16 “Zen 4” cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen™ 7000 Series keeps you ahead of the game.You’ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen™ 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO™ technology.ASUS WebstorageTimeline BackupAuto Backup for Your Computer!ASUS user’s special offer.｜Buy 1TB get 200GB free.
LongProductName - AMD B650, AM5, 4 x DIMM, Max. 128GB, DDR5, Realtek 2.5Gb Ethernet, Wi-Fi 6, 256 Mb Flash ROM, UEFI AMI BIOS, mATX
LongSummaryDescription - ASUS PRIME B650M-A WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Memory slots type: DIMM, Memory channels: Dual-channel. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 4800 MHz
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Memory - Supported memory clock speeds - 5000
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
name - ASUS Prime B650M-A WiFi, AMD B650 Mainboard - Sockel AM5, DDR5
Network - Bluetooth - Yes
Network - Bluetooth version - 5.2
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet interface type - 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6 (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Other features - Weight - 700 g
Packaging data - Package depth - 265 mm
Packaging data - Package height - 71 mm
Packaging data - Package weight - 1.34 kg
Packaging data - Package width - 280 mm
Processor - Compatible processor series - AMD Ryzen 7 7th Gen
Processor - Compatible processor series - AMD Ryzen 9 7th Gen
Processor - Compatible processor series - AMD Ryzen 7000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
producerCode - 90MB1C00-M0EAY0
productName - ASUS PRIME B650M-A WIFI AMD B650 Socket AM5 micro ATX
ProductName - PRIME B650M-A WIFI
productSize - Normal
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
ShortSummaryDescription - ASUS PRIME B650M-A WIFI, AMD, Socket AM5, AMD Ryzen 7000 Series, Socket AM5, DDR5-SDRAM, DIMM
sizeX - 275
sizeY - 70
sizeZ - 280
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Title - ASUS PRIME B650M-A WIFI AMD B650 Socket AM5 micro ATX
URL - https://www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME-B650M-A-WIFI/
WarrantyInfo -
warrantyLength - 24
warrantyType - G
weight - 1320
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 50 mm
Weight & dimensions - Width - 244 mm
