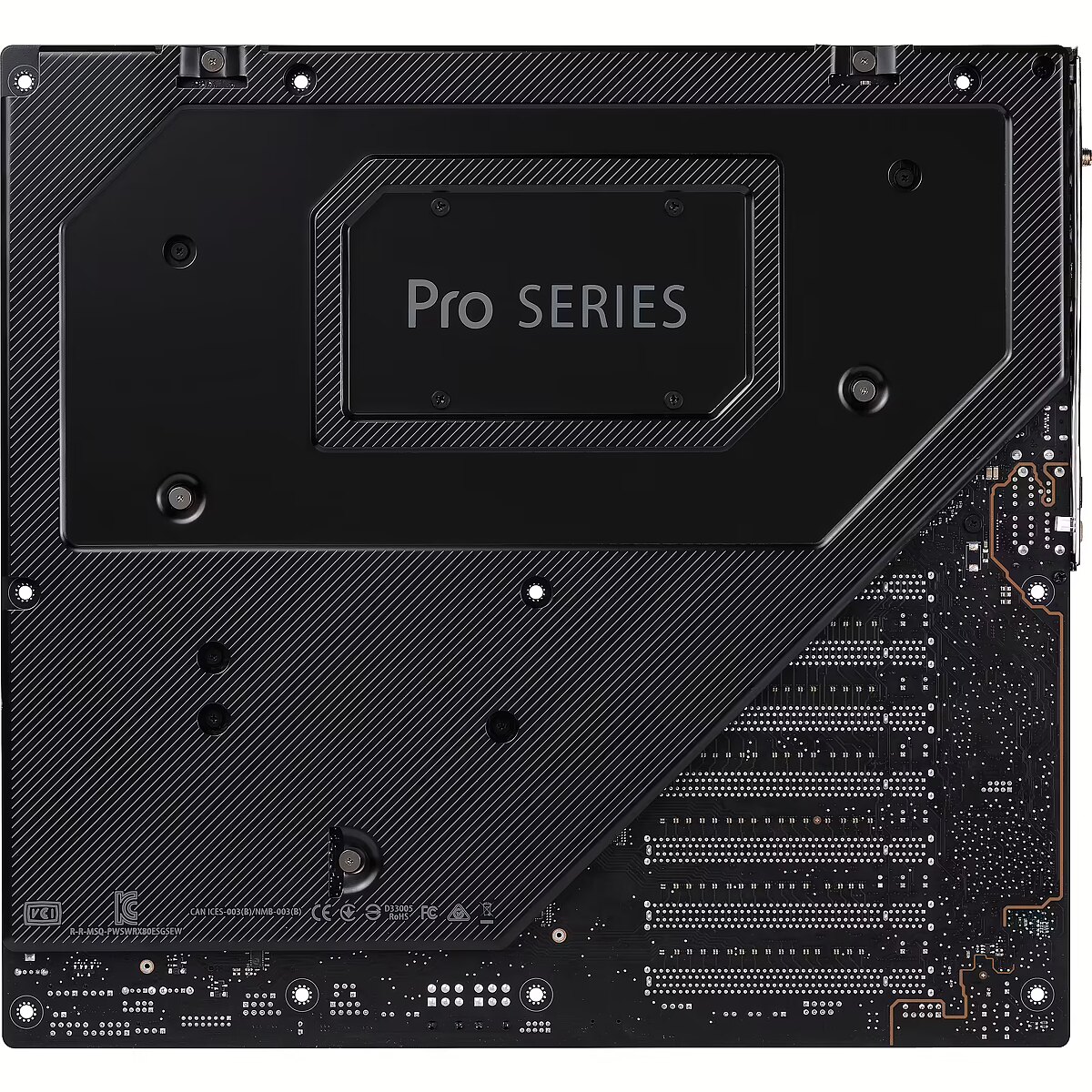

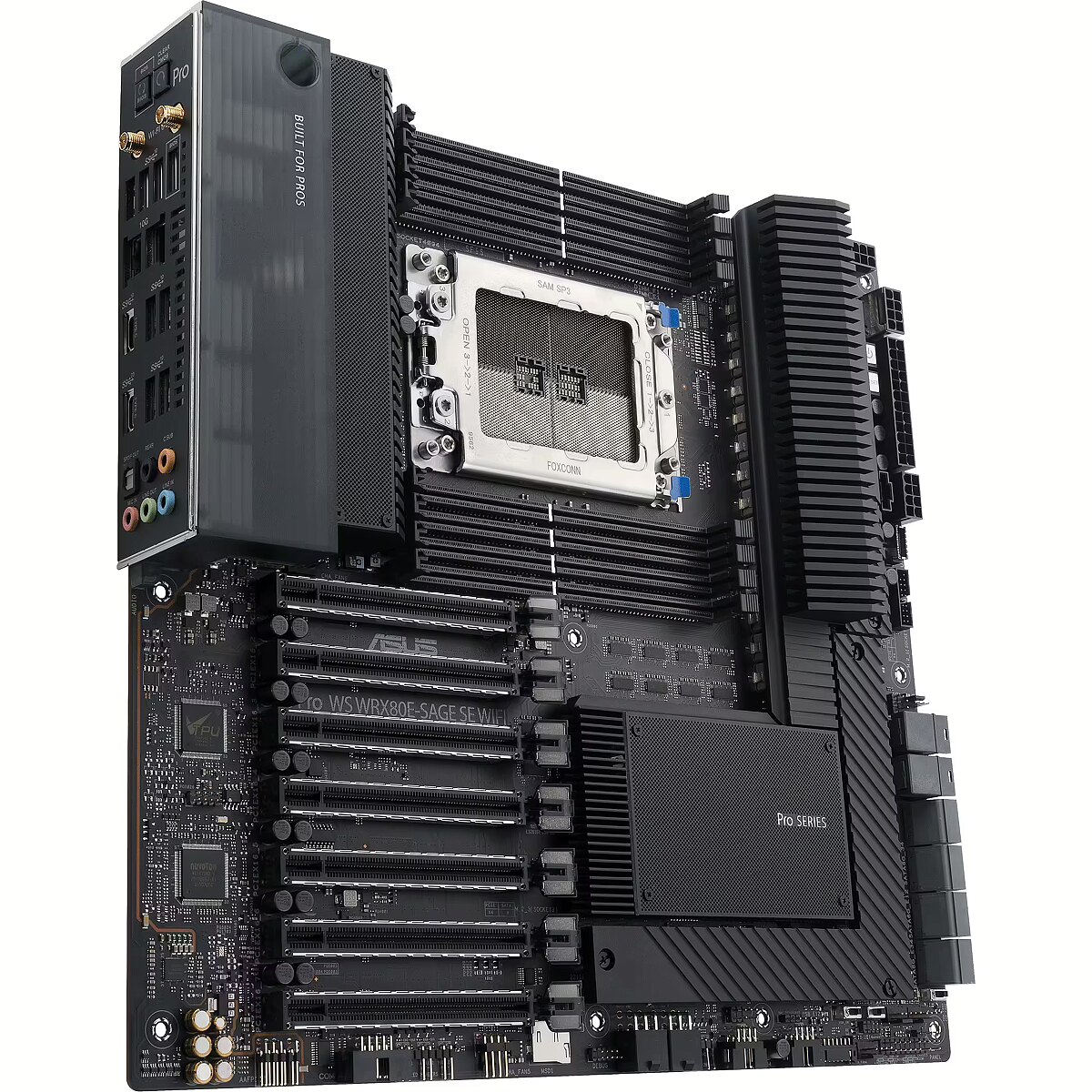

Asus PRO WS WRX80E-SAGE SE WIFI

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 718157 Product code: Pro WS WRX80E-SAGE SE WIFI
Can be ordered 12 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
1,023.13 €
Delivery options
  • Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
  • Delivery to Omniva parcel locker 1.99 €: 20.12.2024
  • Courier delivery 3.99 €: 20.12.2024
Main product parameters All parameters
  • Series: ASUS Workstation
  • Plate size: E-ATX
  • Chipset: AMD WRX80
  • Socket: sWRX8
  • Type: DDR4
  • RAM Slots: Eight Core
  • Built-in Wi-Fi: Ir
  • M.2 ports: 3
Basic information
Series : ASUS Workstation
Plate size E-ATX

The physical size of the motherboard. TopPC.ee offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD WRX80

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket sWRX8
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR4
RAM Slots Eight Core
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR4 3200MHz

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Nav

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 0
DVI : 0
HDMI : 0
Integrated sound card : Realtek ALC4080
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Ir
Built-in Wi-Fi : Ir
External ports
External USB 2.0 : Nav
External USB Type-C (USB 3.2 Gen2) : 2
External USB Type-C (USB 4.0) : 0
External USB 3.0 (USB 3.2 Gen1) : 0
External USB 3.1 (USB 3.2 Gen2) : Eight Core
Internal ports
Internal A-RGB 5V (3-pin) : 0
Internal RGB 12V (4-pin) : 0
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C : 1
M.2 ports : 3
SATA3 ports : Eight Core
More detailed specification
Additional information in manufacturers website Asus PRO WS WRX80E-SAGE SE WIFI
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Brand - ASUS
BrandPartCode - 90MB1590-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Sockel sWRX8
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category_1 - Motherboards
Category_2 - Motherboards - AMD sWRX8
code - 90MB1590-M0EAY0
ean - 4711081066262
EAN - 4711081066262
Eans - 4711081066262
EAN_code - 4711081066262
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x16 slots - 7
Features - Compatible operating systems - Windows 10
Features - Component for - PC
Features - Cooling type - Passive
Features - Motherboard chipset - AMD WRX80
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - Extended ATX
Features - Windows operating systems supported - Windows 10 x64
Graphics - Parallel processing technology support - 2-Way SLI, 3-Way SLI, 4-Way SLI
Gross Weight Kg - 6
GTIN - 0195553066266
GTIN - 195553066266
GTIN - 4711081066262
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Number of chassis fan connectors - 6
Internal I/O - Number of SATA III connectors - 8
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - AMD WRX80 Ryzen™ Threadripper™ PRO extended-ATX workstation motherboard with Intel dual 10 G LAN, USB 3.2 Gen 2x2 Type-C port, 7 x PCIe 4.0 x16 slots, 3 x M.2 PCIe 4.0, ASMB9-iKVM, 2 x U.2 and 16 power stagesUltimate power for professional productivityASUS Pro WS WRX80E-SAGE SE WIFI is engineered to unleash the incredible power of the latest AMD® Ryzen® Threadripper™ Pro series processors and is a reliable foundation for professional creative workloads that benefit from multi-core CPUs, such as video editing and 3D rendering. Additionally, seven PCIe 4.0 slots with SafeSlot fortification deliver exceptional performance with the latest high-power graphics cards.FUNCTION-FIRSTAESTHETICSLow-profile professionalism​​With metallic black aluminum extrusions, stainless steel black mesh with highlighted details, and a transparent smoky gray I/O cover, Pro WS WRX80E-SAGE SE WIFI presents a professional, low-profile look for content creators.​Multi-GPU supportPro WS WRX80E-SAGE SE WIFI features seven PCIe® 4.0 x16 slots for high-powered graphics cards, enabling enhanced performance for professional design, modeling and simulation, and rendering applications.3 M.2 PCIe 4.0Pro WS WRX80E-SAGE SE WIFI includes three M.2 and two U.2 slots wired to PCIe 4.0 x4 bandwidth. Creators working with massive video files can RAID together multiple NVMe devices for massive I/O bandwidth and seamless playback in their editing bays. These three slots rest under dedicated heatsinks to prevent SSD throttling under heavy loads.More storageWith NVMe RAID support for Ryzen™ Threadripper™ PRO processors, unused CPU PCIe® 4.0 lanes can be assigned to storage, allowing you to create a bootable RAID array with multiple M.2 SSDs to provide incredible throughput — up to 8x faster than individual PCIe® 3.0 x4 SSDs. RAID can also be configured with PCIe® 3.0 SSDs.ECC memory supportAMD Ryzen™ Threadripper™ PRO processors offer unrivaled memory bandwidth and supports 8 memory channels, up to 2048 GB. It supports ECC memory to automatically detect and correct data corruption, reducing the chance of system crashes to ensure your creativity consistency and stability.Intel® WiFi 6The Intel® WiFi 6 AX200 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.ASMB9-iKVM for remote managementAn integrated BMC (Baseboard Management Controller) is a key feature for workstations. It uses an Intel X550 dual 10 Gigabit Ethernet controller, with one port dedicated to the BMC to provide the intelligence for its IPMI architecture. The BMC manages the interface between system-management software and platform hardware. Administrators can remotely communicate with the BMC to take some corrective actions — such as resetting or power cycling a system.16 Power stagesPro WS WRX80E-SAGE SE WIFI’s VRM is comprised of 16 power stages, delivering the power and efficiency that the latest AMD processors demand.6-pin Power connectorsTwo additional PCIe 6-pin power connectors can add power output stability when creators use many graphic cards onboard.Actively cooled heatsinkThe heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path. The custom low-noise fan features a high-durability bearing with a 60,000-hour L10* lifespan.M.2 heatsinksThree M.2 slots are covered by heatsinks to combattemperature-induced throttling that can affect performance during heavy, sustained storage loads.Side-mounted connectorsUnique side-mounted connectors on the front-panel of the chassis keep cables away from the graphics cards and provide cleaner routing, easier management and a streamlined installation process.Pre-mounted I/O shieldThe patented I/O shield is finished in sleek matte black and comes pre-mounted for easy installation on the motherboard and is designed to allow air flow to keep the heat away from the board.BIOS Flashback™Users can place a BIOS file onto a FAT32-formatted USB drive and simply plug it into the USB BIOS FlashBack™ port and press a button to update the (UEFI) BIOS. Updates can be made even if memory or CPU aren't present.Immersive Audio experienceThe Realtek ALC4080 audio codec features high quality 120 dB SNR stereo playback output and 113 dB SNR recording input to offer pristine audio quality and is supported by EMI shielding and separate PCB layers for the left and right channels to maintain signal integrity. Additionally, DTS:X Ultra technology enables louder, immersive 3D spatial audio.Power pre-regulatorReduces power-input noise to ensure consistent performance.Audio shieldingSeparates analog/digital signal domains, significantly reducing multi-lateral interference.Integrated amplifierCapable of driving high-impedance headphones, without rolling-off high or low frequencies.Separate layer for left and right tracksEnsures minimal crosstalk between audio paths.De-pop circuitReduces start-up popping noise to all audio outputs.Premium Japanese-made audio capacitorsPremium parts provide an immersive sound signature, with exceptional fidelity.Solid compatibility validationPro WS WRX80E-SAGE SE WIFI has been extensively tested and validated under various environments and applications for compatibility and reliability.Protect your graphics cardSafeSlot is a PCIe® slot reengineered by ASUS to provide optimized attachment and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot fortifies the slot with metal for enhanced strength and durability.24/7 reliabilityOptimized for around-the-clock operations, Pro WS WRX80E-SAGE SE WIFI is tested under temperatures of up to 45° C and humidity of up to 80% in order to ensure it can thrive in different environments.
LongProductName - WRX80, Ryzen Threadripper, 7 x PCIe 4.0/3.0 x16, NVIDIA SLI, USB 3.2, S/PDIF, Clear CMOS, 30.98x33.02cm
LongSummaryDescription - ASUS WRX80E-SAGE SE WIFI. Processor manufacturer: AMD, Processor socket: Socket SP3, Compatible processor series: AMD Ryzen Threadripper PRO 3000 WX-Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 2.05 TB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, RAID levels: 0, 1, 5, 10. Parallel processing technology support: 2-Way SLI, 3-Way SLI, 4-Way SLI. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Intel X550-T2, Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Manufacturer - Asus
Manufacturer - ASUS
Manufacturer Code - 90MB1590-M0EAY0
Manufacturer Name - Asustek
Manufacturer_code - 90MB1590-M0EAY0
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 2.05 TB
Memory - Memory channels - Octa-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 8
Memory - Supported memory clock speeds - 2133,2400,2666,2800,2933,3000,3200 MHz
Memory - Supported memory types - DDR4-SDRAM
MPN - 90MB1590-M0EAY0
Name - ASUS Pro WS WRX80E-SAGE SE WIFI
name - ASUS Pro WS WRX80E-SAGE SE Wifi, AMD WRX80 Mainboard - Sockel sWRX8
Name - Asus Pro WS WRX80E-SAGE SE WIFI - Socket sWRX8
Network - Ethernet interface type - 10 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Intel X550-T2
Network - Top Wi-Fi standard - Wi-Fi 6 (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Other features - Number of processors supported - 1
Other features - Weight - 572 g
Packaging content - Cables included - SATA, VGA
Packaging content - Drivers included - Yes
Processor - Compatible processor series - AMD Ryzen Threadripper PRO 3000 WX-Series
Processor - Maximum number of SMP processors - 1
Processor - Processor cores - 64
Processor - Processor manufacturer - AMD
Processor - Processor number of cores supported - 64
Processor - Processor socket - Socket SP3
Processor special features - Trusted Platform Module (TPM) - Yes
Producer - Asus
ProducerCode - Pro WS WRX80E-SAGE SE WIFI
ProductName - WRX80E-SAGE SE WIFI
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 9
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
Short description - ASUS PRO WS WRX80E-SAGE SE WIFI sWRX8/U.2/3xM.2/KVM/E-ATX WiFi 6 included
ShortDescription - Socket WRX80 |
ShortSummaryDescription - ASUS WRX80E-SAGE SE WIFI, AMD, Socket SP3, AMD Ryzen Threadripper PRO 3000 WX-Series, DDR4-SDRAM, 2.05 TB, DIMM
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - SATA III
Title - ASUS WRX80E-SAGE SE WIFI AMD WRX80 Socket SP3 Extended ATX
URL - https://www.asus.com/Networking-IoT-Servers/Modem-Routers/All-series/DSL-AX82U/
WarrantyInfo -
Weight - 5,13
Weight - 5.15
Weight & dimensions - Depth - 330 mm
Weight & dimensions - Height - 108 mm
Weight & dimensions - Width - 309.8 mm
