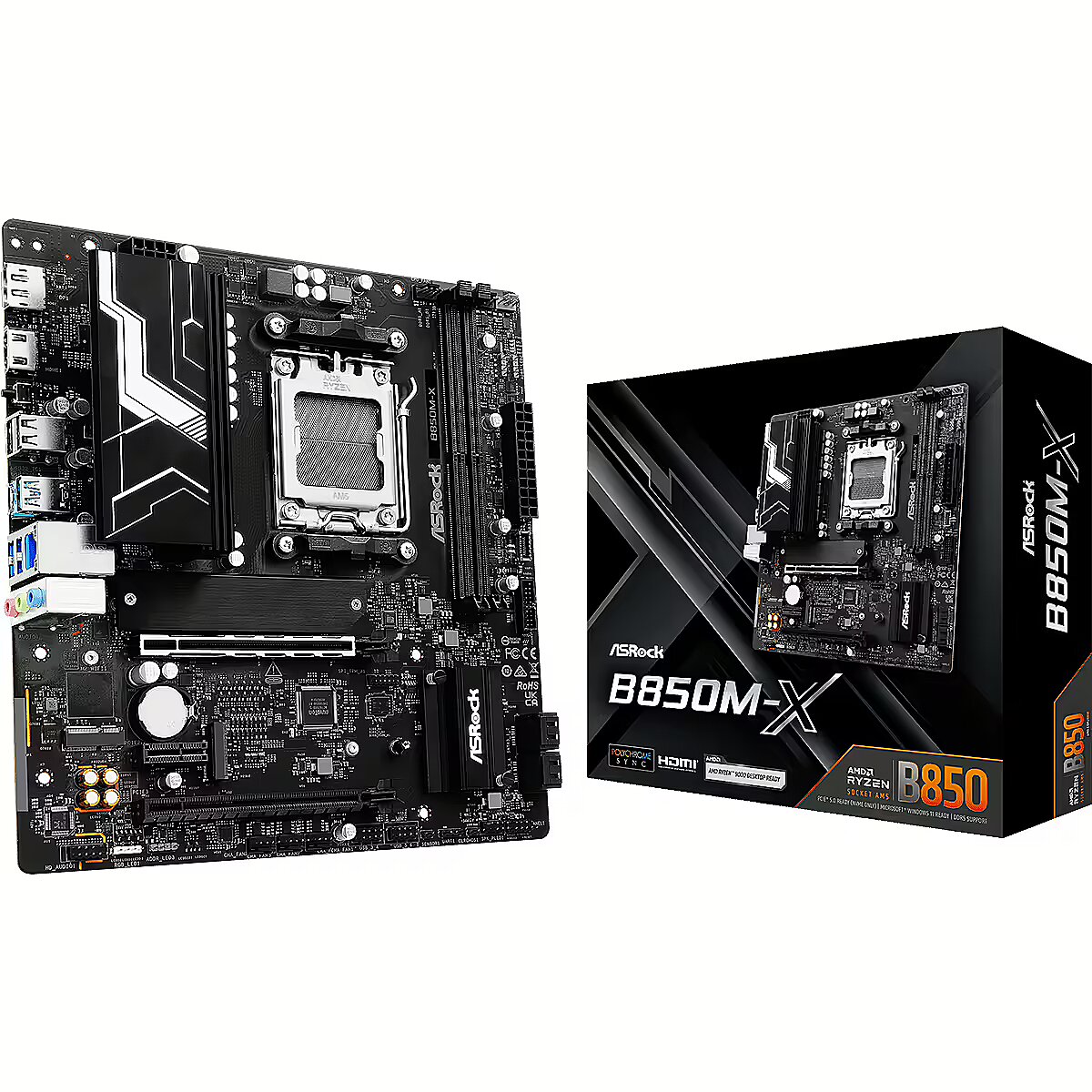

Asrock B850M-X

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
News
ID: 1179306 Product code: B850M-X
In stock 10 units
Warranty: 3 years
131.19 €
Delivery options
  • Delivery to Smartpost 1.99 €: on Thuesday, 04.02.2025
  • Delivery to Omniva parcel locker 1.99 €: on Thuesday, 04.02.2025
  • Courier delivery 3.99 €: on Thuesday, 04.02.2025
Main product parameters All parameters
  • Series: Nav
  • Plate size: mATX
  • Chipset: AMD B850
  • Socket: AM5
  • Type: DDR5
  • RAM Slots: 2
  • Built-in Wi-Fi: Nav
  • M.2 ports: 2
Basic information
Series : Nav
Plate size mATX

The physical size of the motherboard. TopPC.ee offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD B850

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM5
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR5
RAM Slots 2
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 5600MT/s (8200MT/s OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 1
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC897
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Nav
Built-in Wi-Fi : Nav
External ports
External USB 2.0 : 2
External USB Type-C (USB 3.2 Gen2) : 1
External USB Type-C (USB 4.0) : 0
External USB 3.0 (USB 3.2 Gen1) : 3
External USB 3.1 (USB 3.2 Gen2) : 0
Internal ports
Internal A-RGB 5V (3-pin) : 3
Internal RGB 12V (4-pin) : 1
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C : 1
M.2 ports : 2
SATA3 ports : 4
More detailed specification
Accessories included - Osłona I/O 2 x Kabel danych SATA Śruba do gniazda M.2
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
Category Code - MBA
Chipset - AMD B850
Chipset manufacturer - AMD
Chipset type - AMD B850
COM connector / port - No
CPU socket - Socket AM5
Description - B850M-X
Płyta główna serii X oferuje kompaktowe, wartościowe rozwiązanie, łączące wydajność, wszechstronność i niezawodność zarówno w zastosowaniach profesjonalnych, jak i codziennych. Konstrukcja fazy zasilania 6+1+1
Wyposażona w solidne komponenty i całkowicie płynne dostarczanie mocy do procesora, oferująca graczom lepszą wydajność. Dr. MOS
Dr.MOS to zintegrowane rozwiązanie stopnia mocy, które jest zoptymalizowane pod kątem synchronicznych zastosowań obniżających napięcie buck-set! W porównaniu do tradycyjnych dyskretnych tranzystorów MOSFET inteligentnie dostarcza wyższy prąd dla każdej fazy, zapewniając tym samym lepszy wynik termiczny i lepszą wydajność. Złącze zasilania Hi-Density
Podkręcanie procesora wymaga wyższego prądu. Złącza zasilania ASRock Hi-Density są zaprojektowane tak, aby wytrzymywać wyższe prądy w porównaniu do tradycyjnych złączy zasilania procesora i ATX, zapewniając bardziej stabilny system i zmniejszając ryzyko pożaru podczas intensywnego podkręcania. 6-warstwowa płytka PCB
6-warstwowa płytka PCB zapewnia stabilne ścieżki sygnału i kształty mocy, zapewniając niższą temperaturę i wyższą wydajność energetyczną do podkręcania pamięci! Dzięki temu jest w stanie obsługiwać najnowsze moduły pamięci z najbardziej ekstremalną wydajnością pamięci! Obsługa DDR5 XMP i EXPO
Wywodząca się z koncepcji projektowania zbudowanego dla stabilności i niezawodności, ASRock nie idzie na żadne kompromisy w kwestii szczegółów. Ta płyta główna jest zbudowana z wysokiej jakości materiałów, entuzjaści mogą cieszyć się zwiększoną wydajnością podkręcania pamięci DDR5, włączając wstępnie przetestowane profile. Upewnij się, że moduły pamięci są zgodne z Intel XMP/AMD EXPO, a podkręcanie może być tak niedrogie, satysfakcjonujące i absolutnie bezproblemowe.
Description - X Series motherboard offers a compact, high-value solution, balancing performance, versatility, and reliability for both professional and daily tasks. Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors 6+1+1 Phase Power Design, Dr.MOS for VCore 2 x DDR5 DIMMs Supports Dual Channel, up to 8200+ (OC) 2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi Graphics Output Options: 1 HDMI, 1 DisplayPort Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 1 Blazing M.2 (PCIe Gen5x4) 1 Hyper M.2 (PCIe Gen4x4) 4 SATA3 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front) 5 USB 3.2 Gen1 (3 Rear, 2 Front) 6 USB 2.0 (2 Rear, 4 Front) Realtek 2.5G LAN Supports BIOS Flashback
Designation - CE+WEEE
Detailed data on disk/drive interfaces - CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 4 x SATA3 6.0 Gb/s Connectors
dimensionalWeight - 906
dimension depth - 60 mm
dimension height - 265 mm
Dimensions - 24.4 cm x 22.6 cm
dimension weight - 1182 g
dimension width - 300 mm
DisplayPort Input/Output connectors - 1
ean - 4711581490109
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 4.0 x 1
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 4.0 x 16

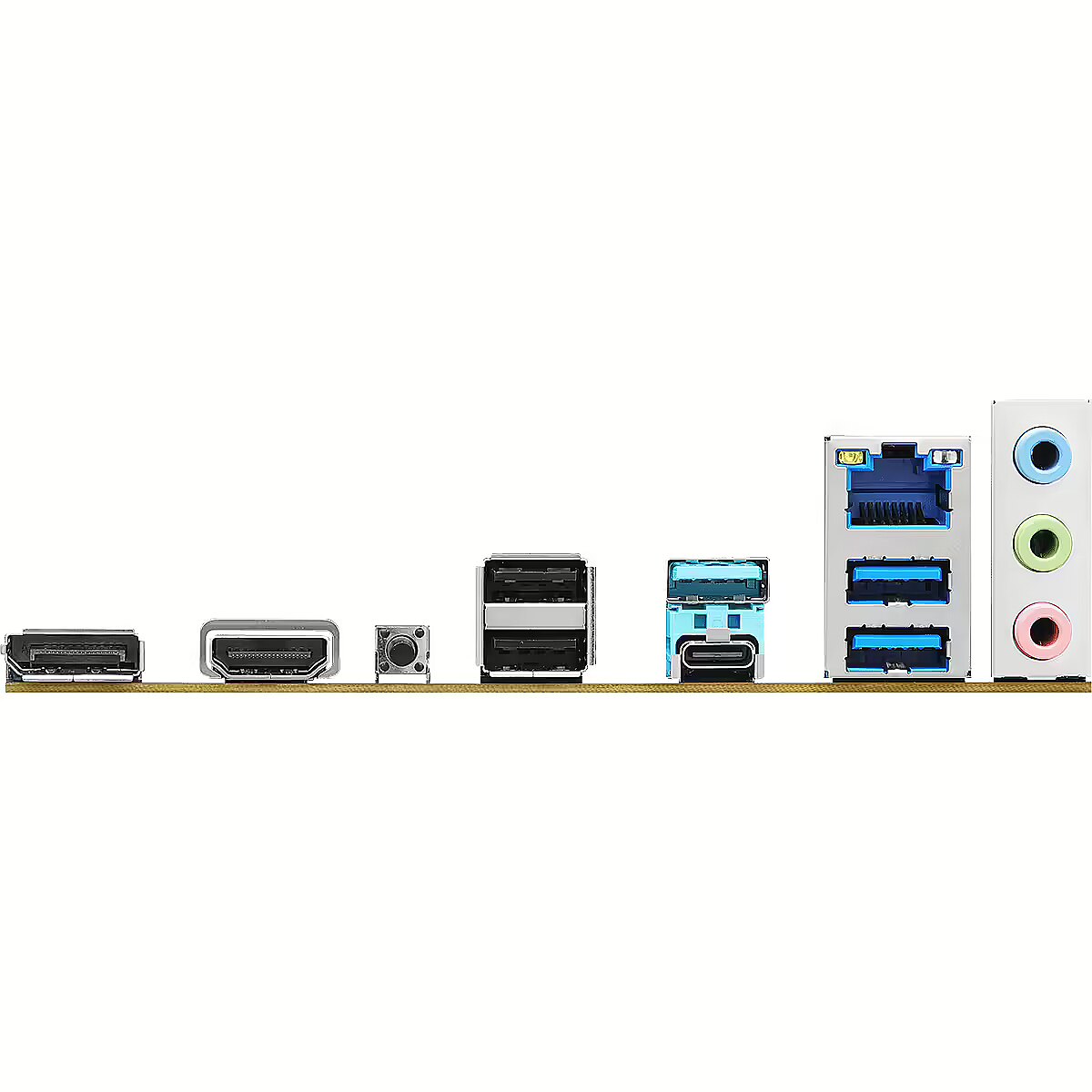

External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.2 Gen 1 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 2.0
External connectors - 3 x USB 3.2 Gen 1 Type-A
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 8200 MHz
Full Description Line - AMD B850|SAM5|Micro-ATX|DDR5|8200 MHz|Memory slots 2|1xPCI-Express 4.0 1x|2xPCI-Express 4.0 16x|1xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|1xMicrophone|2xUSB 2.0|3xUSB 3.2|1xUSB-C|1xRJ45|SATA|USB-C|USB 2.0|USB 3.2|SATA 3.0|Video Depending on CPU|Audio Realtek ALC897|LAN 2.5 Gigabit|RAID SATA 0, 1, 10|TPM Header
Graphics - Zintegrowana karta graficzna AMD RDNA (rzeczywista obsługa może się różnić w zależności od procesora) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, obsługuje HDR, HDCP 2.3 i maks. rozdzielczość do 4K 120Hz 1 x DisplayPort 1.4 z DSC (skompresowany), obsługuje HDCP 2.3 i maks. rozdzielczość do 4K 120Hz
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
LPT connector / port - No
M.2 Expansion slots - 1
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory bus frequency - 8200 MHz
Memory slots - 2
Memory type - DDR5
Memory type - DDR5
Microphone Input/Output connectors - 1
Model - B850M-X
name - Motherboard B850M-X AM5 2DDR5 M.2 USBC mATX
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
Number of DDR5 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power LED and Speaker Header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x SPI
Onboard connectors - 1 x Thermistor Cable Header
Onboard connectors - 1 x USB 3.2 Gen 1 Type-A
Onboard connectors - 1 x USB 3.2 Gen 1 Type-C
Onboard connectors - 2 x 4pin wentylator CPU
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 3 x Addressable LED
Other information -
PCI-Express 4.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 2
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
producer - ASRock
producerCode - B850M-X
productName - Płyta główna Asrock B850M-X
productSize - Normal
RAID - SATA 0, 1, 10
RAID - Yes
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
SATA Interface - Yes
Shipping box quantity - 1
sizeX - 296
sizeY - 264
sizeZ - 58
Socket - SAM5
Software - Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Special functions -
Supported operating systems - Windows 10
Supported operating systems - Windows 11
TPM - Header
Unit Brutto Volume - 0.01155 cubm
Unit Gross Weight - 2.3 kg
Unit Net Weight - 1.3 kg
USB-C Input/Output connectors - 1
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 3
USB 3.2 Interface - Yes
USB ports at back panel - 6
USB ports on motherboard - 7
Vendor Homepage - www.asrock.com/MB/AMD/B850M-X/index.asp
vendpn - B850M-X
Warranty - 36 months
warrantyLength - 36
warrantyType - G
weight - 1195
