Asus ROG STRIX B850-I GAMING WIFI

Name: Asus ROG STRIX B850-I GAMING WIFI
Brand: Asus
SKU: 1177814
Price: 350.61 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1177814 Product code: ROG STRIX B850-I GAMING WIFI

In stock 3 units

Warranty: 3 years

Compare

Delivery options

Delivery to Smartpost 1.99 €: on Thuesday, 04.02.2025
Delivery to Omniva parcel locker 1.99 €: on Thuesday, 04.02.2025
Courier delivery 3.99 €: on Thuesday, 04.02.2025

Main product parameters All parameters

Series: ASUS ROG Strix
Plate size: mITX
Chipset: AMD B850
Socket: AM5
Type: DDR5
RAM Slots: 2
Built-in Wi-Fi: Ir
M.2 ports: 2

Basic information

Series : ASUS ROG Strix

Plate size mITX

The physical size of the motherboard. TopPC.ee offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD B850

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.

Socket AM5

The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.

Random-access memory (RAM)

Type : DDR5

RAM Slots 2

The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.

Memory support DDR5 5600MT/s (8400MT/s OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card

VGA Port PCI-EXPRESS

VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.

Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment

D-Sub : 0

DisplayPort : 0

DVI : 0

HDMI : 1

Integrated sound card : Realtek ALC4080

PCI Ports 0

PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.

Wireless connections

Built-in Bluetooth : Ir

Built-in Wi-Fi : Ir

External ports

External USB 2.0 : 2

External USB Type-C (USB 3.2 Gen2) : 1

External USB Type-C (USB 4.0) : 1

External USB 3.0 (USB 3.2 Gen1) : 0

External USB 3.1 (USB 3.2 Gen2) : 4

Internal ports

Internal A-RGB 5V (3-pin) : 2

Internal RGB 12V (4-pin) : 0

Internal USB 2.0 : 1

Internal USB 3.0 : 1

Internal USB Type-C : 1

M.2 ports : 2

SATA3 ports : 2

More detailed specification

Additional information in manufacturers website Asus ROG STRIX B850-I GAMING WIFI

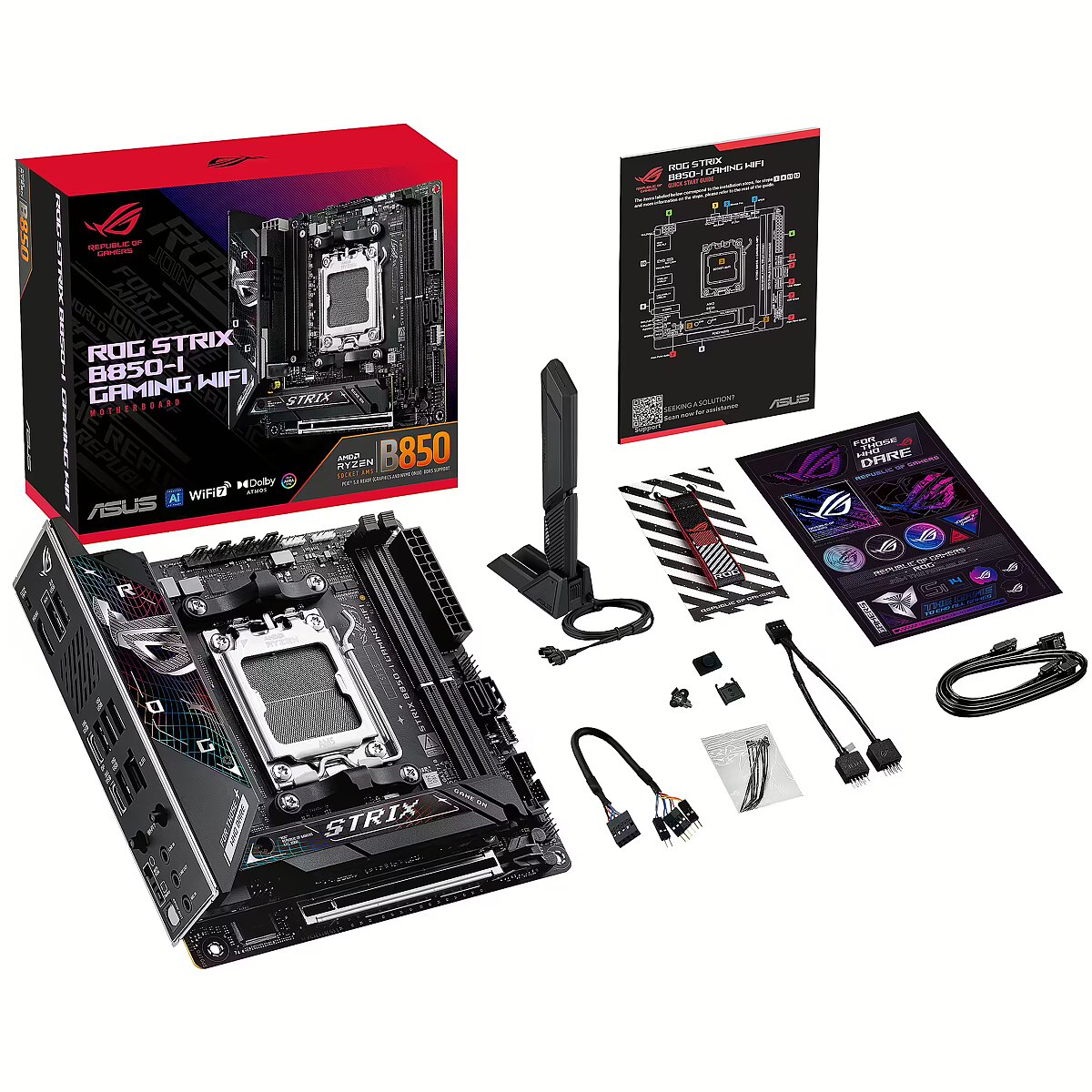

Accessories included - 2 Kabel SATA 6Gb/s ASUS WiFi Q-Antenna Pakiet opasek kablowych Pakiet Q-Latch na tylną płytę M.2 Pakiet Q-Slide na tylną płytę M.2 Brelok ROG Naklejki ROG Strix Pakiet gumowych płyt tylnych M.2 Skrócona instrukcja obsługi
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
BIOS - 256 Mb Flash ROM, UEFI AMI BIOS
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Bluetooth Interface - Yes
Brand - ASUS
BrandPartCode - 90MB1K30-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Chipset - AMD B850
Chipset manufacturer - AMD
Chipset type - AMD B850 Chipset
code - 90MB1K30-M0EAY0
COM connector / port - No
CPU socket - Socket AM5
Description - ROG STRIX B850-I gaming wifi
ROG Strix B850-I Gaming WiFi integruje najnowocześniejszą technologię w eleganckim formacie mini-ITX. Posiada gniazda PCIe 5.0 do grafiki i pamięci masowej, dwukanałowe gniazda DDR5 i solidne zasilanie do gier najwyższej klasy i dużych obciążeń. Tymczasem zaawansowane rozwiązania chłodzące utrzymują szczytową wydajność, a WiFi 7 zapewnia ultraszybką łączność. Ta platforma zapewnia moc i łączność, których wymagają zaawansowane aplikacje AI PC.
Description - The ROG Strix B850-I Gaming WiFi integrates cutting-edge technology into a sleek mini-ITX form factor. It features PCIe 5.0 slots for graphics and storage, dual-channel DDR5 slots and robust power delivery for top-tier gaming and heavy workloads. Meanwhile, advanced cooling solutions maintain peak performance, and WiFi 7 ensures ultra-fast connectivity. This platform delivers the power and connectivity that advanced AI PC applications demand.
Designation - CE+WEEE
Detailed data on disk/drive interfaces - AMD Ryzen 7000 & 9000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode) M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode) M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
dimensionalWeight - 851
dimension depth - 190 mm
dimension height - 95 mm
Dimensions - 17 cm x 17 cm
dimension weight - 1230 g
dimension width - 230 mm
ean - 4711387823620
EAN - 4711387823620
Eans - 4711387823620
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x M.2
Expansion slots - 1st M.2 highest PCI Express generation - 5.0
Expansion slots - 1st M.2 largest key size - 2280
Expansion slots - 2nd M.2 highest PCI Express generation - 5.0
Expansion slots - 2nd M.2 largest key size - 2280
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x USB 3.2 Gen 2 Type-C
External connectors - 1 x USB 3.2 Gen 2x2 Type-C
External connectors - 1 x Wi-Fi Module
External connectors - 2 x USB 2.0
External connectors - 4 x USB 3.2 Gen 2 Type-A
Features - Audio chip - Realtek ALC4080
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B850
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - mini ITX
Features - Power source type - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11
FireWire (IEEE 1394) - No
Form Factor - Mini-ITX
Form factor - mini ITX
Full Description Line - AMD B850|SAM5|Mini-ITX|DDR5|Memory slots 2|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|2xM.2|1xHDMI|1xAudio-In|1xAudio-Out|1xMicrophone|2xUSB 2.0|5xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|SATA 3.0|Video Depending on CPU|Audio Realtek ALC4080|LAN 2.5 Gigabit|RAID SATA 0, 1, 5, 10|TPM Header
Graphics - 1 x port HDMI*** 1 x port USB 10 Gb/s obsługuje wyjścia wyświetlacza USB Type-C**** *** Obsługuje 4K@60Hz zgodnie ze specyfikacją HDMI 2.1.
**** Obsługuje maks. 4K@60Hz zgodnie ze specyfikacją DisplayPort 1.4a
***** Obsługa rozdzielczości VGA zależy od rozdzielczości procesora lub karty graficznej.
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - On-board graphics card - No
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387823620
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC4080
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of CPU fan connectors - 1
Internal I/O - Number of EPS power connectors (8-pin) - 1
Internal I/O - Number of RGB LED pin headers - 2
Internal I/O - Number of SATA III connectors - 2
Internal I/O - Number of temperature sensor headers - 1
Internal I/O - Number of water pump connectors - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LongDesc - The ROG Strix B850-I Gaming WiFi integrates cutting-edge technology into a sleek mini-ITX form factor. It features PCIe® 5.0 slots for graphics and storage, dual-channel DDR5 slots and robust power delivery for top-tier gaming and heavy workloads. Meanwhile, advanced cooling solutions maintain peak performance, and WiFi 7 ensures ultra-fast connectivity. This platform delivers the power and connectivity that advanced AI PC applications demand.ASUS AI INTELLIGENCEASUS AI ADVISORUsing AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.*Availability of ASUS AI Advisor may vary by region.**AI Advisor functions may vary by platform.AI OVERCLOCKINGASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.AI NETWORKING IIAI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.*Features may vary by model.OVERCLOCKINGDynamic OC SwitcherDynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.Core FlexCore Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.PBO ENHANCEMENTAMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.MEMORYDDR5 DOMINATIONThe Strix B850-I is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support.AEMPASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.ROG STRIX ULTIMATE POWER DESIGN10(70A)+2(70A)+1 Power StagesPLAY IN STYLEUNDENIABLY ROG STRIXThe I/O shield and M.2 heatsink feature a perforated metal mesh that can either reflect the glow of internal RGB components or blend seamlessly into the shadows of a stealthy build. The cyber-style text and sharp, angular details firmly establish this motherboard as a member of the ROG Strix family.BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATINGWhen only the fastest will do, a Strix B850 motherboard delivers. With USB 20Gbps Type-C® onboard along with robust overclocking¹ capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD 800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.Dare to Be GreenWe at the Republic of Gamers are on a mission to create a sustainable future where all gamers can flourish on the planet we call home.Every step counts, and as part of ROG’s commitment to creating a more sustainable future, ROG has begun to utilize post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council (FSC™) in the packaging of motherboard.
LongProductName - ROG STRIX B850-I GAMING WIFI motherboard socket AMD AM5 (AMD B850, mini-ITX, DDR5 memory, PCIe 5.0, WiFi 7, 2x M.2, Aura Sync)
LongSummaryDescription - ASUS ROG STRIX B850-I GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be)
LPT connector / port - No
M.2 Expansion slots - 2
Manufacturer - ASUS
Max. number of SATA devices - 2
Max memory size - 96 GB
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 96 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 8400 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 8400 MHz
Memory slots - 2
Memory type - DDR5
Memory type - DDR5
Microphone Input/Output connectors - 1
Model - ROG STRIX B850-I GAMING WIFI
MPN - 90MB1K30-M0EAY0
Name - AM5 ASUS ROG STRIX B850-I Gaming WIFI
Name - ASUS ROG STRIX B850-I GAMING WIFI
name - ASUS ROG STRIX B850-I Gaming WiFi, AMD B850 Mainboard - Sockel AM5, DDR5
name - Motherboard ROG STRIX B850-I GAMING WIFI
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 1
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 7
Onboard connectors - 1 x 4-pin Extra Flow Fan header
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin Chassis fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x Thermal sensor connector
Onboard connectors - 1 x USB 2.0/1.1 header
Onboard connectors - 1 x USB 3.2 Gen 1 Type-A
Onboard connectors - 1 x USB 3.2 Gen 2 Type-C
Onboard connectors - 1x CPU/DRAM overvoltage jumper
Onboard connectors - 2 x Addressable LED
Onboard connectors - 2 x M.2
Onboard connectors - 2 x SATA III 6Gb/s
Optical S/PDIF Input/Output connectors - 1
Other features - Quick installation guide - Yes
Other features - Weight - 1.06 kg
Other information - Zarządzanie WOL przez PME, PXE
Packaging content - Antenna included - Yes
Packaging content - Cables included - SATA
Packaging data - Package depth - 185 mm
Packaging data - Package height - 94 mm
Packaging data - Package weight - 1.06 kg
Packaging data - Package width - 226 mm
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - AMD Ryzen 7000 Series
Processor - Compatible processor series - AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor - Compatible processor series - AMD Ryzen 8000 Series
Processor - Compatible processor series - AMD Ryzen 9000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
producer - Asus
Producer - Asus
producerCode - 90MB1K30-M0EAY0
ProducerCode - ROG STRIX B850-I GAMING WIFI
productName - ASUS ROG STRIX B850-I GAMING WIFI AMD B850 Socket AM5 mini ITX
ProductName - ROG STRIX B850-I GAMING WIFI
productSize - Normal
RAID - No
RAID - SATA 0, 1, 5, 10

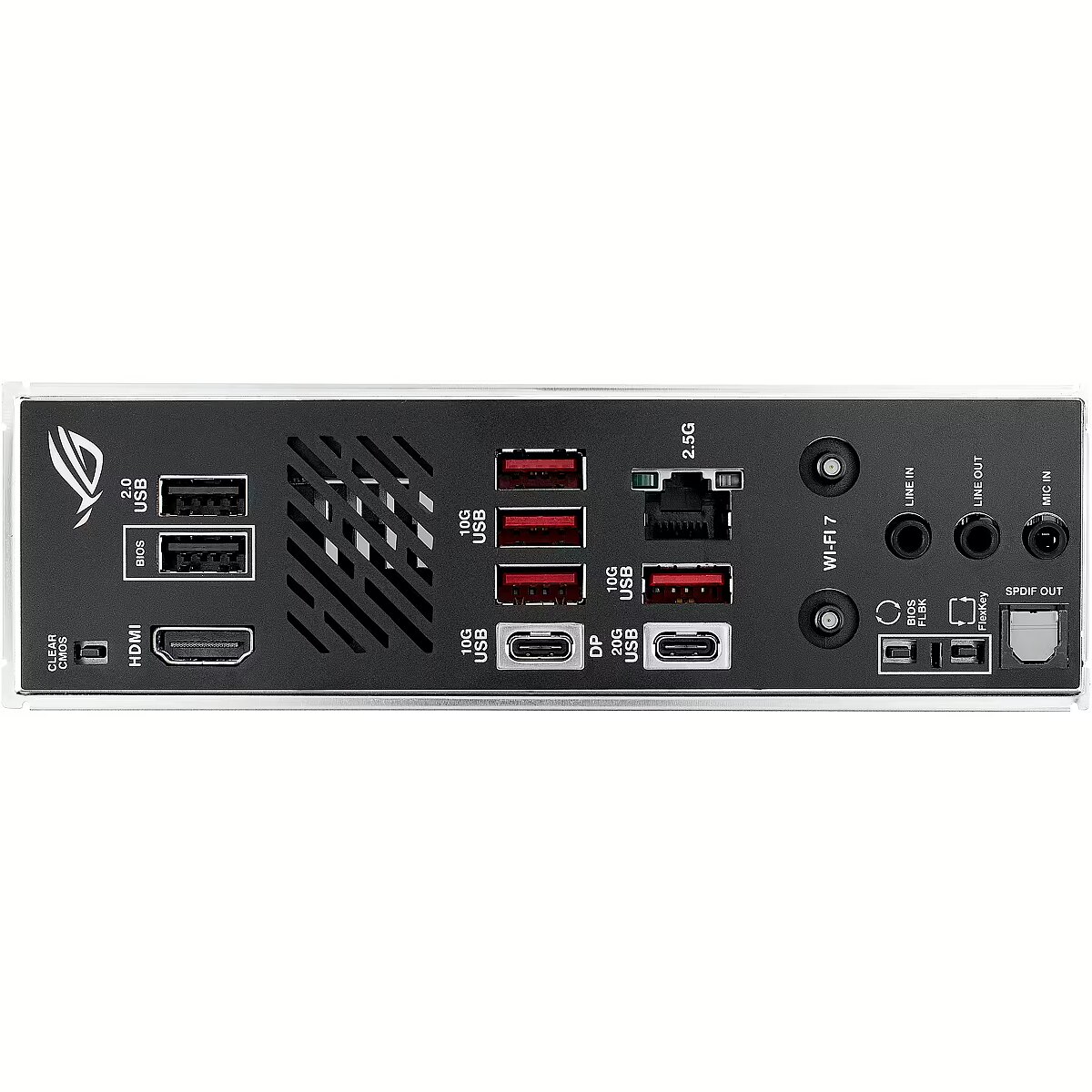

Rear panel I/O ports - Digital audio optical out - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
Safety warning - Warnings - Do not disassemble to avoid damage to internal components and loss of warranty.
SATA 3.0 Interface - Yes
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 47.2 cm
Shipping Box Height Shipping/Package Box Dimensions - 21 cm
Shipping box quantity - 6
Shipping Box Weight Shipping/Package Box Dimensions - 8.45 kg
Shipping Box Width Shipping/Package Box Dimensions - 31 cm
ShortDescription - Socket AM5 | Chipset AMD B850 | DDR5
ShortSummaryDescription - ASUS ROG STRIX B850-I GAMING WIFI, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 96 GB
sizeX - 230
sizeY - 100
sizeZ - 185
Socket - SAM5
Software - Oprogramowanie wyłącznie od ROG ROG CPU-Z Dolby Atmos Oprogramowanie wyłącznie od ASUS Armoury Crate
- AIDA64 Extreme (60-dniowy bezpłatny okres próbny)
- Aura Creator
- Aura Sync
- Fan Xpert 4
- GameFirst
- HWiNFO
- Oszczędzanie energii ASUS DriverHub ASUS GlideX TurboV Core Adobe Creative Cloud (bezpłatny okres próbny) Norton 360 for Gamers (60-dniowy bezpłatny okres próbny) WinRAR (40-dniowy bezpłatny okres próbny) UEFI BIOS ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Sound card - ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* Wykrywanie impedancji dla przednich i tylnych wyjść słuchawkowych Obsługuje: wykrywanie gniazda, przesyłanie strumieniowe, zmianę przeznaczenia gniazda mikrofonowego na przednim panelu Wysokiej jakości wyjście odtwarzania stereo SNR 120 dB i wejście nagrywania SNR 110 dB Obsługuje odtwarzanie do 32-bitów/384 kHz na przednim panelu Funkcje audio Technologia ekranowania SupremeFX Wzmacniacz Savitech SV3H712 Tylny optyczny port wyjściowy S/PDIF Kondensatory audio klasy premium Osłona audio * Do obsługi wyjścia audio 7.1 Surround Sound wymagana jest obudowa z modułem audio HD na przednim panelu.
** Port LINE OUT na tylnym panelu nie obsługuje dźwięku przestrzennego. Jeśli chcesz korzystać z dźwięku przestrzennego, podłącz urządzenie wyjściowe audio do gniazda audio na przednim panelu obudowy lub użyj urządzenia audio z interfejsem USB.
Special functions - Extreme Engine Digi+ 5K Black metallic concentrates ASUS Q-Design M.2 Q-Latch M.2 Q-Slide PCIe Slot Q-Release Slim (z PCIe SafeSlot) Q-Antenna Q-Dashboard Q-DIMM Q-LED (CPU [czerwony], DRAM [żółty], VGA [biały], Boot Device [żółto-zielony]) Q-Slot ASUS Thermal Solution M.2 heatsink backplate M.2 heatsink ASUS EZ DIY BIOS FlashBack button BIOS FlashBack LED Clear CMOS button ProCool Pre-mounted I/O shield SafeSlot SafeDIMM Aura Sync Addressable Gen 2 headers
Storage controllers - Number of HDDs supported - 2
Storage controllers - Number of storage drives supported - 4
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Title - ASUS ROG STRIX B850-I GAMING WIFI AMD B850 Socket AM5 mini ITX
TPM - Header
Unit Box Height - 0.186
Unit Box Length - 0.222
Unit Box Width - 0.097
Unit Brutto Volume - 0.005121 cubm
Unit Gross Weight - 1.41 kg
Unit Net Weight - 1.1 kg
URL - https://rog.asus.com/motherboards/rog-strix/rog-strix-b850-i-gaming-wifi/
USB-C Input/Output connectors - 1
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
USB ports at back panel - 8
USB ports on motherboard - 5
Vendor Homepage - rog.asus.com/motherboards/rog-strix/rog-strix-b850-i-gaming-wifi/
vendpn - ROG STRIX B850-I GAMING WIFI
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1.28
weight - 1290
Weight & dimensions - Depth - 170 mm
Weight & dimensions - Width - 170 mm
WiFi Interface - Yes
