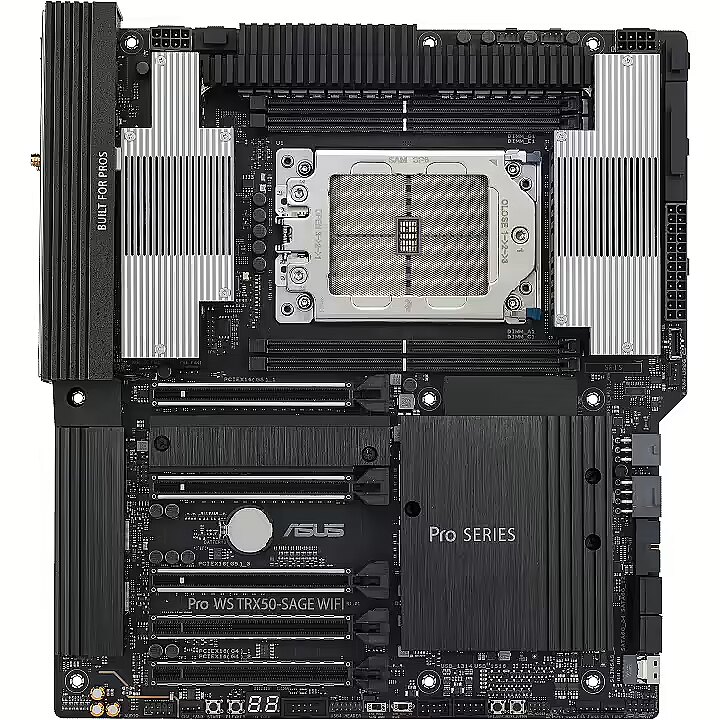

Asus PRO WS TRX50-SAGE WIFI

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1046192 Product code: 90MB1FZ0-M0EAY0
Can be ordered 20 units Availability: 14 days after order approval
Warranty: 3 years
828.36 €
Delivery options
  • Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
  • Delivery to Omniva parcel locker 1.99 €: 20.12.2024
  • Courier delivery 3.99 €: 20.12.2024
Main product parameters All parameters
  • Series: ASUS Pro Workstation
  • Plate size: CEB
  • Chipset: AMD TRX50
  • Socket: sTR5
  • Type: DDR5
  • RAM Slots: 4
  • Built-in Wi-Fi: Ir
  • M.2 ports: 3
Basic information
Series : ASUS Pro Workstation
Plate size CEB

The physical size of the motherboard. TopPC.ee offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD TRX50

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket sTR5
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR5
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 5200MHz

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Nav

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 0
DVI : 0
HDMI : 0
Integrated sound card : Realtek ALC1220
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Ir
Built-in Wi-Fi : Ir
External ports
External USB 2.0 : 2
External USB Type-C (USB 3.2 Gen2) : 1
External USB Type-C (USB 4.0) : 0
External USB 3.0 (USB 3.2 Gen1) : 0
External USB 3.1 (USB 3.2 Gen2) : 6
Internal ports
Internal A-RGB 5V (3-pin) : 0
Internal RGB 12V (4-pin) : 0
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C : 1
M.2 ports : 3
SATA3 ports : 4
More detailed specification
Additional information in manufacturers website Asus PRO WS TRX50-SAGE WIFI
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Brand - ASUS
BrandPartCode - 90MB1FZ0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category_1 - Motherboards
Category_2 - Motherboards - other
code - 90MB1FZ0-M0EAY0
dimensionalWeight - 2681
ean - 4711387402726
EAN - 4711387402726
Eans - 4711387402726
EAN_code - 4711387402726
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x16 (Gen 4.x) slots - 2
Expansion slots - PCI Express x16 (Gen 5.x) slots - 3
Features - Audio chip - Realtek ALC1220P
Features - Component for - Workstation
Features - Motherboard chipset - AMD TRX50
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - SSI CEB
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Features - Windows operating systems supported - Windows 11
Graphics - On-board graphics card - No
Gross Weight Kg - 4,1
GTIN - 4711387402726
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Integrated SAS ports - 1
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
LongDesc - A WORKSTATION WONDERLANDThe Pro WS TRX50-SAGE WIFI motherboard offers elite speed, compatibility and stability tailored to content creation, software development, machine learning and more. Thirty-six power stages fuel AMD Ryzen Threadripper™ PRO 7000 WX-series and AMD Ryzen Threadripper™ 7000 series processors with up to 96 cores, while supporting up to 1 TB of R-DIMM DDR5 modules, delivering the performance potential that professionals need for cutting-edge applications.With onboard PCIe® power connectors offering additional support for multiple graphics cards, active cooling and heat pipes on the VRM heatsinks, WiFi 7, USB 20Gbps port, SlimSAS and IMPI support, the Pro WS TRX50-SAGE WIFI comes prepared for a wide array of scenarios and industries.CPU AND MEMORY OVERCLOCKING READYFor AMD TR5 series workstations and high-end desktop (HEDT) models, AMD offers CPU and DRAM overclocking options. To fully leverage the performance of these processors, ASUS has incorporated an innovative dual PSU design on the Pro WS TRX50-SAGE WIFI motherboard. Along with robust power delivery and advanced cooling modules, this board exhibits remarkable stability during overclocking. Hardware switches and optimized BIOS options on the motherboard provide overclocking enthusiasts with greater convenience when pushing their systems to the limit. You may further boost your memory performance by enabling EXPO settings. The comprehensive synergy of EXPO and ECC R-DIMM further combines exceptional performance with outstanding stability, setting a new standard for workstation and high-end desktop computing.ProCool II ConnectorsProCool II connectors ensure a snug and reliable connection to the 12V CPU input. This second generation features improved heat dissipation and a metal shroud.Onboard PCIe Power ConnectorsAn 8-pin and 6-pin PCIe cable connector built into the motherboard can ensure power output stability when multiple graphic cards need to be installed.ECC R-DIMM Memory SupportThe Pro WS TRX50-SAGE WIFI motherboard boasts a robust design featuring four R-DIMM DDR5 memory module slots with ECC support, a feature that improves the prevention of system crashes and data corruption, thereby ensuring that a workstation remains reliable and responsive for professional demands.ULTRAFAST CONNECTIVITYMulti-GPU SupportThe Pro WS TRX50-SAGE WIFI motherboard features several PCIe® 5.0/4.0 x16 slots that provide flexible system configurability and expandability. With high-powered graphics cards, it can bring enhanced performance in modelling, simulation and rendering applicationsDual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput to improve signal quality and cover greater distances. With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.WiFi 7Next-gen WiFi 71 include the 6 GHz band and 4096 QAM, delivering up to 2.8X ultra-fast WiFi speeds. The revolutionary Multi-Link Operation (MLO)2 provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming, and industrial IoT.Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput to improve signal quality and cover greater distances. With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.Marvell® AQtion 10 Gbp EthernetWith up to 10 times the bandwidth of standard gigabit Ethernet, streaming uncompressed 4K UHD videos, performing system backups and transferring large files is now faster than ever before.Using a golden light, mark the location of the 2.5 Gbps Ethernet port on the back I/O.Intel® 2.5 Gb EthernetProvides up to 2.5 faster transfers versus standard 1 Gb Ethernet connections for faster downloads and smoother high-res video streaming.Embrace Next-Generation USB4®Faster than ever and future-proof; once connected to this motherboard’s onboard USB4 header, the USB4 expansion card will enable bi-directional speeds of up to 40 Gbps and provide ample power to fast-charge devices.M.2 PCIe 5.0/4.0 slotsThe Pro WS TRX50-SAGE WIFI motherboard also offers three M.2 slots—two PCIe 5.0 and one PCIe 4.0—to enhance storage flexibility and performance. This configuration is ideal for creators who work with massive video files, as it supports RAID configurations across multiple NVMe devices to achieve massive I/O bandwidth and to ensure seamless playback in editing bays.SlimSAS slotThe Pro WS TRX50-SAGE WIFI motherboard also features a SlimSAS port for connecting industrial SSD drives, servers and networking equipment.Server-grade Remote ManagementASUS IPMI Expansion CardThe Pro WS TRX50-SAGE WIFI is compatible with ASUS IPMI Expansion card featuring a dedicated Ethernet-to-BMC chip that provides the intelligence for its IPMI architecture. Administrators can remotely communicate with the BMC to take some corrective actions — such as firmware update or power cycling a system.ASUS Control Center ExpressThe Pro WS TRX50-SAGE WIFI comes with ASUS Control Center Express - a real-time IT monitoring and management software designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks.M.2 CoolingAll three M.2 slots come with large heatsinks to keep NVMe storage at the optimal operating temperature for consistent performance and reliability. M.2 thermal pads on select slots go even further to ensure peak performance from next-gen drives.EZ DIY DesignSafeSlot & SafeDIMMPCIe 5.0 is 2x faster than PCIe 4.0, so ASUS adapted its SMT manufacturing process to ensure the highest data speeds for its SafeSlot design. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep an expansion card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on ASUS Pro series workstation motherboards, empowering users to insert modules with speed, accuracy and confidence.Q-LatchThe innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. This design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.24/7 ReliabilityBuilt for around-the-clock operationOptimized for 24/7 operation, the Pro WS TRX50-SAGE WIFI motherboard is tested to work at up to 45°C and 80% humidity, ensuring it can handle diverse operating environments.
LongProductName - AMD TR5 CEB workstation motherboard, CPU and memory overclocking ready, robust 36 power-stage design, PCIe 5.0 x 16, PCIe 5.0 M.2, 10 Gb and 2.5 Gb LAN, multi-GPU support
LongSummaryDescription - ASUS Pro WS TRX50-SAGE WIFI. Processor manufacturer: AMD, Processor socket: Socket sTR5, Compatible processor series: AMD Ryzen™ Threadripper™. Supported memory types: DDR5-SDRAM, Memory slots type: DIMM, Memory channels: Quad-channel. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, LAN controller: Intel I226-LM, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Manufacturer - Asus
Manufacturer - ASUS
Manufacturer Code - 90MB1FZ0-M0EAY0
Manufacturer Name - Asustek
Manufacturer_code - 90MB1FZ0-M0EAY0
Memory - ECC - Yes
Memory - Memory channels - Quad-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5 ECC RDIMM
Memory - Supported memory types - DDR5-SDRAM
MPN - 90MB1FZ0-M0EAY0
Name - ASUS Pro WS TRX50-SAGE WIFI
Name - ASUS PRO WS TRX50-SAGE WIFI
name - ASUS Pro WS TRX50-Sage WiFi, AMD TRX50 Mainboard, Sockel sTR5, DDR5
Name - ASUS PRO WS TRX50-SAGE WIFI - Socket sTR5 - motherboard
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet interface type - 2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Network - Ethernet interface type - 10 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Intel I226-LM
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Other features - Weight - 2.53 kg
Packaging content - Cables included - PCIe, SATA
Packaging data - Package depth - 380 mm
Packaging data - Package height - 100 mm
Packaging data - Package weight - 4.85 kg
Packaging data - Package width - 320 mm
Processor - Compatible processor series - AMD Ryzen™ Threadripper™
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket sTR5
Producer - Asus
producerCode - 90MB1FZ0-M0EAY0
ProducerCode - Pro WS TRX50-SAGE WIFI
productName - ASUS Pro WS TRX50-SAGE WIFI AMD TRX50 Socket sTR5 SSI CEB
ProductName - Pro WS TRX50-SAGE WIFI
productSize - Normal
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 2
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 6
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - USB connector type - USB Type-A, USB Type-C
Rear panel I/O ports - USB connector type - USB Type-C
Rear panel I/O ports - WiFi-AP antenna jack - 1
Short description - ASUS PRO WS TRX50-SAGE WIFI sTR5/3xM.2/Wifi7/E-ATX WiFi 7 included
ShortDescription - Socket sTR5|
ShortSummaryDescription - ASUS Pro WS TRX50-SAGE WIFI, AMD, Socket sTR5, AMD Ryzen™ Threadripper™, DDR5-SDRAM, DIMM, Quad-channel
sizeX - 325
sizeY - 110
sizeZ - 375
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 7
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical_details - The ASUS PRO WS TRX50-SAGE WIFI is based on the AMD TRX50 chipset and supports AMD processors for Socket AM4. It has four DDR5 slots for up to 1024 GB of memory. The ASUS PRO WS TRX50-SAGE WIFI's additional features include three PCIe 5.0 x16 slots (one with (x8 lanes), one PCIe 4.0 x16 slot and one PCIe 4.0 x16 slot (x4 lanes). .The ASUS PRO WS TRX50-SAGE WIFI also has 8-channel sound, a 10 Gigabit LAN, a 2.5 Gigabit LAN interface, four SATA3 ports, three M.2 ports, WiFi 7, Bluetooth 5.4 and a range of USB interfaces. Item no.: 100030528 Mainboard type Color black/gray EAN 4711387402726 Manufacturer no. 90MB1FZ0-M0EAY0 Socket sTR5 Max. supported CPUs 1 Processor Supported Models [Ryzen Threadripper 79xxX, Ryzen Threadripper PRO 79xxWX] Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series processors Chipset AMD TRX50 Slots PCIe x16 5x (of which: 3x PCIe x16, 1x PCIe x8, 1x PCIe x4) BIOS 256Mb Flash ROM, UEFI AMI BIOS Form factor SSI-CEB Use PC Power supply ATX12V (24-pin + 2x 8-pin) Memory maximum 1024 GB Intel® I226-LM 2.5Gb Ethernet Ports (external) USB-A 3.2 Gen 2 (10 Gbit/s) 6 Connectors (internal) SATA 4 SATA controller AMD TRX50 chipset USB controller AMD TRX50 chipset Sound Realtek ALC1220P Surround Sound High Definition Audio CODEC LAN 2x2 Wi-Fi 7 (802.11be), Bluetooth v5.4 Further information In order to support the latest processor cores, a BIOS update may be required. Dimensions Width: 280mm x Height: 305mm
Title - ASUS Pro WS TRX50-SAGE WIFI AMD TRX50 Socket sTR5 SSI CEB
URL - https://www.asus.com/motherboards-components/motherboards/workstation/pro-ws-trx50-sage-wifi/
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 3,80
Weight - 3.78
weight - 3830
Weight & dimensions - Depth - 280 mm
Weight & dimensions - Width - 305 mm
