Air flow rates - 60.98 cfm
Brand - Zalman
BrandPartCode - CNPS9X OPTIMA
Category - Computer Cooling Systems
Cooling technology - Air
CPU socket - LGA1150
CPU socket - LGA1151
CPU socket - LGA1155
CPU socket - LGA1156
CPU socket - LGA1200
CPU socket - Socket AM1
CPU socket - Socket AM2+
CPU socket - Socket AM3
CPU socket - Socket AM3+
CPU socket - Socket AM4
CPU socket - Socket FM2
CPU socket - Socket FM2+

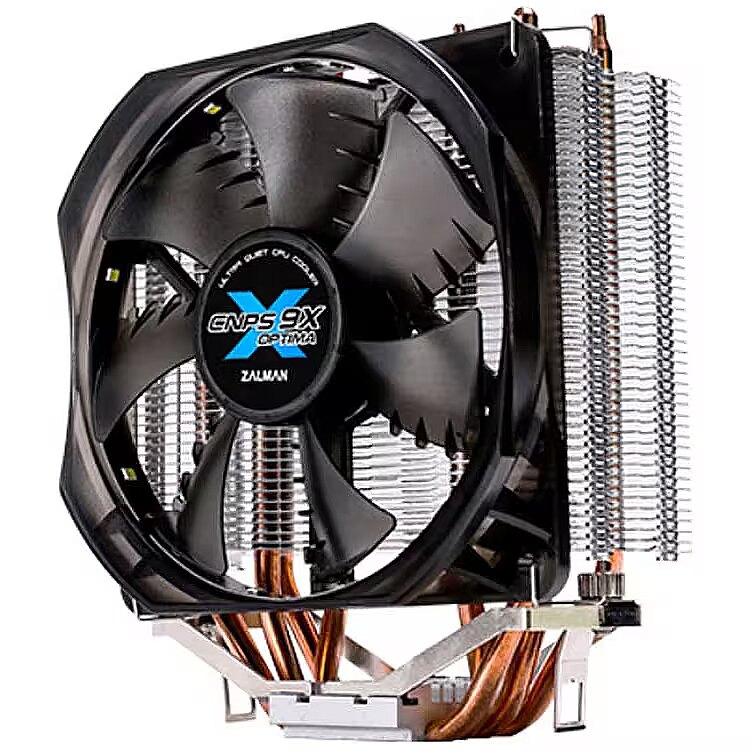

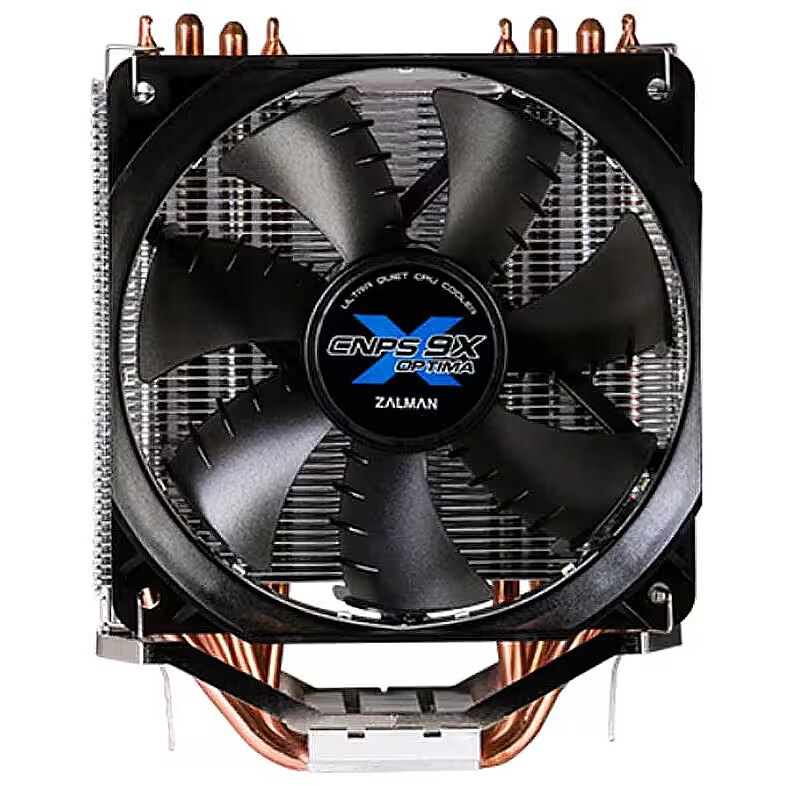

Description - CPU Cooler CNPS9X OPTIMA Excellent cooling performance DTH (Direct Touch Heatpipes) Low noise 120mm PWM white LED fan Long-life rifle bearing Environment with a low noise level at 26dBA Shark fin blade Easy and simple installation A high performance thermal grease "ZM-STG2M" Excellent cooling performance
An optimally designed aluminum radiation fin and 4 heatpipes are used to release heat from CPU effectively (Supports up to 180W TDP)
DTH(Direct Touch Heatpipe) Base
The DTH(Direct Touch Heatpipes) technology, which transfers heat from the CPU to a heatpipes directly, is used for minimizing themal resistance and maximizing cooling performance.

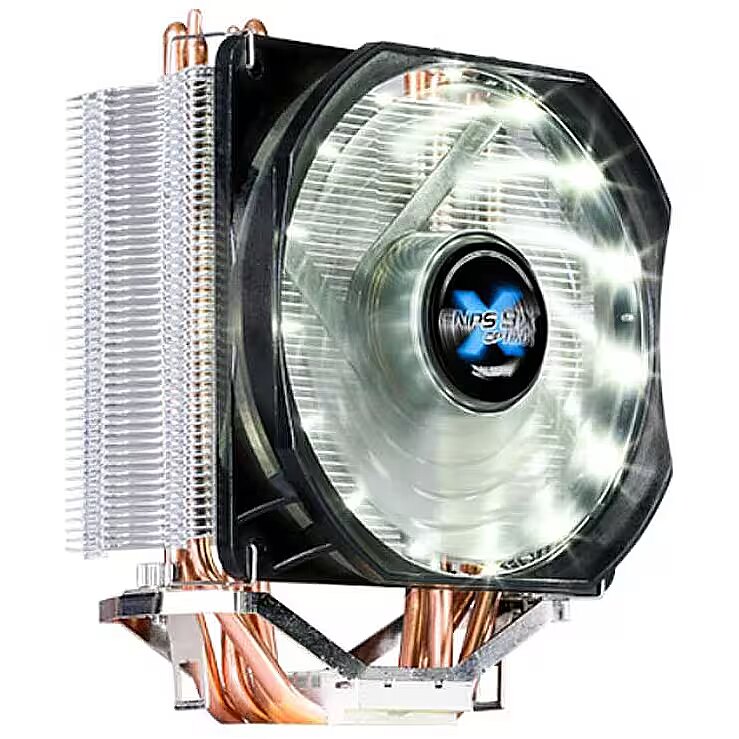

Low noise 120mm PWM white LED fan
A rifle bearing is used, ensuring a long life and a quiet environment, and the PWM function is supported so that it automatically adjusts the RPM to fit the temperature of the CPU.
Also, a 15dot white LED is used, maximizing splendid and stylish tuning effects.
Long-life rifle bearing
A rifle bearing which boasts low noise and high durability is used to ensure stable use of the product for a long period of time.
Environment with a low noise level at 26dBA
A 120mm PWM white LED fan is used, providing powerful cooling performance as well as an environment with a low noise level at 26dBA.
Shark fin blade
A shark fin blade which is optimized for air flow is applied, minimizing noises and vibration through a fixed air flow while increasing the air volume.
Easy and simple installation
A multi clip support which can be installed easily even by a beginner is provided, ensuring easy installation and excellent compatibility.
Design - Illumination colour - White
Design - Illumination LED - Yes
Design - Material - Aluminium, Copper
Design - Number of fans - 1 fan(s)
Design - Number of heat pipes - 4
Design - Product colour - Aluminium, Black, Copper
dimension depth - 125 mm
dimension height - 200 mm
Dimensions -
dimension weight - 727 g
dimension width - 175 mm
ean - 8809213769061
Fan - 12 cm
Fan speed (max) - 1500 rpm
Fan speed (min) - 600 rpm
GTIN - 8809213769061
guarantee - 24
guarantee_type - normal
LongDesc - Low noise 120 mm PWM LED fan AMD and Intel CPU cooler. Uses 4 heat pipes and long-life rifle bearing.
LongProductName - 600 ~ 1500 ±10% RPM, Pure Copper, Aluminum, Intel: LGA115X/775CPUs, AMD: AM4/AM3+/AM3/FM2+/FM2CPUs&APUs, 26 dB
LongSummaryDescription - Zalman CNPS9X Optima. Type: Cooler, Fan diameter: 12 cm, Rotational speed (min): 600 RPM, Rotational speed (max): 1500 RPM, Noise level (high speed): 26 dB, Maximum airflow: 60.98 cfm, Bearing type: Rifle bearing. Width: 123 mm, Depth: 72 mm, Height: 156 mm. Product colour: Aluminium, Black, Copper
name - CPU Cooler CNPS9X OPTIMA 120mm White LED
Noise - 26 dB
Number of fans - 1
Number of Heatpipe tubes - 4
Other features - Max. Fan air pressure 1.6mmho Fan life 40,000 hours 4-pin fan connector Fan control method PWM Control, Auto Reset Rated voltage 12V DC Rated current 0.18A. Power Consumption 2.16W
Packaging content - Mounting kit - Yes
Packaging content - Screws included - Yes
Performance - Bearing type - Rifle bearing
Performance - Fan diameter - 12 cm
Performance - Maximum airflow - 60.98 cfm
Performance - Noise level (high speed) - 26 dB
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Rotational speed (max) - 1500 RPM
Performance - Rotational speed (min) - 600 RPM
Performance - Suitable location - Processor
Performance - Supported processor sockets - LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 775 (Socket T), Socket AM3, Socket AM3+, Socket AM4, Socket FM2, Socket FM2+
Performance - Type - Cooler
Power - Thermal Design Power (TDP) - 150 W
producer - Zalman
ProductName - CNPS9X Optima
Radiator - Aluminum-Copper
ShortSummaryDescription - Zalman CNPS9X Optima, Cooler, 12 cm, 600 RPM, 1500 RPM, 26 dB, 60.98 cfm
Stand / CPU block - Aluminum-Copper
Title - Zalman CNPS9X Optima Processor Cooler 12 cm Aluminium, Black, Copper
Type of cooling - Active
URL - https://www.zalman.com/EN/Product/ProductDetail.do#none
vendpn - CNPS9X OPTIMA
WarrantyInfo -
Weight - 594 g
Weight & dimensions - Depth - 72 mm
Weight & dimensions - Height - 156 mm
Weight & dimensions - Weight - 594 g
Weight & dimensions - Width - 123 mm
