ID: 158999
Product code: NF-A8 PWM
Can be ordered 170 units Availability: 14 days after order approval
Warranty: 3 years

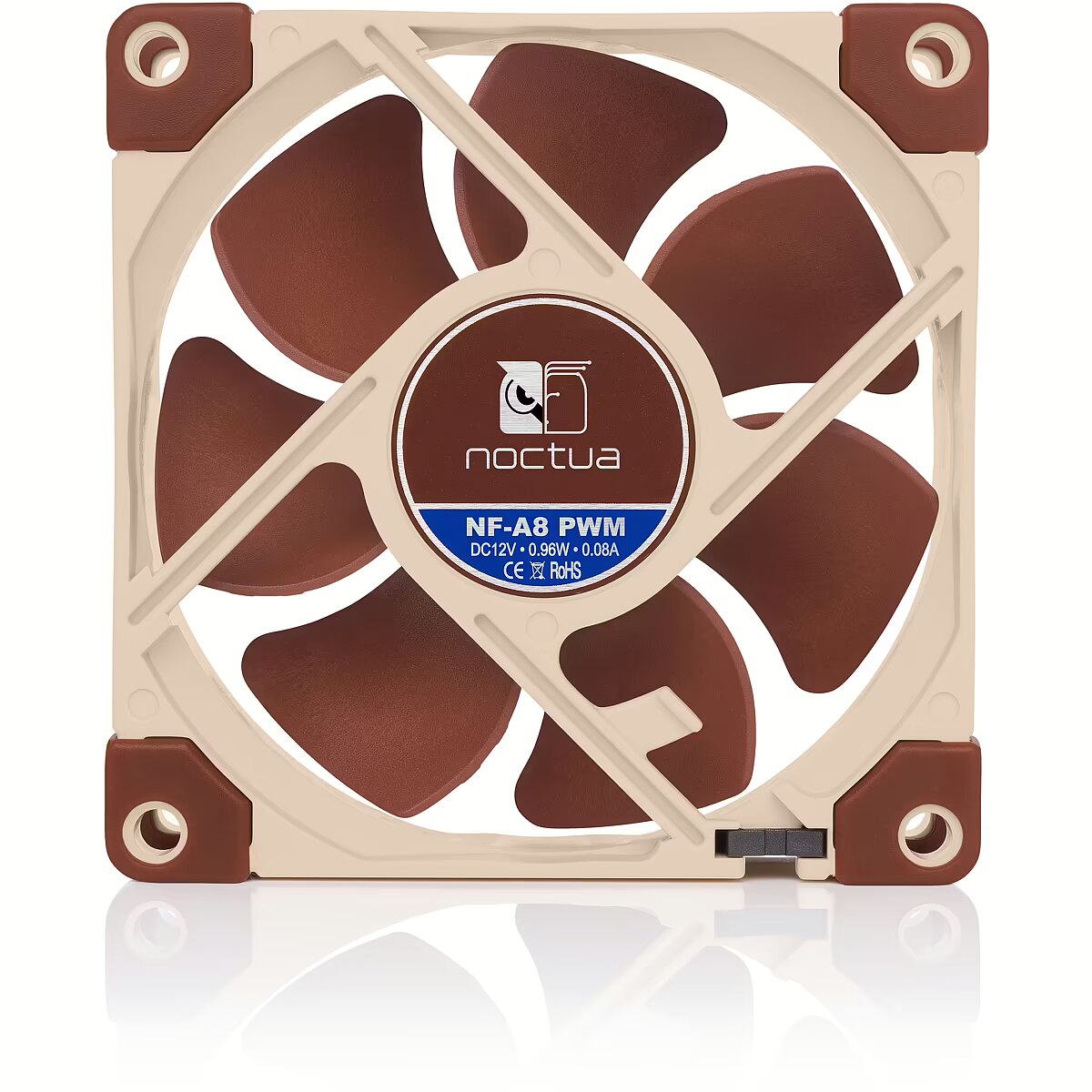

Noctua NF-A8 PWM
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: 10.12.2024
- Courier delivery 3.99 €: 10.12.2024
Main product parameters All parameters
- Producer: Noctua
- LED izgaismojuma krāsa: Nav
- Output Interface: 4-pin (PWM)
- Revolutions (MIN), rpm: 450
- RPM (MAX), rpm: 2200
- Size, mm: 80
- Sound level (MAX), dB(A): 17.7
- Units in package: 1
All parameters
Producer
: Noctua
Type of lighting
: Bez apgaismojuma
Basic information
LED izgaismojuma krāsa
: Nav
Output Interface
: 4-pin (PWM)
RPM (MAX), rpm
: 2200
Size, mm
: 80
Sound level (MAX), dB(A)
: 17.7
Units in package
: 1
More detailed specification
category - Aircooling|Fans|PWM Fans
Category - Root/Electronics/PC parts/Cooling/Casing fans
Category_1 - Computer Cases and Cooling
Category_2 - Fans
code - NF-A8 PWM
Design - Product colour - Beige
Design - Product colour - Bronze
dimensionalWeight - 201
ean - 4716123315476
Eans - 4716123315476
EAN_code - 4716123315476
Logistics data - Harmonized System (HS) code - 84733080
Manufacturer - Noctua
Manufacturer_code - NF-A8 PWM
Name - Noctua NF-A8 PWM
Name - Noctua NF-A8 PWM - 80mm
name - Noctua NF-A8 PWM Lüfter - 80mm
Performance - Airflow - 55.5 m³/h
Performance - Fan diameter - 8 cm
Performance - Mean time between failures (MTBF) - 150000 h
Performance - Noise level (high speed) - 17.7 dB
Performance - Noise level (low speed) - 13.8 dB
Performance - Rotational speed (max) - 2200 RPM
Performance - Rotational speed (min) - 450 RPM
Performance - Suitable location - Computer case
Performance - Type - Fan
Power - Maximum current - 0.08 A
Power - Power supply - 0.96 W
Power - Voltage - 12 V
Producer - Noctua
producerCode - NF-A8 PWM
ProducerCode - NF-A8 PWM
productName - Noctua NF-A8 PWM computer cooling system Computer case Fan 8 cm Beige, Brown
productSize - Normal
ShortDescription - Wentylator|80|PWM|12V|
sizeX - 150
sizeY - 32
sizeZ - 210
Technical_details - The NF-A8 is a highly optimised, premium quality quiet 80mm fan. Featuring Noctua’s AAO (Advanced Acoustic Optimisation) frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A8 further improves the renowned quiet cooling performance of the award-winning NF-R8. The PWM version sports Noctua’s custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 2200 to 1750rpm. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands. Attachment screwed Power Connection PWM fan connector Fan Bearing SSO Power Input 0 - 0.96 watt(s) Voltage Range 0 - 12 V Number of Revolutions 450 - 2200 rpm Volume 13.8 - 17.7 dB(A) Volumetric Flow 0 - 55.5 m3/h, 0 - 32.7 cfm Dimensions Fans Fan 1 80 x 25 x 80 mm RoHS Compliant Yes
warrantyLength - 72
warrantyType - F
Weight - 0,24
weight - 240
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Width - 80 mm
