ID: 158979
Product code: NF-A14 PWM
Can be ordered 135 units Availability: 14 days after order approval
Warranty: 3 years

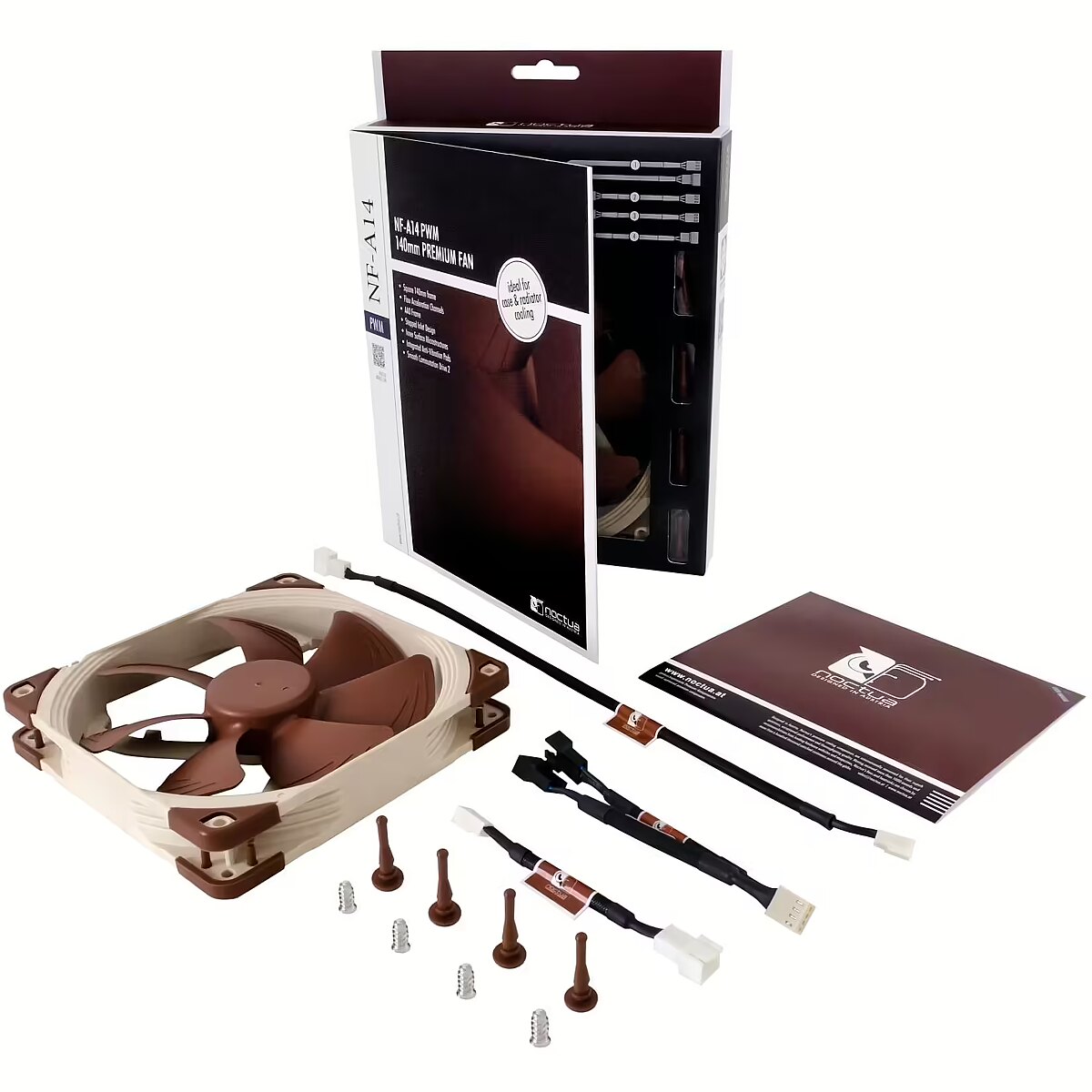

Noctua NF-A14 PWM
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: 11.12.2024
- Courier delivery 3.99 €: 11.12.2024
Main product parameters All parameters
- Producer: Noctua
- LED izgaismojuma krāsa: Nav
- Output Interface: 4-pin (PWM)
- Revolutions (MIN), rpm: 300
- RPM (MAX), rpm: 1500
- Size, mm: 140
- Sound level (MAX), dB(A): 24.6
- Units in package: 1
All parameters
Producer
: Noctua
Type of lighting
: Bez apgaismojuma
Basic information
LED izgaismojuma krāsa
: Nav
Output Interface
: 4-pin (PWM)
RPM (MAX), rpm
: 1500
Size, mm
: 140
Sound level (MAX), dB(A)
: 24.6
Units in package
: 1
More detailed specification
category - Aircooling|Fans|PWM Fans
Category - Root/Electronics/PC parts/Cooling/Casing fans
Category_1 - Computer Cases and Cooling
Category_2 - Fans
code - NF-A14-PWM
Design - Material - Plastic
Design - Number of fans - 1 fan(s)
Design - Product colour - Bronze
dimensionalWeight - 252
ean - 4716123314981
Eans - 4716123314981
EAN_code - 4716123314981
Manufacturer - Noctua
Manufacturer_code - NF-A14 PWM
Name - Noctua NF-A14 PWM
Name - Noctua NF-A14 PWM - 140mm
name - Noctua NF-A14-PWM Lüfter - 140mm
Other features - Connector(s) - 4-pin
Performance - Airflow - 140.2 m³/h
Performance - Compatible processor series - Not supported
Performance - Fan diameter - 14 cm
Performance - Maximum air pressure - 2.08 mmH2O
Performance - Mean time between failures (MTBF) - 150000 h
Performance - Minimum air pressure - 1.51 mmH2O
Performance - Noise level (high speed) - 24.6 dB
Performance - Noise level (low speed) - 19.2 dB
Performance - Rotational speed (max) - 1500 RPM
Performance - Rotational speed (min) - 300 RPM
Performance - Suitable for - Computer case
Performance - Supported processor sockets - Not supported
Performance - Type - Fan
Power - Maximum current - 0.13 A
Power - Power consumption (typical) - 1.56 W
Power - Voltage - 12 V
Producer - Noctua
producerCode - NF-A14 PWM
ProducerCode - NF-A14 PWM
productName - Noctua NF-A14 PWM Computer case Fan 14 cm Brown
productSize - Normal
ShortDescription - Wentylator|140|PWM|12V|
sizeX - 175
sizeY - 30
sizeZ - 240
Technical_details - The NF-A14 is a premium quality quiet 140mm fan with a square frame that complies with Noctua’s AAO (Advanced Acoustic Optimisation) standard. Its square shape and 140mm mounting holes (124.5mm spacing) make it ideal for use on watercooling radiators or as an upgrade for 140mm case fans. Featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A14 further improves the renowned quiet cooling performance of the award-winning NF-P14. The PWM version sports Noctua’s custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 1500rpm to 1200rpm. Its performance-oriented 1500rpm top speed and comprehensive speed control options make the NF-A14 PWM an elite choice for users who strive to strike a perfect balance between excellent cooling capacity and superb quietness of operation, be it on watercooling radiators, on heatsinks or in case ventilation. Attachment screwed Power Connection PWM fan connector Fan Bearing SSO Power Input 0 - 1.56 watt(s) Voltage Range 0 - 12 V Number of Revolutions 300 - 1500 rpm Volume 19.2 - 24.6 dB(A) Volumetric Flow 115.5 - 140.2 m3/h, 68 - 82.5 cfm Cabel Length 30 m Dimensions Fans Fan 1 140 x 140 x 25 mm
warrantyLength - 72
warrantyType - F
Weight - 0,37
weight - 380
Weight & dimensions - Depth - 25 mm
Weight & dimensions - Height - 140 mm
Weight & dimensions - Width - 140 mm
