ID: 1202155
Product code: ACFAN00248A
Can be ordered 2 units Availability: 14 days after order approval
Warranty: 3 years

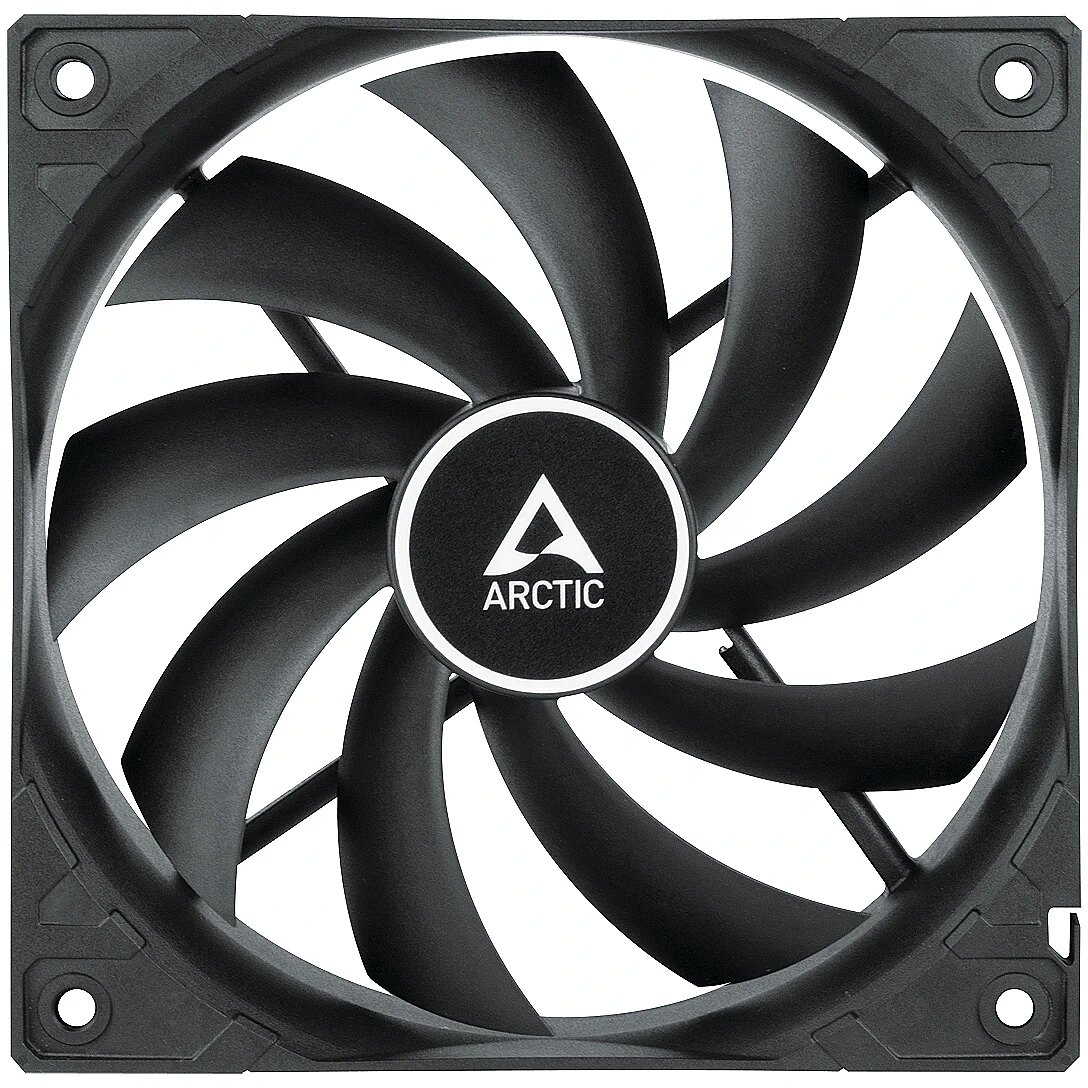

Arctic F12, Black, 5 Pack
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost 1.99 €: 18.04.2025
- Delivery to Omniva parcel locker 1.99 €: 18.04.2025
- Courier delivery 3.99 €: 18.04.2025
Main product parameters All parameters
- Producer: Arctic
- LED izgaismojuma krāsa: Nav
- Output Interface: 4-pin (PWM)
- Revolutions (MIN), rpm: Nav norādīts
- RPM (MAX), rpm: 1350
- Size, mm: 120
- Sound level (MAX), dB(A): 23.5
- Units in package: 5
All parameters
Producer
: Arctic
Type of lighting
: Without lighting
Basic information
Direction of air flow
: Standarta
LED izgaismojuma krāsa
: Nav
Output Interface
: 4-pin (PWM)
RPM (MAX), rpm
: 1350
Size, mm
: 120
Sound level (MAX), dB(A)
: 23.5
Units in package
: 5
More detailed specification
Brand - ARCTIC
BrandPartCode - ACFAN00248A
Category - Computer Cooling Systems
Design - Fan connector - 3-pin
Design - Number of fans - 5 fan(s)
Design - Product colour - Black
GTIN - 4895213703291
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - The F12 case fans are exceptionally quiet and cost effective solutions with efficient cooling performance. The patented low noise impeller maximizes the volume of airflow to offer optimal performance at relatively low fan speed.
LongProductName - 120 mm, 1350 RPM, 53 CFM/ 90.1 m³/h, 1 mm/H²O, 12 V DC, 107 g, Black, 5 pcs.
LongSummaryDescription - ARCTIC F12 - 120 mm Standard Case Fan. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 0 RPM, Rotational speed (max): 1350 RPM, Noise level: 0.3 sone, Airflow: 90.1 m³/h, Minimum air pressure: 1 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 120 mm, Depth: 120 mm, Height: 25 mm. Product colour: Black
Other features - Country of origin - Hong Kong
Packaging content - Package type - Box
Performance - Airflow - 90.1 m³/h
Performance - Bearing type - Fluid Dynamic Bearing (FDB)
Performance - Compatible processor series - Not supported
Performance - Fan diameter - 12 cm
Performance - Maximum airflow - 53 cfm
Performance - Minimum air pressure - 1 mmH2O
Performance - Noise level - 0.3 sone
Performance - Operating temperature (T-T) - 0 - 40 °C
Performance - Quantity per pack - 5 pc(s)
Performance - Rotational speed (max) - 1350 RPM
Performance - Rotational speed (min) - 0 RPM
Performance - Suitable location - Computer case
Performance - Supported processor sockets - Not supported
Performance - Type - Fan
Power - Rated current - 0.12 A
Power - Starting voltage - 2.7 V
Power - Voltage - 12 V
ProductName - F12 - 120 mm Standard Case Fan
ShortSummaryDescription - ARCTIC F12 - 120 mm Standard Case Fan, Fan, 12 cm, 0 RPM, 1350 RPM, 0.3 sone, 90.1 m³/h
Title - ARCTIC F12 - 120 mm Standard Case Fan
URL - https://www.arctic.de/en/F12/ACFAN00248A
WarrantyInfo - 6 Year
Weight & dimensions - Cable length - 0.4 m
Weight & dimensions - Depth - 120 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Package depth - 137 mm
Weight & dimensions - Package height - 127 mm
Weight & dimensions - Package weight - 642 g
Weight & dimensions - Package width - 123 mm
Weight & dimensions - Weight - 107 g
Weight & dimensions - Width - 120 mm
BrandPartCode - ACFAN00248A
Category - Computer Cooling Systems
Design - Fan connector - 3-pin
Design - Number of fans - 5 fan(s)
Design - Product colour - Black
GTIN - 4895213703291
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - The F12 case fans are exceptionally quiet and cost effective solutions with efficient cooling performance. The patented low noise impeller maximizes the volume of airflow to offer optimal performance at relatively low fan speed.
LongProductName - 120 mm, 1350 RPM, 53 CFM/ 90.1 m³/h, 1 mm/H²O, 12 V DC, 107 g, Black, 5 pcs.
LongSummaryDescription - ARCTIC F12 - 120 mm Standard Case Fan. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 0 RPM, Rotational speed (max): 1350 RPM, Noise level: 0.3 sone, Airflow: 90.1 m³/h, Minimum air pressure: 1 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 120 mm, Depth: 120 mm, Height: 25 mm. Product colour: Black
Other features - Country of origin - Hong Kong
Packaging content - Package type - Box
Performance - Airflow - 90.1 m³/h
Performance - Bearing type - Fluid Dynamic Bearing (FDB)
Performance - Compatible processor series - Not supported
Performance - Fan diameter - 12 cm
Performance - Maximum airflow - 53 cfm
Performance - Minimum air pressure - 1 mmH2O
Performance - Noise level - 0.3 sone
Performance - Operating temperature (T-T) - 0 - 40 °C
Performance - Quantity per pack - 5 pc(s)
Performance - Rotational speed (max) - 1350 RPM
Performance - Rotational speed (min) - 0 RPM
Performance - Suitable location - Computer case
Performance - Supported processor sockets - Not supported
Performance - Type - Fan
Power - Rated current - 0.12 A
Power - Starting voltage - 2.7 V
Power - Voltage - 12 V
ProductName - F12 - 120 mm Standard Case Fan
ShortSummaryDescription - ARCTIC F12 - 120 mm Standard Case Fan, Fan, 12 cm, 0 RPM, 1350 RPM, 0.3 sone, 90.1 m³/h
Title - ARCTIC F12 - 120 mm Standard Case Fan
URL - https://www.arctic.de/en/F12/ACFAN00248A
WarrantyInfo - 6 Year
Weight & dimensions - Cable length - 0.4 m
Weight & dimensions - Depth - 120 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Package depth - 137 mm
Weight & dimensions - Package height - 127 mm
Weight & dimensions - Package weight - 642 g
Weight & dimensions - Package width - 123 mm
Weight & dimensions - Weight - 107 g
Weight & dimensions - Width - 120 mm
