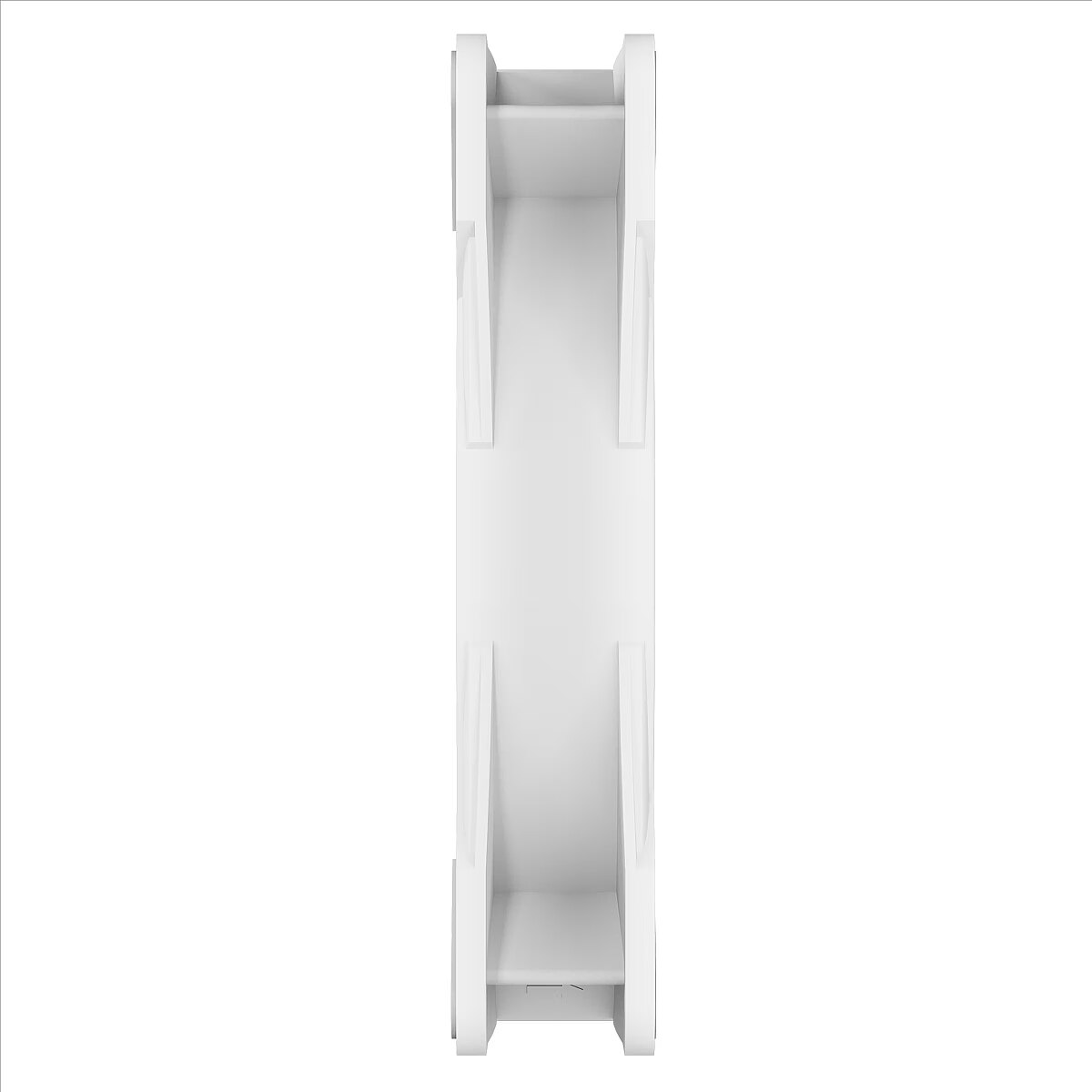

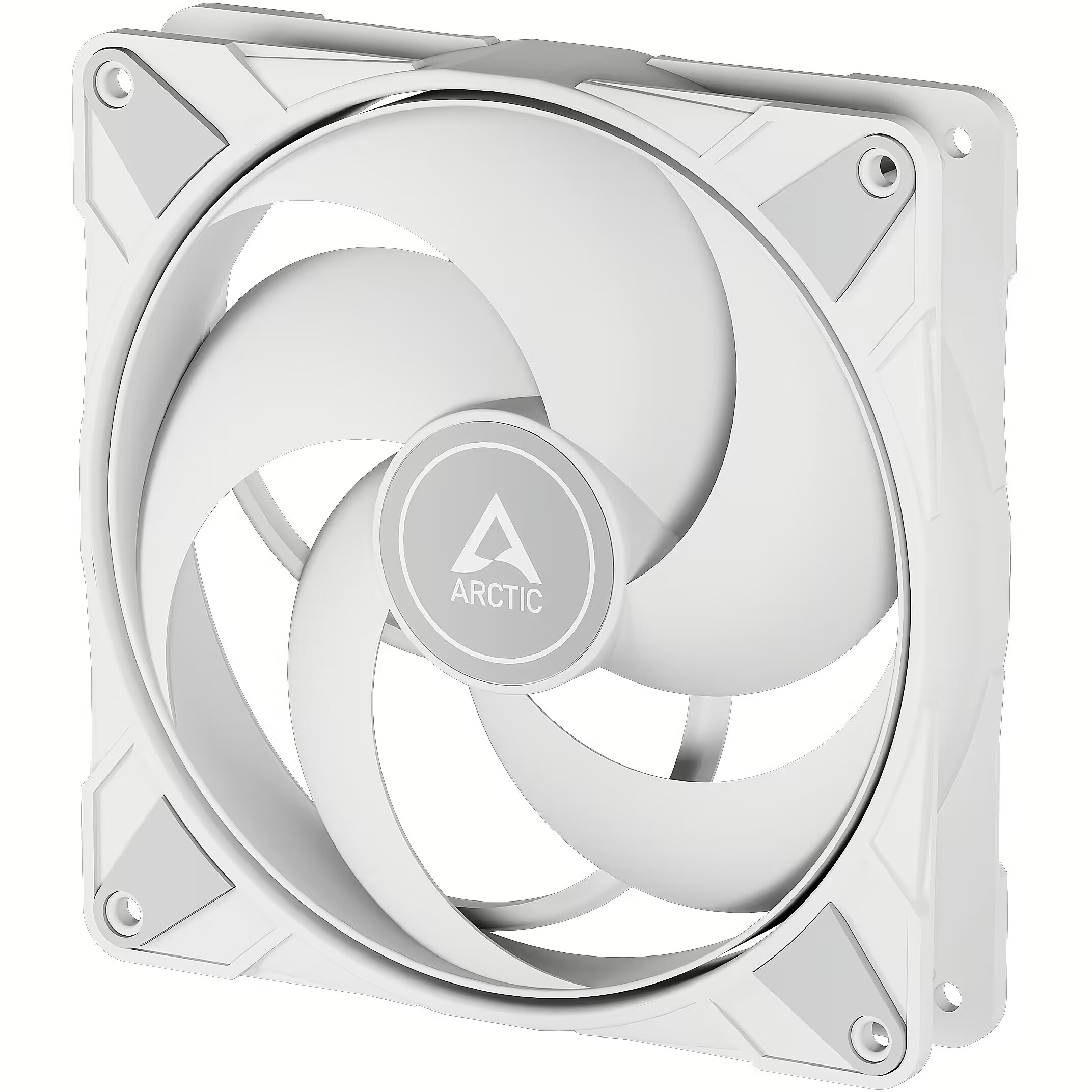

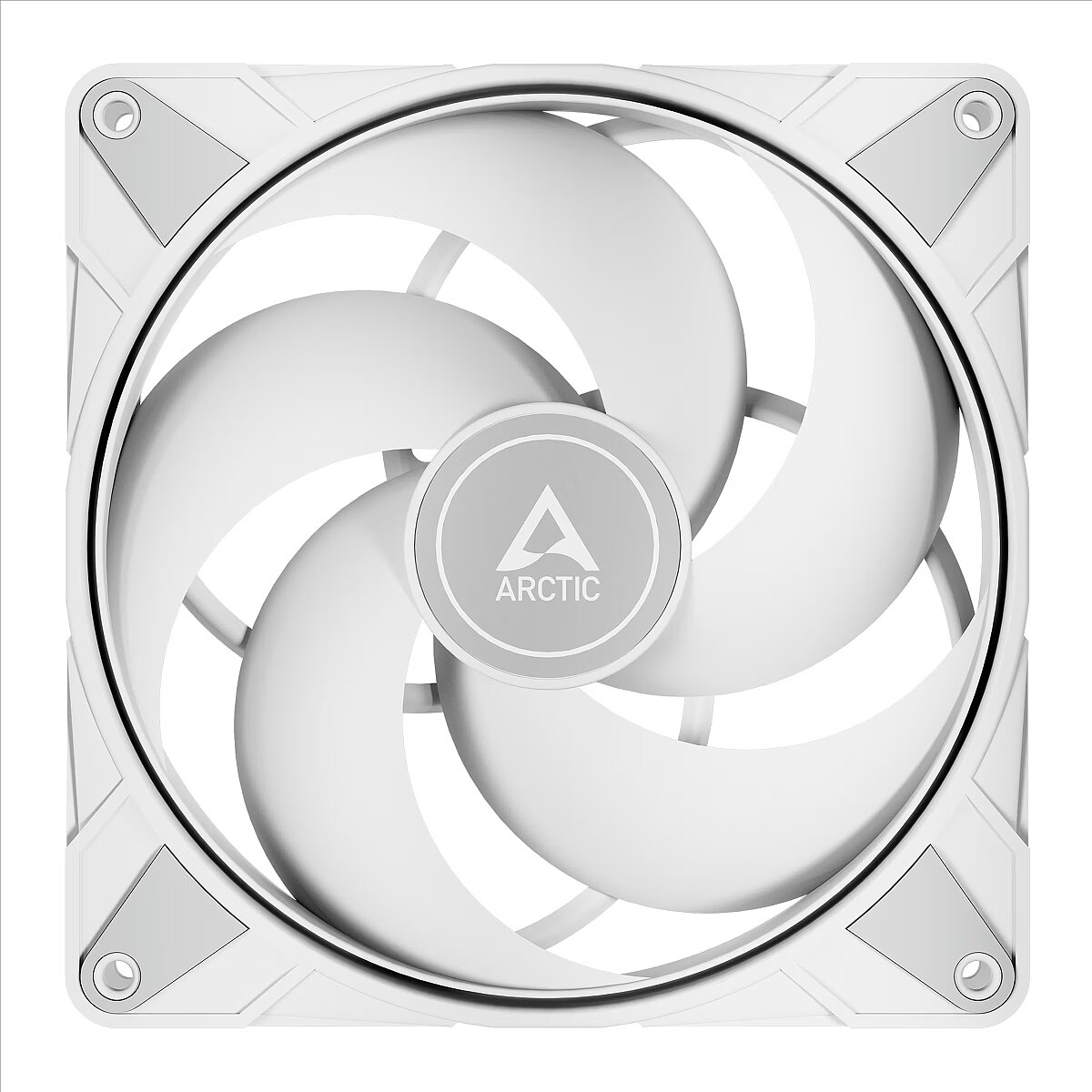

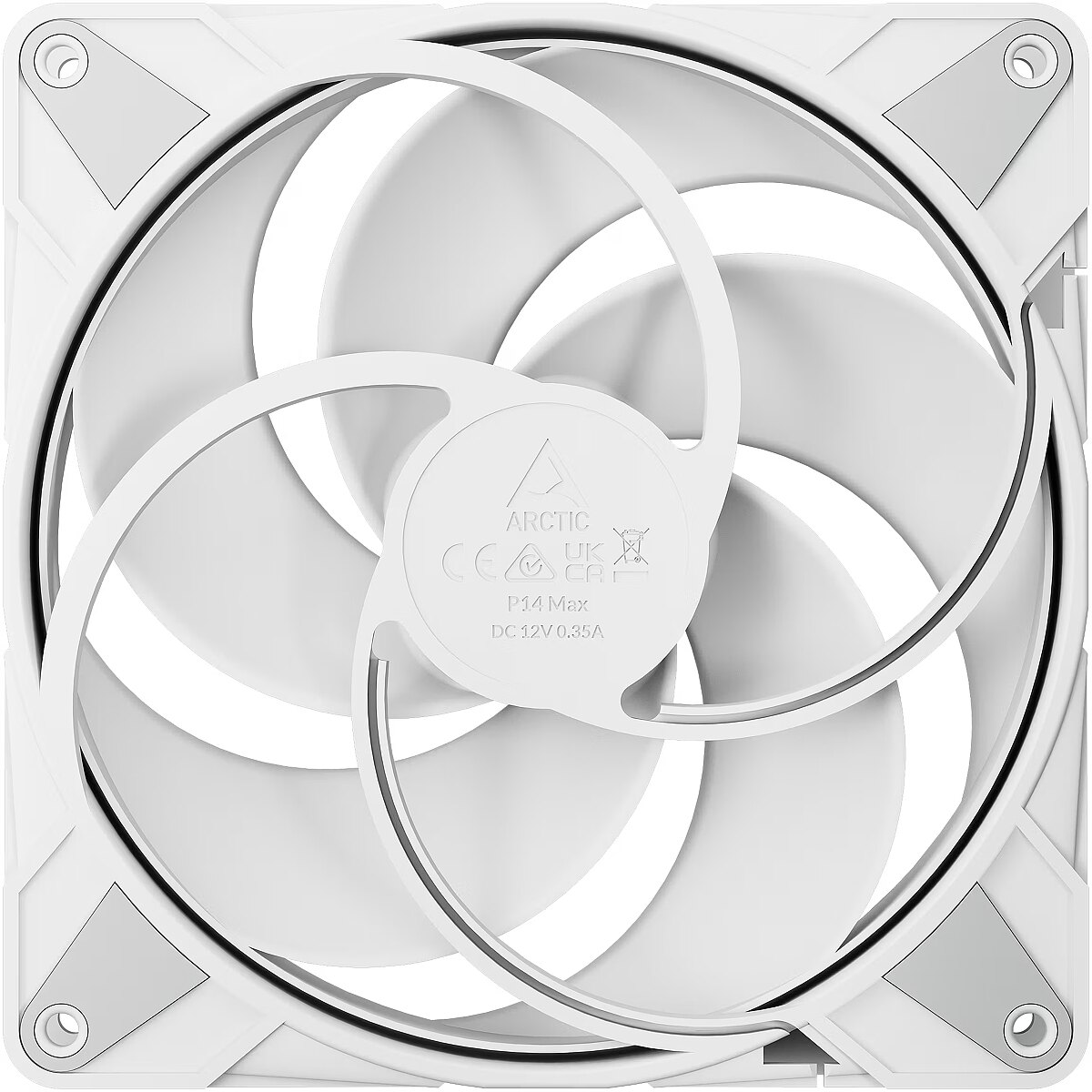

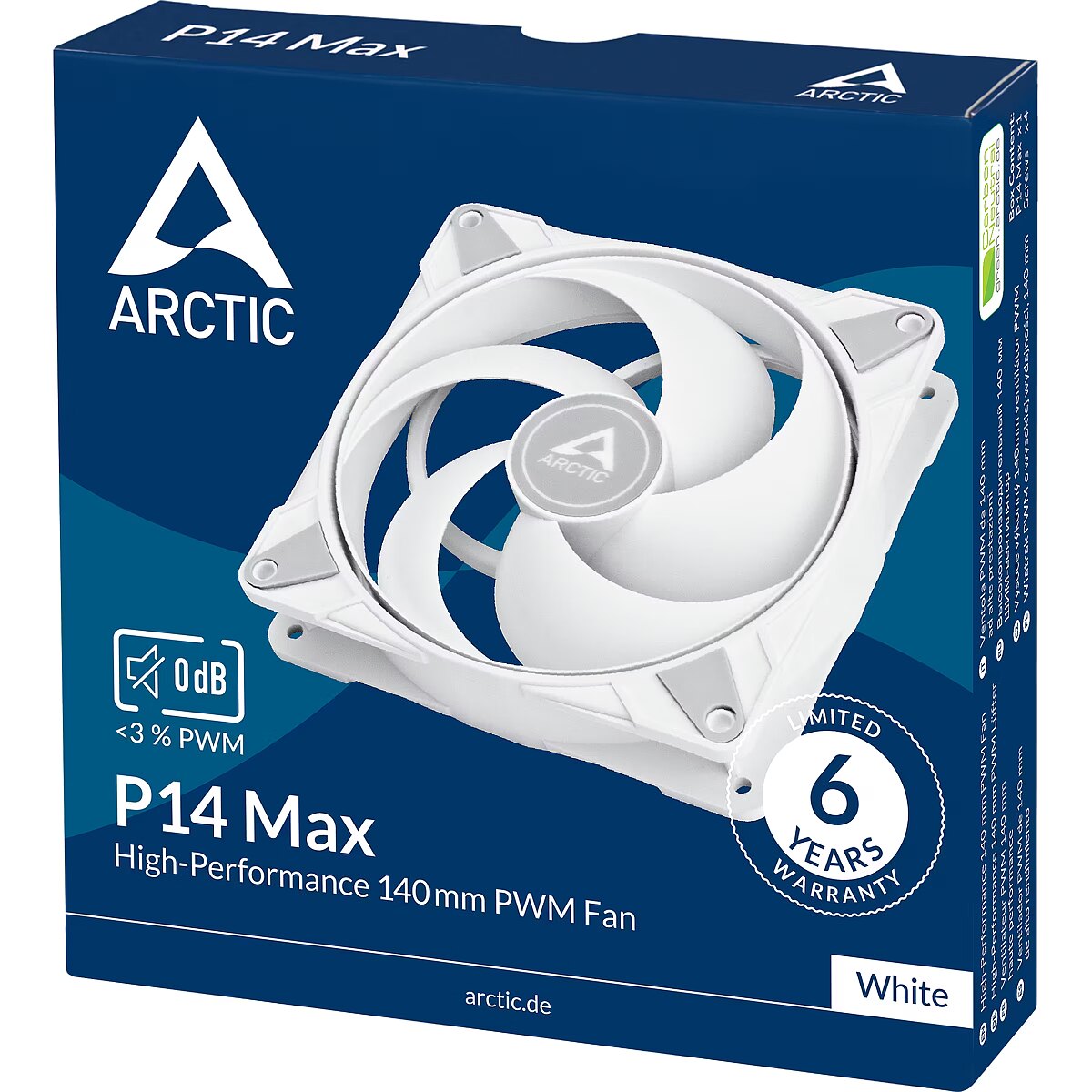

Arctic P14 MAX, White

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
News
ID: 1184710 Product code: ACFAN00304A
In stock 5 units
Warranty: 3 years
16.12 €
Delivery options
  • Delivery to Smartpost 1.99 €: on Wednesday, 05.02.2025
  • Delivery to Omniva parcel locker 1.99 €: on Wednesday, 05.02.2025
  • Courier delivery 3.99 €: on Wednesday, 05.02.2025
Main product parameters All parameters
  • Producer: Arctic
  • LED izgaismojuma krāsa: Nav
  • Output Interface: 4-pin (PWM)
  • Revolutions (MIN), rpm: 400
  • RPM (MAX), rpm: 2800
  • Size, mm: 140
  • Sound level (MAX), dB(A): Nav norādīts
  • Units in package: 1
All parameters
Producer : Arctic
Type of lighting : Without lighting
Basic information
LED izgaismojuma krāsa : Nav
Output Interface : 4-pin (PWM)
RPM (MAX), rpm : 2800
Size, mm : 140
Sound level (MAX), dB(A) : Nav norādīts
Units in package : 1
More detailed specification
Brand - ARCTIC
BrandPartCode - ACFAN00304A
Category - Computer Cooling Systems
Category - Datortehnika :: Datoru komponentes :: Korpusa ventilatori
Code - ACFAN00304A
Desc - Ligdza (socket): 4-pin, Diametrs: 140 mm, Ventilators ātrums (apgr.min.): 2800 apgr.min, Apgaismojums: Nav, Skaits komplektācijā: 1, Garantija: 2 gadi
Design - Fan connector - 4-pin
Design - Number of fan blades - 5
Design - Number of fans - 1 fan(s)
Design - Product colour - White
EAN - 4895213704816
GTIN - 4895213704816
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_123713_1.jpg
LargeDescHTML -
LongDesc - ARCTIC’s versatile assortment of Fans is both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our Fans are equipped with state-of-the-art engine technology, innovative fan blades and high-quality bearings, making them particularly durable and efficient.
LongProductName - 140 mm, PWM, 400 - 2800 RPM, 95.00 cfm, 12 V DC, 3-pin, 245 g, White
LongSummaryDescription - ARCTIC P14 Max (White) - 140 mm High-Speed PWM Fan. Type: Fan, Fan diameter: 14 cm, Rotational speed (min): 400 RPM, Rotational speed (max): 2800 RPM, Airflow: 161.4 m³/h, Maximum air pressure: 4.18 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 140 mm, Depth: 140 mm, Height: 27 mm. Product colour: White
Name - Ventilators Arctic P14 Max White
Packaging content - Number of screws - 4
Packaging content - Package type - Box
Packaging content - Screws included - Yes
Performance - Airflow - 161.4 m³/h
Performance - Bearing type - Fluid Dynamic Bearing (FDB)
Performance - Compatible processor series - Not supported
Performance - Fan diameter - 14 cm
Performance - Maximum airflow - 95 cfm
Performance - Maximum air pressure - 4.18 mmH2O
Performance - Operating temperature (T-T) - 0 - 40 °C
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Rotational speed (max) - 2800 RPM
Performance - Rotational speed (min) - 400 RPM
Performance - Suitable location - Computer case
Performance - Supported processor sockets - Not supported
Performance - Type - Fan
Power - Rated current - 0.35 A
Power - Starting voltage - 3.9 V
Power - Voltage - 12 V
ProductName - P14 Max (White) - 140 mm High-Speed PWM Fan
ShortSummaryDescription - ARCTIC P14 Max (White) - 140 mm High-Speed PWM Fan, Fan, 14 cm, 400 RPM, 2800 RPM, 161.4 m³/h, White
Title - ARCTIC P14 Max (White) - 140 mm High-Speed PWM Fan
URL - https://www.arctic.de/en/P14-Max-White/ACFAN00304A
WarrantyInfo - 6 Years
Weight & dimensions - Cable length - 0.4 m
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 27 mm
Weight & dimensions - Package depth - 167 mm
Weight & dimensions - Package height - 34 mm
Weight & dimensions - Package weight - 303 g
Weight & dimensions - Package width - 167 mm
Weight & dimensions - Weight - 254 g
Weight & dimensions - Width - 140 mm
16.12 €
