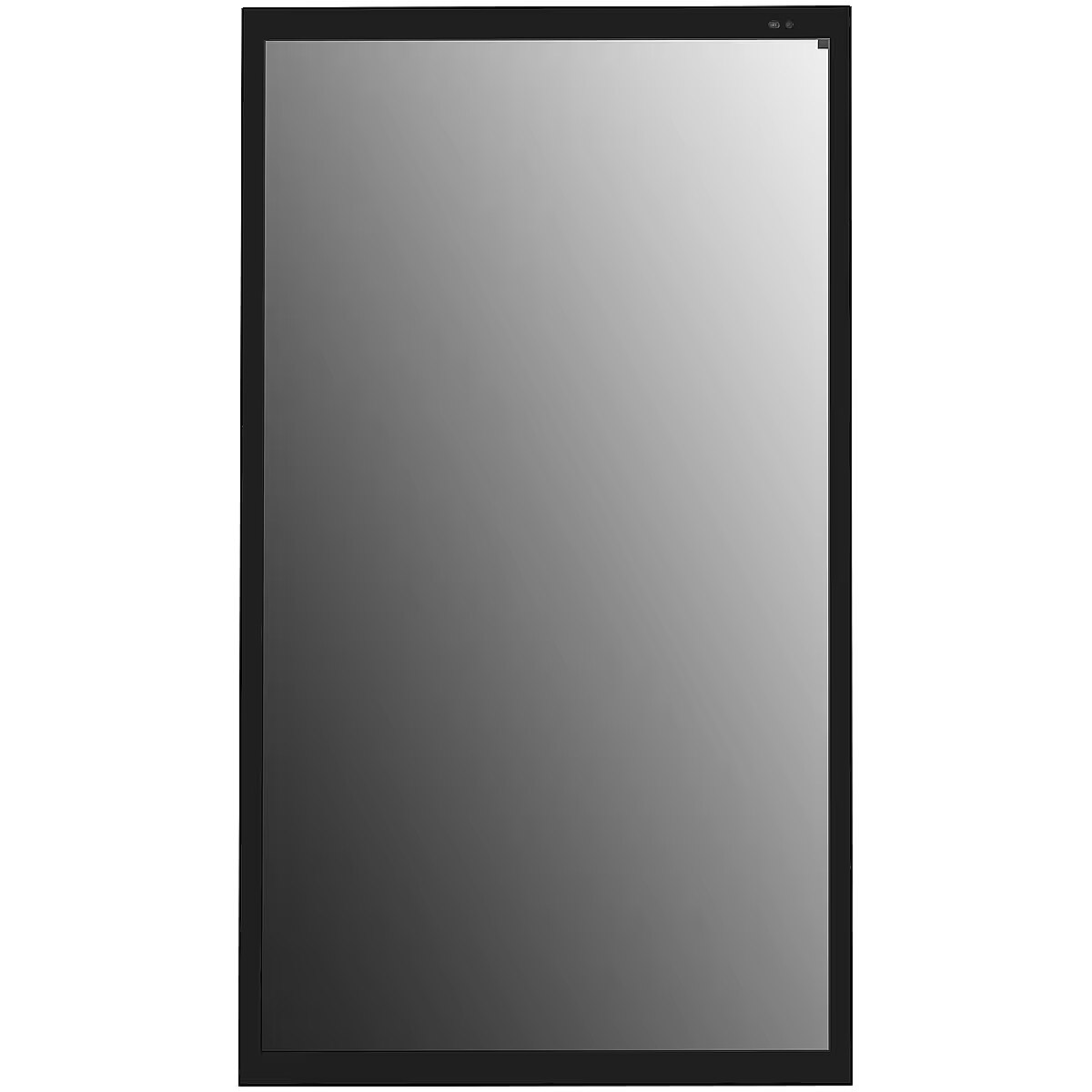

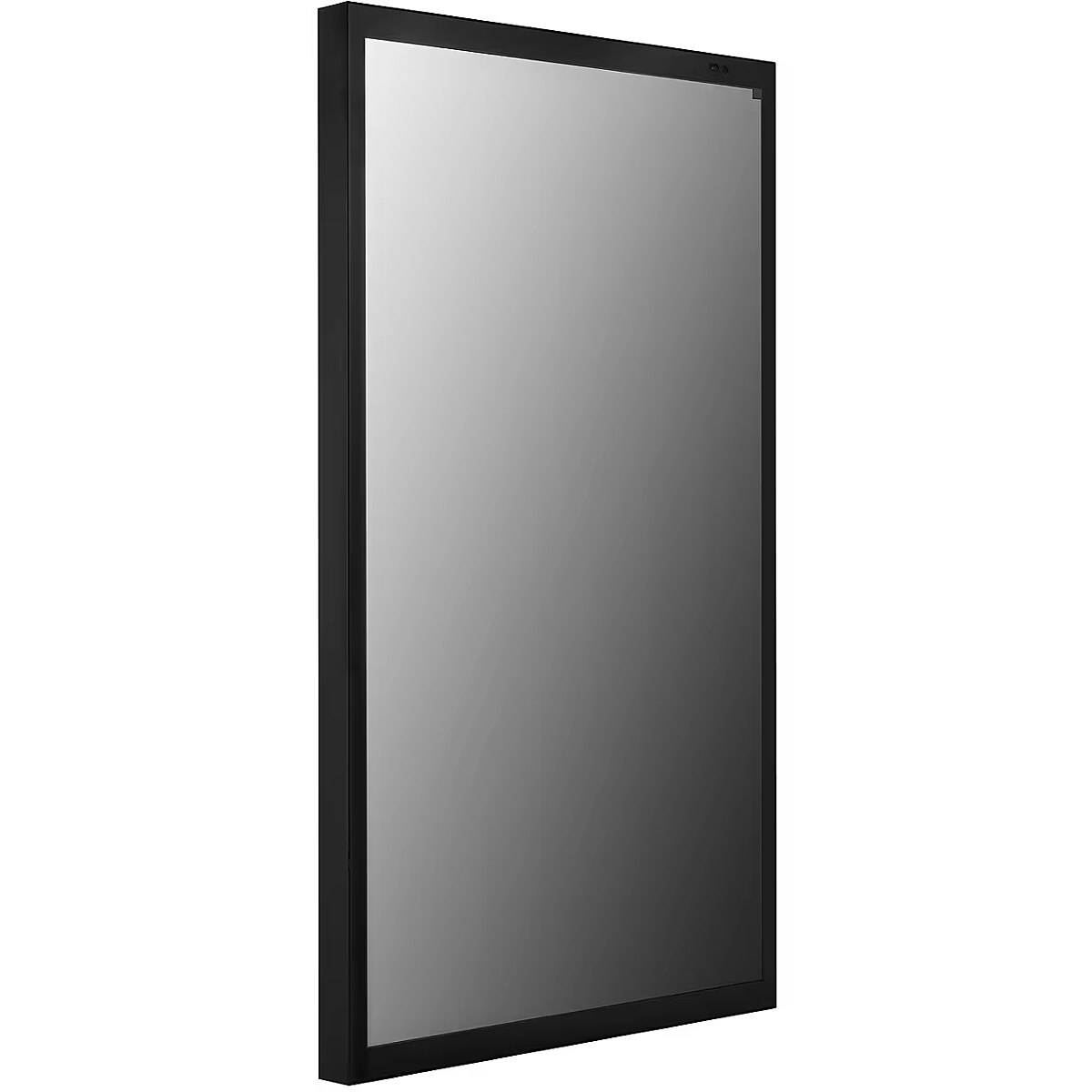

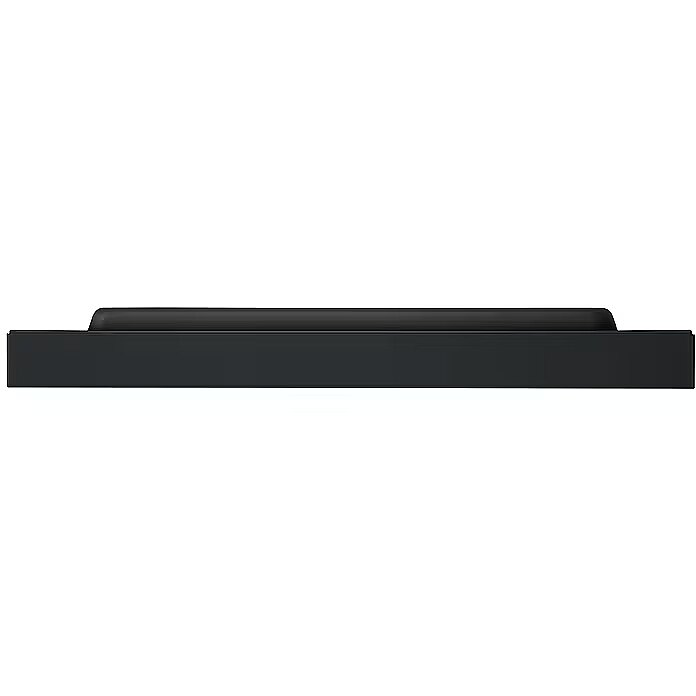

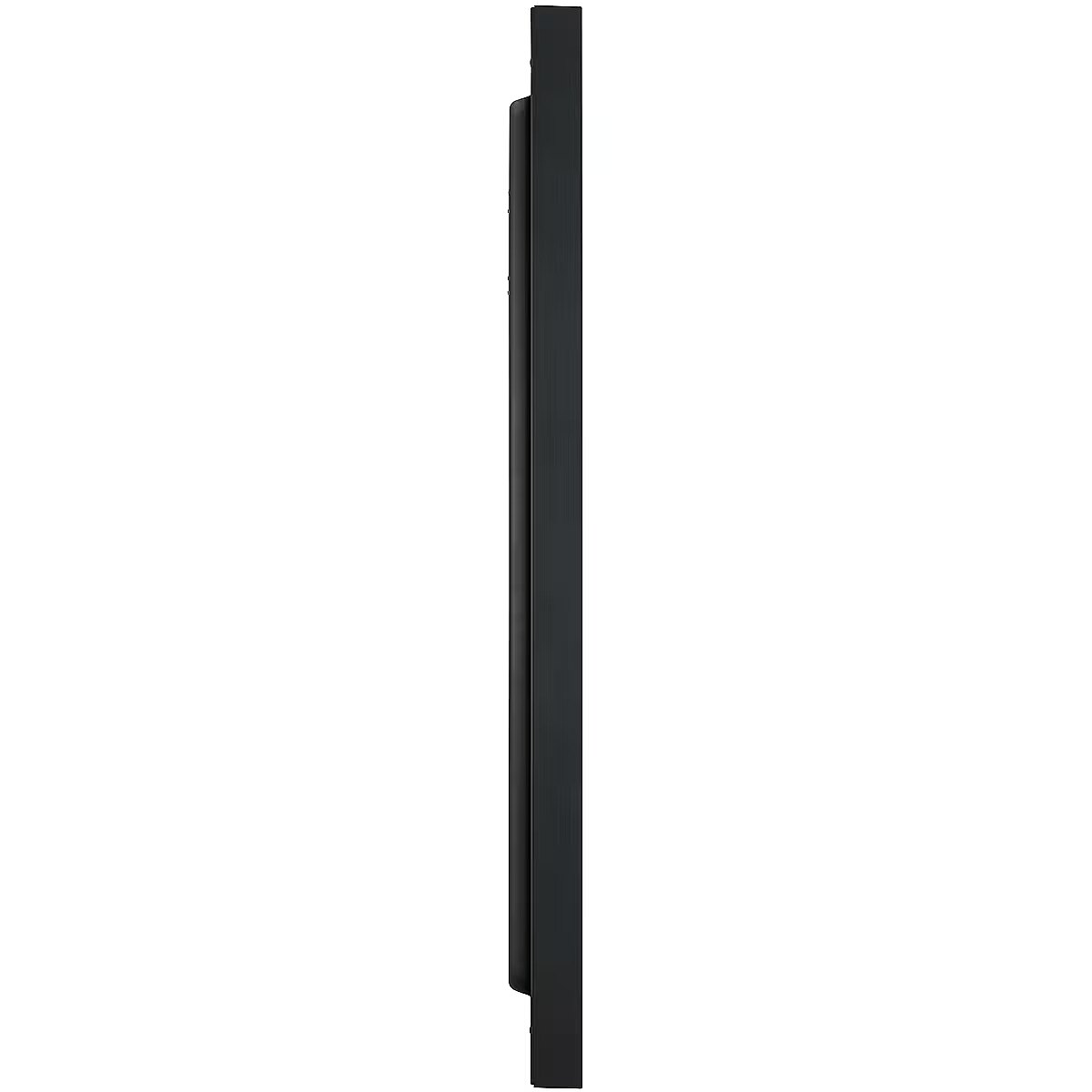

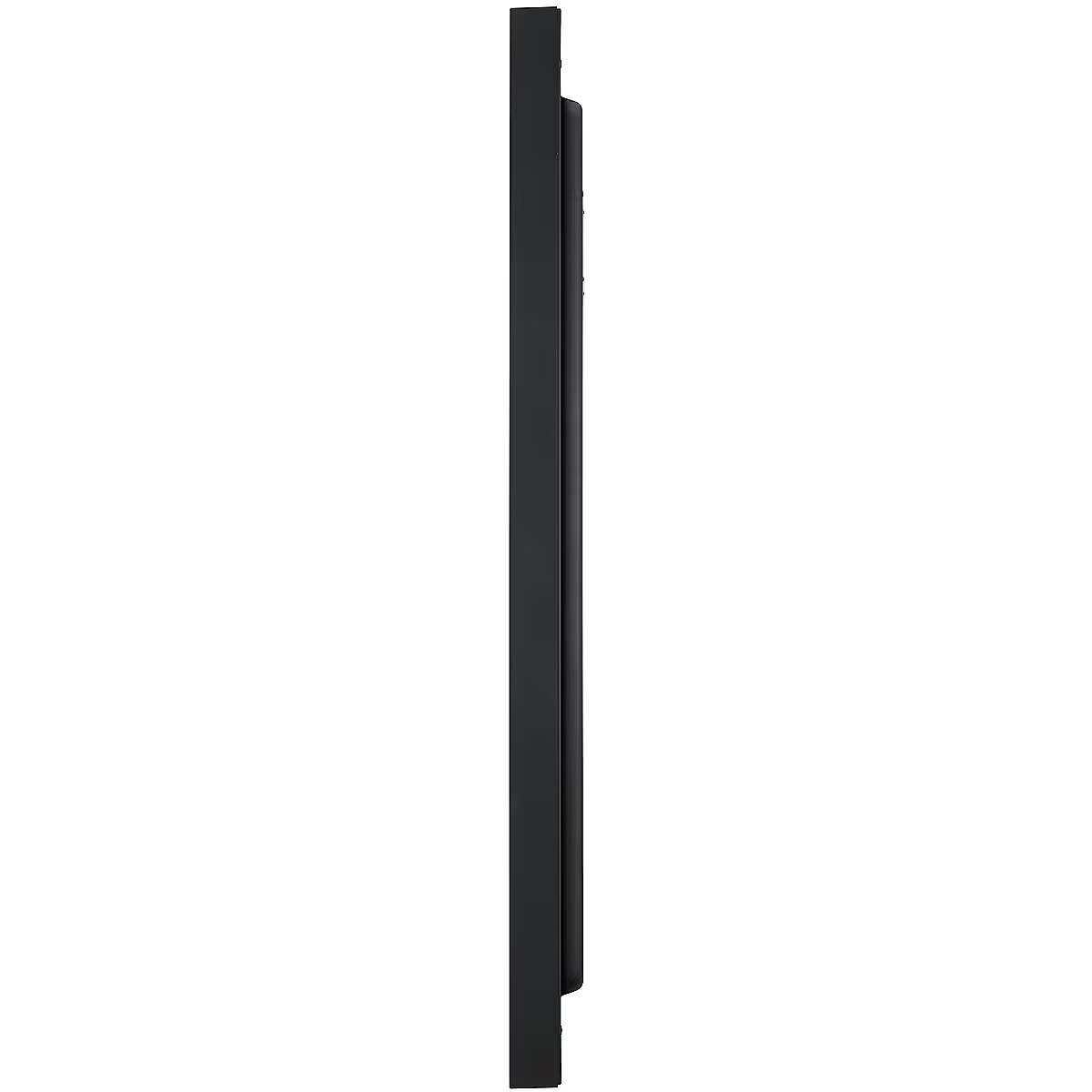

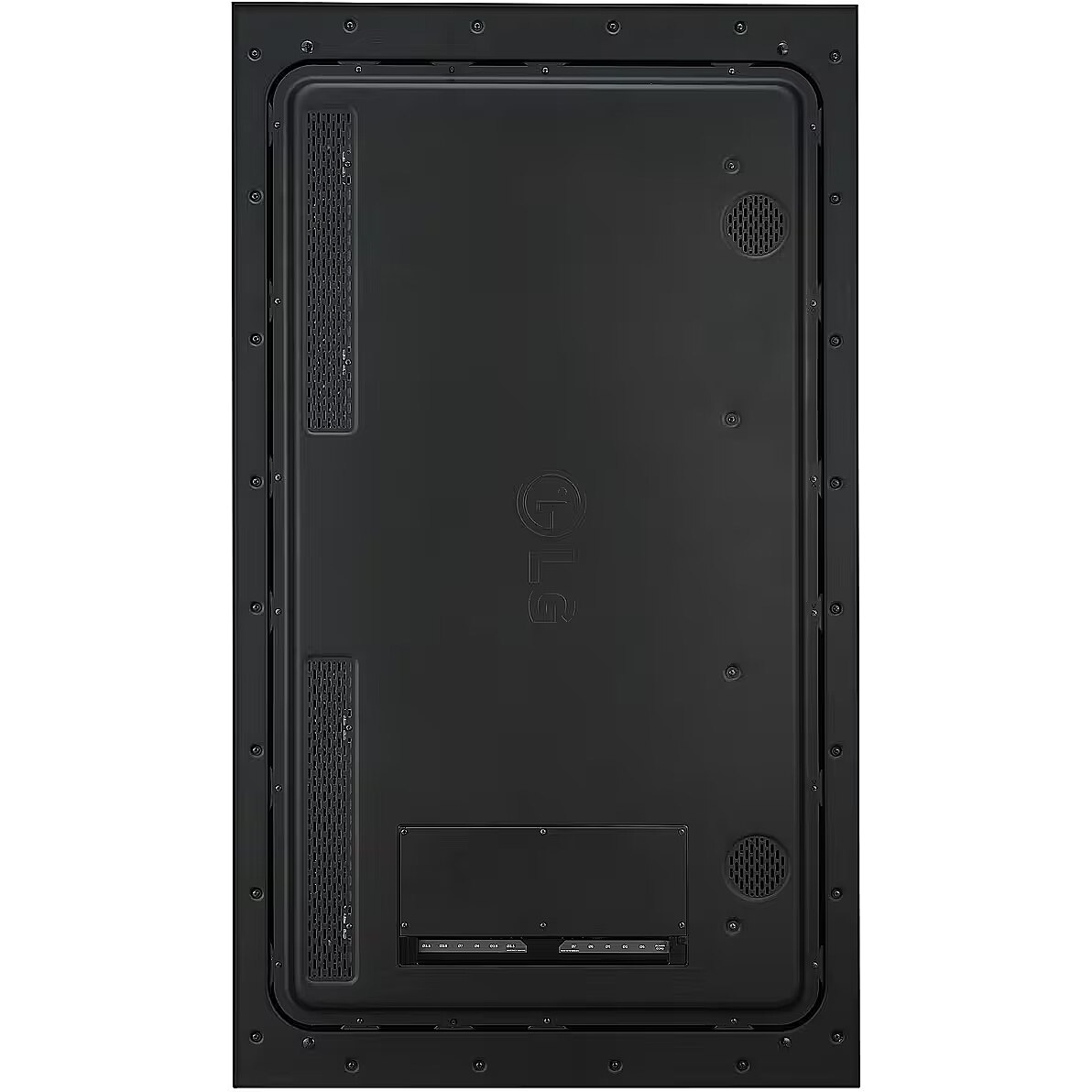

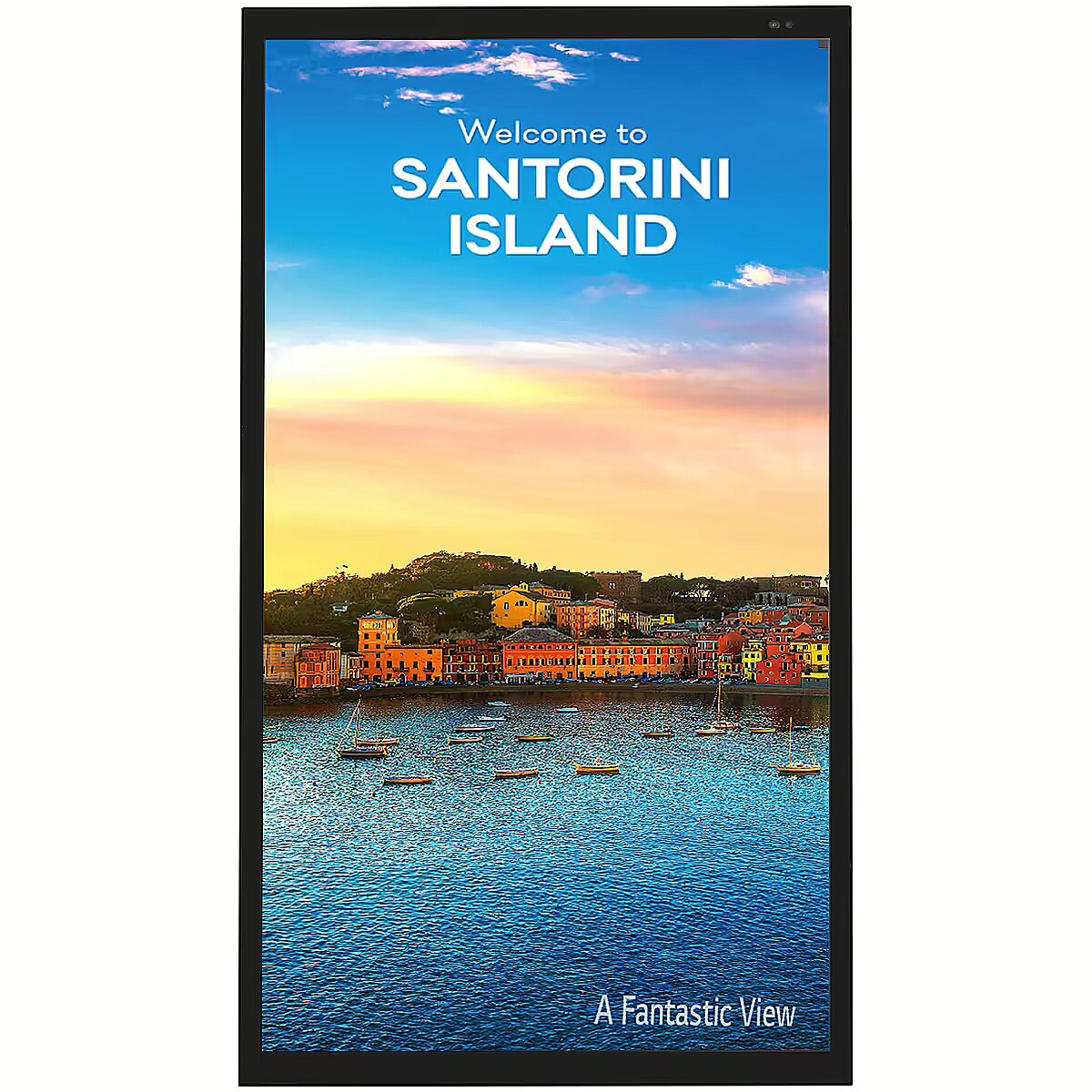

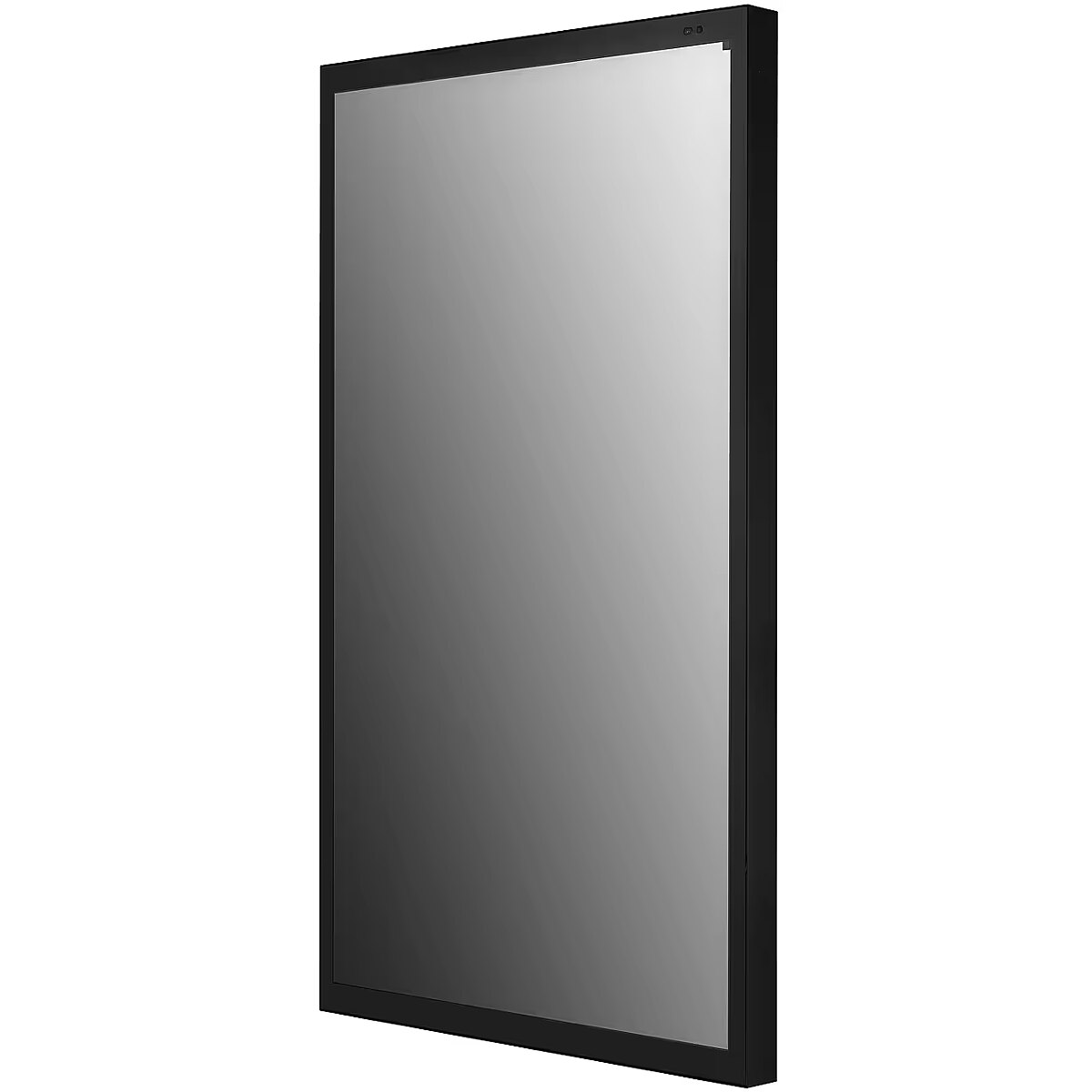

LG 55XE4F-M

Aspect ratio - 16:9
Audio - Built-in speaker(s) - No
Audio-Out Input/Output connectors - 1
Bezel width, mm - 38.4
Brand - LG
BrandPartCode - 55XE4F-M
Brightness - 4000
Built-in speakers - N/A
Category - Signage Displays
Category Code - LCD
Certificates - Certification - IEC 60950-1 / EN 60950-1 / UL 60950-1
FCC "A" / CE / KCC
ErP
Code - 55XE4F-M.AEU
Computer system - Built-in processor - No
Computer system - Computer system - No
Connections - DP
Connections - Ethernet (RJ-45)
Connections - HDBaseT
Connections - HDMI
Connections - RS-232C
Connections - USB
Contrast - 1000:1
Contrast ratio (typical) - 1200:1
Depth Unit Dimensions - 88 mm
Description - 55XE4F-M 55” XE4F-M Series High Brightness Outdoor Displays - Brightness(Typ.) : 4,000 cd/m² - Bezel : 38.4 mm (T/B), 26.0 mm (L/R) - Interface : HDMI/ DP/HDBaseT/USB/ Audio/ RS232C/ RJ45 - Anti-Reflection Coating - IP56 Design, IK10 Protective Glass
Description - LG 55XE4F-B 55? UHD IPS 4000 NITS 24/7 HIGH BRIGHTNESS
Design - Bezel width (bottom) - 3.84 cm
Design - Bezel width (side) - 2.6 cm
Design - Bezel width (top) - 3.84 cm
Design - Orientation - Horizontal/Vertical
Design - Placement supported - Indoor
Design - Product colour - Black
Design - Product design - Digital signage flat panel
Design > Colour of product - Black
Dimensions W x D x H, mm - 737.4 x 1292.5 x 88
Display - Contrast ratio (dynamic) - 500000:1
Display - Contrast ratio (typical) - 1200:1
Display - Display brightness - 4000 cd/m²
Display - Display diagonal - 139.7 cm (55")
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - IPS
Display - HD type - Full HD
Display - LED backlighting type - Direct-LED
Display - Native aspect ratio - 16:9
Display - Response time - 8 ms
Display - Touchscreen - No
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Display > Contrast ratio (typical) - 1000:1
Display > Display - 1920 x 1080 pixels
Display > Placement (L/P) - Landscape/Portrait
Display > Response time - 8 ms
Display > Touchscreen - No
Display > Viewing angle, horizontal - 178 °
Display > Viewing angle, vertical - 178 °
Display brightness, cd/m² - 4000
Display diagonal, " - 55
DisplayPort Input/Output connectors - 1
Display resolution, pixels - 1920 x 1080
EAN - 8806098653867
Full Description Line - Digital signage LFD|Model 55XE4F-M|55"|Panel IPS|Resolution 1920x1080|Form factor 16:9|Brightness 4000|Contrast 1000:1|Response time 9 ms|2xHDMI|1xDisplayPort|1xAudio-Out|1xRS232|2xUSB 2.0|1xRJ45
GTIN - 0719192638624
GTIN - 719192638624
GTIN - 8806098653867
HDMI Input/Output connectors - 2
Height - 885.000000
Height Unit Dimensions - 737.4 mm
Internal player - Yes
Length - 1432.000000
Link - https://www.lg-informationdisplay.com/product/digital-signage/high-brightness/55XE4F-M
Logistics data - Harmonized System (HS) code - 85285210
LongDesc - Slim & Robust Design with Outstanding VisibilityWith a slim & robust design, XE4F series can be easily installed to meet the customer’s needs in external environments that require complex installation conditions. And upgraded brightness captures the attention of customers even under strong and direct sunlight.SLIM & ROBUST DESIGNSlim & Light DesignXE4F series is composed of single display with a light and slim design and it can be easily customized to suit various external environments with no need for separate casing.SLIM & ROBUST DESIGNEasy integration for partner’s customized designThe XE4F series is lighter and ready to be customized for various customer needs and settings. From outdoor menu boards to kiosks, the XE4F series is also mountable and optimized for customers, based on the industry purpose and use.OUTSTANDING VISIBILITYBright & BrilliantThe XE4F series possesses powerful brightness of 4,000nits, providing clear and vivid picture quality even under direct sunlight.OUTSTANDING VISIBILITYWide Viewing AngleIPS technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.OUTSTANDING VISIBILITYLong Lasting BrightnessBy adding more LED units, XE4F operates brighter at a lower temperature, thereby lasting longer than conventional products.OUTSTANDING VISIBILITYVisible with Polarized SunglassesQWP* enables clear visibility even when the viewer is wearing polarized sunglasses.RELIABILITY FOR OUTDOOR USAGESecured Protection with IP56 DesignThe display is sealed with IP56 design for reliable operation. It’s designed to be not only waterproof but also weatherproof against the damaging effects of the sun, rain, snow, dust and wind, an essential feature for outdoor application.RELIABILITY FOR OUTDOOR USAGEProtective Glass (IK10 Certified)The tempered and laminated front glass ensures optimum protection from outdoor extremities, resulting in minimal to no damage from external impacts.EASY MAINTENANCESupport HDBaseT ™The XE4F Series supports HDBaseT ™, the global standard for the transmission of ultra-high definition video & audio, Ethernet, controls, USB and IR over a single, long-distance cable, for easier control of the display and saving installation and maintenance costs.EASY MAINTENANCEWeb MonitoringThis web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.
LongProductName - 49XE4F-M, 55", IPS, 1920x1080, 16:9. HDMI, DP, HDBaseT, USB, RS-232C, RJ-45, 737.4x1292.5x88 mm
LongSummaryDescription - LG 55XE4F-M Digital signage display 139.7 cm (55') IPS 4000 cd/m² Full HD Black 24/7. Product design: Digital signage flat panel. Display diagonal: 139.7 cm (55"), Display technology: IPS, Display resolution: 1920 x 1080 pixels, Display brightness: 4000 cd/m², HD type: Full HD. Operating hours (hours/days): 24/7. Product colour: Black
Manufacturer - LG ELECTRONICS
ManufacturerPartNumber - 55XE4F-M
Model name - 55XE4F-M
Name - LG | 55XE4F-B | 55 " | Landscape/Portrait | 24/7 | 4000 cd/m² | 8 ms | 178 ° | 178 °
Native resolution - 1920x1080
Operating temperature range - -30°C to 50 °C
Operating temperature range (T-T), °C - -30-50
Operational conditions - Operating relative humidity (H-H) - 5 - 100%
Operational conditions - Operating temperature (T-T) - -30 - 50 °C
Operational conditions > Operating temperature (T-T) - -30/50 °C
Operation time - 24/7
Other features - HDBaseT port - Yes
Other features - Manual - Yes
Other features > Aspect ratio - 16:9
Other features > Signage product family - Digital Signage
Other features > Wi-Fi - No
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 1435 mm
Package features > Gross height (mm) - 880 mm
Package features > Gross width (mm) - 200 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 7 pc(s)
Package features > Paper/Pasteboard - 9000 g
Package features > Plastic (No PET) - 1000 g
Package features > Tare weight (kg) - 10 kg
Package features > Volume (m3) - 0.25256 m³
Package features > WEE classification - CL109:2:2017-04-01
Package features > WEEE tax - Yes
Package features > Wooden - 2000.00 g
Packaging content - Cables included - AC, HDMI
Packaging content - Remote control included - Yes
Packaging data - Package depth - 207 mm
Packaging data - Package height - 890 mm
Packaging data - Package weight - 45 kg
Packaging data - Package width - 1446 mm
Panel type - IPS
Performance - International Protection (IP) code - IP56
Performance - Mean time between failures (MTBF) - 50000 h
Performance - Operating hours (hours/days) - 24/7
Performance - Purpose - Universal
PeriodofWarranty - 3 Y
Pivot - No
Ports & interfaces - DisplayPorts in - 1
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DVI port - No
Ports & interfaces - Ethernet LAN - Yes
Ports & interfaces - HDMI input ports quantity - 2
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - RS-232C - Yes
Ports & interfaces - USB port - Yes
Ports & interfaces - USB ports quantity - 2
Ports & interfaces - Wi-Fi - No

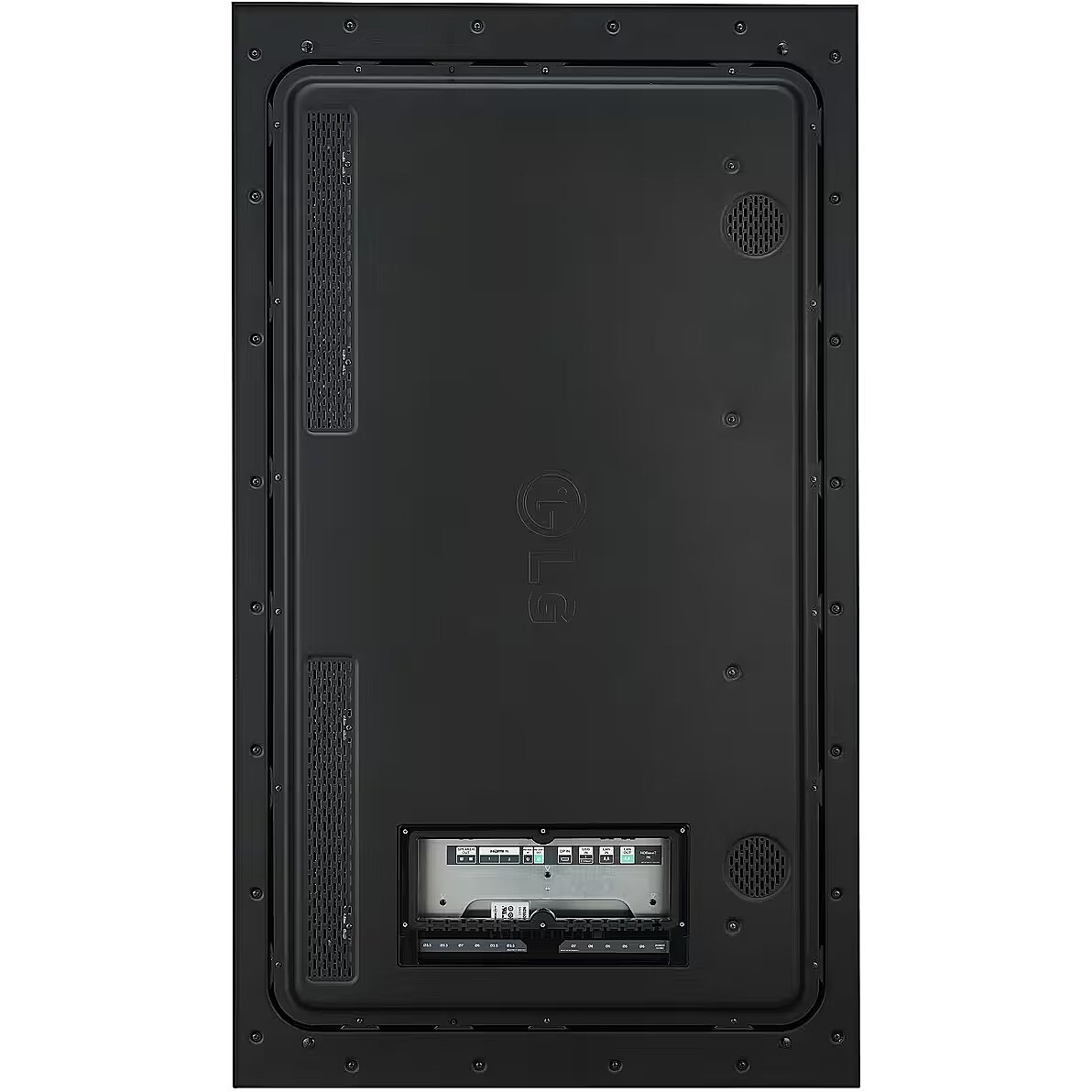

Ports & interfaces > Device connectivity - HDMI, DP, HDBaseT, USB, Audio, RS232C, RJ45
Ports & interfaces > HDMI ports quantity - 2
Ports & interfaces > USB port - USB
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (typical) - 310 W
Power consumption (standby), W - 310
Producer product name - 55XE4F-B
ProductName - 55XE4F-M Digital signage display 139.7 cm (55') IPS 4000 cd/m² Full HD Black 24/7
Product name - Digital signage LFD
Response time - 9 ms
Response time, ms - 9
RJ45 Input/Output connectors - 1
RS232 Input/Output connectors - 1
Screen form factor - 16:9
Screen size - 55"
Shipping Box Depth Shipping/Package Box Dimensions - 144 cm
Shipping Box Height Shipping/Package Box Dimensions - 88.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 45.75 kg
Shipping Box Width Shipping/Package Box Dimensions - 20.5 cm
Short summary - With a slim & robust design, XE4F series can be easily installed to meet the customer?s needs under in external environments that require complex installation conditions. And upgraded brightness captures the customer?s attention even under strong and direct sunlight.
ShortSummaryDescription - LG 55XE4F-M Digital signage display 139.7 cm (55') IPS 4000 cd/m² Full HD Black 24/7, Digital signage flat panel, 139.7 cm (55"), IPS, 1920 x 1080 pixels, 24/7
Technical details > Brightness - 4000 cd/m²
Technical details > Diagonal - 55 "
Technical details > Dimensions (WxDxH) - 1292.5 × 88 x 737.4 mm
Technical details > Gross weight - 50 kg
Technical details > Net weight - 40.00 kg
Technical details > Operating hours/days - 24/7
Technical details > Producer - LG
Technical details > Type - IPS
Title - LG 55XE4F-M Digital signage display 139.7 cm (55') IPS 4000 cd/m² Full HD Black 24/7
Touch sensitive screen - No
Unit Box Height - 0.885
Unit Box Length - 1.44
Unit Box Width - 0.205
Unit Brutto Volume - 0.2613 cubm
Unit Gross Weight - 45.8 kg
Unit Net Weight - 40 kg
URL - https://www.lg.com/global/business/information-display/digital-signage/lg-55XE4F-M
USB 2.0 Input/Output connectors - 2
Vendor Homepage - www.lg.com/us/business/outdoor-displays/lg-55xe4f-m
VESA-standard, mm - N/A
Viewing angle, horizontal, ° - 178
Viewing angle, vertical, ° - 178
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 2 year
Weight - 45.580000
Weight & dimensions - Depth - 88 mm
Weight & dimensions - Height - 1292.5 mm
Weight & dimensions - Weight - 40 kg
Weight & dimensions - Width - 737.4 mm
Width - 203.000000
Width Unit Dimensions - 1292.5 mm
