Accessories included - - IB-129SSK-B pocket
- 2 keys
- 8 assembly screws
Brand - ICY BOX
BrandPartCode - 20048
Category - Drive Bay Panels
Category_1 - Hard Drives and Pendrives
Category_2 - Mobile HDD Racks
Color - Black
Connectors - SATA

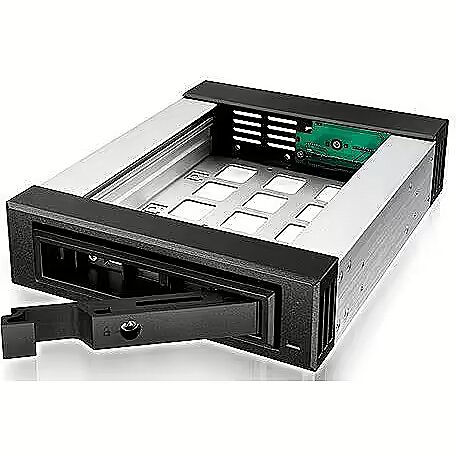

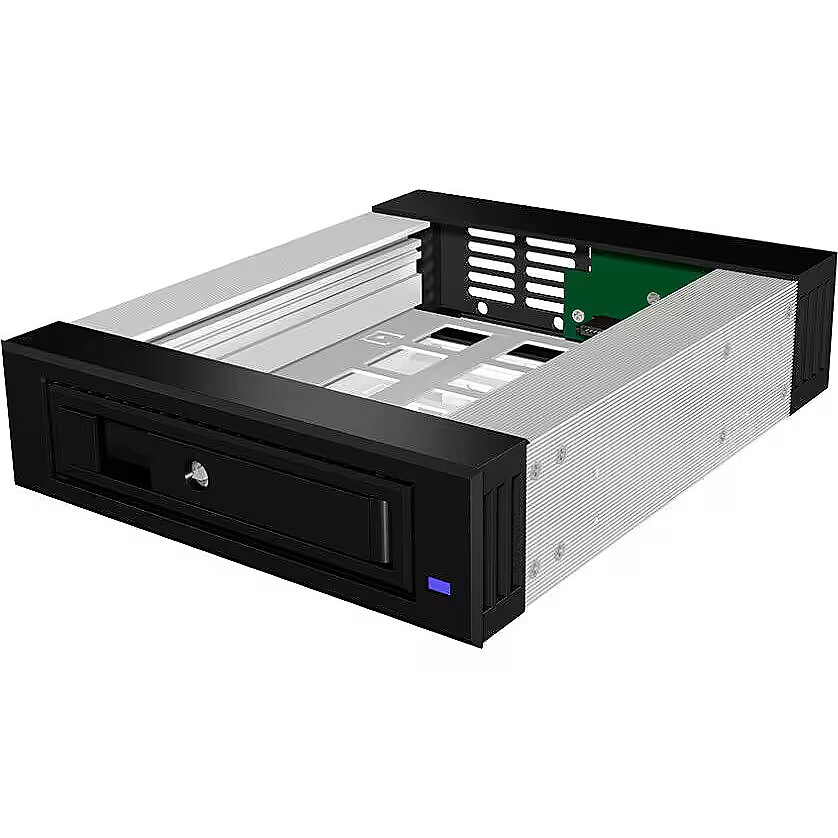

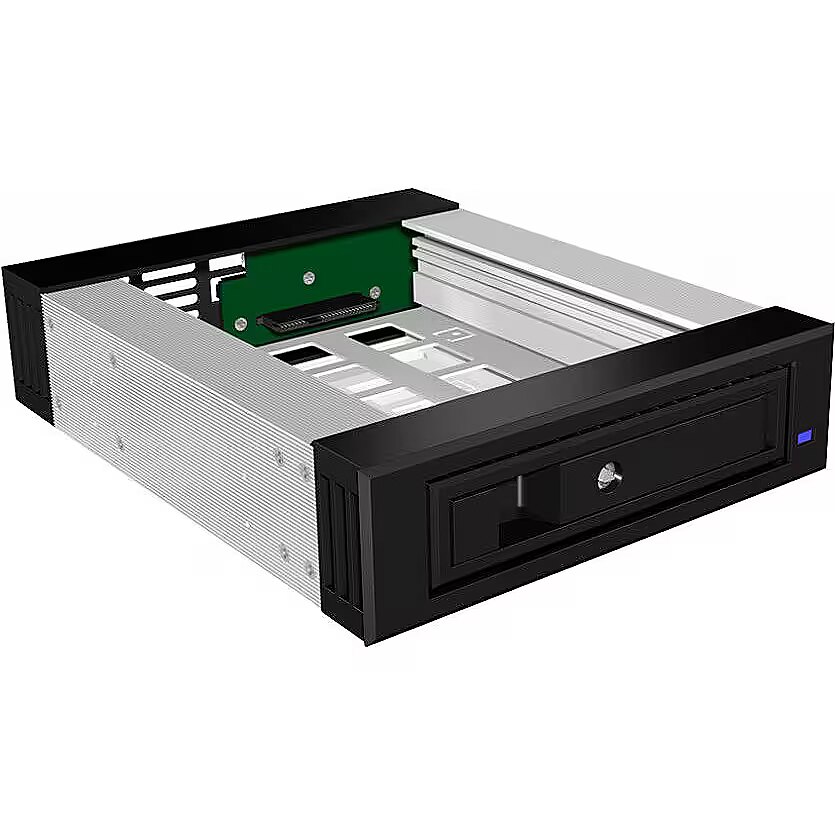

Description - IB-129SSK-B Pocket for 3.5 "/ 2.5" SATA / SAS hard drives
Functions:
- 3.5"/2.5" drive bay
- Supports all 3.5"/2.5" SATA/SAS 1.5/3.0/6.0 Gb/s disks (1" high)
- Installation in the bay 5.25"
- Special aluminum housing for excellent heat dissipation
- Supports Hot Swap
- The lock protects against unauthorized access
- The design without a fan ensures quiet operation
- 12V power connector for an additional fan. Aluminum has the function of passive heat exchange.
Cooling aluminum
The mobile pocket IB-129SSK-B has an efficient passive cooling system. The housing made of aluminum dissipates heat very well, thus ensuring quiet and stable operation without the need for fan assembly.
No carrier = twice as fast

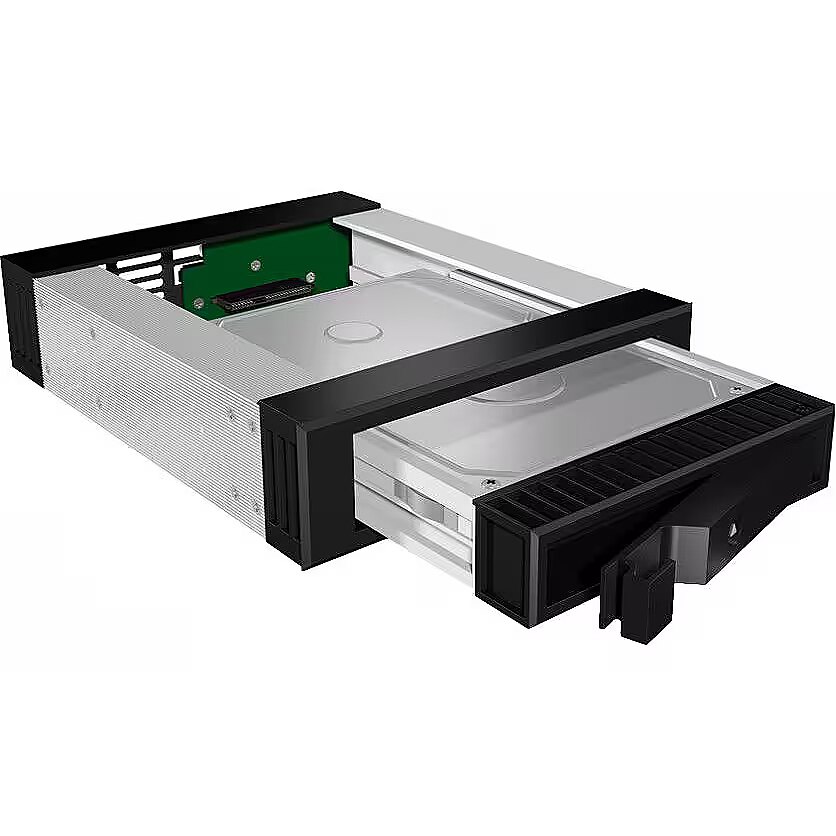

Due to the fact that we do not have to mount the hard disk to any housing only directly to the pocket, the assembly is completely without any tools. Thanks to this, we are able to save up to twice as much time. The only thing required is the 5.25 "bay. It supports SATA hard drives with SATA I, II and III speeds.
Fanless = quiet operation
Our pocket is made entirely of aluminum, the front and back of the pocket (assembly part) is made of hard plastic to ensure full protection. Aluminum is very durable, although it is very light. The main feature of aluminum is that it perfectly dissipates heat, thanks to which the device's operation is completely silent. Optionally, you can connect a 12V fan (not included).
Do not worry = closed!
To keep the hard drive always protected, a lock has been added. In this way, an unauthorized person will not be able to reach your data. The LED indicator provides information on the access and activity of the hard disk.
dimension depth - 195 mm
dimension height - 50 mm
Dimensions - 186.5 x 147 x 42.4 mm
dimension weight - 510 g
dimension width - 155 mm
ean - 4250078188438
EAN_code - 4250078188438
Features - Data transfer rate - 6 Gbit/s
Features - HDD interface - SATA, SATA II, SATA III, Serial Attached SCSI (SAS)
Features - HDD size - 2.5/3.5"
Features - Hot-swap - Yes
Features - Key lock - Yes
Features - Material - Aluminium
Features - Number of HDDs supported - 1
Features - Product colour - Black
Features - Size (imperial) - 13.3 cm (5.25")
Features - Supported storage drive heights - 25.4 mm
Features - Type - Bezel panel
Form factor (width) - 2,5'' (SFF)
Form factor (width) - 3,5'' (LFF)
GTIN - 4250078188438
GTIN - 4250078188506
guarantee - 24
guarantee_type - normal
HDD interface - SAS
HDD interface - SATA I - 1,5 Gb/s
HDD interface - SATA II - 3 Gb/s
HDD interface - SATA III - 6 Gb/s
Logistics data - Harmonized System (HS) code - 84733080
Logistics data - Master (outer) case gross weight - 11.3 kg
Logistics data - Master (outer) case height - 262 mm
Logistics data - Master (outer) case length - 330 mm
Logistics data - Master (outer) case width - 420 mm
Logistics data - Products per master (outer) case - 20 pc(s)
LongDesc - No tray = double the speedThe fact that the HDD does not need to be screwed to a tray makes the HDD installation much faster. A 5.25" bay is needed on the PC. SATA HDDs are supported SATA I/II/III.No fan = whisper silentThis mobile rack is made almost completely from aluminium, only the front and back panels are made of hard plastic. Aluminium is very stable, very light and on top of everything else, it dissipate heat perfectly. That is why no fan is needed in order to protect the HDDs. In case still wished, a 12V fan can be installed (not delivered in the package).No worries = lockedIn order that the HDD will stay protected at all times, a lock was added. In this way, no unauthorized person will be able to reach your data. An LED indicator provides information regarding HDD access and activity.
LongProductName - Mobile rack for 1x HDD/SSD for 1x 5.25" bay with lock
LongSummaryDescription - ICY BOX IB-129SSK-B. Size (imperial): 13.3 cm (5.25"), Type: Bezel panel, HDD size: 2.5/3.5". Width: 146 mm, Depth: 186 mm, Height: 41 mm. Package width: 154 mm, Package depth: 197 mm, Package height: 46 mm. Quantity per pack: 1 pc(s), Number of lock keys included: 2 pc(s). Products per master (outer) case: 20 pc(s), Master (outer) case width: 420 mm, Master (outer) case length: 330 mm
Manufacturer - Icy Box
Manufacturer_code - 20048
name - IB-129SSK-B 3,5"/2,5" HDD SATA/SAS
Name - ICY BOX IB-129SSK-B - mobile rack 1x 3.5 inch SATA or SAS
Other features - There is no restriction on hard disk capacity
Packaging content - Number of lock keys included - 2 pc(s)
Packaging content - Number of screws - 8
Packaging content - Quantity per pack - 1 pc(s)
Packaging data - Package depth - 197 mm
Packaging data - Package height - 46 mm
Packaging data - Package weight - 525 g
Packaging data - Package width - 154 mm
Ports & interfaces - Card reader integrated - No
Ports & interfaces - External SATA ports quantity - 2
producer - IcyBox
ProductName - IB-129SSK-B
ShortSummaryDescription - ICY BOX IB-129SSK-B, 13.3 cm (5.25"), Bezel panel, 2.5/3.5", SATA, SATA II, SATA III, Serial Attached SCSI (SAS), Black, Aluminium
Stuff - Aluminum
System requirements - Linux operating systems supported - Yes
System requirements - Mac operating systems supported - Yes
System requirements - Windows operating systems supported - Yes
Title - ICY BOX IB-129SSK-B 13.3 cm (5.25") Bezel panel Black
Type - Internal enclosure
URL - https://icybox.de/en/product.php?id=337
vendpn - IB-129SSK-B
WarrantyInfo -
Weight - 0,50
Weight - 410 g
Weight & dimensions - Depth - 186 mm
Weight & dimensions - Height - 41 mm
Weight & dimensions - Weight - 422 g
Weight & dimensions - Width - 146 mm
