Raidsonic USB 3.1 Type-C Case IB-3740-C31

Accessories included - IB-3740-C31 External power supply Power cable USB Type-C to Type-C cable (100 cm) Set of Screws Screw Driver Handle for 3.5" drives and 2.5" drive carrier 4x 2.5" drive carrier Metal frame Manual
Brand - ICY BOX
BrandPartCode - 60360
Category - Storage Drive Enclosures
Color - Black
Description - USB 3.1 Type-C SINGLE case for 4x 2.5"/3.5" SATA HDDs/SSDs
Design - Fan diameter - 8 cm
Design - LED indicators - Yes
Design - Material - Aluminium, Plastic
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Design - Product type - HDD/SSD enclosure
Designation - CE+WEEE
dimension depth - 170 mm
dimension height - 295 mm
Dimensions - 127 x 225 x 170 mm
dimension weight - 3100 g
dimension width - 275 mm
ean - 4250078167044
Form factor (width) - 2,5'' (SFF)
Form factor (width) - 3,5'' (LFF)

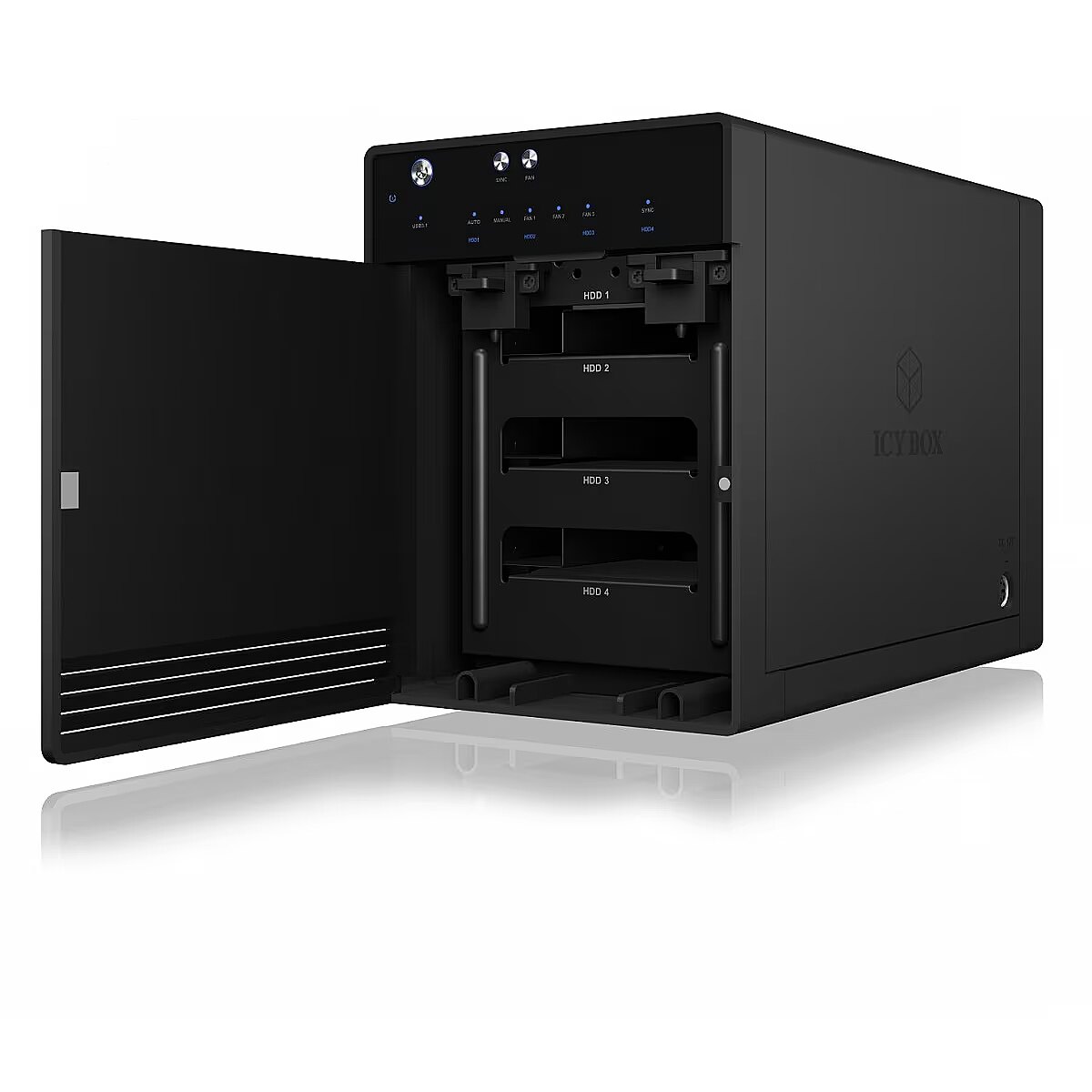

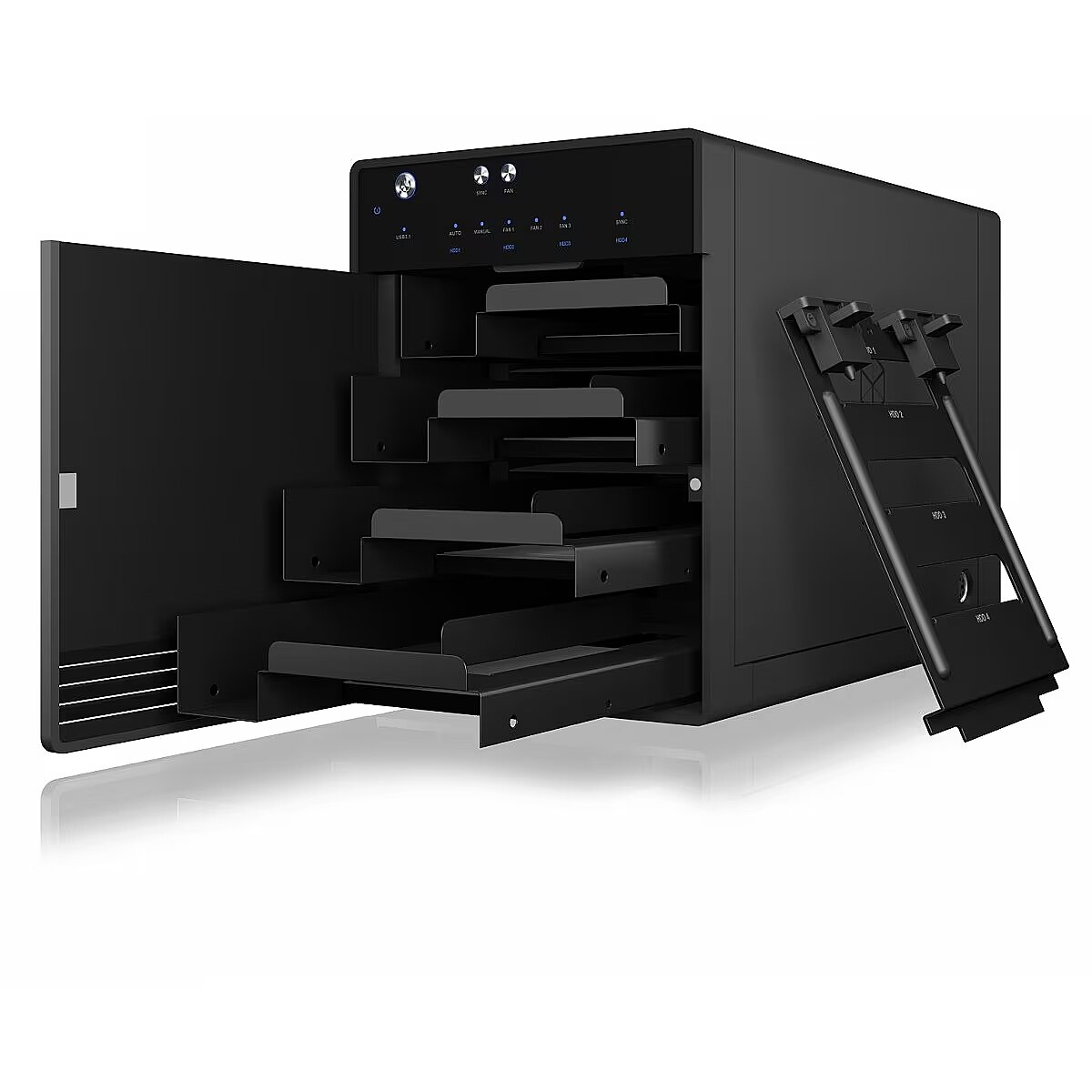

Functions - USB 3.1 (Gen 2) for highest transfer rates of up to 10 Gbit/s Holds up to four 2.5" or 3.5" drives with SATA 6 Gbit/s interface Removable trays for easy SSD and HDD installation Interface to computer: USB 3.1, Type-C, UASP, up to 10 Gbit/s Supports SINGLE mode each drive can be accessed separately Energy saving by supporting stand-by mode Temperature controlled fan for optimal cooling and performance
GTIN - 4250078167044
GTIN - 4250078168898
guarantee - 24
guarantee_type - normal
HDD interface - ATA
HDD interface - SATA III - 6 Gb/s
Logistics data - Harmonized System (HS) code - 84733080
Logistics data - Master (outer) case gross weight - 20.6 kg
Logistics data - Master (outer) case height - 290 mm
Logistics data - Master (outer) case length - 503 mm
Logistics data - Master (outer) case width - 606 mm
Logistics data - Products per master (outer) case - 6 pc(s)
LongDesc - It’s the mixApart from the improved design, the advantage of the IB-3740-C31 is that it can support 2.5" and 3.5" drives. This makes the device an ideal candidate for users looking for the maximum amount of direct-attached storage space since traditional spinning disks can accommodate a significantly larger amount of data than the largest solid-state drives. If you’re looking to eke out maximum performance, however, you’ll want to use 2.5" SSDs instead.For the environmentWhen the host device is not being used or if the data transfer cable is not connected the IB-3740-C31 turns itself into standby mode automatically. In addition, each drive bay has an LED indicator in order to provide information regarding HDD activity (read/write), fan settings, and sync status.Fast data transferThe connection between the host PC and the external enclosure is realized by a USB 3.1 Type-C™ port. Thanks to the USB 3.1 (Gen 2) protocol a high data transfer rate of up to 10 Gbit/s can be achieved.
LongProductName - SINGLE enclosure for 4x HDD/SSD with USB 3.1 (Gen 2) Type-C® interface and fan
LongSummaryDescription - ICY BOX IB-3740-C31. Product type: HDD/SSD enclosure. Number of storage drives supported: 4, Storage drive size: 2.5/3.5", Supported storage drive interfaces: Serial ATA, Serial ATA II, Serial ATA III, Maximum storage capacity: 10 TB. Data transfer rate: 10 Gbit/s. RAID levels: JBOD. Product colour: Black. USB connector type: USB Type-C
name - USB 3.1 Type-C Case IB-3740-C31
Other features -
Packaging content - Cables included - USB Type-C
Packaging content - Manual - Yes
Packaging content - Screwdriver included - Yes
Packaging content - Screws included - Yes
Performance - Chipset - VIALabs VL820, VL715
Performance - Country of origin - China
Performance - Data transfer rate - 10 Gbit/s
Performance - Plug and Play - Yes
Performance - UASP support - Yes
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - USB connectivity - Yes
Ports & interfaces - USB connector gender - Female
Ports & interfaces - USB connector type - USB Type-C
Ports & interfaces - USB ports quantity - 1
Ports & interfaces - USB version - 3.2 Gen 2 (3.1 Gen 2)
Power - AC adapter frequency - 50 - 60 Hz
Power - AC adapter input current - 1.6 A
Power - AC adapter input voltage - 100 - 240 V
Power - AC adapter output current - 5 A
Power - AC adapter output voltage - 12 V
Power - Power consumption (max) - 60 W
Power - Power source type - DC
producer - IcyBox
ProductName - IB-3740-C31
ShortSummaryDescription - ICY BOX IB-3740-C31, HDD/SSD enclosure, 2.5/3.5", Serial ATA, Serial ATA II, Serial ATA III, 10 Gbit/s, USB connectivity, Black
Storage - Maximum storage capacity - 10 TB
Storage - Number of storage drives supported - 4
Storage - RAID levels - JBOD
Storage - Storage drive size - 2.5/3.5"
Storage - Supported storage drive interfaces - Serial ATA, Serial ATA II, Serial ATA III
Stuff - Aluminum
Stuff - Plastic
Supported operating systems - Mac OS
Supported operating systems - Windows
System requirements - Mac compatibility - Yes
System requirements - Mac operating systems supported - Yes
System requirements - Windows operating systems supported - Yes
Title - ICY BOX IB-3740-C31 HDD/SSD enclosure Black 2.5/3.5"
Type - External enclosure
URL - https://icybox.de/en/product.php?id=155
vendpn - IB-3740-C31
WarrantyInfo -
Weight - 2.128 kg
Weight & dimensions - Cable length - 1 m
Weight & dimensions - Depth - 225 mm
Weight & dimensions - Height - 170 mm
Weight & dimensions - Package depth - 160 mm
Weight & dimensions - Package height - 270 mm
Weight & dimensions - Package weight - 3.15 kg
Weight & dimensions - Package width - 295 mm
Weight & dimensions - Weight - 2.13 kg
Weight & dimensions - Width - 127 mm
