ID: 1221867
Product code: IPC-HDW1639T-AIL0280BS6-B
In stock 20 units
Warranty: 3 years

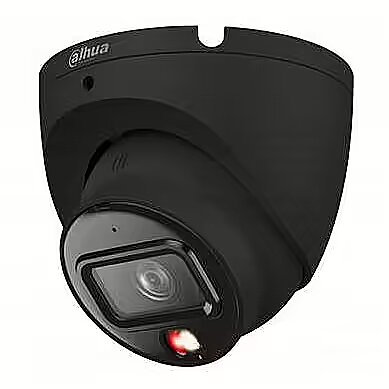

Dahua Eyeball, 3200x1800p, 6MP, Black
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost 1.99 €: 08.05.2025
- Delivery to Omniva parcel locker 1.99 €: 08.05.2025
- Courier delivery 3.99 €: 08.05.2025
All parameters
Aperture
: Nav norādīts
Atmiņas kartes ligzda
: Nav
Colour
: Melna
Encoding
: H.264, H.265
Feeding
: 12V adapteris, PoE
FPS at maximum resolution
: 20
Microphone
: Ir
Network connections
: Nav
Number of cameras per set
: 1
Operating temperature MAX (°C)
: 60
Operating temperature MIN (°C)
: -40
Resolution
: 3200x1800
SIM card socket
: Nav
Use
: Indoor/Outdoor
Viewing angle
: 110°
Water resistance
: IP67
Weight (g)
: 450
More detailed specification
Camera design - Eyeball
Category Code - FNC
Colour - Black
Description - IPC-HDW1639T-AIL0280BS6-B > 1/2.7" CMOS image sensor, low luminance, and high definition image. > Outputs max. 6 MP (3200 × 1800) @20 fps, and supports 2688 × 1520@25/30 fps. > H.265 codec, high compression rate, ultra-low bit rate. > Built-in Multi-core Light, the max. IR distance is 30 m and the max. warm light distance is 30 m. > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. > Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. > Built in Mic. > 12 VDC/PoE power supply, easy for installation. > IP67 protection. > Supports human detection. > Focal Length 2.8 mm, Field of View 110°
Dimensions - 85.6 mm × Φ94.0 mm
Effective pixels - 3200 × 1800
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Environment - Outdoor
Focal Length - 2.8 mm
Full Description Line - Type HDTV/Megapixel/Outdoor|Pixel Resolution 6 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/2.7" CMOS|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0007 Lux|Effective pixels 3200 × 1800|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xRJ45|Power options PoE|Power supply requirements 12 VDC/PoE (802.3af)|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Colour Black|Dimensions 85.6 mm × Φ94.0 mm
IR Illumination - Yes
Lens Mount - M12
Microphone - Built-in
Min. Illumination - 0.0007 Lux
Model - IPC-HDW1639T-AIL0280BS6-B
Network Camera Type - HDTV/Megapixel/Outdoor
Operating temperature range - –40 °C to +60 °C
Pixel Resolution - 6 Mega Pixel
Power consumption - 5.3 Watts
Power options - PoE
Power supply requirements - 12 VDC/PoE (802.3af)
Product Net Weight - 0.34 kg
RJ45 Input/Output connectors - 1
Sensor size - 1/2.7" CMOS
Shipping Box Depth Shipping/Package Box Dimensions - 11.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 11 cm
Shipping Box Weight Shipping/Package Box Dimensions - 0.45 kg
Shipping Box Width Shipping/Package Box Dimensions - 11 cm
Unit Box Height - 0.11
Unit Box Length - 0.115
Unit Box Width - 0.11
Unit Calculated Volume - 0.001391 cubm
Unit Calculated Weight - 0.45 kg
Units per Shipping Box - 1
Vendor Homepage - www.dahuasecurity.com
Warranty - 36 months
Category Code - FNC
Colour - Black
Description - IPC-HDW1639T-AIL0280BS6-B > 1/2.7" CMOS image sensor, low luminance, and high definition image. > Outputs max. 6 MP (3200 × 1800) @20 fps, and supports 2688 × 1520@25/30 fps. > H.265 codec, high compression rate, ultra-low bit rate. > Built-in Multi-core Light, the max. IR distance is 30 m and the max. warm light distance is 30 m. > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. > Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. > Built in Mic. > 12 VDC/PoE power supply, easy for installation. > IP67 protection. > Supports human detection. > Focal Length 2.8 mm, Field of View 110°
Dimensions - 85.6 mm × Φ94.0 mm
Effective pixels - 3200 × 1800
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Environment - Outdoor
Focal Length - 2.8 mm
Full Description Line - Type HDTV/Megapixel/Outdoor|Pixel Resolution 6 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/2.7" CMOS|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0007 Lux|Effective pixels 3200 × 1800|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xRJ45|Power options PoE|Power supply requirements 12 VDC/PoE (802.3af)|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Colour Black|Dimensions 85.6 mm × Φ94.0 mm
IR Illumination - Yes
Lens Mount - M12
Microphone - Built-in
Min. Illumination - 0.0007 Lux
Model - IPC-HDW1639T-AIL0280BS6-B
Network Camera Type - HDTV/Megapixel/Outdoor
Operating temperature range - –40 °C to +60 °C
Pixel Resolution - 6 Mega Pixel
Power consumption - 5.3 Watts
Power options - PoE
Power supply requirements - 12 VDC/PoE (802.3af)
Product Net Weight - 0.34 kg
RJ45 Input/Output connectors - 1
Sensor size - 1/2.7" CMOS
Shipping Box Depth Shipping/Package Box Dimensions - 11.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 11 cm
Shipping Box Weight Shipping/Package Box Dimensions - 0.45 kg
Shipping Box Width Shipping/Package Box Dimensions - 11 cm
Unit Box Height - 0.11
Unit Box Length - 0.115
Unit Box Width - 0.11
Unit Calculated Volume - 0.001391 cubm
Unit Calculated Weight - 0.45 kg
Units per Shipping Box - 1
Vendor Homepage - www.dahuasecurity.com
Warranty - 36 months
