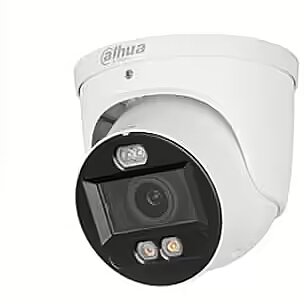

Dahua Eyeball, 1668p, 5MP, White

Alarm In Input/Output connectors - 1
Alarm Out Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Camera design - Eyeball
Category Code - FNC
Description - 5 MP Smart Dual Light Active Deterrence Vari-focal Eyeball WizSense Network Camera > 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image. > Outputs max. 5 MP (2960 × 1668) @20 fps and supports 4 MP (2688 × 1520)@25/30 fps. > H.265 codec, high compression rate, ultra-low bit rate. > Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m. > ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments. > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. > Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human). > Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection. > Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual Mic; built-in speaker; support two-way talk. > 12 VDC/PoE power supply. > IP67 protection. > Sound and light alarm (red and blue lights). > SMD 4.0. > One-tap arming/disarming through alarm input
Dimensions - 127.6 mm × Φ122.0 mm
Electronic Shutter Speed - 1/3 s–1/100,000 s
Environment - Outdoor
Full Description Line - Type Outdoor|Pixel Resolution 5 Mega Pixel|IR Illumination|Sensor size 1/2.7" CMOS|Microphone Built-in|Electronic Shutter Speed 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xMicroSD Card Slot|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)|Environment Outdoor|Operating temperature range –30 °C to +60 °C|Dimensions 127.6 mm × Φ122.0 mm
IR Illumination - Yes
Microphone - Built-in
MicroSD Card Slot Input/Output connectors - 1
Model - IPC-HDW3549H-ZAS-PV-27135
Network Camera Type - Outdoor
Operating temperature range - –30 °C to +60 °C
Pixel Resolution - 5 Mega Pixel
Power options - 12V/PoE
Power supply requirements - 12 VDC/PoE (802.3af)
RJ45 Input/Output connectors - 1
Sensor size - 1/2.7" CMOS
Shipping Box Depth Shipping/Package Box Dimensions - 17.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 17 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.1 kg
Shipping Box Width Shipping/Package Box Dimensions - 17 cm
Supports card capacities up to - 256GB
Unit Box Height - 0.17
Unit Box Length - 0.175
Unit Box Width - 0.17
Unit Brutto Volume - 0.005058 cubm
Unit Gross Weight - 1.1 kg
Unit Net Weight - 0.885 kg
Vendor Homepage - www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/TiOC/IPC-HDW3549H-ZAS-PV
Warranty - 36 months
