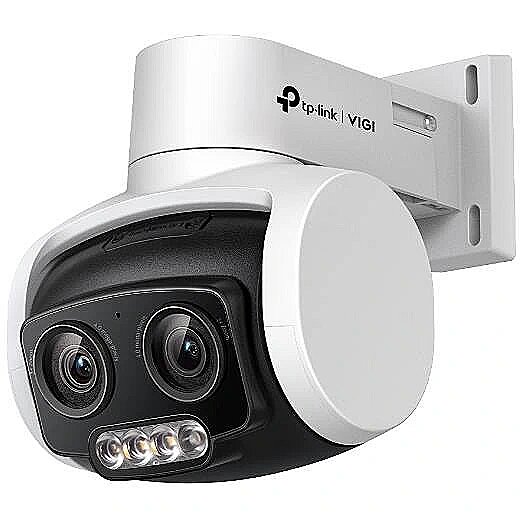

TP-LINK NET CAMERA 4MP PTZ/VIGI C540V

Brand - TP-Link
BrandPartCode - VIGI C540V
Camera - Camera pan control - Yes
Camera - Camera tilt control - Yes
Camera - Lens viewing angle, diagonal - 100°
Camera - Lens viewing angle, horizontal - 84°
Camera - Lens viewing angle, vertical - 46°
Camera - Pan range - 0 - 332°
Camera - Pan speed - 55 °/sec
Camera - Tilt angle range - 0 - 120°
Camera - Tilt speed - 40 °/sec
Camera design - PT/PTZ
Category - Security Cameras
Category Code - FNC
Colour - White
Description - VIGI 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera - 4MP Super-High Definition: 4MP offers more than enough pixels to pick up some of the more discreet details. - 24h Full-Color: Captures 24 hours of full-color details, even in pitch-black conditions, thanks to large-aperture lens, a high-sensitivity sensor, and 4× attached supplemental lights. - 3× Zoom: Allows for closer viewing of objects in expansive areas. - Instant Zoom: Zooming is instant without suffering from delays and image dragging. - Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications. - Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, removes/abandons objects, or enters/exits certain region. - Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property. - Active Defense: Warn potential intruders instantly with sound and light when abnormal events. - Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. - H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space. - IP66 Waterproof: Reliable IP66 for stable outdoor performance. - Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB).
Design - Housing material - Plastic
Design - International Protection (IP) code - IP66
Design - Mounting type - Ceiling
Design - Product colour - White, Black
Dimensions - 107× 136× 139 mm
Electronic Shutter Speed - 1/3 to 1/10000 s
Environment - Outdoor
Focal Length - 4-12 mm
Full Description Line - Type Outdoor/PTZ|Pixel Resolution 4 Mega Pixel|Focal Length 4-12 mm|IR Illumination|Sensor size 1/3” Progressive Scan CMOS|Microphone Built-in|Min. Illumination 0.005 Lux|Electronic Shutter Speed 1/3 to 1/10000 s|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 16 W|Environment Outdoor|Operating temperature range -30–60 °C|Included Accessories Quick Start Guide;Waterproof Cable Attachments;Mounting Accessories|Colour White|Dimensions 107× 136× 139 mm
GTIN - 4895252500837
GTIN - 4895252500844
Image sensor - Number of sensors - 1
Image sensor - Optical sensor size - 25.4 / 3 mm (1 / 3")
Image sensor - Sensor type - CMOS
Included Accessories - Quick Start Guide;
Waterproof Cable Attachments;
Mounting Accessories
IR Illumination - Yes
Lens system - Digital zoom - 3x
Lens system - Focal length range - 4 - 12 mm
Lens system - Maximum aperture number - 1.6
Lens system - Number of lenses - 1
Lens system - Zoom capability - Yes
LongDesc - See More With Less4MP Outdoor Full-Color Dual-LensVarifocal Pan Tilt Network CameraClarity and Colors, All in OneMonitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.Powerful Pan TiltCover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes provide more intelligent and quick options to monitor key areas (up to 8 points for each route).Human & Vehicle ClassificationIntegrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.Automatic TrackingContinues following specified moving persons or vehicles with Pan Tilt cameras intelligently analyzing the image. Track the path efficiently when there should be little movement in the area.Smart Detection for Efficient MonitoringBy setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.Active DefenseWarn potential intruders instantly with sound and light when abnormal events are detected.Two-Way AudioWith voice intercom support, carry two-way conversations while watching your feed from anywhere.PoE & IP66Outdoor PoE connection makes your wiring remarkably easy. Reliable IP66 enables stable outdoor performance. Smart Video Coding by H.265+Compresses the video size without sacrificing video quality, easing the network load and saving disk space.Flexible StorageLocal storage is available for each method, as well as onbsoard storage with an SD card slot (up to 256 GB).Remote ManagementTake full control over your security anytime and anywhere on the VIGI app or client.One system. Full security.Run your business with peace of mind.The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
LongProductName - 1/3” Progressive Scan CMOS, f 4-12 mm, F1.6, 2560 X 1440 px, IR LED850nm 30m Max, RJ45 10/100M, POE, 139x136x107 mm
LongSummaryDescription - TP-Link VIGI 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Black, Housing material: Plastic. Lens viewing angle, horizontal: 84°, Lens viewing angle, vertical: 46°, Lens viewing angle, diagonal: 100°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Digital zoom: 3x, Focal length range: 4 - 12 mm
Microphone - Built-in
Min. Illumination - 0.005 Lux
Model - VIGI C540V
Network - Bluetooth - No
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network Camera Type - Outdoor/PTZ
Night vision - Infra-red wavelength - 850 nm
Night vision - LED type - IR
Night vision - Night vision - Yes
Night vision - Night vision distance - 30 m
Night vision - Number of illumination LEDs - 1
Operating temperature range - -30–60 °C
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Packaging content - Manual - Yes
Packaging content - Number of cameras - 1
Packaging data - Package type - Box
Packaging data - Package weight - 660 g
Performance - Certification - CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
Performance - Connectivity technology - Wired
Performance - Placement supported - Indoor & outdoor
Performance - PTZ control - Yes
Performance - Type - IP security camera
Pixel Resolution - 4 Mega Pixel
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output voltage - 12
Power - Power consumption (max) - 14 W
Power - Power consumption (typical) - 2.9 W
Power - Power source type - PoE
Power options - 12V/PoE
Power supply requirements - 12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 16 W
ProductName - VIGI 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera
RJ45 Input/Output connectors - 1
Sensor size - 1/3” Progressive Scan CMOS
Shipping Box Depth Shipping/Package Box Dimensions - 19 cm
Shipping Box Height Shipping/Package Box Dimensions - 16 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.7 kg
Shipping Box Width Shipping/Package Box Dimensions - 15 cm
ShortSummaryDescription - TP-Link VIGI 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera, IP security camera, Indoor & outdoor, Wired, CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, Ceiling, White, Black
Storage - Built-in HDD - No
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Maximum memory card size - 256 GB
Supports card capacities up to - 256GB
Title - TP-Link VIGI 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera
Unit Box Height - 0.16
Unit Box Length - 0.19
Unit Box Width - 0.15
Unit Brutto Volume - 0.00456 cubm
Unit Gross Weight - 0.7 kg
Unit Net Weight - 0.43 kg
URL - https://www.tp-link.com/uk/business-networking/vigi-network-camera/vigi-c540v/
Vendor Homepage - www.tp-link.com/en/business-networking/vigi-network-camera/vigi-c540v/
Video - Bit rate - 256 Kbps - 4 Mbps
Video - Bit rate control - Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Video - Frame rate - 30 fps
Video - Maximum resolution - 2560 x 1440 pixels
Video - Supported graphics resolutions - 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Video - Supported video modes - 720p, 1080p, 1440p
Video - Total megapixels - 4 MP
Video - Video formats supported - H.264, H.264+, H.265, H.265+
Video - Video recording - Yes
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 139 mm
Weight & dimensions - Height - 107 mm
Weight & dimensions - Weight - 430 g
Weight & dimensions - Width - 136 mm
