Accessories included -
ARTIKEL1 - TBS-H574TX-I3-12G 5BAY 5 X E1.S
ARTIKEL2 - 12GB DDR4 1 X 2.5GBE
Brand - QNAP
BrandPartCode - TBS-H574TX-I3-12G
Breite - 0
Built-in flash memory - 5 GB
Built-in RAM memory - 12 GB
Category - NAS & Storage Servers

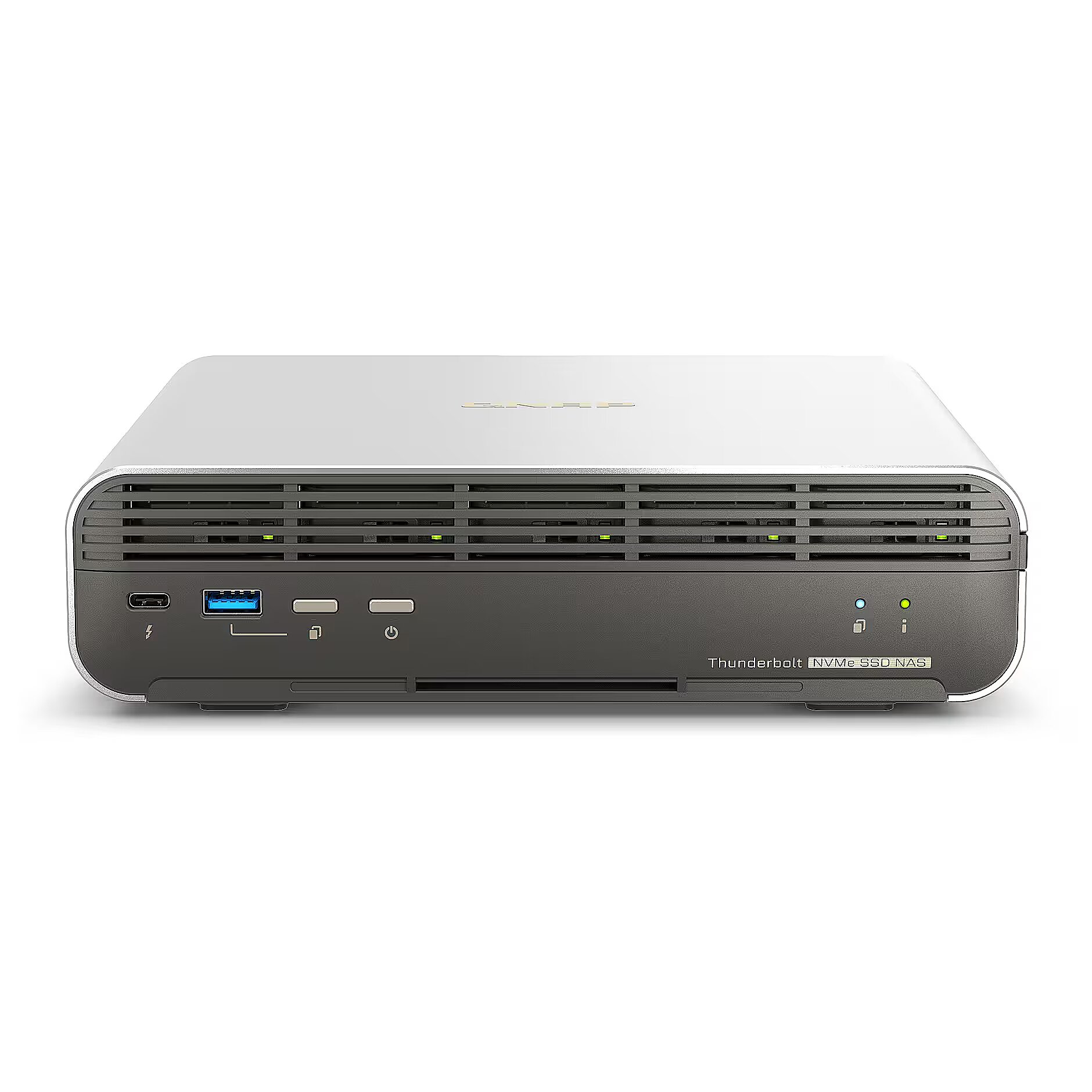

Description - QNAP TBS-h574TX-i3-12G
Zaprojektowany z myślą o planach filmowych, małych studiach, niewielkich zespołach zajmujących się produkcją wideo i
użytkownikach SOHO, kompaktowy TBS-h574TX Thunderbolt 4 all-flash NASbook podnosi poziom produkcji wideo,
zapewniając optymalną produktywność. Oferuje szybkie wejścia/wyjścia i wydajność Intel Core wymaganą przy
produkcji wideo, pozwalając twórcom korzystającym z komputerów Mac lub Windows korzystać z najbardziej płynnej
edycji wideo w czasie rzeczywistym, przesyłania dużych plików, transkodowania wideo i tworzenia kopii zapasowych.
Urządzenie TBS-h574TX pełni rolę pomostu między preprodukcją i postprodukcją, przenosi projekty wideo i współpracę
zespołową na wyższy poziom. TBS-h574TX działa pod kontrolą systemu QuTS hero korzystającego z ZFS, aby zapewnić
integralność danych. Jeśli potrzebujesz, możesz też przełączyć system na QTS
Design - LED indicators - Status, USB
dimension depth - 285 mm
dimension height - 80 mm
Dimensions - 60 × 215 × 199 mm
dimension weight - 3150 g
dimension width - 400 mm
Disk type - SSD
EAN - 471110308452
ean - 885022026876
EANCode - 4711103084526
Fan - 4 cm
Fan - 7.5 cm
Form factor (width) - M.2 2280
Gross Weight Kg - 1,8
GRUPPE1 - Storage
GRUPPE2 - Raid System
GTIN - 4711103084526
GTIN - 4711103084694
guarantee - 36
guarantee_type - normal
HERSTELLER - QNAP
Hoehe - 0
Hot-swapping support - Yes
Housing - Tower
HSTNUMMER - TBS-H574TX-I3-12G
I/O connectors - 1 x HDMI
I/O connectors - 1 x USB 2.0
I/O connectors - 2 x USB (Type C)
I/O connectors - 2 x USB 3.1
Laenge - 0
LongDesc - Designed for film sets, small studios, small-scale video production teams and SOHO users, the compact TBS-h574TX Thunderbolt™ 4 all-flash NASbook elevates video production for optimum productivity. It packs high-speed I/O and Intel® Core™ performance required by video production, allowing creators using Mac® or Windows® to enjoy the smoothest experience ever in real-time video editing, large file transfer, video transcoding, and backup. The TBS-h574TX, as the bridge between pre-production and post-production, takes video projects and team collaboration to the next level. The TBS-h574TX runs the ZFS-based QuTS hero operating system that ensures data integrity. You can also switch to QTS operating system based on your needs.Ultra-fast RAW file editingWith an E1.S to M.2 SSD adapter attached in each slot, you can flexibly install five E1.S or M.2 PCIe NVMe SSDs for lightning-fast multimedia file editing.Stay agile for ongoing projectsHot-swappable M.2 SSD and automatic RAID disk replacement enhance system reliability, reduce the risk of data loss, and smoothen ongoing projects.Thunderbolt™ 4 for faster direct connectionsTwo Thunderbolt™ 4 ports allow directly connecting Mac®/PC workstations to the TBS-h574TX, delivering up to 20Gbps for 4K video editing.Hybrid-architecture CPU for multitaskingThe 13th Gen Intel® Core™ processors with hybrid-architecture (P-core and E-core) delivers high performance and efficiency.2.5GbE and 10GbE as standard2.5GbE and 10GbE networks accelerate large file transfer and allow for more connected devices/workstations by attaching a network switch.Faster USB transferTwo USB 3.2 Gen 2 (10Gbps) ports enable fast file import/export from/to external storage devices.All-flash NASbook supporting E1.S/M.2 NVMe SSDs – a perfect companion for video productionCompared to large rackmount all-flash array storage, the TBS-h574TX all-flash NASbook features a compact, portable design with five SSD slots yet delivers extreme performance. It is the ideal choice to accelerate ongoing creative video projects from pre-production to post-production, and seamlessly works with USB DAS (TR-004) for file backup/archiving. The TBS-h574TX is always ready for your next project! An E1.S to M.2 SSD adapter is attached to each drive bay of the TBS-h574TX, providing great flexibility to choose between M.2 SSDs and E1.S SSDs on demand.Enabling hot-swappable M.2 SSDs!As a frontline video production team, there is the risk of project interruptions due to unexpected SSD failures in storage devices. The innovative TBS-h574TX makes M.2 SSDs become hot-swappable for easier drive replacement. Along with supporting automatic RAID replacement with spares (supported from QTS 5.1 / QuTS hero h5.1), if potential drive errors are detected, the system automatically moves data from the affected drive in a RAID group to a spare, before the data on the affected drive is completely corrupted. This reduces system downtime and data loss risks as it avoids RAID rebuilding.High-performance SSDs. Effective heat dissipation.Designed with an excellent cooling system, the TBS-h574TX is equipped with dual fans and supports SSD heatsinks (heatsinks sold separately) to effectively enhance heat dissipation during intensive workloads, allowing creators to confidently enjoy the ultimate performance of SSD.Thunderbolt™ 4 direct connection to workstations for higher productivityThe TBS-h574TX has two Thunderbolt™ 4 ports for high-speed data transfer (up to 20Gbps bandwidth). Mac® (including M1 and M2 chip models) or Windows® workstations can directly connect to the TBS-h574TX for fast and smooth real-time video editing, allowing for the transfer of a 1TB 4K video just in 11 minutes.2.5GbE and 10GbE ports | Productive teamworkThe 2.5GbE and 10GbE ports can be used with a network switch to add more connected devices to the TBS-h574TX for collaboration, significantly reducing file transfer times across devices.USB 3.2 Gen 2 ports | Faster file import/exportCreators and editors can easily import materials from external storage devices to the TBS-h574TX via two USB 3.2 Gen 2 (10Gbps) ports and one USB 2.0 port during pre-/post-production.USB ports | Easier storage expansionThe TBS-h574TX capacity is scalable by connecting QNAP USB DAS TR-004 or USB JBOD TL-D800C to archive massive number of video files for ever-growing storage and backup needs.Compact, aesthetic, yet unmatched performanceThe TBS-h574TX provides content creators the perfect combination of stylish design and performance. With its metal-finish case, it delivers optimized cooling performance. The set-top design makes the TBS-h574TX space-saving – smaller than A4 paper and with only 2.54 liters in volume – ideal for small-scale studios or video production teams looking for a portable solution.Ultimate visual experience with real-time video transcoding and 4K HDMI™ outputThe TBS-h574TX features built-in Intel® Graphics that accelerates video transcoding and graphical computing for converting videos to different formats smoothly. You can also display videos from the TBS-h574TX to a large screen using HDMI™ (4K @30Hz) for capturing details and clearer quality.Manage your video projects flexibly with myQNAPcloud StorageElevate your video production with the compact and powerful TBS-h574TX. During pre-production, you can save large RAW files (hot data) and handle video transcoding on the TBS-h574TX. In post-production you can store small files (cold data) to myQNAPcloud Storage for file archiving and backup, making it easier to remotely access, synchronize, and share files with cross-site team members.Build the best music server with RoonDesigned for music lovers, Roon Server identifies your entire music library stored on the TBS-h574TX, and consolidates it into Roon’s interconnected digital library. Experiencing smooth music streaming service, you just need to download Roon Server app from QNAP App Center and enable Roon music library on SSD storage devices with simple setting.
LongProductName - Intel® Core™ i3-1320PE, 12 GB on board, 1 x 10GBASE-T (10G/5G/2.5G/1G/100M), 2 (Thunderbolt™ 4), 2.24 kg
LongSummaryDescription - QNAP TBS-H574TX-I3-12G. Type: NAS, Device class: Small & Medium Business. Processor family: Intel® Core™ i3, Processor model: i3-1320PE. Internal memory: 12 GB
Management, monitoring, configuration -
Manufacturer Code - TBS-H574TX-I3-12G
Manufacturer Name - QNAP
Max. number of disks - 5
Max memory size - 12 GB
Memory - Flash memory - 5000 MB
Memory - Internal memory - 12 GB
name - Serwer NAS TBS-h574TX-i3-12G Intel Core i3-1320PE 8C 12GB
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 100,1000,2500,10000 Mbit/s
Network - Jumbo frames support - Yes
Network architecture - GigabitEthernet
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - 1 x 10/100/1000/2500/5000 Mbit/s
Network protocols - IPv4 IPv6
Number of fans - 3
Number of HDDs installed - 0
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Other disk parameters -
Other features -
Performance - Buzzer - Yes
Performance - Device class - Small & Medium Business
Performance - Reset button - Yes
Performance - Type - NAS
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 1.4b
Ports & interfaces - Thunderbolt ports quantity - 2
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Ports & interfaces - USB port - Yes
Power - Power consumption (typical) - 46 W
Power - Power supply unit (PSU) capacity - 120 W
Power supply - Zasilacz 120W Adapter (19VDC output, 100-240VAC input) Pobór mocy: Tryb pracy, typowy 46 W
Processor - Intel Core i3-1320PE 8C(4P+4E)/12T up to 4.50GHz
Processor - On-board graphics card model - Intel® UHD Graphics
Processor - Processor boost frequency - 4.5 GHz
Processor - Processor cores - 8
Processor - Processor family - Intel® Core™ i3
Processor - Processor manufacturer - Intel
Processor - Processor model - i3-1320PE
Processor - Processor threads - 12
producer - QNAP
ProductName - TBS-H574TX-I3-12G
RAID - Yes
RAID levels - 0
RAID levels - 1
RAID levels - 5
RAID levels - 6
RAID levels - 10 (1+0)
RAID levels - 50 (5+0)
RAID levels - JBOD
Short description - QNAP NAS TBS-h574TX-i3-12G (5 Bay) +++ 5 x M.2 2280 PCIe Gen3 x2
ShortSummaryDescription - QNAP TBS-H574TX-I3-12G, NAS, Intel® Core™ i3, i3-1320PE, 12 GB
Stck_Kart - 0
Stck_Pal - 0
Storage - Hot-swap drive bays - Yes
Storage - Installed storage drive type - No
Storage - Storage drive interface - M.2
Storage - Storage drives installed - No
Storage - Supported storage drive types - HDD & SSD
Storno - Y
Title - QNAP TBS-H574TX-I3-12G NAS/storage server Intel® Core™ i3 i3-1320PE 12 GB
URL - https://www.qnap.com/en/product/tbs-h574tx/specs/hardware
vendpn - TBS-h574TX-i3-12G
WarrantyInfo -
Weight - 2.24 kg
Weight & dimensions - Depth - 199 mm
Weight & dimensions - Height - 60 mm
Weight & dimensions - Weight - 2.24 kg
Weight & dimensions - Width - 215 mm
