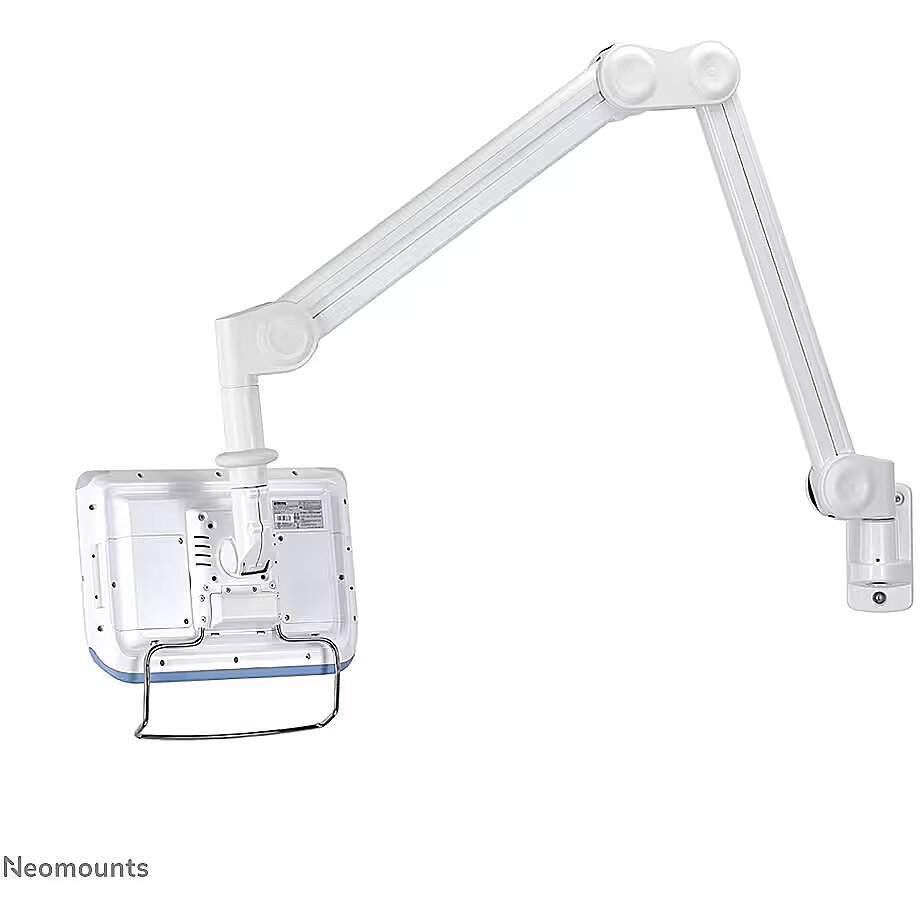

Newstar Medical Monitor Wall Mount, 10-27"

75 mm x 75 mm VESA mounting interface - Yes
100 mm x 100 mm VESA mounting interface - Yes
Brand - Neomounts
BrandPartCode - FPMA-HAW200
Category - Monitor Mounts & Stands
Category Code - MAS
CnCode CnCode - 83021000
Colour - Grey
Description - NEWSTAR MEDICAL FLAT SCREEN WALL MOUNT (162 CM LONG/170 CM HIGH) 10-27" WHITE
Description - The NewStar wall mount, model FPMA-HAW200 is a tilt- and swivel wall mount for medical flat screens up to 27”. This mount is a great choice for space saving placement or when ceiling mounting and floor placement is not an option. NewStars’ unique tilt (55°) and swivel (370°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 0 to 149 centimeters using a gas spring. Depth adjustable from 0 to 149 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. NewStar FPMA-HAW200 has two pivot points and is suitable for screens up to 24" (69 cm). The weight capacity of this product is 7 kg each screen. The ceiling mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using NewStar VESA adapter plates. - Depth: 0 - 149 cm - Height: 0 - 149 cm - Tilt: 55° - Swivel: 370°
Design - Housing material - Aluminium
Design - Product colour - White
Ergonomics - Cable management - Yes
Ergonomics - Depth adjustment range - 0 - 1490 mm
Ergonomics - Height adjustment - Yes
Ergonomics - Height adjustment range - 0 - 1490 mm
Ergonomics - Height adjustment type - Gas spring
Ergonomics - Rotating - Yes
Ergonomics - Swivel angle - 370°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - 0 - 55°
Fits screens sized - 10-27"
Full Description Line - Max. weight 7 kg|Fits screens sized 10-27"|75 mm x 75 mm|100 mm x 100 mm|Colour Grey
GTIN - 8717371444310
Height - 434.000000
Height adjustment - Yes
Length - 1114.000000
Logistics data - Country of origin - Taiwan
Logistics data - Harmonized System (HS) code - 83025000
Logistics data - Master (outer) case gross weight - 12.2 kg
Logistics data - Master (outer) case height - 430 mm
Logistics data - Master (outer) case length - 160 mm
Logistics data - Master (outer) case net weight - 8.6 kg
Logistics data - Master (outer) case width - 1150 mm
Logistics data - Products per master (outer) case - 1 pc(s)
Logistics data - Products per pallet (EU) - 12 pc(s)
LongDesc - The Neomounts wall mount, model FPMA-HAW200 is a tilt- and swivel wall mount for medical flat screens up to 27". This mount is a great choice for space saving placement or when ceiling mounting and floor placement is not an option.Neomounts versatile tilt (55°) and swivel (370°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 0 to 149 centimetres using a gas spring. Depth adjustable from 0 to 149 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. Neomounts FPMA-HAW200 has two pivot points and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 7 kg each screen. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.All installation material is included with the product.
LongProductName - Neomounts Medical Monitor Wall Mount (Full Motion gas spring) for 10"-27" Screen - White
LongSummaryDescription - Neomounts medical wall mount. Maximum weight capacity: 7 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Tilt angle range: 0 - 55°. Product colour: White
Manufacturer - NEOMOUNTS
ManufacturerPartNumber - FPMA-HAW200
Max. weight - 7 kg
Maximum weight (capacity), kg - 7
Motorized - No
Mounting - Distance to the wall (max) - 149 cm
Mounting - Maximum screen size - 68.6 cm (27")
Mounting - Maximum VESA mount - 100 x 100 mm
Mounting - Maximum weight capacity - 7 kg
Mounting - Minimum screen size - 25.4 cm (10")
Mounting - Minimum VESA mount - 75 x 75 mm
Mounting - Mounting type - Wall
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 75 x 75,100 x 100 mm
Other features - Minimum weight - 1 kg
Packaging data - Package depth - 160 mm
Packaging data - Package height - 430 mm
Packaging data - Package net weight - 8.55 kg
Packaging data - Package width - 1150 mm
Pallet quantity - 24
PeriodofWarranty - 5 Y
ProductName - Neomounts medical wall mount
Shipping Box Depth Shipping/Package Box Dimensions - 114 cm
Shipping Box Height Shipping/Package Box Dimensions - 44 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 12.3 kg
Shipping Box Width Shipping/Package Box Dimensions - 15.5 cm
Short summary - Neomounts by Newstar Medical Monitor Wall Mount (Full Motion gas spring) for 10"-27" Screen - White
ShortSummaryDescription - Neomounts medical wall mount, 7 kg, 25.4 cm (10"), 68.6 cm (27"), 100 x 100 mm, Height adjustment, White
Stand/mount type - Other
Stand/mount type - Wall
Tilt - Yes
Title - Neomounts medical wall mount
Turn - No
Unit Box Height - 0.44
Unit Box Length - 1.14
Unit Box Width - 0.155
Unit Brutto Volume - 0.07775 cubm
Unit Gross Weight - 12.3 kg
Unit Net Weight - 8 kg
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=FPMA-HAW200
Vendor Homepage - http://en.newstar.eu/newstar-av-mounts/medical-mounts/wall-mount/newstar-medical-flat-screen-wall-mount-1/
VESA-standard, mm - 75 x 75
VESA-standard, mm - 100 x 100
Warranty - 60 months
WarrantyInfo - 5 year
Weight - 12.350000
Weight & dimensions - Depth - 1490 mm
Weight & dimensions - Height - 1490 mm
Wheels - No
Width - 155.000000
