Techly Floor Stand, 32-70"

Accessories included - - Floor stand
- Fitting elements
- User's manual
Brand - Techly
BrandPartCode - ICA-TR11
Category - TV Mounts
Color - Black
Color - Silver
Corner mount - No
Description - Floor stand LCD/LED 32-70cm, adjustable
- Enables secure installation of LED / LCD / PDP or TV displays
- Aluminum and steel construction guarantees maximum safety
- Fixing the display in the VESA standard (max. 600x400)
- The angle of the display can be adjusted
- The display can be rotated horizontally
- Integrated wiring system
- Durable, stable base
- Ideal for exhibition, conference or training applications
Design - Anti-theft function - No
Design - Housing material - Aluminium
Design - Product colour - Black
Design - Product colour - Black, Silver
Design - Product colour - Silver
dimensionalWeight - 11983
dimension depth - 100 mm
dimension height - 1350 mm

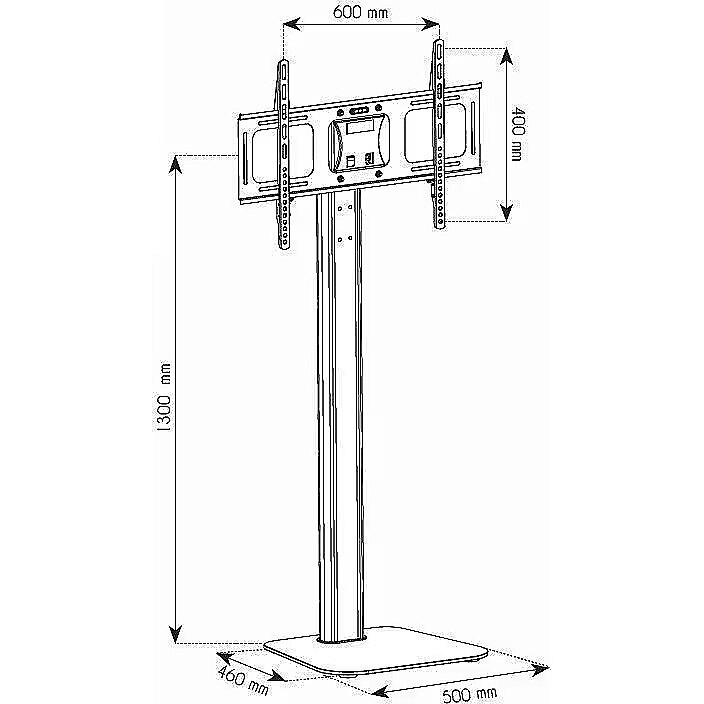

Dimensions - - Total column height: 1300 mm
- Dimensions of the base: 500 x 460 mm
dimension weight - 14760 g
dimension width - 515 mm
ean - 8054529028863
Ergonomics - Built-in spirit level - Yes
Ergonomics - Cable management - Yes
Ergonomics - Swivel angle - 60°
Ergonomics - Tilt angle range - -10 - 5°
GTIN - 8054529028863
guarantee - 36
guarantee_type - external
Horizontal adjustment - 120 °
Load (max) - 50 kg
Logistics data - Harmonized System (HS) code - 85299097
LongDesc - - Floor Stand for mounting LCD / Plasma screens- Aluminum Construction- Support for Plasma / LCD / LED monitor from 32-70" to 50 kg- Compatible VESA up to 600x400 mm- The bracket for TV can be tilted (-10/+5°) and rotated (120°) for optimal adjustment of the display position- Solid rectangular base (500x460 mm); column with a total height of 1300 mm- Integrated cable management for a clean installation and professionalIn the box- TV Bracket- Column base- Installation material- Instruction manual
LongProductName - Floor Aluminum Support for LCD/LED/Plasma TV 32-70"
LongSummaryDescription - Techly ICA-TR11. Maximum weight capacity: 50 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 50 x 50 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -10 - 5°. Product colour: Black, Silver
Mounting - Maximum screen size - 177.8 cm (70")
Mounting - Maximum VESA mount - 600 x 400 mm
Mounting - Maximum weight capacity - 50 kg
Mounting - Minimum screen size - 81.3 cm (32")
Mounting - Minimum VESA mount - 50 x 50 mm
Mounting - Mounting type - Floor
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 50 x 50
Mounting - Panel mounting interface - 50 x 50,75 x 75,100 x 100,100 x 200,120 x 180,200 x 100,200 x 200,200 x 300,300 x 300,400 x 200,400 x 400,400 x 300,600 x 200,600 x 400
Mounting - Panel mounting interface - 75 x 75 mm
Mounting - Panel mounting interface - 100 x 100 mm
Mounting - Panel mounting interface - 100 x 200 mm
Mounting - Panel mounting interface - 120 x 180
Mounting - Panel mounting interface - 200 x 100
Mounting - Panel mounting interface - 200 x 200 mm
Mounting - Panel mounting interface - 200 x 300
Mounting - Panel mounting interface - 300 x 300 mm
Mounting - Panel mounting interface - 400 x 200 mm
Mounting - Panel mounting interface - 400 x 300 mm
Mounting - Panel mounting interface - 400 x 400 mm
Mounting - Panel mounting interface - 600 x 200
Mounting - Panel mounting interface - 600 x 400
name - Floor stand for LCD/LED 32-70inch adjustable
Other features - Angle adjustment: -10°/+5°
Other features - Quantity - 1
Packaging content - Manual - Yes
Packaging content - Mounting kit - Yes
producer - Techly
producerCode - 028863
ProductName - ICA-TR11
productName - Techly ICA-TR11 TV mount 177.8 cm (70") Black, Silver
productSize - Normal
Range adjustment - No
Screen size (max) - 70 ''
Screen size (min) - 32 ''
ShortSummaryDescription - Techly ICA-TR11, 177.8 cm (70"), 50 x 50 mm, 600 x 400 mm, -10 - 5°, Aluminium, Black, Silver
sizeX - 1345
sizeY - 90
sizeZ - 495
Stuff - Aluminum
Stuff - Steel
Technical details - Warranty period - 1 year(s)
Title - Techly ICA-TR11 TV mount 177.8 cm (70") Black, Silver
Type - Stand
URL - https://www.techly.com/floor-aluminum-support-for-lcd-led-plasma-32-70.html
Usage - Monitors
Usage - TV
vendpn - 028863
Vertical adjustment - 10 °
VESA - 100 x 100
VESA - 200 x 100
VESA - 200 x 200
VESA - 300 x 200
VESA - 300 x 300
VESA - 400 x 200
VESA - 400 x 300
VESA - 400 x 400
VESA - 600 x 200
VESA - 600 x 400
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 15.12 kg
weight - 14700
Weight & dimensions - Depth - 500 mm
Weight & dimensions - Height - 1300 mm
Weight & dimensions - Weight - 14.7 kg
Weight & dimensions - Width - 460 mm
