10/100/1000M LAN Ports - 16
Accessories included -
brand - MikroTik
category - MikroTik > Ethernet rūteri > Cloud Core Router
Category 1 - Netzwerk
Category 2 - Router
Category Code - ROU
Certificates -
CnCode CnCode - 85176200
Code - CCR2004-16G-2S+PC
Color - White

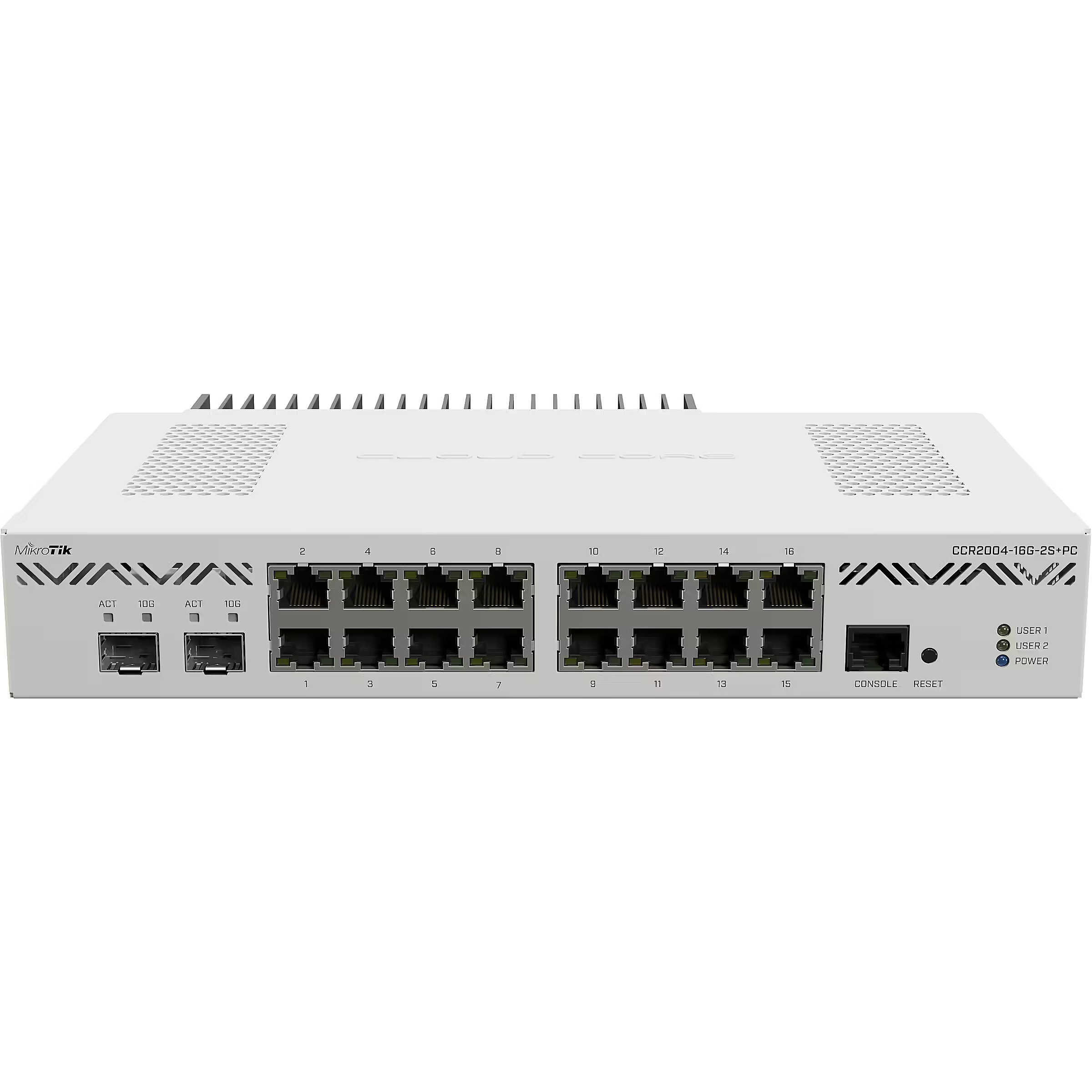

Description - CCR2004-16G-2S+PC (Passive Cooling) Like the other models in CCR2004 series, this CCR also features the Amazon Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores. While this CPU is running at 1.2 GHz, the router can be 3x as fast than the previous generation CCR’s. This is the silent powerhouse. Enjoy all the power of a real CCR in peace and quiet. Get rid of all the hum and buzz in your office, studio, server room or homelab without sacrificing the performance! The new router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a RJ-45 console port on the front panel. Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage - a separate 10 Gbps full-duplex line. Boards come with 4GB of DDR4 RAM and 128MB of NAND storage. So as you can see - no bottlenecks. As long as the CPU can handle the processing, all ports can reach wire speed. And this CPU is a beast that can handle a lot. If we look at the performance, you can see that it is trading blows with our CCR1009. The best part? This brand new CCR is among the most affordable options out there - not only within the CCR series, but on the market in general. One of the most common ways to use this device would be: Gigabit Ethernet ports for the internal network; SFP+ ports for downlink and uplink. The perfect all-in-one solution for small and medium-sized businesses. Easy and efficient. With the new CCR2004, you can take your office network to the next level. Without breaking the bank.
Description - CCR2004-16G-2S+PC router Up to 300% faster than existing CCR1009 routers! The luxury you deserve, at a price you can afford. 16 Gigabit Ethernet ports, 2x10G SFP+. Like other models in the CCR2004 series, this one is also equipped with the Amazon Annapurna Labs Alpine v2 processor with 4x 64-bit ARMv8-A Cortex-A57 cores. Although this processor runs at 1.2 GHz, the router can be 3 times faster than the previous generation CCR. Enjoy the power of real CCR in peace and quiet. Get rid of the noise in your office, studio, server room or home lab without sacrificing performance! The new router has 18 wired ports, including 16 Gigabit Ethernet ports and two 10G SFP+ cages. It also has an RJ-45 console port on the front panel. Each group of 8 Gigabit Ethernet ports is connected to a separate switching chip from the Marvell Amethyst family. Each switch chip has a 10 Gbps full-duplex line connected to the processor. The same applies to each SFP+ frame, a separate full-duplex 10 Gb/s line. The boards are equipped with 4 GB of DDR4 RAM and 128 MB of NAND memory. One of the most common uses for this device is: Gigabit Ethernet ports for the internal network; SFP+ ports for downlink and uplink. The perfect, comprehensive solution for small and medium-sized companies. Easy and efficient. With the new CCR2004 you can take your office network to the next level.
dimension depth - 55 mm
dimension height - 390 mm
Dimensions - 272 x 195 x 44 mm
Dimensions - 443 x 210 x 44 mm
dimension weight - 1500 g
dimension width - 210 mm
EAN - 4752224007810
ean - 4752224007810
Environment requirements - Tested ambient temperature: -20°C to 60°C
Features > Mesh Support - No
Features > Mobile Broadband - No mobile broadband
Features > MU-MiMO - No
Flash memory capacity - 128MB
Full Description Line - CCR2004-16G-2S+PC|Network Device Type Router|16x10/100/1000M|2xSPF+|Memory (RAM) 4GB|Flash memory capacity 128MB|Power supply requirements 100-240 V|Included Accessories RouterOS licence 6, Rack mount Ears, Power Adapter|Power consumption 36 Watts|Operating temperature range -20°C to +60°C|Dimensions 443 x 210 x 44 mm
guarantee - 12
guarantee_type - normal
height - 0.075 m
I/O ports - 1 x Console port (RJ-45)
I/O ports - 2 x SFP
I/O ports - 16 x 10/100/1000 Mbit/s
Included Accessories - RouterOS licence 6, Rack mount Ears, Power Adapter
length - 0.39 m
Link - https://mikrotik.com/product/ccr2004_16g_2s_pc
Management, monitoring, configuration -
Management features > Reset button - Yes
Manufacturer - MikroTik
Memory (RAM) - 4GB
Model - CCR2004-16G-2S+PC
mpn - CCR2004-16G-2S+PC
MPN - CCR2004-16G-2S+PC
Name - Mikrotik CCR2004-16G-2S+PC
Name - Mikrotik CCR2004-16G-2S+PC | Ethernet Router | CCR2004-16G-2S+PC | 10/100/1000 Mbit/s | Mesh Support No | MU-MiMO No | No mobile broadband
name - MikroTik Wired Router CCR2004-16G-2S+PC
Network architecture - GigabitEthernet
Network Device Type - Router
Operating temperature range - -20°C to +60°C
Other features - Processor: AL32400 Number of CPU cores: 4 Nominal processor frequency: 1200 MHz Operating system: RouterOS v7 RAM size: 4 GB Memory size: 128 MB Memory type: NAND MTBF: Approximately 200,000 hours at 25°C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 385 mm
Package features > Gross height (mm) - 210 mm
Package features > Gross width (mm) - 50 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 427 pc(s)
Package features > Paper/Pasteboard - 137 g
Package features > Plastic (No PET) - 40.00 g
Package features > Tare weight (kg) - 0.177 kg
Package features > Volume (m3) - 0.0040425 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PDF - https://www.blobs.lt/products/1/9/8/3/6/3/99db093286426b4902dc35b415888daf/original.pdf
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
Power consumption - 36 Watts

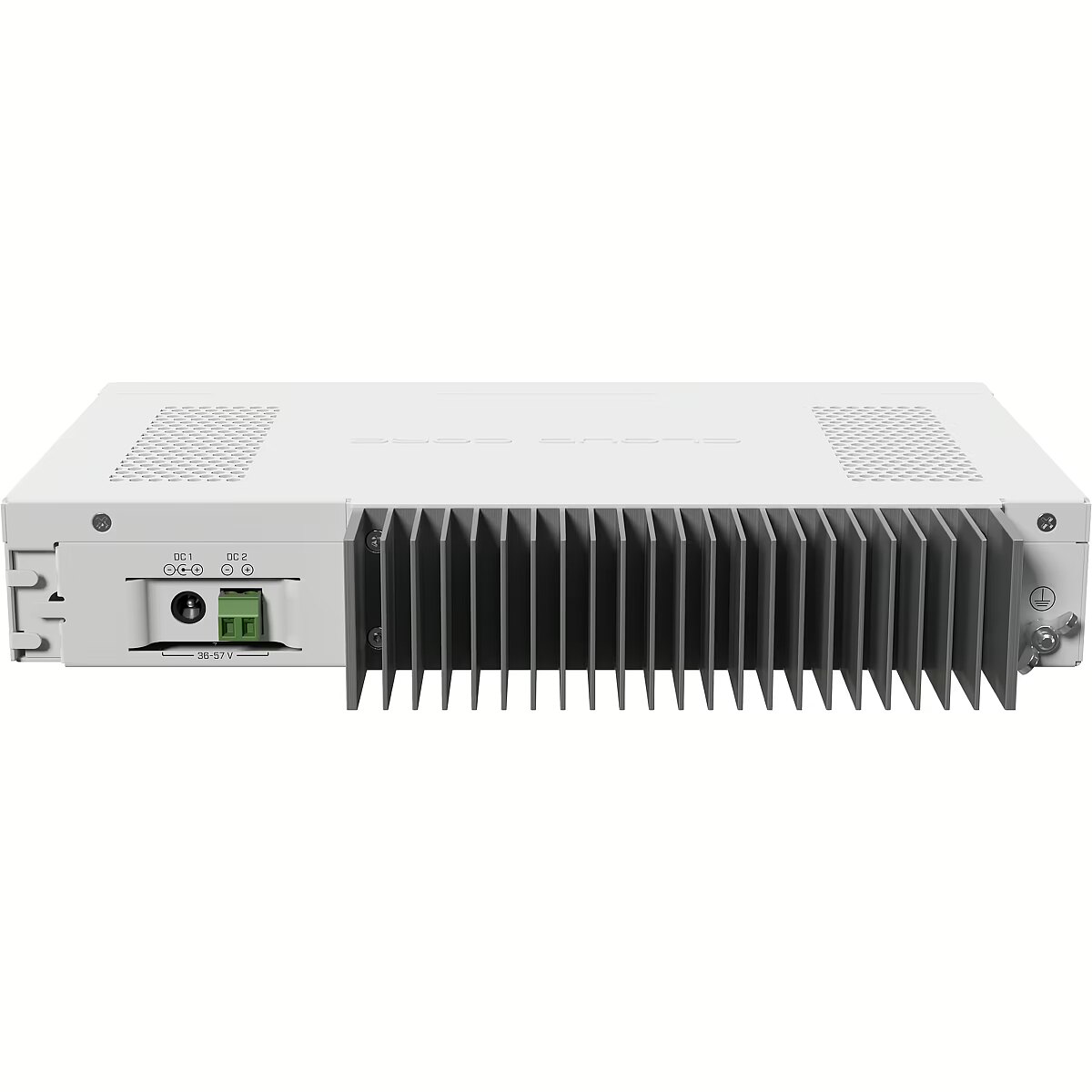

Power supply - Number of DC inputs: 2 (DC socket, 2-pin terminal) DC jack input Voltage: 3657 V Input with 2-pin terminal Voltage: 3657 V Maximum power consumption: 36 W Maximum power consumption without accessories: 30 W Cooling type: Passive
Power supply requirements - 100-240 V
producer - MikroTik
Producer product family - Ethernet Router
Producer product name - CCR2004-16G-2S+PC
Product model code - CCR2004-16G-2S+PC
Security -
Shipping Box Depth Shipping/Package Box Dimensions - 38.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 5.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.46 kg
Shipping Box Width Shipping/Package Box Dimensions - 21 cm
Software -
Special functions -
SPF+ LAN Ports - 2
System Requirements -
Technical details > Gross weight - 1.46 kg
Technical details > Net weight - 1.283 kg
Technical details > Other features - 16x Gigabit Ethernet ports
Technical details > Producer - MikroTik
title - MikroTik CCR2004-16G-2S+PC
Type - xDSL
Unit Box Height - 0.055
Unit Box Length - 0.385
Unit Box Width - 0.21
Unit Brutto Volume - 0.004447 cubm
Unit Gross Weight - 1.46 kg
Unit Net Weight - 1.2 kg
Vendor Homepage - mikrotik.com/product/ccr2004_16g_2s_pc
vendpn - CCR2004-16G-2S+PC
Warranty - 12
Warranty - 12 month(s)
Warranty - 12 months
Weight - 1.5
weight - 1.6 kg
width - 0.21 m
