8-pin 12V power connectors - 0
Category_1 - Computer Cases and Cooling
Category_2 - Computer Cases
Chassis type - Big Tower
Color - Black
Computer case backlight - ARGB

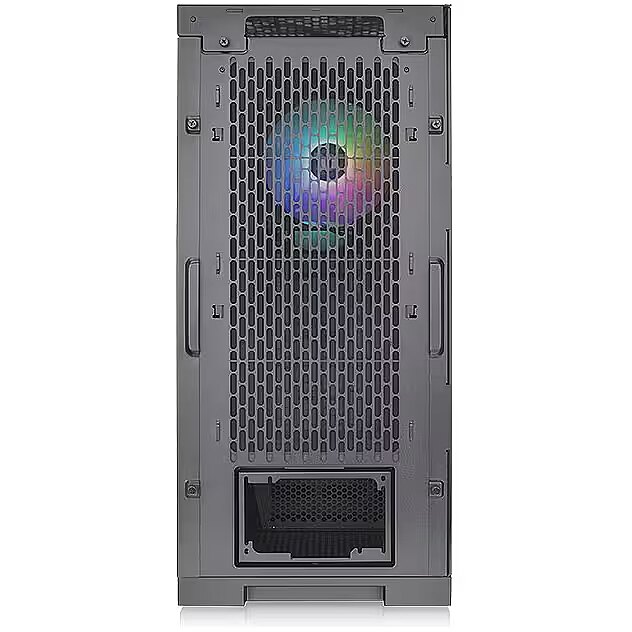

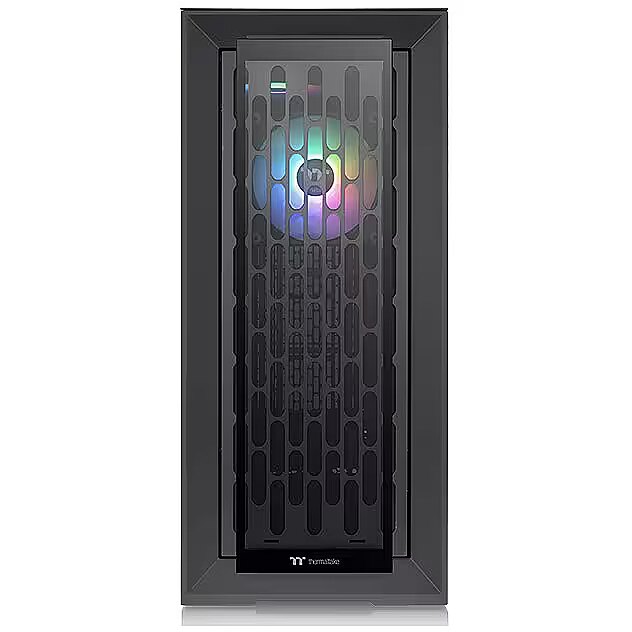

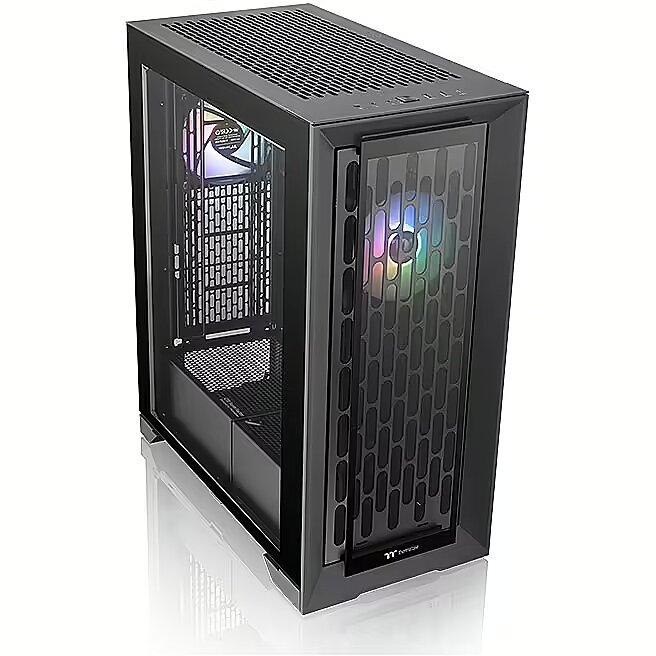

Description - Full Tower CTE T500 TG ARGB case The CTE T500 TG ARGB is a purpose-built full tower E-ATX case from the new CTE series, designed to provide high levels of thermal efficiency to critical components. It comes with three pre-installed 140mm CT140 ARGB fans and can support up to a 420mm AIO radiator at the front and a maximum 360mm AIO radiator at the rear. CTE form factor Designed by Thermaltake The Thermaltake-designed CTE form factor stands for centralized thermal efficiency and focuses on ensuring high levels of thermal efficiency for critical components. The design utilizes a 90-degree motherboard rotation, providing more efficient airflow paths. Since the CPU has been moved much closer to the front panel and the graphics card closer to the rear panel, an independent supply of cold air is provided to dissipate the heat of the CPU and graphics card respectively. This overall approach has enabled CTE to provide better and more efficient intake airflow through major component placement and cooling, as well as optimizing heat removal from the system. Move critical heat sources (CPU and graphics cards) closer to cool air Because the CTE T500 processor has been moved much closer to the front panel and the graphics card closer to the rear panel, an independent cold air supply is provided to dissipate heat from the CPU and graphics card respectively. Active cooling for more efficient intake airflow This overall approach enabled the CTE T500 to provide better and more efficient intake airflow by positioning major components and cooling, as well as optimizing heat removal from the system. Experience the perfect combination of design and performance with our CTE T500 The CTE T500 TG ARGB is a purpose-built full tower E-ATX case from the new CTE series, designed to provide high levels of thermal efficiency to critical components. It comes with three pre-installed 140mm CT140 ARGB fans and can support a maximum of a 420mm AIO radiator at the front and a maximum of two 360mm AIO radiators at the front and rear. There's plenty of room to install cooling components, including front and rear fan brackets, top and right fan vents, bottom fan vent, and shroud vent, and the case can accommodate up to eleven 140mm/120mm fans. Other cool details include removable filters, pump and tank support, and Velcro straps for easy cable management. Our CTE T500 is the perfect choice whether you're looking for a custom liquid cooling setup or a dual AIO setup system! Support for dual 360mm radiators Our CTE T500 TG ARGB offers excellent cooling support for custom liquid cooling enthusiasts, allowing users to install up to two 360mm radiators simultaneously at the front and rear. To ensure AIO compatibility, users can install up to one 420mm AIO radiator on the front and up to two 360mm AIO radiator on the front and rear. Rock your world with three pre-installed 140 mm CT140 ARGB fans The CTE T500 TG ARGB Full Tower case is equipped with three 140 mm ARGB PWM fans on the front, top and rear. LED lighting effects can be manipulated using software supported by the motherboard. Users can create an amazing RGB lighting show while enjoying the highest cooling performance.
dimension depth - 725 mm
dimension height - 605 mm
Dimensions - 615 x 275 x 516 mm
dimension weight - 15400 g
dimension width - 380 mm
Drive bays 2.5'' extern. - 0
Drive bays 2.5'' intern. - 0
Drive bays 3.5'' extern. - 0
Drive bays 3.5'' intern. - 0
Drive bays 5.25'' extern. - 0
Drive bays 5.25'' intern. - 0
ean - 4713227537216
EAN_code - 4713227537216
Fans installed - 1 x 140 mm ARGB (back)
Fans installed - 1 x 140 mm ARGB (front)
Floppy power connectors - 0
Form-factor - ATX
Form-factor - E-ATX
Form-factor - Micro ATX
Form-factor - Mini-ATX
Front panel connectors - 1 x headphones
Front panel connectors - 1 x USB Typ C
Front panel connectors - 1x microphone
Front panel connectors - 2 x USB 3.0
guarantee - 36
guarantee_type - statutory
Manufacturer - Thermaltake
Manufacturer_code - CA-1X8-00F1WN-01
Maximum CPU cooling height - 195 mm
Maximum length of the graphics card - 385 mm
Maximum number of fans - 11
MOLEX power connectors - 0
name - Case CTE T500 Fu ll Tower ARGB TG Black
Name - Thermaltake CTE T500 TG ARGB , big tower case (black, tempered glass)
No. of drive bays - 0
Number of fans installed - 3
Number of power supply connector 4+4-pin 12V - 0
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 0
Ooptional water cooling - 1 x 120 mm (back)
Ooptional water cooling - 1 x 120 mm (front)
Ooptional water cooling - 1 x 120 mm (top)
Ooptional water cooling - 1 x 140 mm (back)
Ooptional water cooling - 1 x 140 mm (front)
Ooptional water cooling - 1 x 240 mm (back)
Ooptional water cooling - 1 x 240 mm (front)
Ooptional water cooling - 1 x 280 mm (back)
Ooptional water cooling - 1 x 280 mm (front)
Other features - Fan support: Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Top: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right: 1 x 120mm, 1 x 140mm Rear: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Bottom: 1 x 120mm, 1 x 140mm PSU Cover: 1 x 120mm, 1 x 140mm Cooler size Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm Top: 1 x 120mm(AIO only) Rear: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Power supply - Failure
producer - Thermaltake
SATA power connectors - 0
Side panel - Tempered Glass
vendpn - CA-1X8-00F1WN-01
Weight - 5,88
Weight - 15.3 kg
