Asus Prime AP201, Tempered Glass, Black

2.5"/3.5" Internal Drive Bays - 3
2.5" Internal Drive Bays - 1
Brand - ASUS
BrandPartCode - 90DC00G0-B39010
Case Type - Micro
category - Cases & Modding|PC Cases|Mini Cases|Micro-ATX Cases
Category - Computer Cases
Category - Root/Electronics/PC parts/Computer casings
Category Code - CAS
code - 90DC00G0-B39010
Colour - Black
Cooling & Ventilation System - Top: 3 x 120 mm; 2 x 140 mm, Rear: 1 x 120 mm, Pre-installed Fans (Rear): 1 x 120 mm
Cooling - Number of rear fans supported (max) - 1
Cooling - Number of top fans supported (max) - 3
Cooling - Rear fans diameters supported - 120 mm
Cooling - Rear fans installed - 1x 120 mm
Cooling - Rear radiator sizes supported - 120 mm
Cooling - Top fans diameters supported - 120
Cooling - Top fans diameters supported - 120,140 mm
Cooling - Top fans diameters supported - 140 mm
Cooling - Top radiator sizes supported - 120
Cooling - Top radiator sizes supported - 120,140,240,280,360 mm
Cooling - Top radiator sizes supported - 140
Cooling - Top radiator sizes supported - 240
Cooling - Top radiator sizes supported - 280
Cooling - Top radiator sizes supported - 360 mm

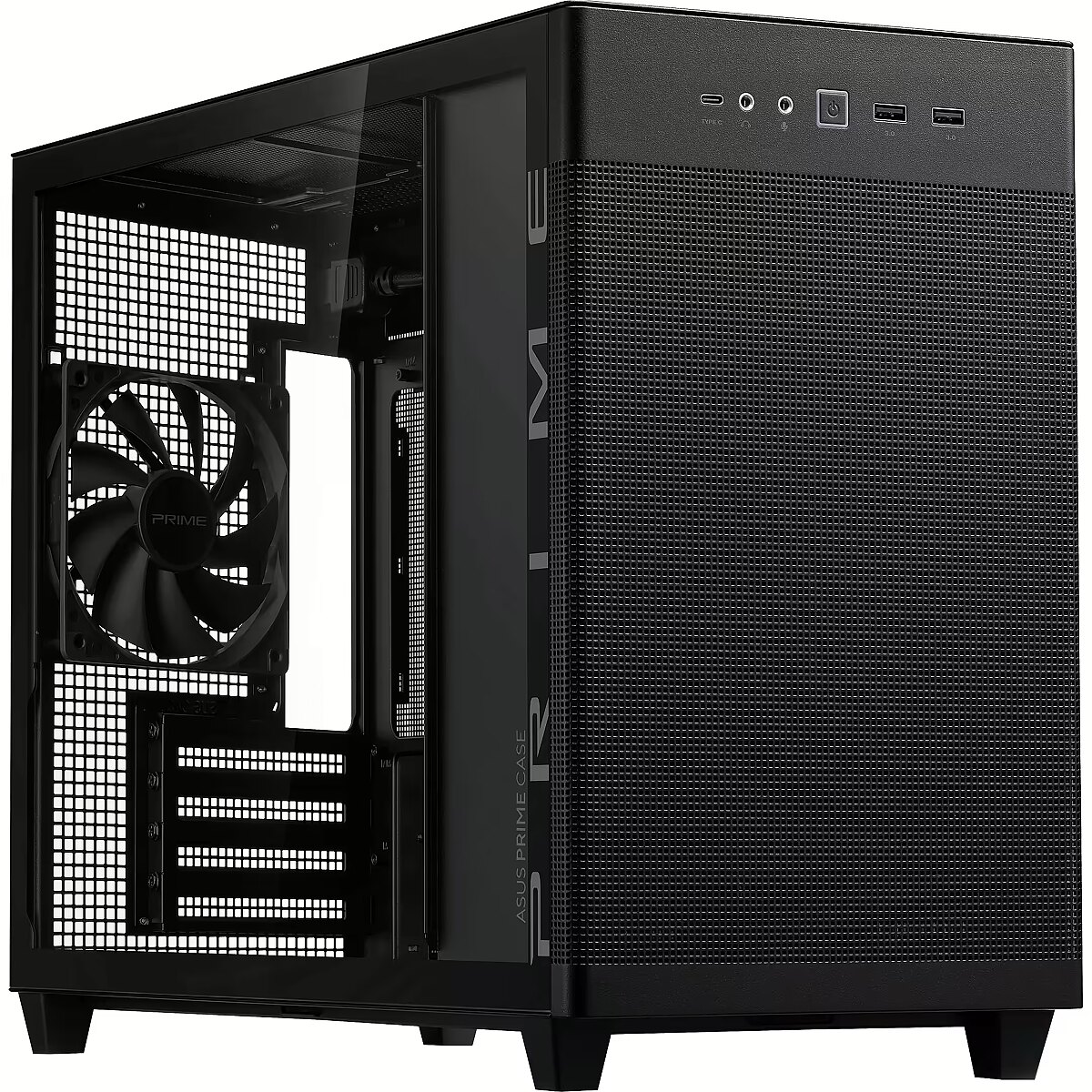

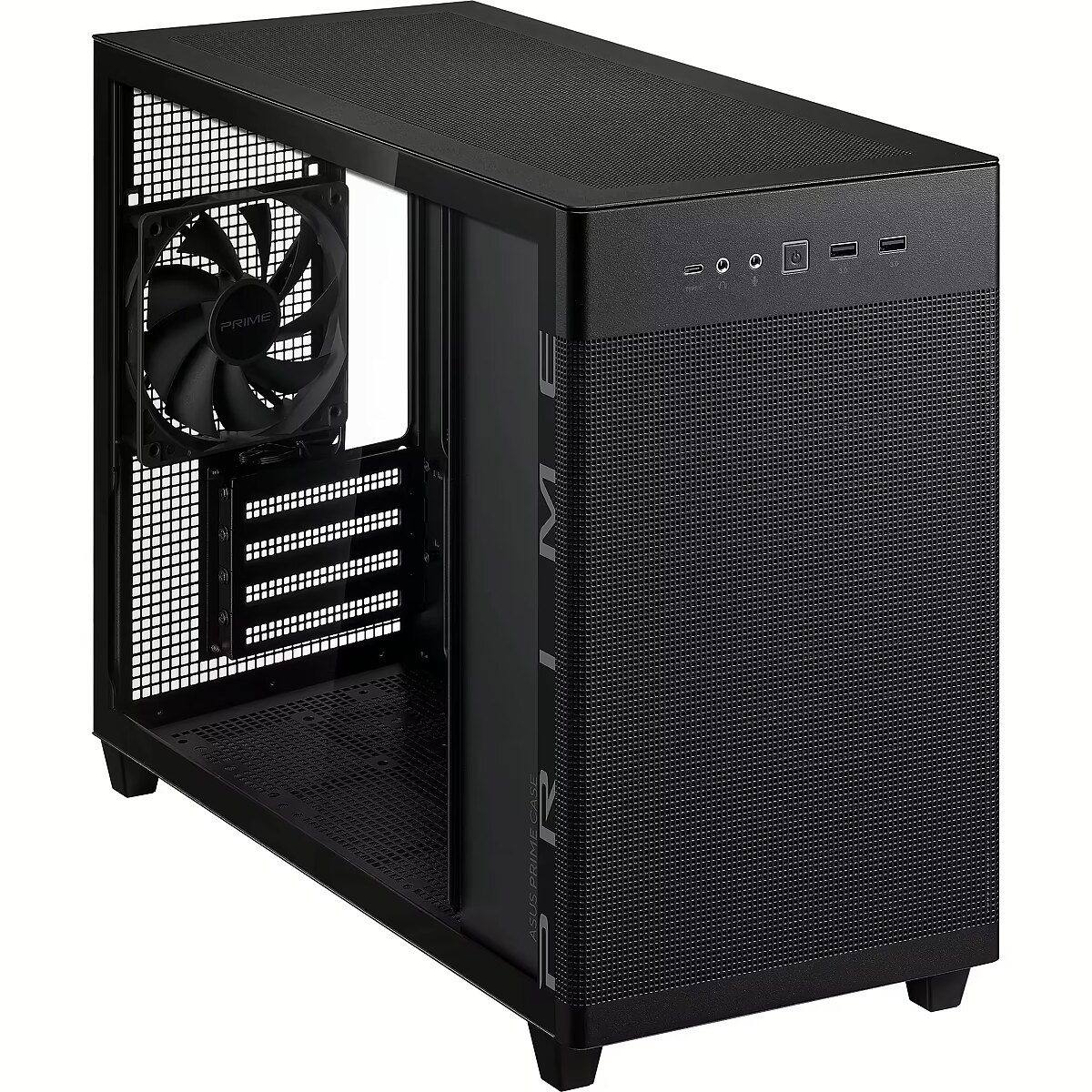

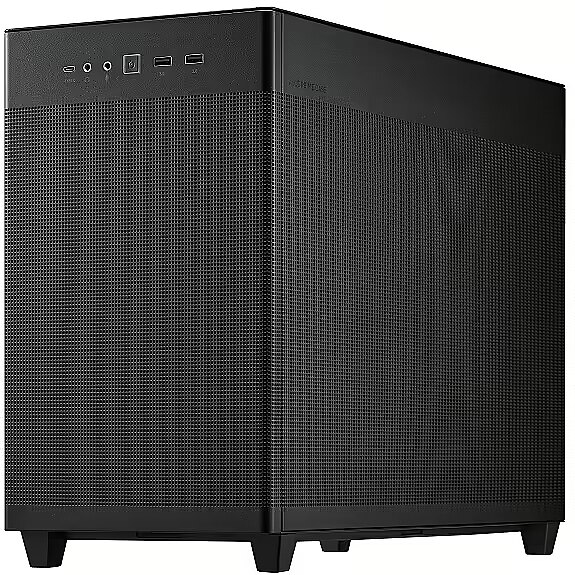

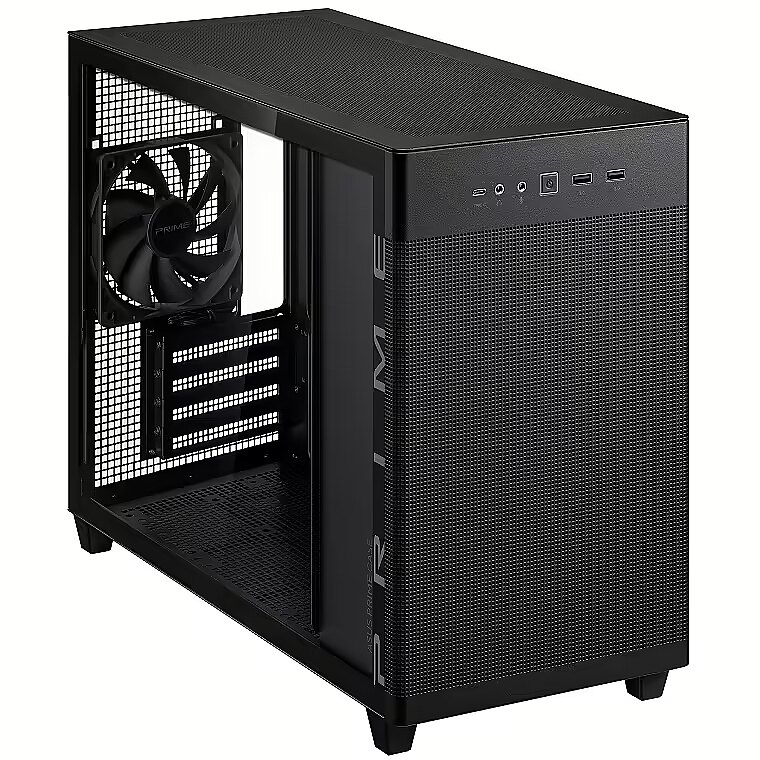

Description - The ASUS Prime AP201 Tempered Glass version is a stylish 33-liter MicroATX case with tool-free side panels, with support for 360 mm coolers, graphics cards up to 338 mm long, and standard ATX PSUs. - Optimized for Cooling: With support for 280 and 360mm radiators and up to six fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware. - Industry-Leading Spatial Efficiency: Despite a 33L footprint, the AP201 supports ATX PSUs up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling, and various storage devices. - Tool-Free Side Panels: A simple yet secure clip mechanism allows chassis side panels to be easily removed and resistant to accidental dislodging. - Sizeable Cable-Management: The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap to tuck cables out of sight. - Front Panel USB Type-C® Support: The front panel of the AP201 features a USB 3.2 Gen 2 Type-C port, so users can enjoy transfer speeds of up to 10 Gbps.
Design - Anti-dust filter - Yes

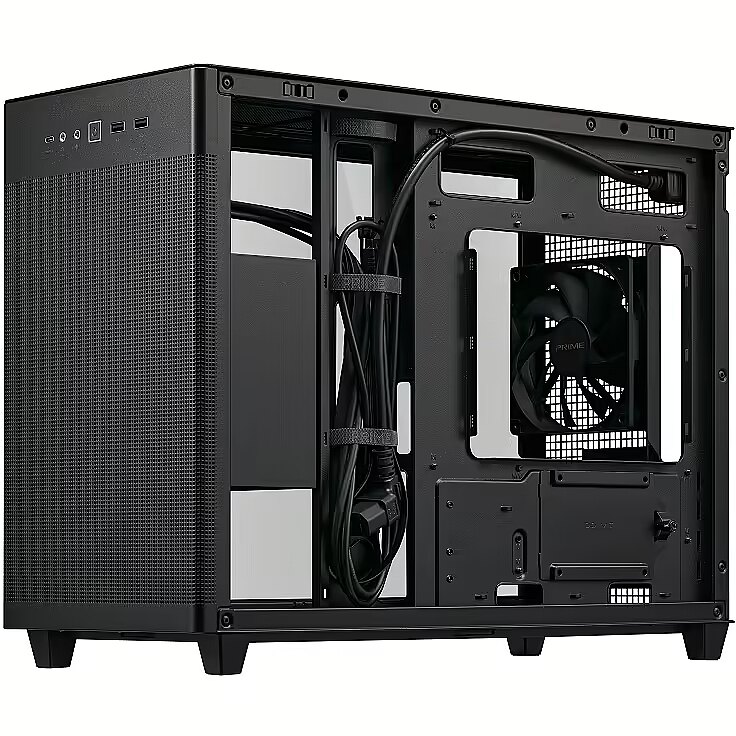

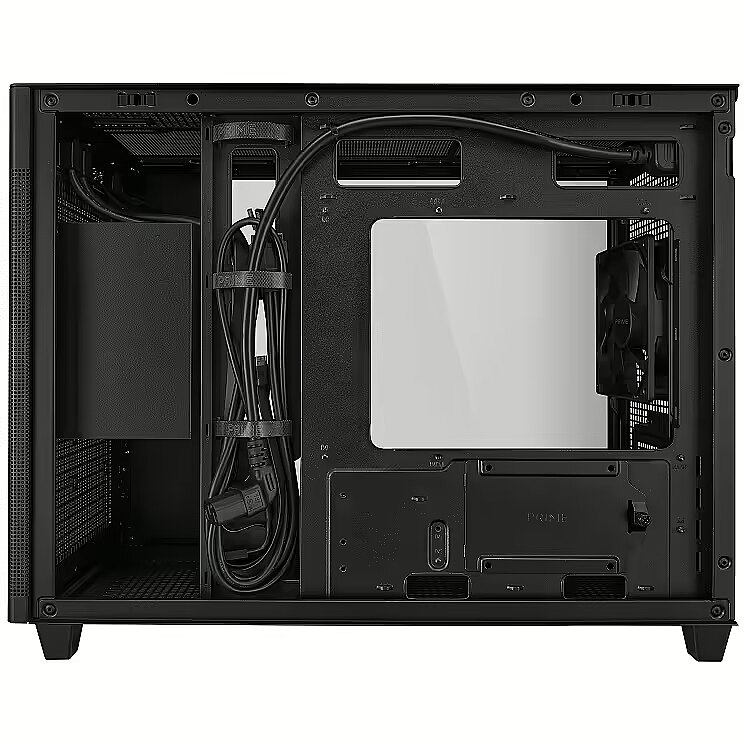

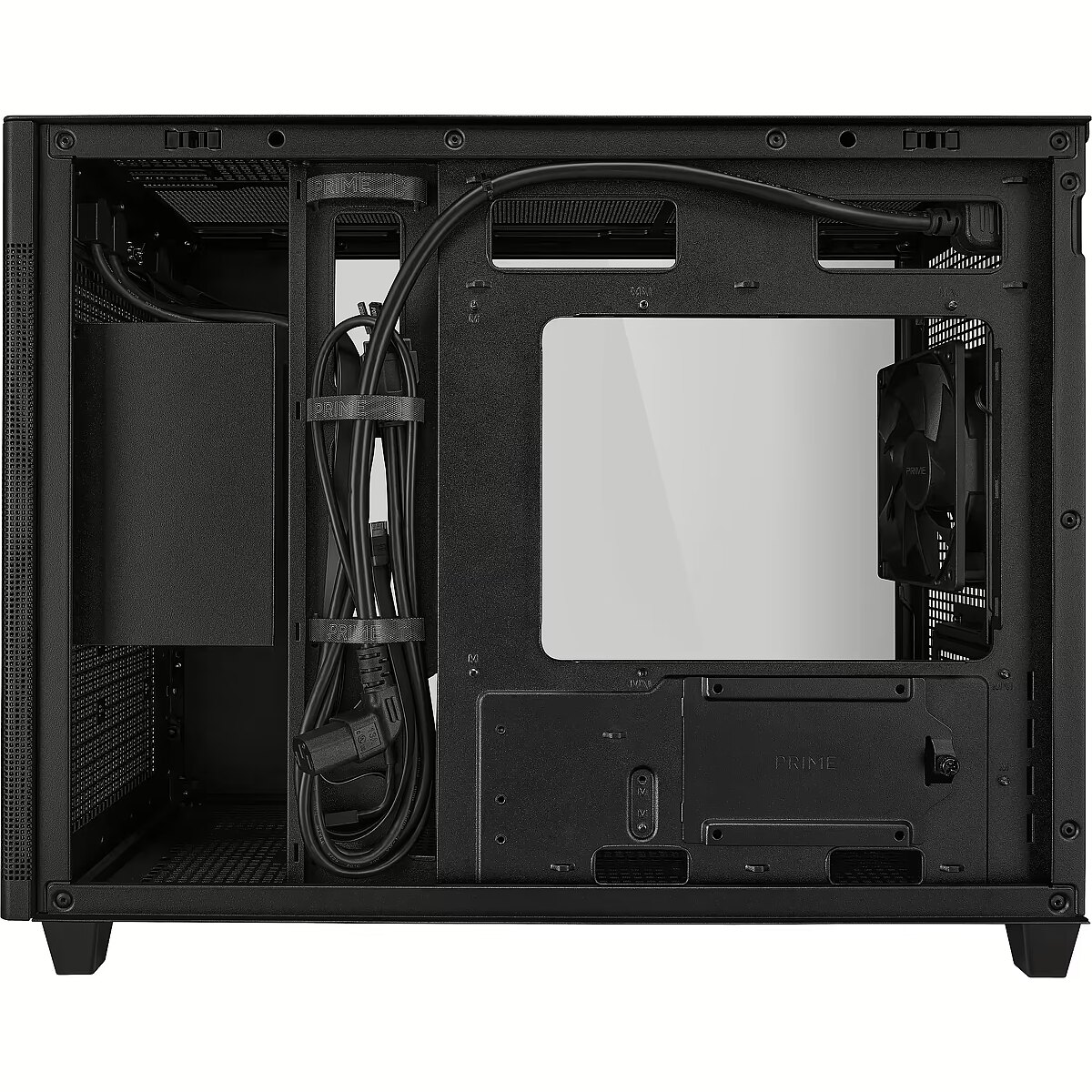

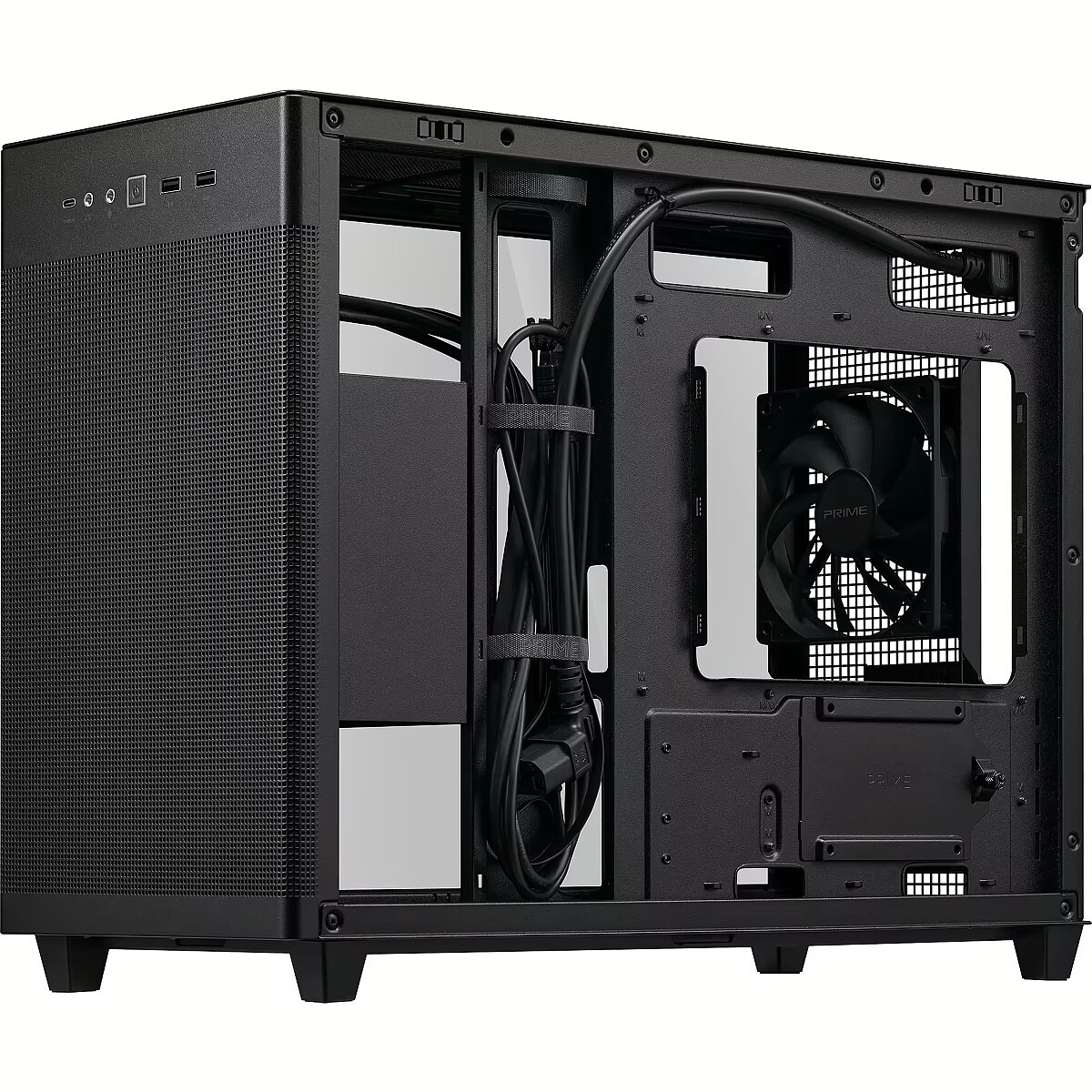

Design - Cable management - Yes
Design - Form factor - Mini Tower
Design - Maximum CPU cooler height - 17 cm
Design - Maximum graphics card length - 33.8 cm
Design - Maximum PSU length - 18 cm
Design - Number of 2.5" bays - 1
Design - Number of 3.5" bays - 3
Design - Number of expansion slots - 4
Design - Product colour - Black

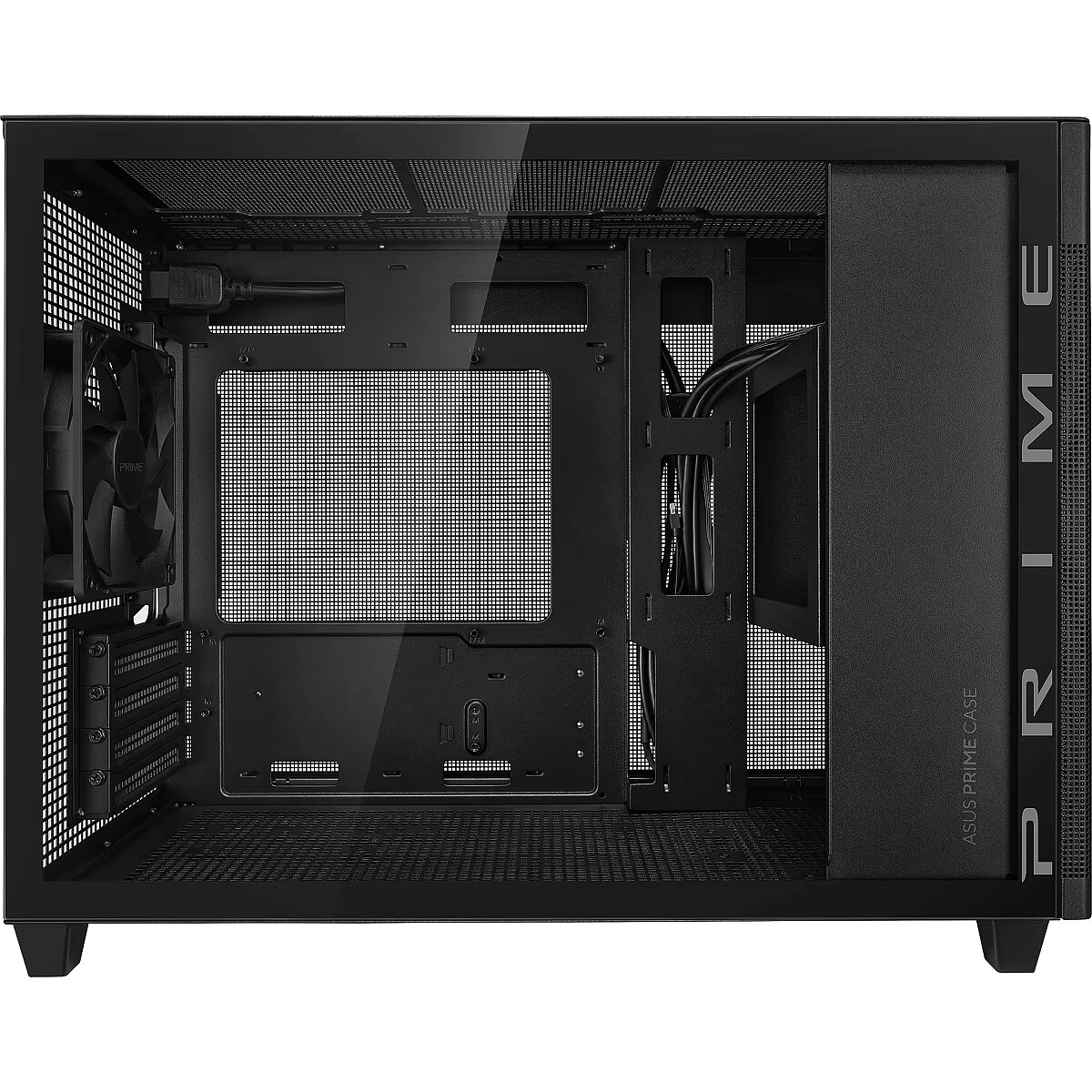

Design - Side window - Yes
Design - Supported motherboard form factors - micro ATX
Design - Supported motherboard form factors - micro ATX, Mini-ITX
Design - Supported motherboard form factors - Mini-ITX

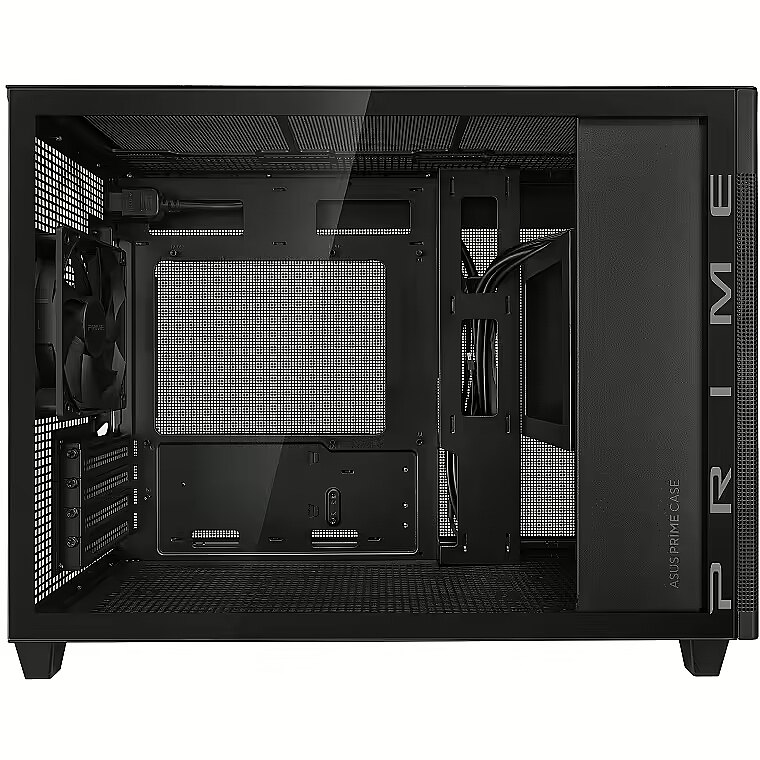

Design - Tempered glass panel(s) - Yes
Design - Type - PC
Design features - Max GPU Length 338 mm; PSU Length 140-180 mm
dimensionalWeight - 13398
Dimensions - 205 x 350 x 460 mm
ean - 4711081771838
Eans - 4711081771838
Full Description Line - Prime AP201 Tempered Glass|Max GPU Length 338 mm; PSU Length 140-180 mm|Micro|PSU Not included|Top: 3 x 120 mm; 2 x 140 mm, Rear: 1 x 120 mm, Pre-installed Fans (Rear): 1 x 120 mm|Dimensions 205 x 350 x 460 mm
GTIN - 4711081771838
Headphones jack Input/Output connectors - 1

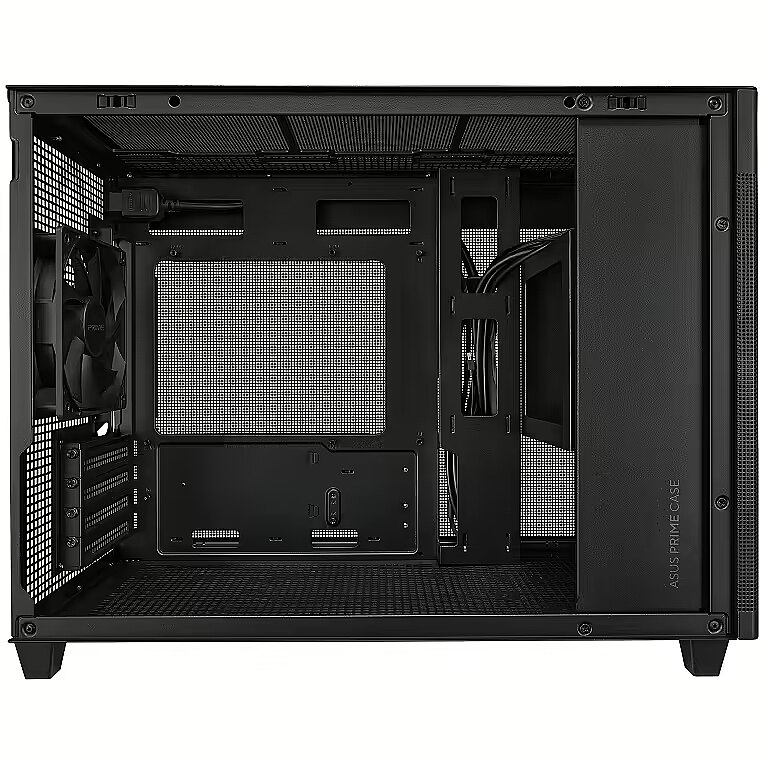

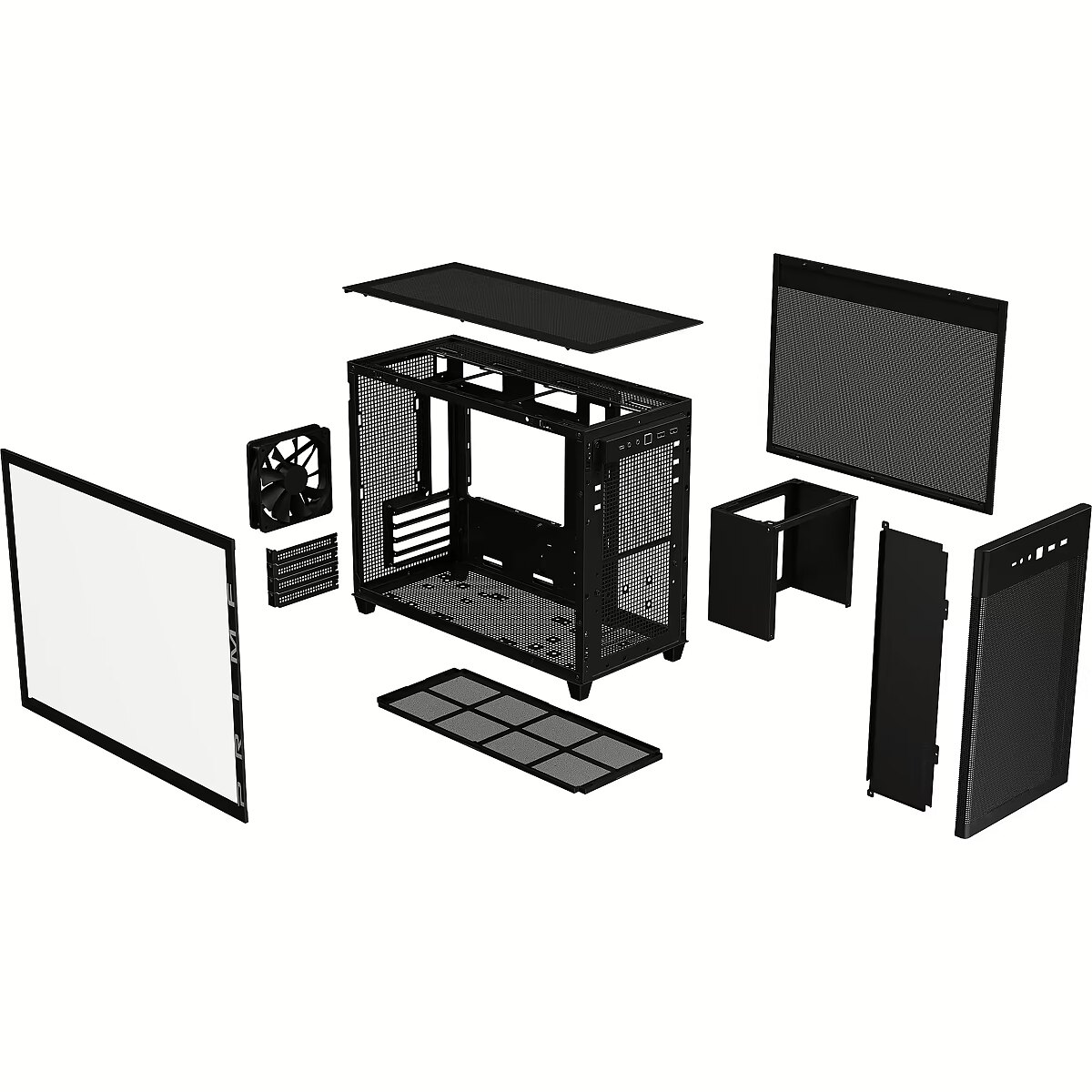

LongDesc - GO BIG. STAY COMPACT.33-LITERS OF COOLThe ASUS Prime AP201 Tempered Glass Version is a breakthrough in microATX chassis design, delivering a high-performance platform that invites 360 mm AIO coolers and graphics cards up to 338 mm long, all within a compact 33-liter space. Tool-free side panels also provide easy access, and they complete a tasteful, minimalist aesthetic that can be the centerpiece of any DIY PC build.INDUSTRY-LEADING SPATIAL EFFICIENCYLOAD UPDespite its compact size, the AP201 supports standard ATX power supplies up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling setups, and a spread of storage devices.ASUS Prime AP201 TG Version with side panel removed, line art of motherboard, 360 mm radiator, graphics card, and power supplyOPTIMIZED FOR AIRFLOWRUN COOLWith support for 280 and 360mm radiators and up to 6 fans, the AP201 is primed to deal with the thermal onslaught of convention-defying SFF rigs loaded with multi-core CPUs and high-end graphics cards.REMOVABLE DUST FILTERSPECS, NOT SPECKSThe two 120 mm fan mounts at the bottom of the AP201 include a dust filter that can be removed for easy cleaning, or to enhance airflow even further.TOOL-FREE SIDE PANELSUNRESTRICTED ACCESSInstead of making you wrestle with screws or potentially awkward hinges, the side panels of the AP201 both use a simple but secure clip mechanism to attach to the case. This makes them easy to remove when you want to access the interior of the chassis, and resistant to being accidentally dislodged.SIZEABLE CABLE-MANAGEMENTTIDY AS YOU LIKEThe AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap, giving builders ample room to tuck cables out of sight and create a clean aesthetic for their DIY PC.COLOR-MATCHED CABLESSTYLE THAT’S BLACK AND WHITEThe AP201 comes in black or white, and its cables are coordinated to match the color of the chassis for a premium look and feel.FRONT PANEL USB TYPE-C® SUPPORTNIMBLE CONNECTIONSIn addition to two Type-A USB 3.2 Gen 1 ports, the front panel of the AP201 also features a Type-C port that is rated for USB 3.2 Gen 2. Compatible microATX ASUS motherboards such as the TUF Gaming B660M Plus or ROG STRIX B660-G can use this port to enjoy transfer speeds of up to 10 Gbps.
LongProductName - The ASUS Prime AP201 Tempered Glass version is a stylish 33-liter MicroATX case with tool-free side panels, with support for 360 mm coolers, graphics cards up to 338 mm long, and standard ATX PSUs
LongSummaryDescription - ASUS AP201 PRIME CASE TG. Form factor: Mini Tower, Type: PC, Product colour: Black. Rear fans installed: 1x 120 mm, Rear fans diameters supported: 120 mm, Top fans diameters supported: 120,140 mm. Supported HDD sizes: 2.5,3.5". Width: 205 mm, Depth: 350 mm, Height: 460 mm
MicroATX Mainboard Form Factor - Yes
Microphone jack 3.5mm Input/Output connectors - 1
MiniITX Mainboard Form Factor - Yes
Model name - Prime AP201 Tempered Glass
name - ASUS Prime AP201 Micro-ATX Gehäuse, Tempered Glass - schwarz
Name - ASUS PRIME AP201 TG
Number of expansion slots - 4
Ports & interfaces - Audio input - Yes
Ports & interfaces - Audio output - Yes

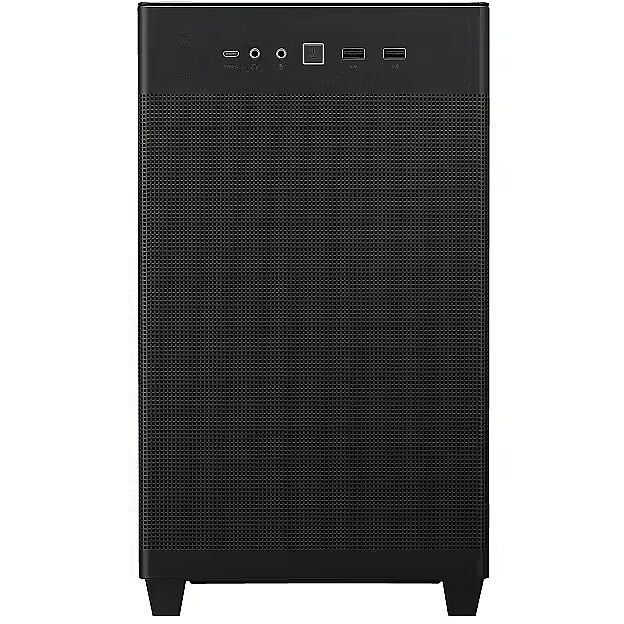

Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Producer - Asus
producerCode - 90DC00G0-B39010
ProducerCode - 90DC00G0-B39010
ProductName - AP201 ASUS PRIME CASE TG
productName - ASUS AP201 PRIME CASE TG Mini Tower Black
productSize - Normal
PSU - Not included
Shipping Box Depth Shipping/Package Box Dimensions - 44 cm
Shipping Box Height Shipping/Package Box Dimensions - 53 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 8 kg
Shipping Box Width Shipping/Package Box Dimensions - 28.5 cm
ShortDescription - Micro ATX | czarna | bez zasilacza | 2 x USB 3.2 | 205mm x 350mm x 460mm |
ShortSummaryDescription - ASUS AP201 PRIME CASE TG, Mini Tower, PC, Black, micro ATX, Mini-ITX, 17 cm, 33.8 cm
sizeX - 290
sizeY - 440
sizeZ - 525
Storage - Supported HDD sizes - 2.5
Storage - Supported HDD sizes - 2.5,3.5"
Storage - Supported HDD sizes - 3.5"
Title - ASUS AP201 PRIME CASE TG Mini Tower Black
Unit Box Height - 0.53
Unit Box Length - 0.44
Unit Box Width - 0.285
Unit Brutto Volume - 0.06646 cubm
Unit Gross Weight - 8 kg
Unit Net Weight - 5.8 kg
URL - https://www.asus.com/motherboards-components/gaming-cases/prime/asus-prime-ap201-tempered-glass-microatx-case/
USB-C Input/Output connectors - 1
USB 3.2 Input/Output connectors - 2
Vendor Homepage - www.asus.com/motherboards-components/gaming-cases/prime/asus-prime-ap201-tempered-glass-microatx-case/
Warranty - 24 months
WarrantyInfo -
warrantyLength - 24
warrantyType - G
weight - 7985
Weight & dimensions - Depth - 350 mm
Weight & dimensions - Height - 460 mm
Weight & dimensions - Weight - 5.8 kg
Weight & dimensions - Width - 205 mm
