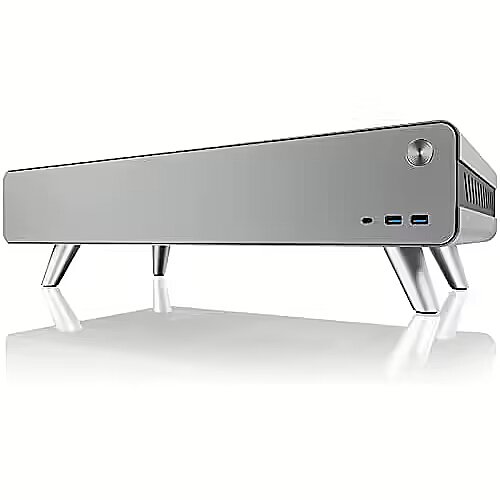

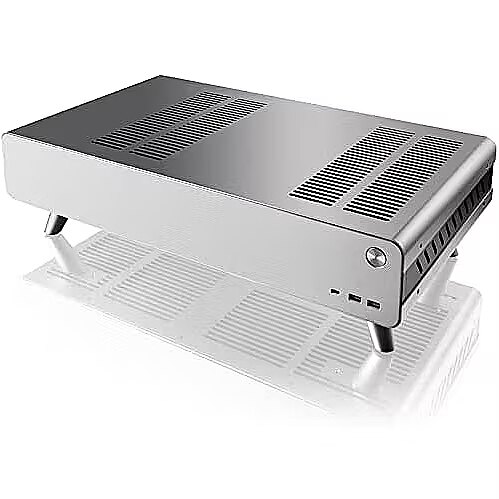

Raijintek PAN SLIM, Silver

Name: Raijintek PAN SLIM, Silver
Brand: Raijintek
SKU: 685152
Price: 232.89 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 685152 Product code: 0R20B00211

Can be ordered 11 units Availability: 14 days after order approval

Warranty: 2 years (Warranty for business entities 1 year)

Compare

Delivery options

Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
Courier delivery 3.99 €: 10.12.2024

Main product parameters All parameters

Form factor: mITX
Case type: Home Theater
Color: Silver
PSU: Nav

All parameters

Form factor : mITX

Case type : Home Theater

Color Silver

The colour of the front panel of the housing. This parameter is approximate and may differ from the actual colour of the housing.

Side panel type : Closed

PSU : Nav

Max. CPU cooler height, mm : 85

Max. radiator size, mm : 240

Max. Video card length, mm : 340

2.5" internal HDD/SSD bays : 4

3.5" internal HDD bays : 2

5.25" external drive bays : 0

3.5" FDD drive bays : 0

USB 2.0 Ports : Nav

USB 3.0 ports : 2

USB Type-C ports : 1

Number of fans : Nav

More detailed specification

Additional information in manufacturers website Raijintek PAN SLIM, Silver

category - Cases & Modding|PC Cases|Mini Cases|Aluminium Mini Cases
Category_1 - Computer Cases and Cooling
Category_2 - Computer Cases
code - 0R20B00211
ean - 4715109923322
EAN_code - 4715109923322
Manufacturer - RAIJINTEK
Manufacturer_code - 0R20B00211
name - Raijintek Pan Slim Mini-ITX Case - silver
Name - RAIJINTEK PAN SLIM Silver, HTPC case (silver)
Technical_details - PAN SLIM Silver, HTPC case The PAN Slim is a Mini-ITX chassis from the PAN series. The Pan Slim supports Mini-ITX motherboards and can also accommodate 240mm or 120mm AIO liquid cooling. The compatibility of a maximum of four fans, including 4x 120mm fans on the bottom is also given. Outstanding features of the Pan Slim include an elegant aluminum design, support for up to 4x 2.5" hard drives or 2x 3.5" HDD, 340mm long VGA card support and SFX power supply compatibility. Looking for a case with a stylish design, only Pan Slim can be the first choice. Type: HTPC Case Silver EAN: 4715109923322 Manufacturer number: 0R20B00211 Design: HTPC Mainboard form factor: Mini-ITX Material: Aluminum (2.0mm), SPCC (0.8mm) Internal dimensions: plug-in card length | maximum 340 mm Internal dimensions: PSU form factor | SFX Drive bays: 3.5 inch | internal | 2 pieces Drive bays: 2.5 inch | 2.5 in 3.5 inch internal | 4 pieces Slots: Full Size | 3 pieces Front ports: 2x USB-A 3.2 Gen 1 (5 Gbps), 1x USB-C 3.2 Gen 1 (5 Gbps) Front connectors: The designation USB 3.2 Gen 1 corresponds to the former designation USB 3.1 Gen 1 / USB 3.0. Water cooling possible: Yes Water cooling possible: Supported radiators | up to 240mm Dimensions: Width: 629mm x Height: 174mm x Depth: 354mm Weight: 6.2kg
Weight - 7,85
