Air Duct - No
Chassis type - Midi Tower
Color - Black
Cooling - Front fans installed - 1x 120 mm
Cooling - Liquid cooling capability - No
Cooling - Rear fans installed - 1x 120 mm
Description - MODECOM OBERON GLASS BLACK
The MODECOM OBERON GLASS casing has been designed for users who value a spacious and functional interior in combination with attractive, modern design. The clever interior design of the housing designed for players, combined with the refined details of the front panel, put OBERON GLASS in a special position among the new proposals MODECOM. This casing allows the user to arrange the interior according to individual preferences with the use of the most modern components, while maintaining great cooling. The cleanliness inside the housing is ensured by easily removable filters: magnetic on the top of the casing and on the bottom, under the power supply, and also on the front.
AESTHETICS AND FUNCTIONALITY FOR DEMANDERS

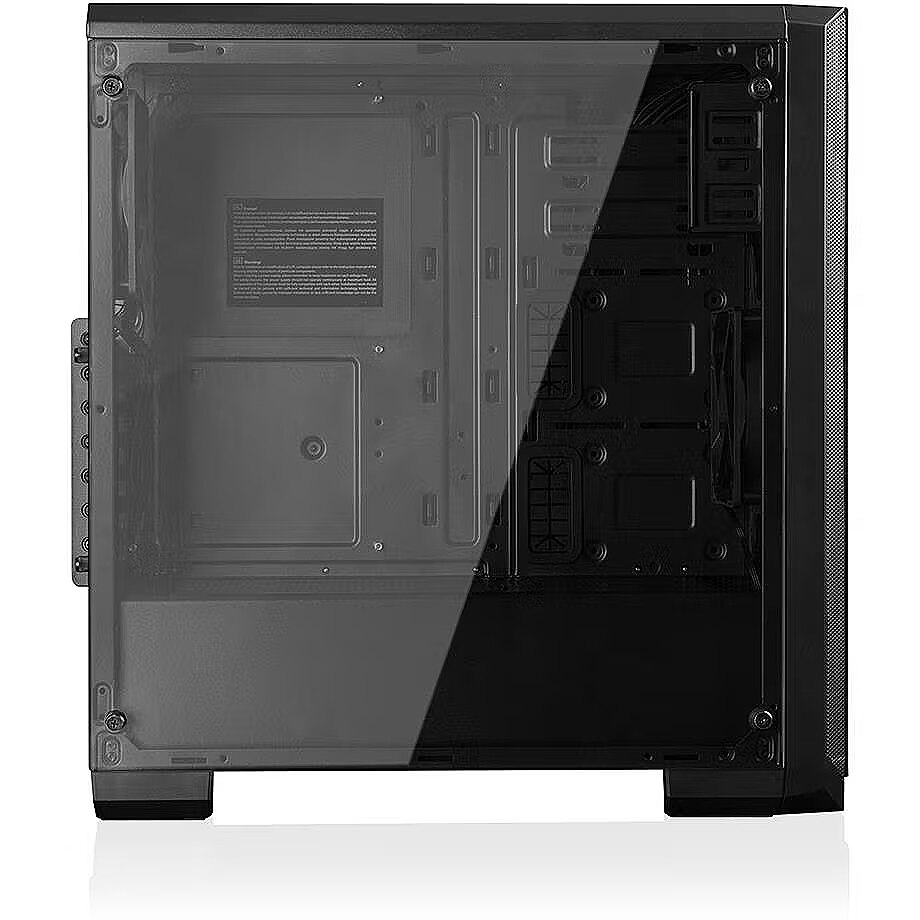

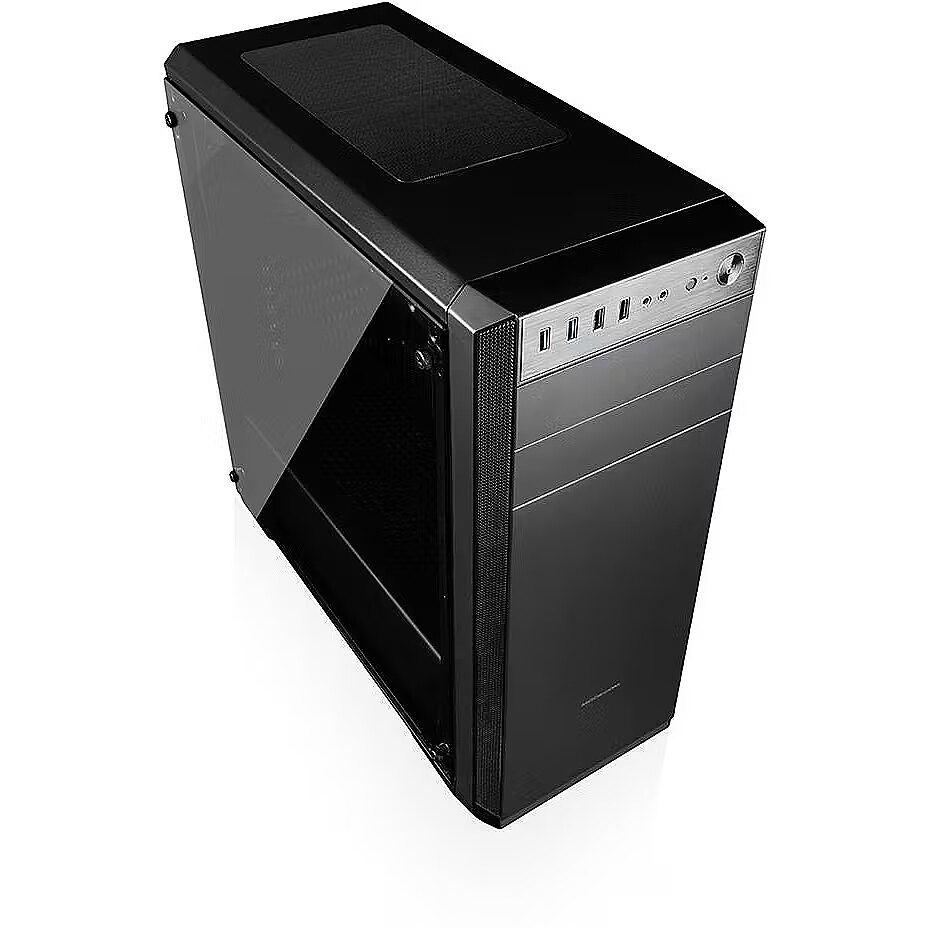

MODECOM OBERON GLASS from among other casings for players is distinguished by an elegant, minimalist design, highlighted by classic black. The classic front panel is broken with modern solutions in the form of top connectors with four USB ports, chromium-plated audio inputs (headphones, microphone), backlit power button and vertical grids masking the air inlets along the sides. On one of the side panels of the OBERON GLASS housing, we placed a window displaying the inside of the computer made of tempered glass.
CONSTRUCTION AND ORGANIZATION OF THE SPACE

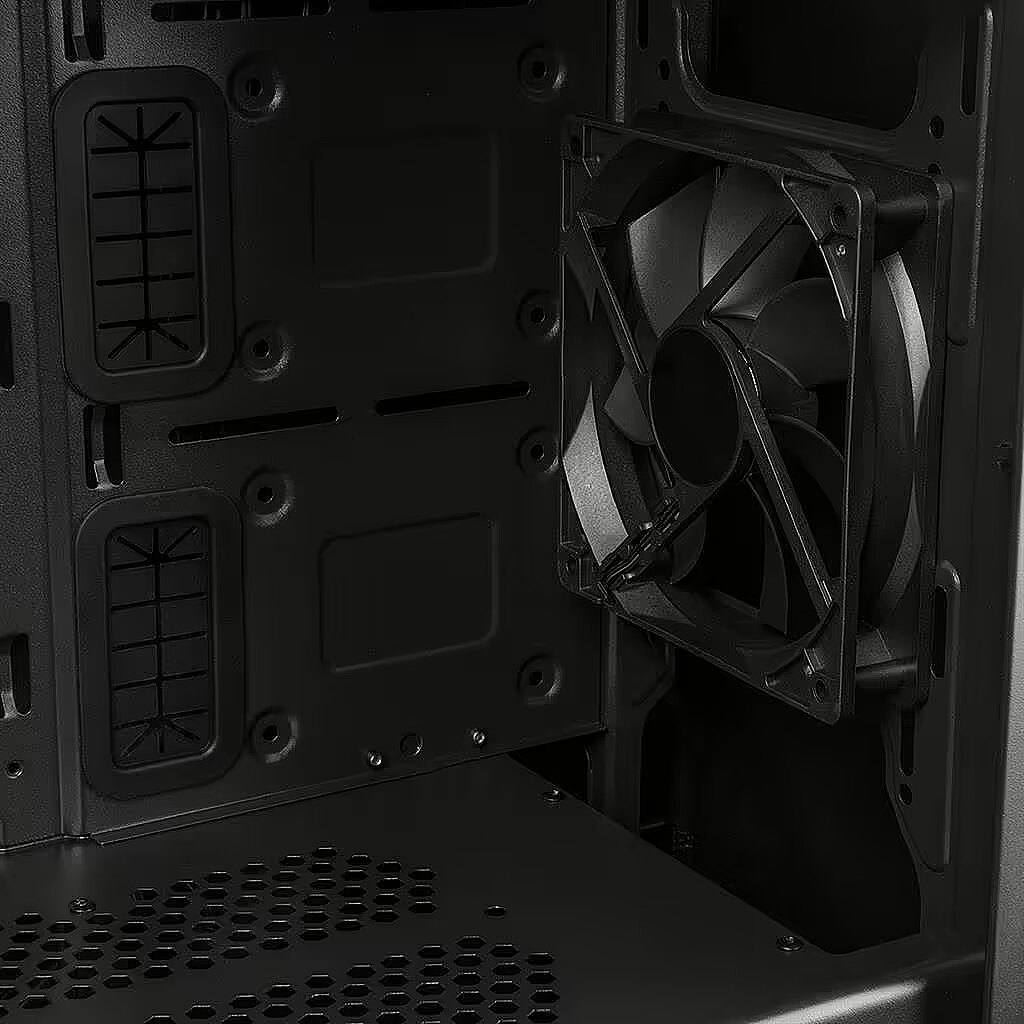

The MODECOM OBERON GLASS enclosure is a good choice to build a computer set based on three different motherboard formats: ATX, Micro ATX and ITX. Inside it, you can mount three 2.5 "SSDs and two 3.5" HDD disks in a tool-free system. The power supply and 3.5 "hard drives are placed in the casing (tunnel) on the bottom of the casing, while SSD drives are mounted on both sides of the frame. The housing construction allows the installation of up to five fans: two at the front and the top and at the back. The factory is fitted with two black cooling fans with a diameter of 120 mm in the rear and the front part of the housing, which, in the absence of components blocking the air flow, ensures perfect cooling of the interior.

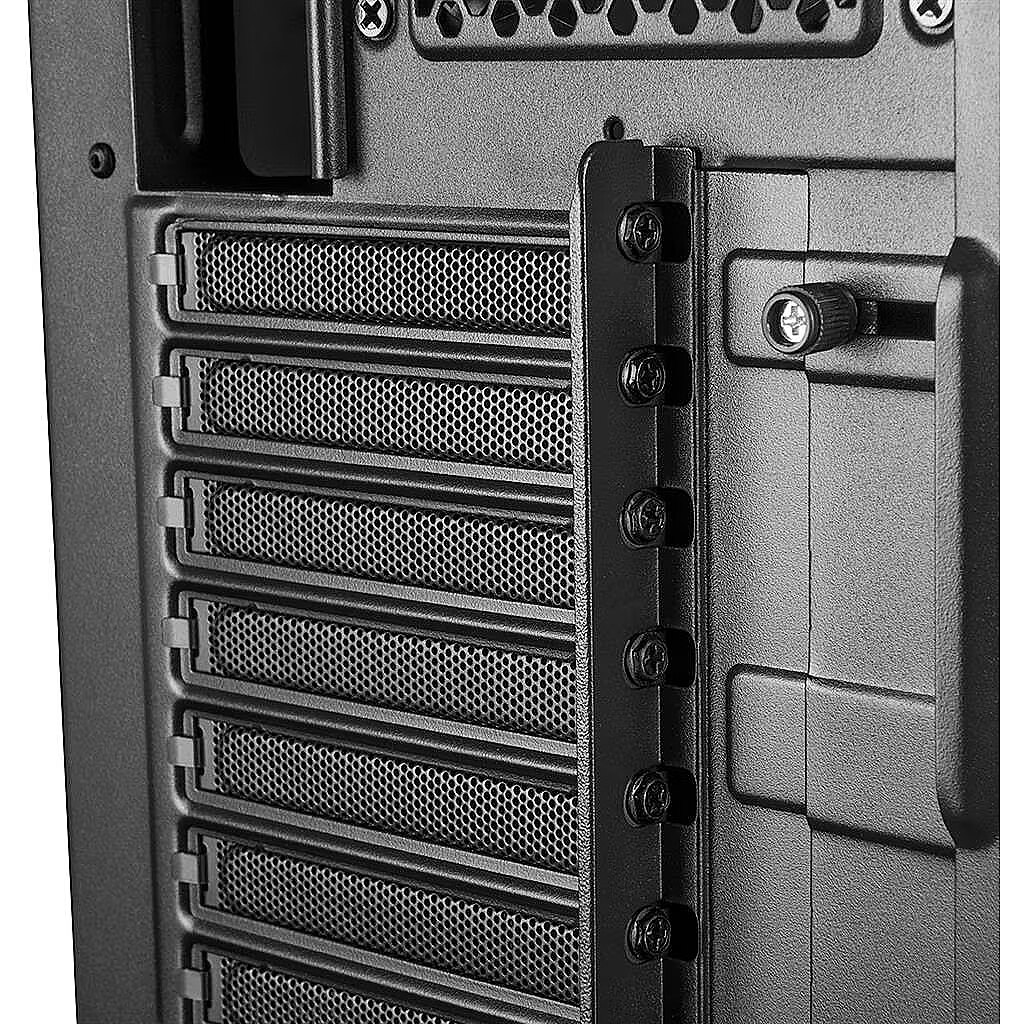

OBERON GLASS is also adapted for the installation of a water cooling system. The maximum height available for the processor cooling system is 163 mm, while the space for use on the graphics card is up to 395 mm. The OBERON GLASS housing provides tool-free installation of extension cards, and the convenient wiring organization system allows you to maintain an orderly space inside the housing.
Design - Anti-dust filter - Yes
Design - Cable management - Yes
Design - Form factor - Midi Tower
Design - LED indicators - Yes
Design - Maximum CPU cooler height - 16.3 cm
Design - Maximum graphics card length - 39.5 cm
Design - Maximum PSU length - 24 cm
Design - Number of 2.5" bays - 3
Design - Number of 3.5" bays - 2
Design - Number of 5.25" bays - 1
Design - Number of expansion slots - 7
Design - Number of external 5.25" bays - 1
Design - Number of internal 3.5" bays - 2
Design - On/off button - Yes
Design - Product colour - Black
Design - Reset button - Yes
Design - Side window - Yes
Design - Suitable for - Home/Office
Design - Supported motherboard form factors - ATX
Design - Supported motherboard form factors - ITX
Design - Supported motherboard form factors - micro ATX
Design - Tempered glass panel(s) - Yes
Design - Type - PC
dimensionalWeight - 20401
dimension depth - 320 mm
dimension height - 550 mm
Dimensions - 455 x 205 x 475 mm
dimension weight - 7000 g
dimension width - 555 mm
Drive bays 2.5'' extern. - 0
Drive bays 2.5'' intern. - 3
Drive bays 3.5'' extern. - 0
Drive bays 3.5'' intern. - 2
Drive bays 5.25'' extern. - 1
Drive bays 5.25'' intern. - 0
ean - 5901885248363
Fan - 12 cm
Form-factor - ATX
Form-factor - ITX
Form-factor - Micro ATX
Front panel connectors - 1 x headphones
Front panel connectors - 1x microphone
Front panel connectors - 2 x USB 2.0
Front panel connectors - 2 x USB 3.0
guarantee - 24
guarantee_type - statutory
name - OBERON PRO GLASS BLACK COMPUTER CASE
No. of drive bays - 6
Other features - - PSU mounting location: bottom of the housing
- Power supply tunnel: YES
- CPU cooling height: 163 mm
- Maximum length of the graphics card: 395 mm
- Side panel with a window: YES, made of tempered glass
- Filter under the power supply: YES
- Filter on the upper panel: YES
- Filter on the front panel: YES
- Steel thickness: 0.7 mm
- Increased space for PSU: 240 mm
- Rubber flanges for cable entry holes
- All herrings twisted in place of the broken ones
- The radiator can not be installed on the front panel
Other features - Frame thickness - 0.7 mm
Ports & interfaces - Audio input - Yes
Ports & interfaces - Audio output - Yes
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Power supply - Failure
Power supply - Power supply included - No
Power supply - Power supply location - Bottom
Power supply - Supported power supply form factors - ATX
producer - MODECOM
producerCode - AT-OBERON-PG-10-000000-0002
productName - Modecom Oberon Pro Midi Tower Black
productSize - Normal
sizeX - 560
sizeY - 552
sizeZ - 330
Storage - Number of HDDs supported - 5
Storage - Supported HDD sizes - 2.5
Storage - Supported HDD sizes - 3.5"
vendpn - AT-OBERON-PG-10-000000-0002
warrantyLength - 24
warrantyType - G
Weight - 5.27 kg
weight - 7500
Weight & dimensions - Depth - 455 mm
Weight & dimensions - Height - 475 mm
Weight & dimensions - Weight - 5.27 kg
Weight & dimensions - Width - 205 mm
