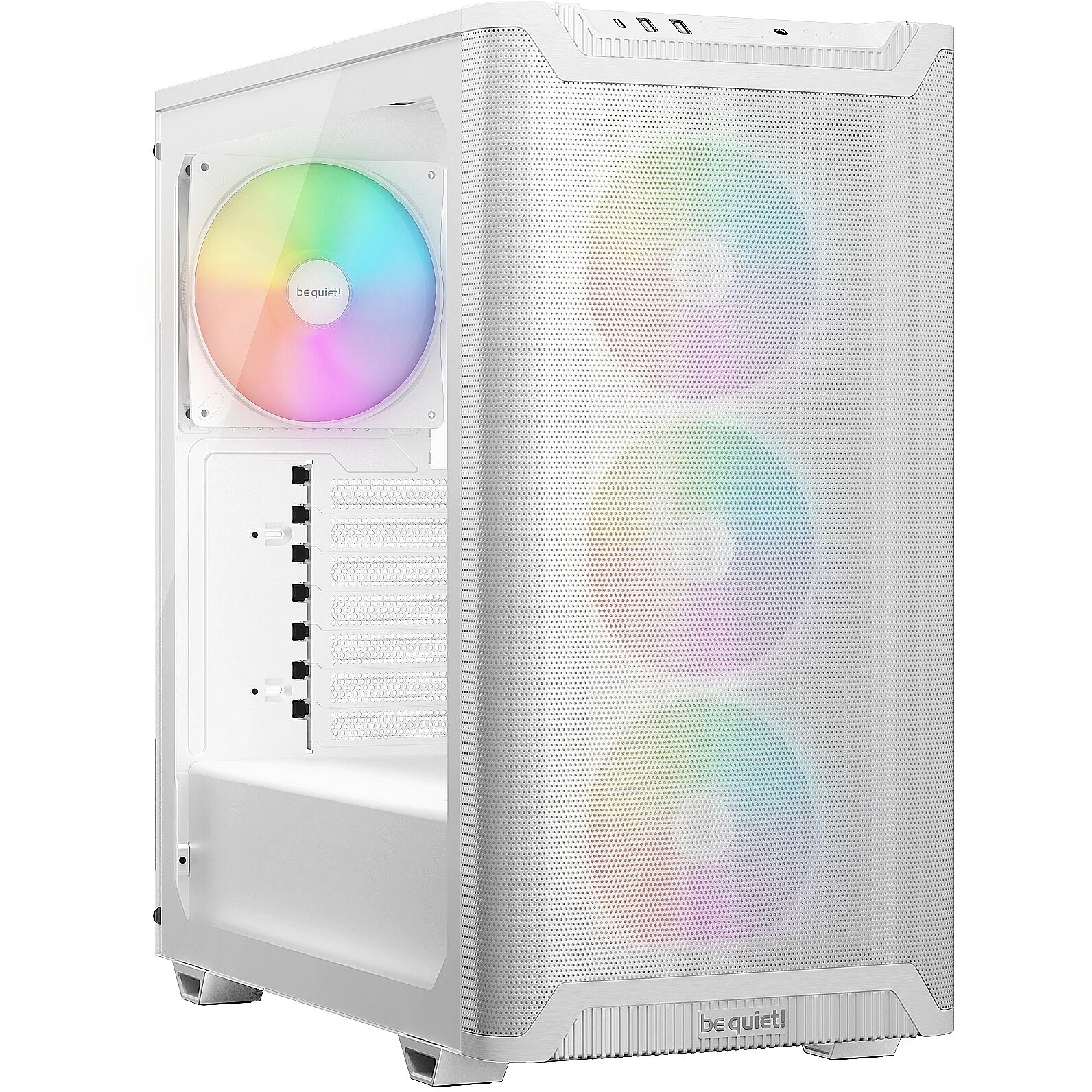

Be Quiet Pure Base 501 LX, Tempered Glass, White

2.5" Internal Drive Bays - 5
3.5" Internal Drive Bays - 2
Accessories included -
ATX Mainboard Form Factor - Yes
Audio port Input/Output connectors - 1
Brand - be quiet!
BrandPartCode - BGW79
Case product features - Transparent panel
Case Type - MidiTower
Case width - 231 mm
Category - Computer Cases
Category Code - CAS
Chassis type - Midi Tower
Color - White
Colour - White
Computer case backlight - ARGB
Cooling & Ventilation System - Fan at front 3x Light Wings LX 120mm PWM White; Fan at rear 1x Light Wings LX 140mm PWM White
Cooling - Fan 2 maximum airflow - 56 cfm
Cooling - Fan 2 maximum air pressure - 0.9 mmH2O
Cooling - Fan power consumption - 3.8 W
Cooling - Fan rated current - 0.06 A
Cooling - Fan rated voltage - 5 - 13.2 V
Cooling - Front fans diameters supported - 120,140 mm
Cooling - Front fans installed - 3x 120 mm
Cooling - Front radiator sizes supported - 120,140,240,280,360 mm
Cooling - Liquid cooling capability - Yes
Cooling - Maximum airflow - 51.5 cfm
Cooling - Maximum air pressure - 1.34 mmH2O
Cooling - Noise level (high speed) - 21.9 dB
Cooling - Number of front fans supported (max) - 3
Cooling - Number of rear fans supported (max) - 1
Cooling - Number of top fans supported (max) - 2
Cooling - Pulse-width modulation (PWM) support - Yes
Cooling - Rear fans diameters supported - 120,140 mm
Cooling - Rear fans installed - 1x 140 mm
Cooling - Rear radiator sizes supported - 120,140 mm
Cooling - Top fans diameters supported - 120,140 mm
Cooling - Top radiator sizes supported - 120,240 mm
Description - Obudowa Pure Base 501 LX ARGB biała Pure Base 501 LX White to wszechstronna obudowa ATX z wentylatorami ARGB, kompaktowymi wymiarami i wysokim przepływem powietrza do każdego zastosowania. Elegancki panel przedni i górna pokrywa z przepływem powietrza zapewniają jednolity, klasyczny wygląd 4 fabrycznie zainstalowane wentylatory Light Wings LX PWM zapewniające niepowtarzalne efekty świetlne i niezwykłe ciśnienie powietrza Kontroler ARGB i hub ARGB-PWM dla 6 wentylatorów Duża przestrzeń dla wysokiej klasy kart graficznych i dużych coolerów, pomimo kompaktowych rozmiarów Opcjonalna pionowa instalacja karty graficznej Możliwość instalacji chłodzeń wodnych z radiatorami do 360mm USB 3.2 Gen. 2 typ C dla najlepszej łączności Wygodne zarządzanie przewodami dzięki przemyślanej konstrukcji prowadzenia kabli
Description - PURE BASE 501 LX White Impressive lighting and airflow Pure Base 501 LX White is an impressively versatile be quiet! ATX case with ARGB fans, compact dimensions and high airflow for any application. - High airflow intake front panel and top cover for maximum performance - 4 preinstalled Light Wings LX PWM White fans for unmistakable lighting effects and extraordinary air pressure - ARGB controller and ARGB-PWM hub for 6 fans - Generous space for high-end graphics cards and large coolers, despite compact footprint - Optional vertical graphics card installation - Water cooling ready for radiators up to 360mm - Comfortable cable management with clever cable routing design - Side panel made of tempered glass
Design - Anti-dust filter - Yes
Design - Form factor - Midi Tower
Design - Illumination - Yes
Design - Illumination colour - Multi
Design - Illumination location - Case fans
Design - Material - Acrylonitrile butadiene styrene (ABS), Glass, Steel
Design - Maximum CPU cooler height - 17.8 cm
Design - Maximum graphics card length - 36.8 cm
Design - Maximum PSU length - 20 cm
Design - Number of 2.5" bays - 5
Design - Number of 3.5" bays - 2
Design - Number of expansion slots - 7
Design - Product colour - White
Design - Side window - Yes
Design - Supported motherboard form factors - ATX, micro ATX, Mini-ATX
Design - Type - PC
Designation - CE+WEEE
dimension depth - 465 mm
dimension height - 450 mm
Dimensions - 450 x 231 x 463
Dimensions - 463 x 231 x 450 mm
dimension weight - 10000 g
dimension width - 235 mm
Drive bays 2.5'' extern. - 0
Drive bays 2.5'' intern. - 5
Drive bays 3.5'' extern. - 0
Drive bays 3.5'' intern. - 2
Drive bays 5.25'' extern. - 0
Drive bays 5.25'' intern. - 0
ean - 4260052192863
Fans installed - 1 x 140 mm ARGB (back)
Fans installed - 3 x 120 mm ARGB (front)
Form-factor - ATX
Form-factor - Micro ATX
Form-factor - Mini ITX
Front panel connectors - 1 x mic/headphone (combo)
Front panel connectors - 1 x UB1 x USB 3.2 Gen 2 Type-CavS 3.2 Gen 2 Type-C
Front panel connectors - 2 x USB 3.2 Gen1
Front panel connectors - Light control
Front panel connectors - Power
Front panel connectors - Reset
Full Description Line - PURE BASE 501 LX|MidiTower|PSU Not included|Fan at front 3x Light Wings LX 120mm PWM White; Fan at rear 1x Light Wings LX 140mm PWM White|Dimensions 450 x 231 x 463
GTIN - 4260052192863
guarantee - 36
guarantee_type - normal
LongDesc - Impressive lighting and airflowPure Base 501 LX White is an impressively versatile be quiet! ATX case with ARGB fans, compact dimensions and high airflow for any application. Upgrade your gaming room with the multiple colors and modes of Pure Base 501 LX White and make your family and friends gaze in awe.
LongProductName - ATX / M-ATX / Mini-ATX, 1x USB Type-C, 2x USB Type-A, ATX PS/2, 3x Light Wings LX 120mm PWM White, 1x Light Wings LX 140mm PWM White
LongSummaryDescription - be quiet! Pure Base 501 LX White. Form factor: Midi Tower, Type: PC, Product colour: White. Supported power supply form factors: ATX, PS2. Front fans installed: 3x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 140 mm. Supported HDD sizes: 2.5,3.5". Width: 231 mm, Depth: 450 mm, Height: 463 mm
Maximum CPU cooling height - 178 mm
Maximum length of the graphics card - 368 mm
Maximum length of the power supply - 200 mm
Maximum number of fans - 5
MicroATX Mainboard Form Factor - Yes
MiniITX Mainboard Form Factor - Yes
Model - BGW79
Model name - PURE BASE 501 LX
name - PC case Pure Base 501 LX ARGB white
No. of drive bays - 7
Number of expansion slots - 7
Number of fans installed - 4
Number of slots for expansion cards - 7
Ooptional water cooling - 1 x 120 mm (back)
Ooptional water cooling - 1 x 120 mm (front)
Ooptional water cooling - 1 x 120 mm (top)
Ooptional water cooling - 1 x 140 mm (back)
Ooptional water cooling - 1 x 140 mm (front)
Ooptional water cooling - 1 x 240 mm (front)
Ooptional water cooling - 1 x 240 mm (góra)
Ooptional water cooling - 1 x 280 mm (side)
Ooptional water cooling - 1 x 360 mm (front)
Optional fans - 1 x 120 mm or 1 x 140 mm (rear)
Optional fans - 2 x 120/140 mm (top)
Optional fans - 3 x 120 mm lub 2 x 140 mm (front)
Other features - Wymiary maksymalne: zasilacz: do 200 | 180 (z przesuniętą klatką HDD)
Other features - Fan connector - 4-pin
Other features - Volume - 24.4 L
Packaging data - Package depth - 518 mm
Packaging data - Package height - 503 mm
Packaging data - Package weight - 9.1 kg
Packaging data - Package width - 292 mm
Ports & interfaces - Audio input - Yes
Ports & interfaces - Audio output - Yes
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Power supply - Failure
Power supply - Power supply included - No
Power supply - Supported power supply form factors - ATX, PS2
producer - Be quiet!
ProductName - Pure Base 501 LX White
PSU - Not included
Shipping Box Depth Shipping/Package Box Dimensions - 52 cm
Shipping Box Height Shipping/Package Box Dimensions - 51 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 9 kg
Shipping Box Width Shipping/Package Box Dimensions - 29 cm
ShortSummaryDescription - be quiet! Pure Base 501 LX White, Midi Tower, PC, White, ATX, micro ATX, Mini-ATX, Acrylonitrile butadiene styrene (ABS), Glass, Steel, Multi
Side panel - Tempered Glass
Storage - Supported HDD sizes - 2.5,3.5"
Technical details - Compliance certificates - CE, RoHS, UKCA, WEEE
Technical details - Sustainability certificates - Triman
Technical details - Warranty period - 3 year(s)
Title - be quiet! Pure Base 501 LX White Midi Tower
Unit Box Height - 0.51
Unit Box Length - 0.52
Unit Box Width - 0.29
Unit Brutto Volume - 0.07691 cubm
Unit Gross Weight - 9.1 kg
Unit Net Weight - 7.9 kg
URL - https://www.bequiet.com/en/download/case/5752?utm_source=newsletter
USB-C Input/Output connectors - 1
USB 3.2 Input/Output connectors - 2
Vendor Homepage - www.bequiet.com/en/case/5756
vendpn - BGW79
Video -
Warranty - 24 months
WarrantyInfo - 3-year manufacturer's warranty
Weight - 7.85 kg
Weight & dimensions - Depth - 450 mm
Weight & dimensions - Height - 463 mm
Weight & dimensions - Weight - 7.9 kg
Weight & dimensions - Width - 231 mm
