ID: 515683
Product code: ADA-10
In stock 15 units
Warranty: 2 years

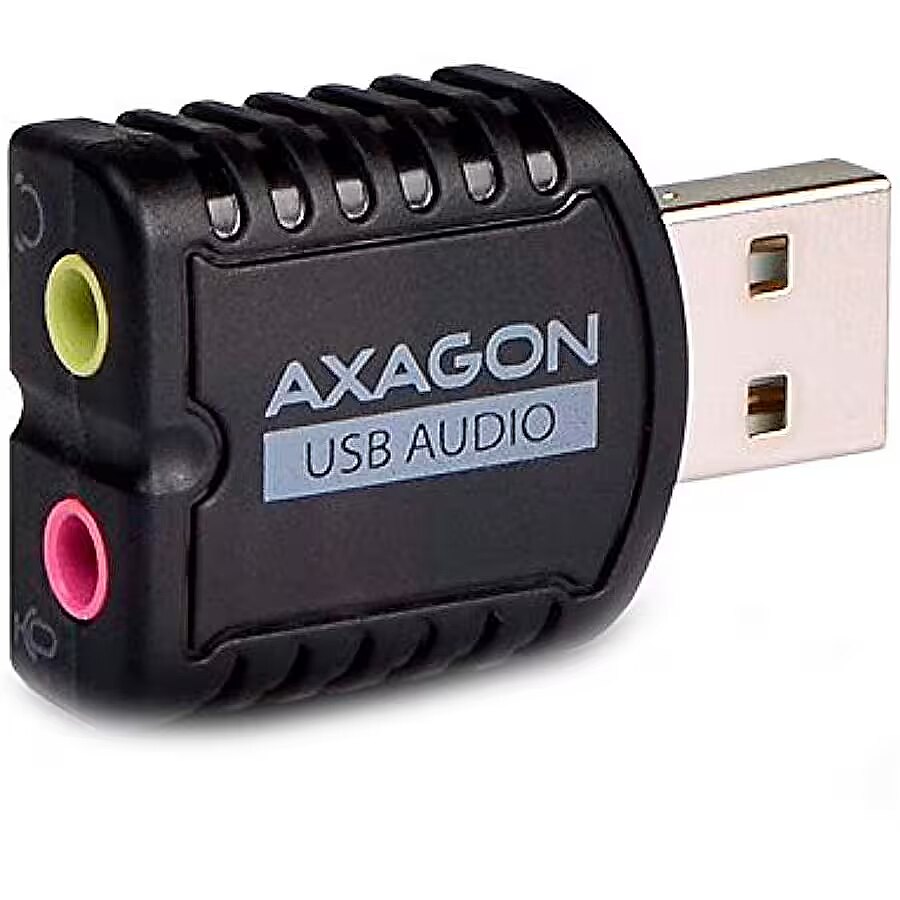

Axagon ADA-10 USB2.0 - Stereo Audio Mini Adapter
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: on Monday, 09.12.2024
- Courier delivery 3.99 €: on Monday, 09.12.2024
Main product parameters All parameters
- Interface: USB
- Speaker support: 2 speakers (2.0)
All parameters
Interface
USB
The type of connecting the sound card to the computer. The PCI connector is intended for installation in the enclosure of the desktop computer. The USB or FireWire connector will allow to connect the sound card to a portable computer or a desktop computer externally as any other peripheral device.
Prior to buying the sound card you should verify whether your computer has a compliant connection slot for connecting the card.
Speaker support
2 speakers (2.0)
The speakers support indicates the number of channels that the sound card has. For wholesome enjoyment of sound the speakers support of the sound card has to correspond to the number of channels of your playback devices or be higher.
Use
: For home
More detailed specification
Accessories included - Audio adapter Multilingual manual Packed in cardboard box with hanging hole
Audio Chipset - C-Media HS-100
Audio Controller Form Factor - External
Audio Data Width - 16-bit
Audio Line-Out Interface Quantity - 2
Audio Output Mode - Stereo
Box Weight Brutto (kg) - 3.3 kg
category - PC Components|Sound Cards|USB Sound Cards
Chipset type -
code - ADA-10
Color - Black
Connectors - 1x 3,5mm minijack Headphones
Connectors - 1x 3,5mm minijack Microphone
Depth (mm) - 39 mm
Description - AXAGON ADA-10 MINI USB audio adapter easily and quickly adds an external USB sound card to your computer. The miniature sound card is suitable for both desktop and laptop computers and allows headphones, microphones or headsets to be connected for Skype, Zoom, MS Teams services etc. It also serves well as a replacement for the broken original sound card in your notebook and replace headphones output or microphone input. The installation can be handled by everyone - only plug the adapter into the USB port of the computer and the rest is done automatically. Input:
1x USB 2.0 Full Speed USB port, backward compatible with USB 1.1.
USB type A male connector. Audio output:
2-channel analog 16-bit output (3.5 mm stereo jack):
stereo output for headphones or active speakers. Audio input:
1-channel analog 16-bit input (3.5 mm stereo jack):
mono microphone input. Sampling rate, resolution and output converter (DAC) noise:
analog - 44.1 / 48 kHz @ 16 bit for playback,
signal-to-Noise ratio (Output SNR) 93dB,
harmonic distortion (Output THD+N) -70dB. Sampling rate, resolution and input converter (ADC) noise:
analog - 44.1 / 48 kHz @ 16 bit for recording,
signal-to-Noise ratio (Input SNR) 83dB,
harmonic distortion (Input THD+N) -76dB. Other features:
Easy to install thanks to full Plug and Play support.
Possibility to connect your device while running thanks to the Hot Plug support.
Compliant with the USB Audio Device Class specification v1.0.
Adapter power supply via USB (bus power) - no auxiliary power supply required.
A green LED indicating the connection to the computer's USB port (permanent light) and data transmission (blinking).
Miniature dimensions of 39 x 24 x 12 mm, when inserted into the USB port, the adapter protrudes only 27 mm.
Weight only 8 g. Setting up a sound card in Windows allows:
adjusting volume and balance of speakers,
enhanced speaker features: Bass Boost, Virtual Surround Sound, Room Correction, Loudness Equalization,
setting the sampling rate and bit depth for both reproduction and recording,
setting the automatic level of gain for the microphone (Automatic Gain Control),
setting the manual level of gain for the microphone. Supported OSs:
MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 and later (supported are all 32- and 64-bit Windows OS versions), Mac OS X 10.4.x and higher, Linux with kernel 2.6.x and above.
Note: Drivers are included with supported operating systems and are installed completely automatically. No other drivers need to be installed and are not even available.
Compatible with all Internet telephony programs using the sound card. Package contains:
audio adapter,
printed multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
packed in a cardboard box with a hanging hole.
dimension depth - 20 mm
dimension height - 120 mm
Dimensions - 39 x 24 x 12 mm
dimension weight - 30 g
dimension width - 70 mm
ean - 8595247902276
EAN Code - 8595247902276
guarantee - 24
guarantee_type - normal
Height (mm) - 12 mm
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/190403160015430470.jpg
Interface - USB
name - AXAGON ADA-10 USB 2.0 Soundkarte
name - AXAGON ADA-10, USB 2.0 stereo audio mini adapt
Nominal Weight - 8 g
Other features - Input: 1x USB 2.0 Full Speed USB port, backward compatible with USB 1.1. USB type A male (male) connectors. Audio output: 2-channel 16bit analogue output (3.5mm stereo jack): stereo output for headphones or active speakers. Audio input: 1-channel 16bit analogue input (3.5 mm stereo jack): mono microphone input. Sample rate, resolution and output DAC noise: analogue - 44.1 / 48 kHz @ 16 bit for playback. Signal-to-noise ratio (Output SNR) 93dB, harmonic distortion (Output THD+N) -70dB. Sampling frequency, resolution and noise of the input converter (ADC): analogue - 44.1 / 48 kHz @ 16 bit for recording, Signal-to-noise ratio (Input SNR) 83dB, harmonic distortion (Input THD+N) -76dB.
Package Type - Box
Packs in Box - 80
Pack Weight Brutto (kg) - 0.05 kg
Pack Weight Netto (kg) - 0.27 kg
Pieces in pack - 1
producer - AXAGON
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=190329115035095413&THEME=asbis&LANG=lv
ProductCategory - Multivides komponenti
ProductCode - ADA-10
ProductDescription - AXAGON ADA-10 USB2.0 - Stereo Audio Mini Adapter
ProductType - Sound Card
Requires Operating System - Apple Mac OS Linux Microsoft Windows
Retail Packaging Net Weight Carton - 0.27 kg
Retail Packaging Net Weight Plastic - 0.27 kg
Software -
Supported operating systems - Linux
Supported operating systems - Mac OS
Supported operating systems - Windows 7
Supported operating systems - Windows 8
Supported operating systems - Windows 8.1
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Supported operating systems - Windows Server 2003
Supported operating systems - Windows Server 2008
Supported operating systems - Windows Server 2012
Supported operating systems - Windows Server 2016
Supported operating systems - Windows Server 2019
Supported operating systems - Windows Server 2022
Supported operating systems - Windows Vista
Supported operating systems - Windows XP
System Requirements - Supported OS: MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 and later (all 32- and 64-bit Windows OS versions supported), Mac OS X 10.4.x and higher, Linux with kernel 2.6.x and higher. NOTE: Drivers are included with supported operating systems and are installed automatically. No other drivers need to be installed and are not available. Compatible with all internet telephony programmes that use a sound card.
Technologies -
USB 2.0 Interface Quantity - 1
Vendor - AXAGON
vendpn - ADA-10
Warranty Products Returnable - Yes
Warranty Term (month) - 24 mēneši
Warranty validation Criteria - Serial Number
Weight - 8 g
Width (mm) - 24 mm
